Радиатор и шланги TOYOTA LAND CRUISER, 2021/07 - 2025, 3500CC 24-VALVE DOHC, VX TYPE, VJA300

Каталог

Япония

Модель

LAND CRUISER

Двигатель

3500CC 24-VALVE DOHC

Класс

VX TYPE

Фрейм

VJA300

Опции

7-местный WITH TURBO (HARGER) 810W

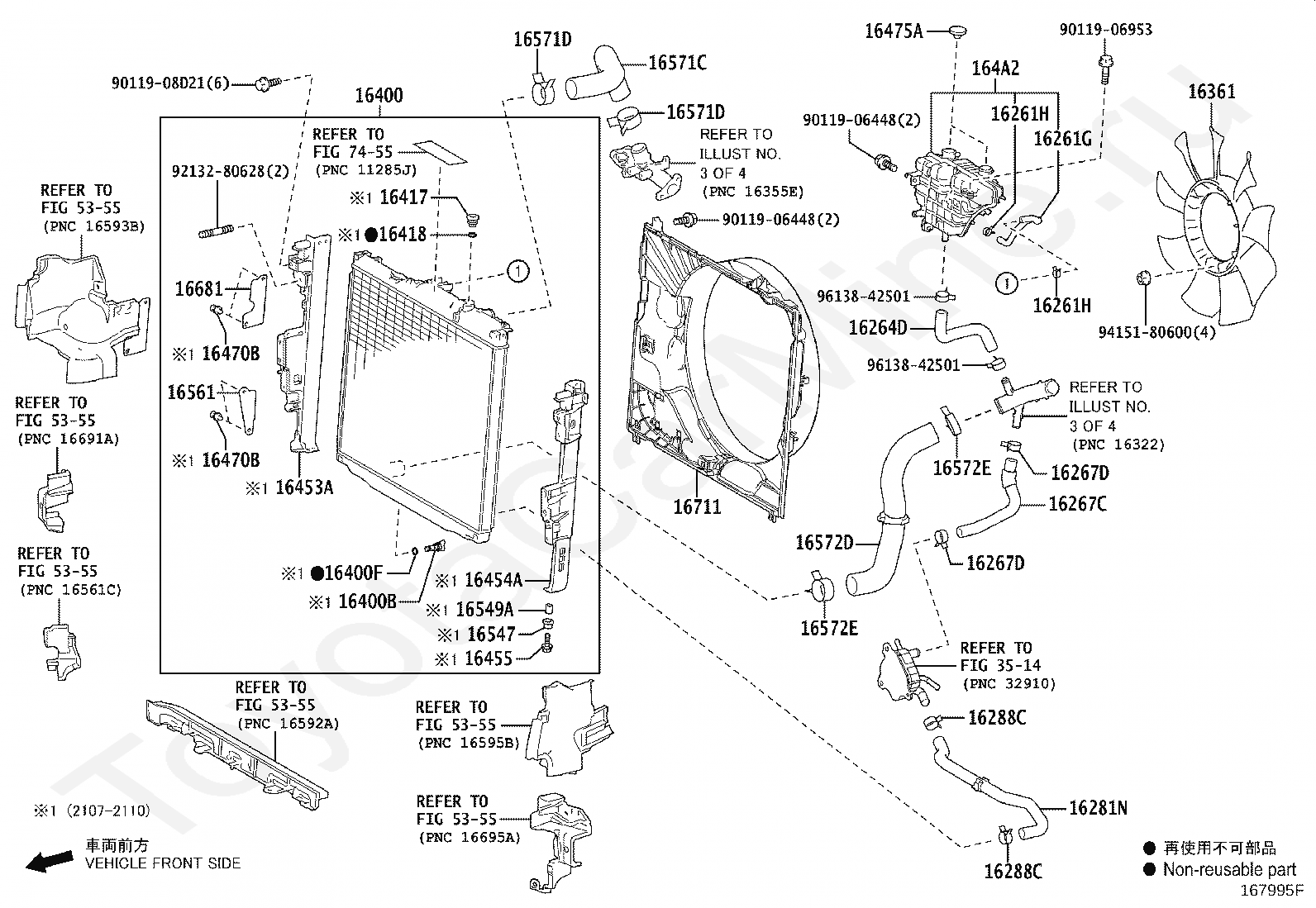

Код

Описание

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16264D

HOSE, WATER BY-PASS, NO.2

16267C

HOSE, WATER BY-PASS, NO.4

16267D

CLIP(FOR WATER BY-PASS HOSE NO.4)

16281N

HOSE, WATER BY-PASS, NO.4

16288C

CLIP(FOR WATER BY-PASS PIPE NO.4)

16361

FAN

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16417

COCK

16418

PACKING

16453A

PLATE, RADIATOR SIDE SUPPORT, RH

16454A

PLATE, RADIATOR SIDE SUPPORT, LH

16455

BOLT, RADIATOR SIDE SUPPORT PLATE

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16475A

CAP, RESERVE TANK

164A2

TANK, RESERVE SEALED W/O CAP

16547

BUSH, RADIATOR SUPPORT, NO.1

16549A

COLLAR, RADIATOR SUPPORT, NO.1

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16681

PLATE, RADIATOR UPPER AIR GUIDE

16711

SHROUD, FAN

3514

переход к группе запчастей

5355

переход к группе запчастей

7455

переход к группе запчастей

9011906448

Крепеж

9011906953

Крепеж

9011908D21

Крепеж

9213280628

Крепеж

9415180600

Крепеж

9613842501

Крепеж

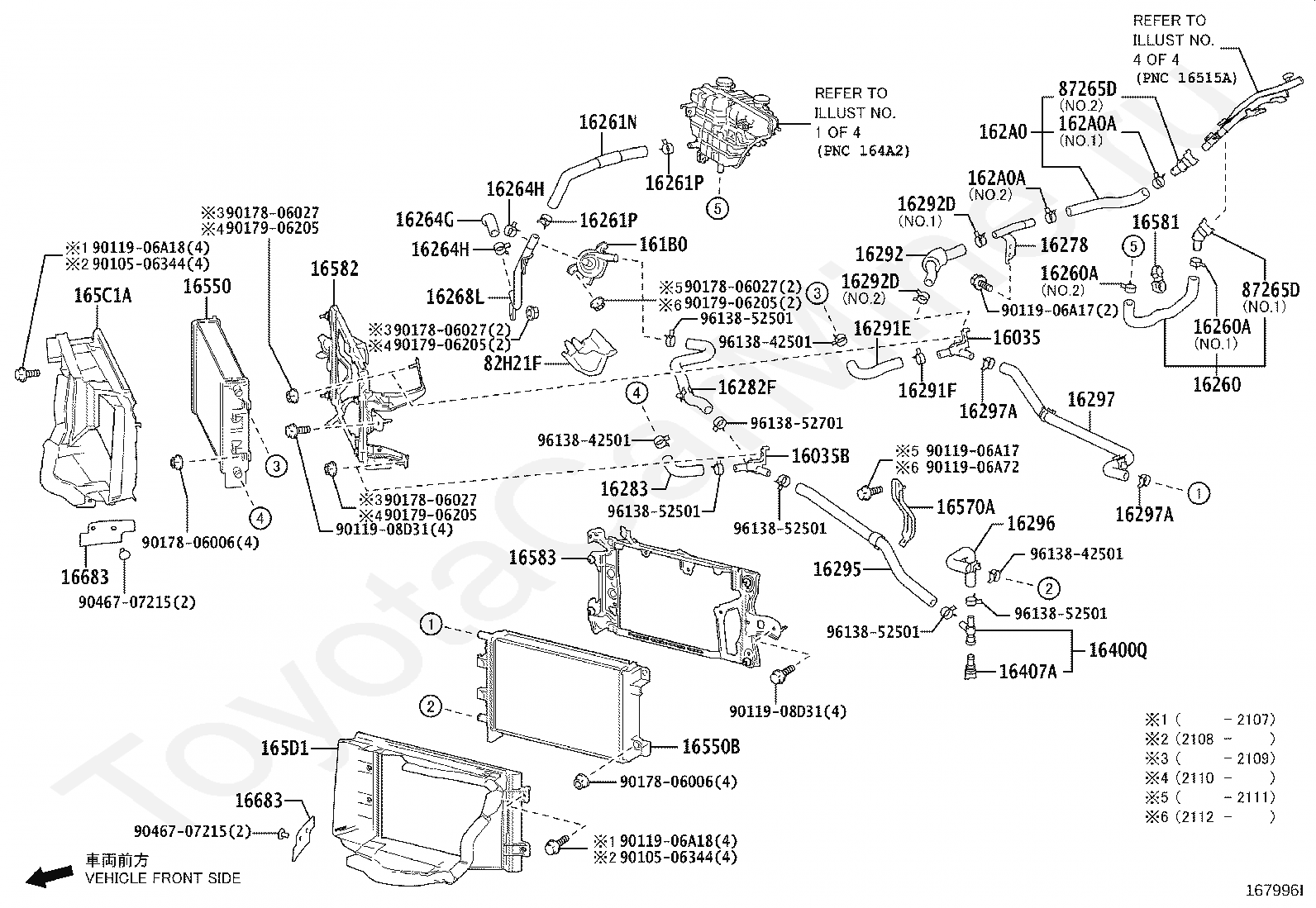

Код

Описание

16035

JOINT, WATER HOSE

16035B

JOINT SUB-ASSY, WATER BY-PASS, FRONT

161B0

PUMP ASSY, ELECTRIC WATER

16260

HOSE ASSY, WATER BY-PASS

16260A

CLIP(FOR WATER BY-PASS HOSE ASSY)

16261N

HOSE, WATER BY-PASS, NO.2

16261P

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264G

HOSE, WATER BY-PASS, NO.3

16264H

CLIP(FOR WATER BY-PASS HOSE NO.3)

16268L

PIPE, WATER BY-PASS

16278

PIPE, WATER BY-PASS, NO.2

16282F

HOSE, WATER BY-PASS, NO.5

16283

HOSE, WATER BY-PASS, NO.6

16291E

JOINT,WATER HOSE, NO.1

16291F

CLIP(FOR WATER HOSE JOINT NO.1)

16292

JOINT, WATER HOSE, NO.2

16292D

CLIP(FOR WATER HOSE JOINT NO.2)

16295

HOSE, WATER BY-PASS, NO.7

16296

HOSE, WATER BY-PASS, NO.8

16297

HOSE, WATER BY-PASS, NO.9

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

162A0

HOSE ASSY, WATER BY-PASS, NO.4

162A0A

CLIP(FOR WATER BY-PASS HOSE ASSY NO.4)

16400Q

COCK ASSY, DRAIN

16407A

COCK SUB-ASSY, RADIATOR DRAIN

16550

RADIATOR ASSY, INTERCOOLER COOLING

16550B

RADIATOR ASSY, INTERCOOLER COOLING, NO.2

16570A

BRACKET ASSY, WATER HOSE CLAMP

16581

CLAMP, HOSE(FOR WATER HOSE)

16582

BRACKET, RADIATOR, NO.1

16583

BRACKET, RADIATOR, NO.2

165C1A

DUCT, SUB-RADIATOR, RH NO.1

165D1

DUCT, SUB-RADIATOR, LH NO.1

16683

PLATE, RADIATOR LOWER AIR GUIDE

82H21F

COVER, CONNECTOR

87265D

CONNECTOR, HEATER WATER HOSE

9010506344

Крепеж

9011906A17

Крепеж

9011906A18

Крепеж

9011906A72

Крепеж

9011908D31

Крепеж

9017806006

Крепеж

9017806027

Крепеж

9017906205

Крепеж

9046707215

Крепеж

9613842501

Крепеж

9613852501

Крепеж

9613852701

Крепеж

Код

Описание

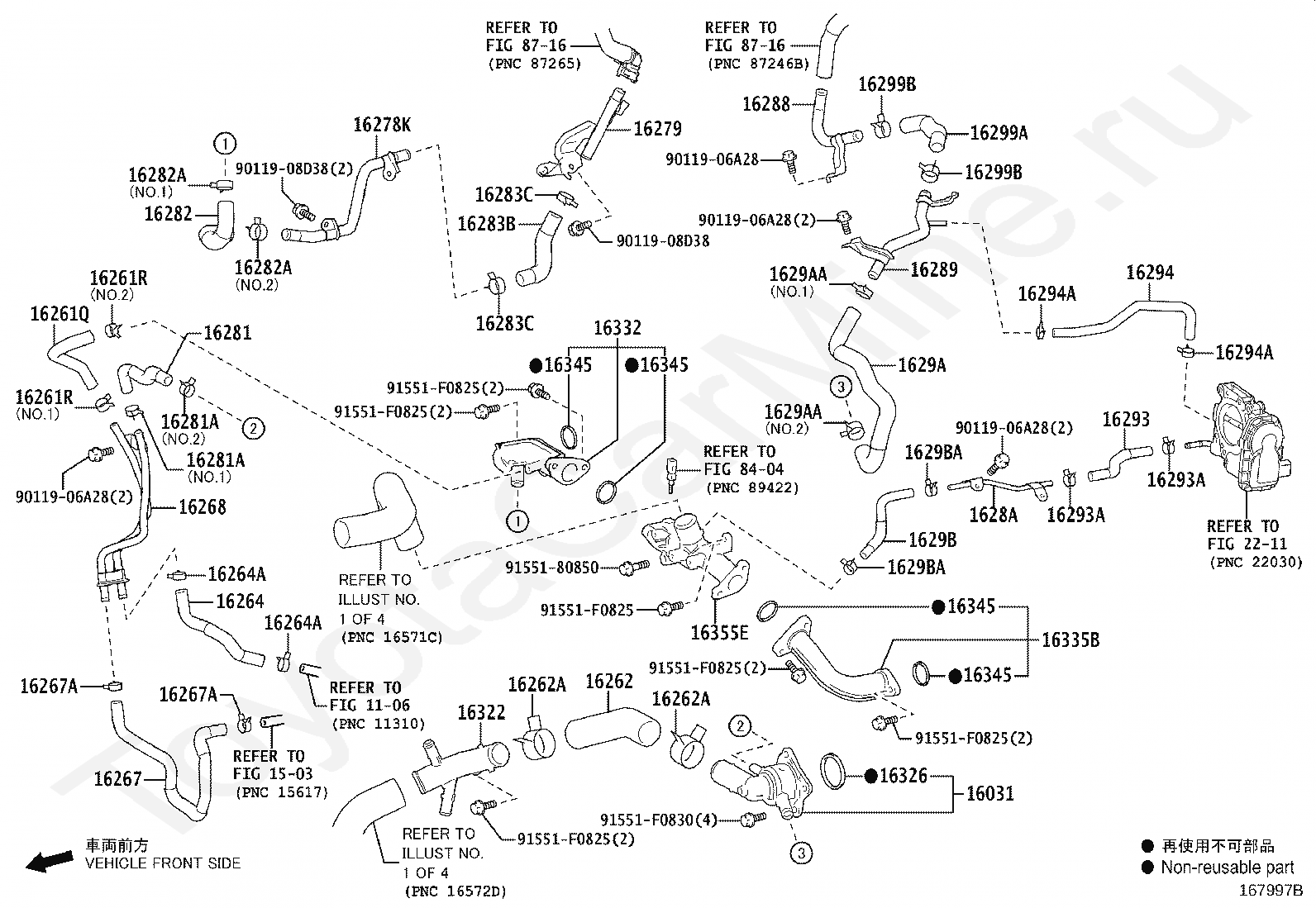

1106

переход к группе запчастей

1503

переход к группе запчастей

16031

WATER INLET SUB-ASSY, W/THERMOSTAT

16261Q

HOSE, WATER BY-PASS

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16262

HOSE, WATER INLET

16262A

CLIP(FOR WATER INLET HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16278K

PIPE, WATER BY-PASS, NO.2

16279

PIPE, WATER BY-PASS, NO.3

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16283B

HOSE, WATER BY-PASS

16283C

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16288

PIPE, WATER BY-PASS, NO.4

16289

PIPE, WATER BY-PASS, NO.5

1628A

PIPE, WATER BY-PASS, NO.6

16293

HOSE, WATER BY-PASS, NO.10

16293A

CLIP(FOR WATER BY-PASS HOSE NO.10)

16294

HOSE, WATER BY-PASS, NO.11

16294A

CLIP(FOR WATER BY-PASS HOSE NO.11)

16299A

HOSE, WATER BY-PASS, NO.13

16299B

CLIP(FOR WATER BY-PASS HOSE NO.13)

1629A

HOSE, WATER BY-PASS, NO.14

1629AA

CLIP(FOR WATER BY-PASS HOSE NO.14)

1629B

HOSE, WATER BY-PASS, NO.15

1629BA

CLIP(FOR WATER BY-PASS HOSE NO.15)

16322

PIPE, WATER INLET

16326

GASKET, WATER INLET HOUSING, NO.2

16332

PIPE, WATER OUTLET, NO.1

16335B

PIPE, WATER OUTLET, NO.2

16345

GASKET, WATER OUTLET PIPE

16355E

JOINT, WATER BY-PASS(FOR WATER OUTLET PIPE)

2211

переход к группе запчастей

8404

переход к группе запчастей

8716

переход к группе запчастей

9011906A28

Крепеж

9011908D38

Крепеж

9155180850

Крепеж

91551F0825

Крепеж

91551F0830

Крепеж

Код

Описание

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16028

PIPE SUB-ASSY, TURBO WATER, NO.2

16029

PIPE SUB-ASSY, TURBO WATER, NO.3

16284

HOSE, TURBO WATER, NO.1

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16285

HOSE, TURBO WATER, NO.2

16285A

CLIP(FOR TURBO WATER HOSE NO.2)

16286

HOSE, TURBO WATER, NO.3

16286A

CLIP(FOR TURBO WATER HOSE NO.3)

16287

HOSE, TURBO WATER, NO.4

16287A

CLIP(FOR TURBO WATER HOSE NO.4)

1628B

HOSE, TURBO WATER, NO.5

162A2

GASKET, TURBO WATER PIPE, RH

162A3

GASKET, TURBO WATER PIPE, LH

16515A

PIPE, INTERCOOLER COOLING WATER, NO.1

16551C

HOSE, INTERCOOLER COOLING WATER, NO.1

16551D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1)

16552C

HOSE, INTERCOOLER COOLING WATER, NO.2

16552D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.2)

16575C

BRACKET, WATER HOSE CLAMP, NO.1

16581W

CLAMP, HOSE(FOR WATER HOSE)

16891

CONNECTOR, TURBO WATER, NO.1

16892C

CONNECTOR, TURBO WATER, NO.2

9011906A28

Крепеж

9613841301

Крепеж

9613841501

Крепеж
