> Запчасти CRUISER > Поиск по каталогу

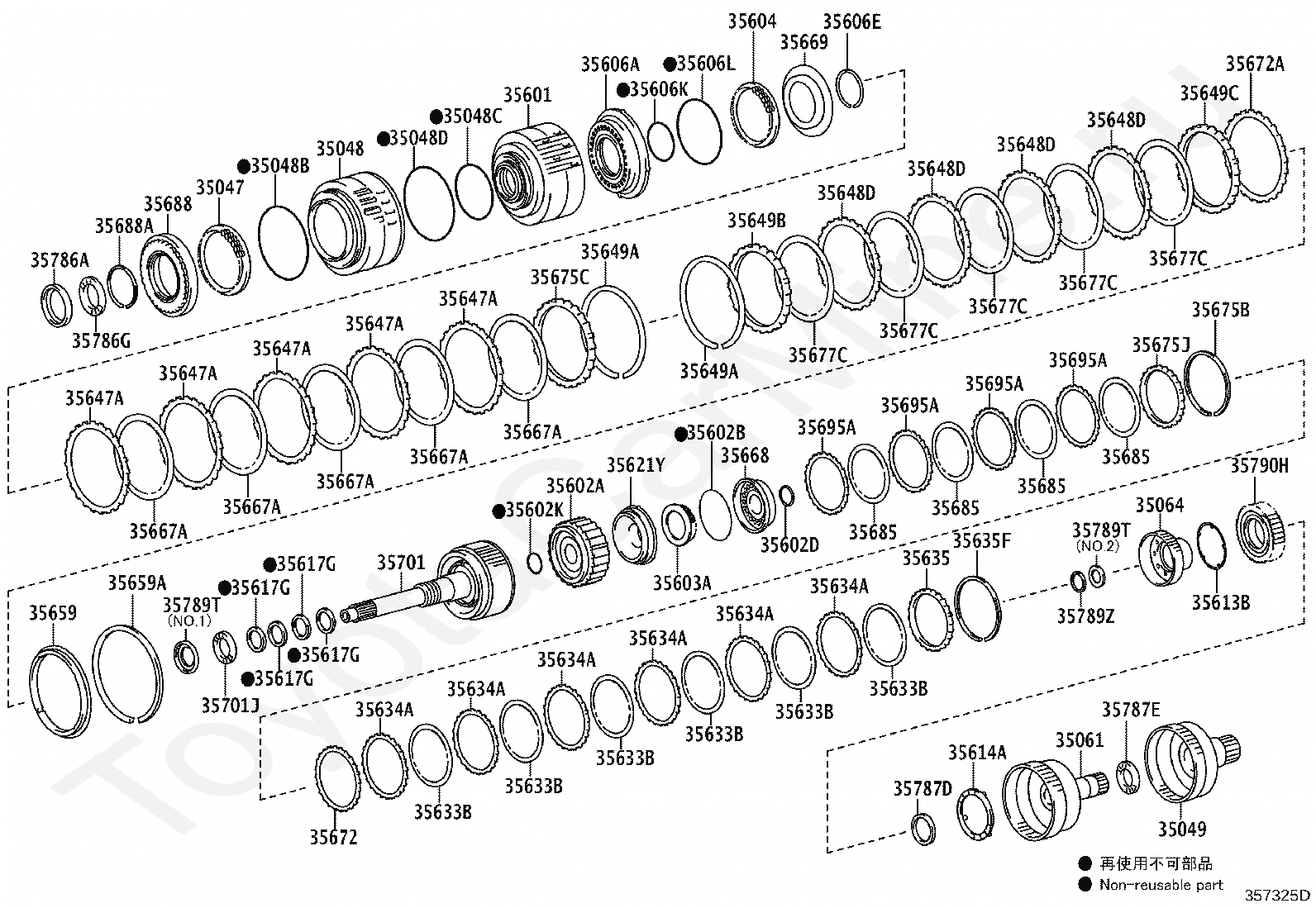

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM) TOYOTA LAND CRUISER, 2015/08 - 2024, 4,6 литра, 32 клапана DOHC, EFI, VX TYPE, URJ202

Каталог

Европа

Модель

LAND CRUISER

Двигатель

4,6 литра, 32 клапана DOHC, EFI

Класс

VX TYPE

Фрейм

URJ202

Опции

левый руль 5-местный 646W
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

35047

SPRING SUB-ASSY, REVERSE CLUTCH RETURN

35048

PISTON SUB-ASSY, REVERSE CLUTCH

35048B

RING, O (FOR REVERSE CLUTCH PISTON)

35048C

RING, O(FOR REVERSE CLUTCH PISTON INNER)

35048D

RING, O(FOR DIRECT CLUTCH PISTON OUTER)

35049

HUB SUB-ASSY, REVERSE CLUTCH

35061

HUB SUB-ASSY, FORWARD CLUTCH

35064

HUB SUB-ASSY, COAST CLUTCH

35601

DRUM SUB-ASSY, CLUTCH

35602A

PISTON SUB-ASSY, FORWARD CLUTCH

35602B

RING, O (FOR FORWARD CLUTCH PISTON)

35602D

RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)

35602K

RING, O(FOR FORWARD CLUTCH PISTON INNER)

35603A

SPRING SUB-ASSY, FORWARD CLUTCH RETURN

35604

SPRING SUB-ASSY, DIRECT CLUTCH RETURN

35606A

PISTON SUB-ASSY, DIRECT CLUTCH

35606E

RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)

35606K

RING, O(FOR DIRECT CLUTCH PISTON INNER)

35606L

RING, O(FOR DIRECT CLUTCH PISTON OUTER)

35613B

WASHER, CLUTCH HUB THRUST, NO.2

35614A

WASHER, CLUTCH HUB THRUST, NO.3

35617G

RING, CLUTCH DRUM OIL SEAL

35621Y

PISTON, COAST CLUTCH

35633B

DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

35634A

PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

35635

FLANGE, FORWARD CLUTCH

35635F

RING SNAP (FOR FOWARD CLUTCH FLANGE)

35647A

PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

35648D

PLATE, CLUTCH, NO.3

35649A

RING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE)

35649B

FLANGE, REVERSE CLUTCH

35649C

FLANGE, REVERSE CLUTCH

35659

SLEEVE, REVERSE CLUTCH REACTION

35659A

RING, SNAP (FOR REVERSE CLUTCH REACTION SLEEVE)

35667A

DISK, DIRECT CLUTCH

35668

BALANCER, CLUTCH, NO.1

35669

BALANCER, CLUTCH, NO.2

35672

PLATE, CLUTCH CUSHION

35672A

PLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH)

35675B

RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

35675C

FLANGE, DIRECT CLUTCH

35675J

FLANGE, COAST CLUTCH

35677C

DISC, REAR CLUTCH

35685

DISC, COAST CLUTCH

35688

BALANCER, CLUTCH, NO.3

35688A

RING, SNAP (FOR REVERSE CLUTCH RETURN SPRING)

35695A

PLATE, COAST CLUTCH

35701

SHAFT SUB-ASSY, INPUT

35701J

BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)

35786A

RACE, THRUST BEARING, NO.1

35786G

BEARING,THRUST NEEDLE ROLLER

35787D

BEARING, THRUST NEEDLE ROLLER

35787E

BEARING, THRUST NEEDLE ROLLER

35789T

RACE, THRUST BEARING (INPUT SHAFT REAR)

35789Z

BEARING, THRUST NEEDLE ROLLER

35790H

CLUTCH ASSY, 1WAY NO.4
