Каталог
ЕвропаМодель
LAND CRUISERДвигатель
4,6 литра, 32 клапана DOHC, EFIКласс
VX TYPEФрейм
URJ202Опции
левый руль 5-местный 646WКод
Описание

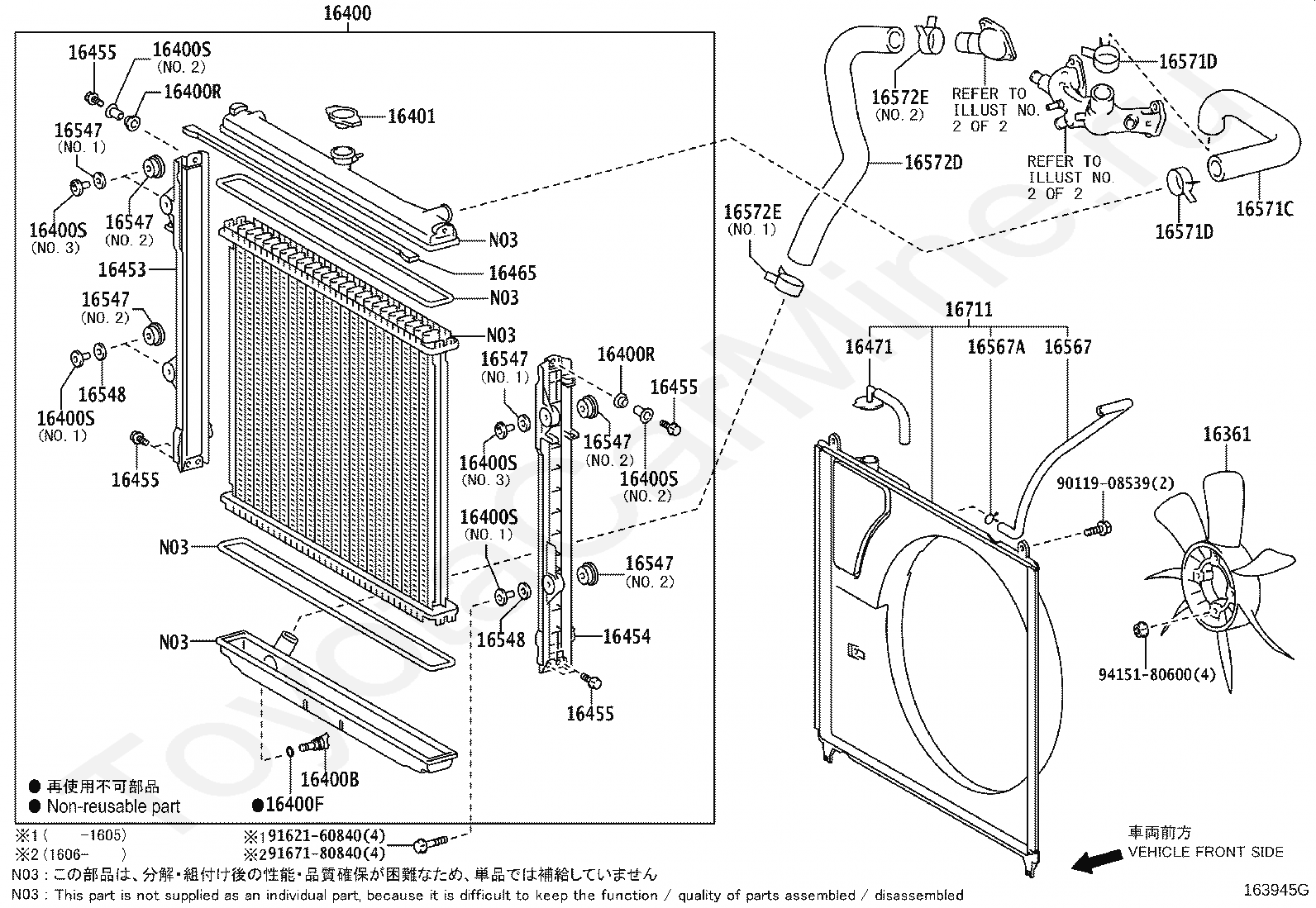

16361
FAN
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16400R
BUSHING(FOR RADIATOR)
16400S
COLLAR(FOR RADIATOR)
16401
CAP SUB-ASSY, RADIATOR
16453
PLATE, RADIATOR SIDE
16454
PLATE, RADIATOR SIDE
16455
BOLT, RADIATOR SIDE SUPPORT PLATE
16465
PACKING, RADIATOR
16471
CAP SUB-ASSY, RESERVE TANK
16547
BUSH, RADIATOR SUPPORT, NO.1
16548
BUSH, RADIATOR SUPPORT, NO.2
16567
HOSE(FOR RADIATOR RESERVE TANK)
16567A
CLIP(FOR RADIATOR RESERVE TANK HOSE)
16571C
HOSE, RADIATOR, NO.1
16571D
CLIP, RADIATOR HOSE, NO.1
16572D
HOSE, RADIATOR, NO.2
16572E
CLIP, RADIATOR HOSE, NO.2
16711
SHROUD, FAN
9011908539
Крепеж
9162160840
Крепеж
9167180840
Крепеж
9415180600
Крепеж
Код
Описание
1503
переход к группе запчастей

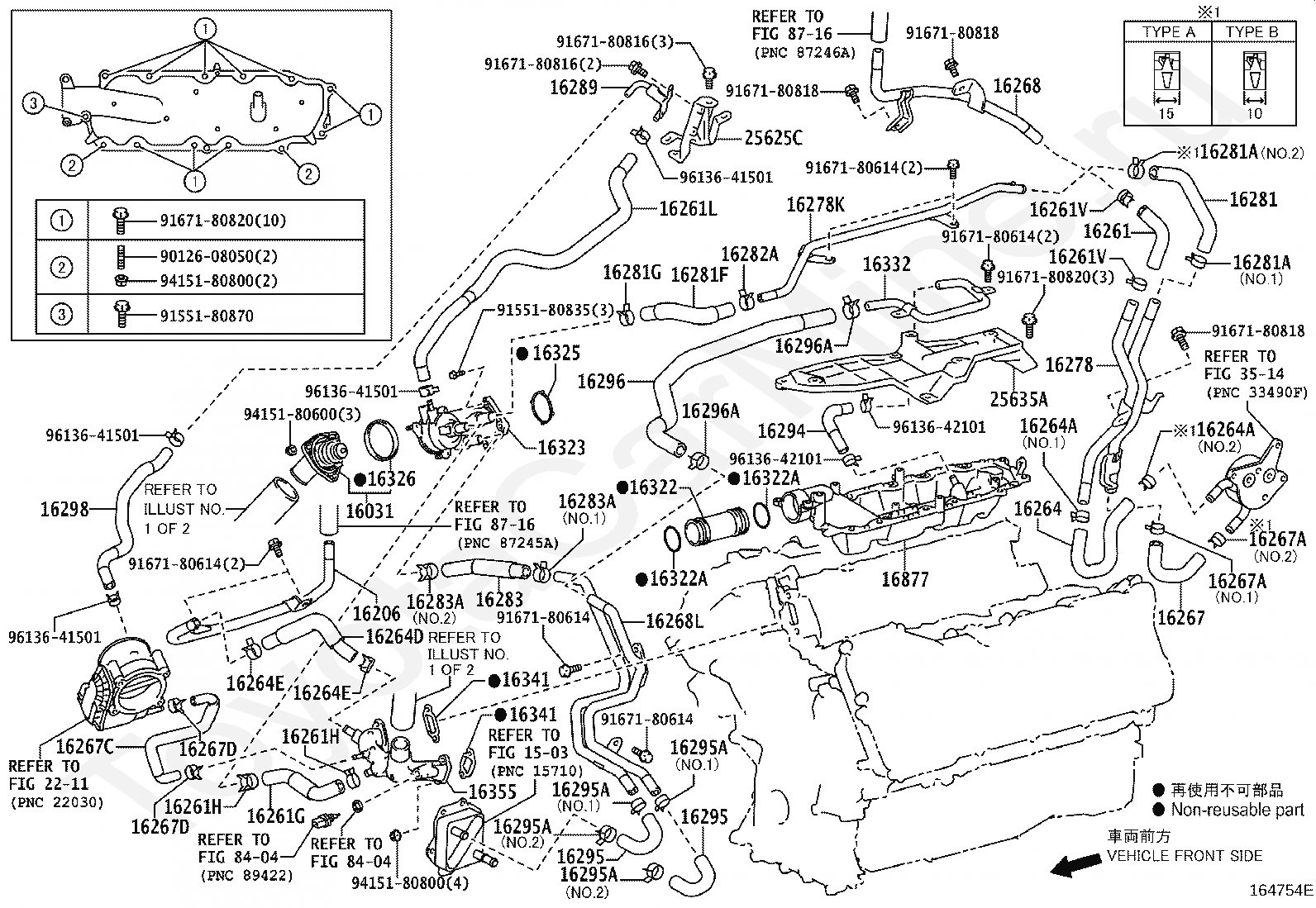

16031
WATER INLET SUB-ASSY, W/THERMOSTAT
16206
PIPE SUB-ASSY, WATER BY-PASS
16261
HOSE, WATER BY-PASS
16261G
HOSE, WATER BY-PASS, NO.1
16261H
CLIP(FOR WATER BY-PASS HOSE NO.1)
16261L
HOSE, WATER BY-PASS
16261V
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16264D
HOSE, WATER BY-PASS, NO.2
16264E
CLIP(FOR WATER BY-PASS HOSE NO.2)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16267C
HOSE, WATER BY-PASS, NO.4
16267D
CLIP(FOR WATER BY-PASS HOSE NO.4)
16268
PIPE, WATER BY-PASS, NO.1
16268L
PIPE, WATER BY-PASS
16278
PIPE, WATER BY-PASS, NO.2
16278K
PIPE, WATER BY-PASS, NO.2
16281
HOSE, WATER BY-PASS, NO.4
16281A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
16281F
HOSE, WATER BY-PASS, NO.5
16281G
CLIP(FOR WATER BY-PASS HOSE NO.5)
16282A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
16283
HOSE, WATER BY-PASS, NO.6
16283A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16289
PIPE, WATER BY-PASS, NO.5
16294
HOSE, WATER BY-PASS, NO.11
16295
HOSE, WATER BY-PASS, NO.7
16295A
CLIP(FOR WATER BY-PASS HOSE NO.7)
16296
HOSE, WATER BY-PASS, NO.8
16296A
CLIP(FOR WATER BY-PASS HOSE NO.8)
16298
HOSE, WATER BY-PASS, NO.12
16322
PIPE, WATER INLET
16322A
RING, O(FOR WATER INLET)
16323
HOUSING, WATER INLET
16325
GASKET, WATER INLET HOUSING, NO.1
16326
GASKET, WATER INLET HOUSING, NO.2
16332
PIPE, WATER OUTLET, NO.1
16341
GASKET, WATER OUTLET
16355
JOINT, WATER BY-PASS, FRONT
16877
COVER, HEAT EXCHANGER, NO.1
2211
переход к группе запчастей
25625C
BRACKET, EGR VALVE
25635A
BRACKET, EGR PIPE, NO.1
3514
переход к группе запчастей
8404
переход к группе запчастей
8716
переход к группе запчастей
9012608050
Крепеж
9155180835
Крепеж
9155180870
Крепеж
9167180614
Крепеж
9167180816
Крепеж
9167180818
Крепеж
9167180820
Крепеж
9415180600
Крепеж
9415180800
Крепеж
9613641501
Крепеж
9613642101
Крепеж
