> Запчасти CRUISER > Поиск по каталогу

Топливный бак и горловина TOYOTA LAND CRUISER 100, 1998/01 - 2007/08, 4,2 литра, дизель, GX SPECIFICATION, HZJ105, механика, МКПП, 5 скоростей

Каталог

Ближний Восток

Модель

LAND CRUISER 100

Двигатель

4,2 литра, дизель

Класс

GX SPECIFICATION

Фрейм

HZJ105

Трансмиссия

механика МКПП, 5 скоростей

Опции

правый руль LIFT UP BACK DOOR дизель, два клапана GENERAL COUNTRIES
  • 1
  • 2
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

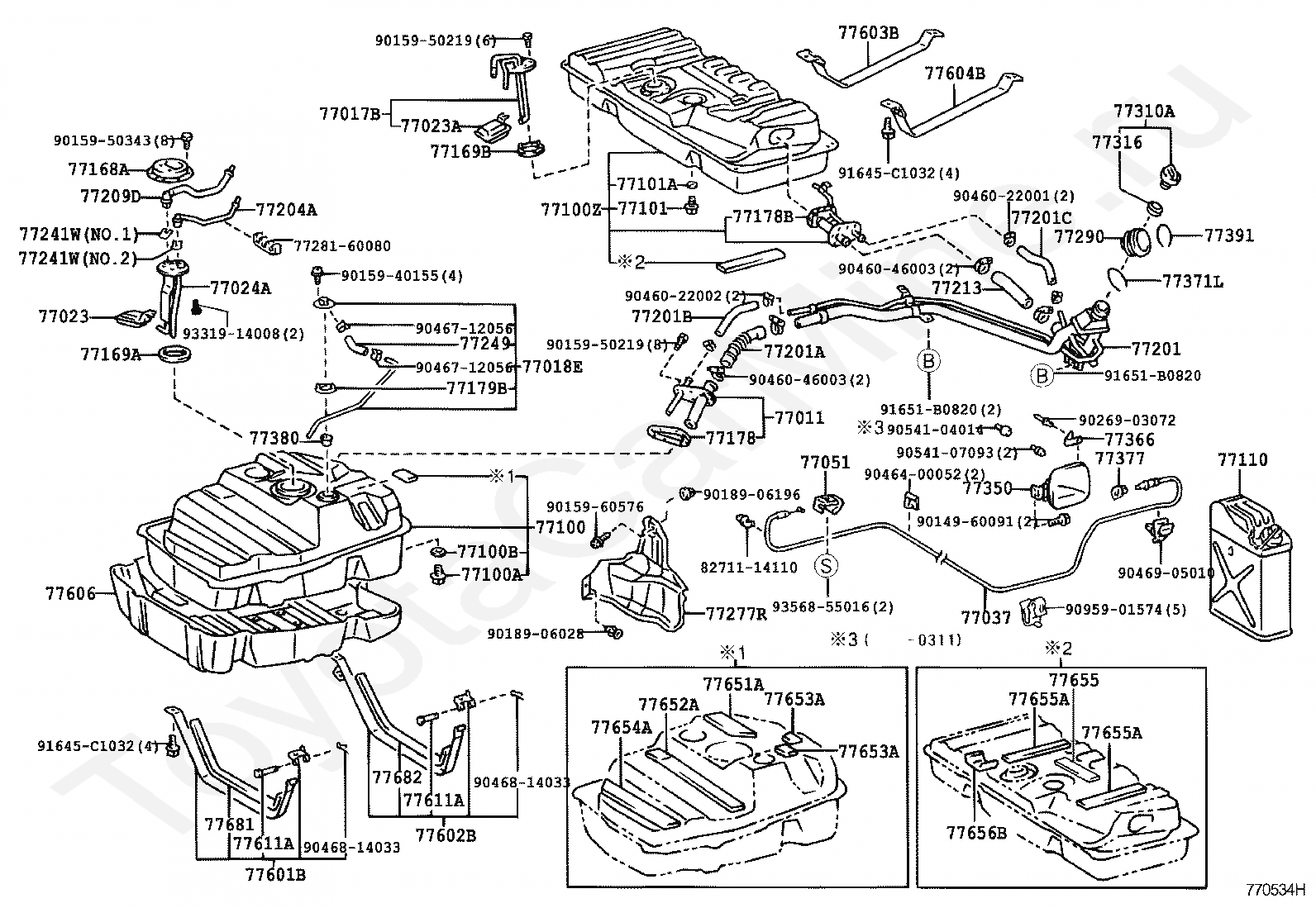

Код

Описание

77011

PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

77017B

TUBE SUB-ASSY, FUEL TANK VENT

77018E

TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

77023

FILTER SUB-ASSY, FUEL SUCTION TUBE

77023A

FILTER SUB-ASSY, FUEL SUCTION TUBE(FOR SUB-TANK)

77024A

PLATE SUB-ASSY, FUEL SUCTION

77037

LOCK SUB-ASSY, FUEL FILLER OPENING LID

77051

LEVER SUB-ASSY, FUEL LID OPEN

77100

TANK ASSY, FUEL

77100A

PLUG(FOR FUEL TANK)

77100B

GASKET(FOR FUEL TANK)

77100Z

TANK SUB-ASSY, FUEL SUB

77101

PLUG(FOR FUEL SUB-TANK)

77101A

GASKET(FOR FUEL SUB-TANK)

77110

TANK ASSY, AUXILIARY FUEL

77168A

PLATE, FUEL TANK VENT TUBE SET

77169A

GASKET, FUEL SUCTION TUBE SET

77169B

GASKET, FUEL SUCTION TUBE SET, NO.1

77178

GASKET, FUEL TANK FILLER PIPE, LOWER

77178B

GASKET, FUEL TANK FILLER PIPE, LOWER (FOR SUB-TANK)

77179B

GASKET, FUEL TANK EVAPORATION VENT TUBE

77201

PIPE SUB-ASSY, FUEL TANK INLET

77201A

HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

77201B

HOSE, FUEL, NO.2(FOR FUEL TANK INLET PIPE)

77201C

HOSE, FUEL, NO.3(FOR FUEL TANK INLET PIPE)

77204A

TUBE, FUEL TANK RETURN

77209D

TUBE SUB-ASSY, FUEL TANK MAIN

77213

HOSE, FUEL TANK SUB INLET

77241W

CLIP, TUBE JOINT

77249

HOSE, FUEL EMISSION

77277R

PROTECTOR, FUEL TANK FILLER PIPE

7728160080

Крепеж

77290

SHIELD ASSY, FUEL TANK FILLER PIPE

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77350

LID ASSY, FUEL FILLER OPENING

77366

SPRING, FUEL FILLER OPENING LID HINGE

77371L

RING, FUEL TANK FILLER PIPE SHIELD

77377

RETAINER, FUEL FILLER OPENING LID LOCK

77380

VALVE ASSY, FUEL CUT OFF

77391

RING, FUEL INLET BOX

77601B

BAND SUB-ASSY, FUEL TANK, NO.1 RH

77602B

BAND SUB-ASSY, FUEL TANK, NO.1 LH

77603B

BAND SUB-ASSY, FUEL TANK, NO.2 RH

77604B

BAND SUB-ASSY, FUEL TANK, NO.2 LH

77606

PROTECTOR SUB-ASSY, FUEL TANK, NO.1

77611A

PIN (FOR FUEL TANK BAND)

77651A

CUSHION, FUEL TANK, NO.1

77652A

CUSHION, FUEL TANK, NO.2

77653A

CUSHION, FUEL TANK, NO.3

77654A

CUSHION, FUEL TANK, NO.4

77655

CUSHION, FUEL TANK, NO.3

77655A

CUSHION, FUEL TANK, NO.5

77656B

CUSHION, FUEL TANK, NO.6

77681

SEAT, FUEL TANK BAND, RH

77682

SEAT, FUEL TANK BAND, LH

8271114110

Крепеж

9014960091

Крепеж

9015940155

Крепеж

9015950219

Крепеж

9015950343

Крепеж

9015960576

Крепеж

9018906028

Крепеж

9018906196

Крепеж

9026903072

Крепеж

9046022001

Крепеж

9046022002

Крепеж

9046046003

Крепеж

9046400052

Крепеж

9046712056

Крепеж

9046814033

Крепеж

9046905010

Крепеж

9054104014

Крепеж

9054107093

Крепеж

9095901574

Крепеж

91645C1032

Крепеж

91651B0820

Крепеж

9331914008

Крепеж

9356855016

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

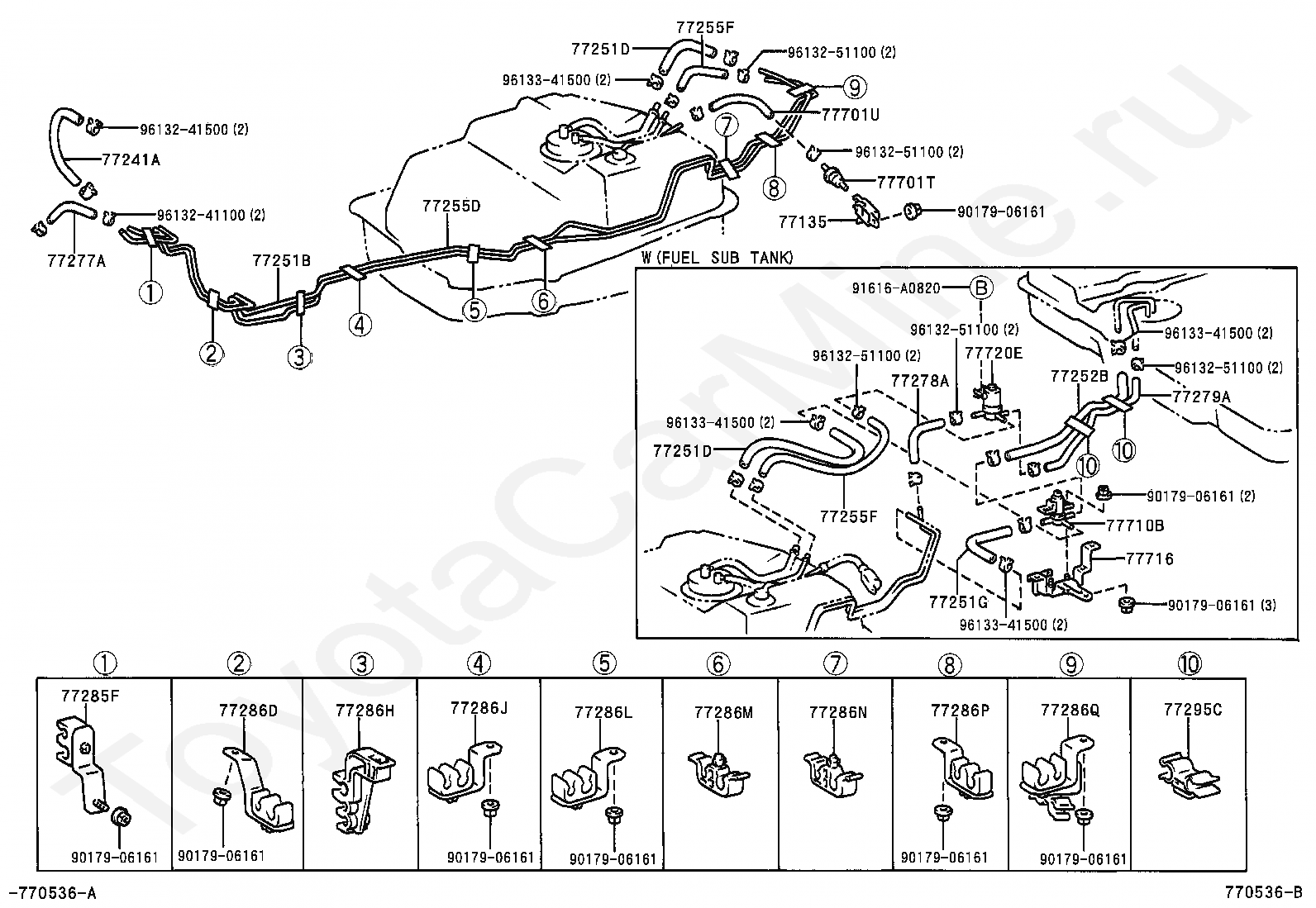

Код

Описание

77135

BRACKET, CHECK VALVE

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77251B

TUBE, FUEL MAIN

77251D

HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)

77251G

HOSE, FUEL, NO.3(FOR FUEL MAIN TUBE)

77252B

HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE)

77255D

TUBE, FUEL RETURN

77255F

HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

77277A

HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

77278A

HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)

77279A

HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.3)

77285F

CLAMP, FUEL TUBE, NO.1

77286D

CLAMP, FUEL TUBE, NO.2

77286H

CLAMP, FUEL TUBE, NO.3

77286J

CLAMP, FUEL TUBE, NO.4

77286L

CLAMP, FUEL TUBE, NO.5

77286M

CLAMP, FUEL TUBE, NO.6

77286N

CLAMP, FUEL TUBE, NO.7

77286P

CLAMP, FUEL TUBE, NO.8

77286Q

CLAMP, FUEL TUBE, NO.9

77295C

GROMMET, FUEL TUBE

77701T

VALVE, CHECK (FOR MAIN FUEL TANK)

77701U

HOSE, FUEL (FOR CHECK VALVE)

77710B

VALVE ASSY, FUEL TANK SOLENOID MAIN

77716

BRACKET, FUEL SOLENOID VALVE MAIN

77720E

VALVE ASSY, FUEL TANK SOLENOID RETURN

9017906161

Крепеж

91616A0820

Крепеж

9613241100

Крепеж

9613241500

Крепеж

9613251100

Крепеж

9613341500

Крепеж
