Каталог
Ближний ВостокМодель
LAND CRUISER 100Двигатель
4,5 литра, EFIКласс
STANDARD TYPEФрейм
FZJ105Трансмиссия
механика МКПП, 5 скоростейОпции
правый руль SWING OUT BACK DOOR электронная система впрыска топлива АвстралияКод

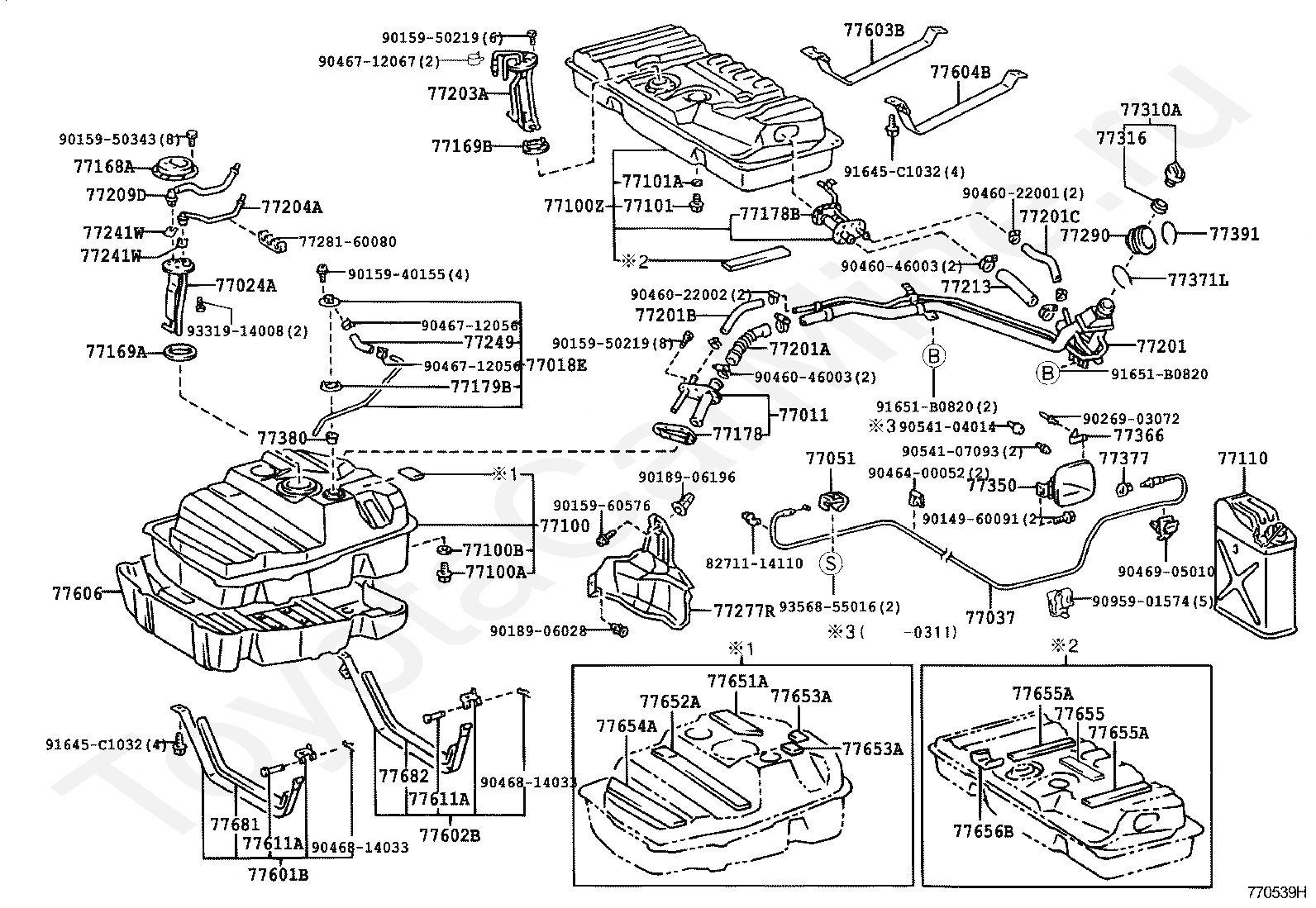

Описание
77011
PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77018E
TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77024A
PLATE SUB-ASSY, FUEL SUCTION
77037
LOCK SUB-ASSY, FUEL FILLER OPENING LID
77051
LEVER SUB-ASSY, FUEL LID OPEN
77100
TANK ASSY, FUEL
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77100Z
TANK SUB-ASSY, FUEL SUB
77101
PLUG(FOR FUEL SUB-TANK)
77101A
GASKET(FOR FUEL SUB-TANK)
77110
TANK ASSY, AUXILIARY FUEL
77168A
PLATE, FUEL TANK VENT TUBE SET
77169A
GASKET, FUEL SUCTION TUBE SET
77169B
GASKET, FUEL SUCTION TUBE SET, NO.1
77178
GASKET, FUEL TANK FILLER PIPE, LOWER
77178B
GASKET, FUEL TANK FILLER PIPE, LOWER (FOR SUB-TANK)
77179B
GASKET, FUEL TANK EVAPORATION VENT TUBE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77201A
HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77201B
HOSE, FUEL, NO.2(FOR FUEL TANK INLET PIPE)
77201C
HOSE, FUEL, NO.3(FOR FUEL TANK INLET PIPE)
77203A
TUBE SUB-ASSY, FUEL SUCTION
77204A
TUBE, FUEL TANK RETURN
77209D
TUBE SUB-ASSY, FUEL TANK MAIN
77213
HOSE, FUEL TANK SUB INLET
77241W
CLIP, TUBE JOINT
77249
HOSE, FUEL EMISSION
77277R
PROTECTOR, FUEL TANK FILLER PIPE
7728160080
Крепеж
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77371L
RING, FUEL TANK FILLER PIPE SHIELD
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77380
VALVE ASSY, FUEL CUT OFF
77391
RING, FUEL INLET BOX
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77603B
BAND SUB-ASSY, FUEL TANK, NO.2 RH
77604B
BAND SUB-ASSY, FUEL TANK, NO.2 LH
77606
PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611A
PIN (FOR FUEL TANK BAND)
77651A
CUSHION, FUEL TANK, NO.1
77652A
CUSHION, FUEL TANK, NO.2
77653A
CUSHION, FUEL TANK, NO.3
77654A
CUSHION, FUEL TANK, NO.4
77655
CUSHION, FUEL TANK, NO.3
77655A
CUSHION, FUEL TANK, NO.5
77656B
CUSHION, FUEL TANK, NO.6
77681
SEAT, FUEL TANK BAND, RH
77682
SEAT, FUEL TANK BAND, LH
8271114110
Крепеж
9014960091
Крепеж
9015940155
Крепеж
9015950219
Крепеж
9015950343
Крепеж
9015960576
Крепеж
9018906028
Крепеж
9018906196
Крепеж
9026903072
Крепеж
9046022001
Крепеж
9046022002
Крепеж
9046046003
Крепеж
9046400052
Крепеж
9046712056
Крепеж
9046712067
Крепеж
9046814033
Крепеж
9046905010
Крепеж
9054104014
Крепеж
9054107093
Крепеж
9095901574
Крепеж
91645C1032
Крепеж
91651B0820
Крепеж
9331914008
Крепеж
9356855016
Крепеж

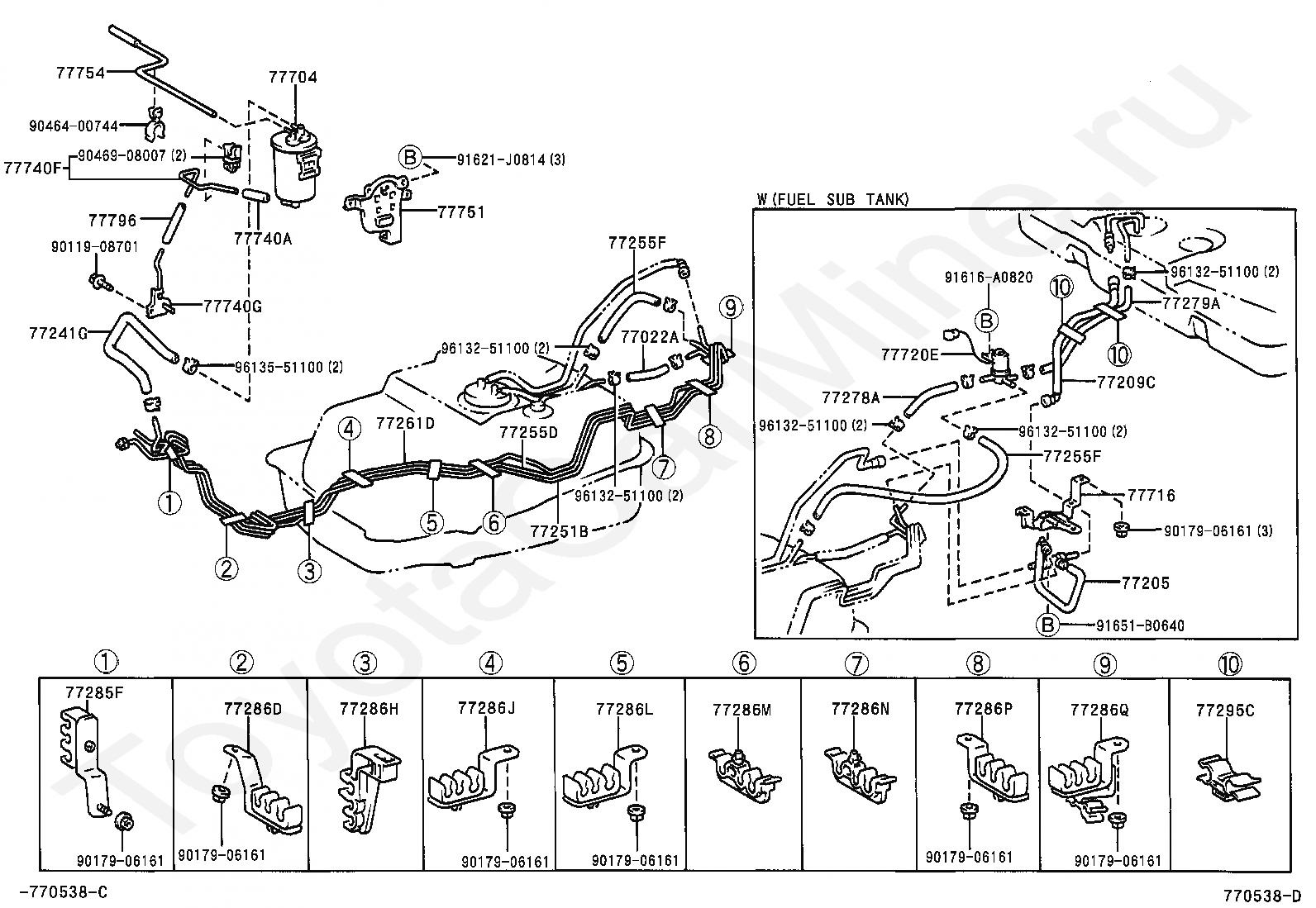

Код
Описание
77022A
HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77205
TUBE SUB-ASSY, FUEL MAIN
77209C
TUBE SUB-ASSY, FUEL TANK MAIN
77241G
HOSE, FUEL, NO.6
77251B
TUBE, FUEL MAIN
77255D
TUBE, FUEL RETURN
77255F
HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77261D
TUBE, FUEL TANK TO CANISTER
77278A
HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
77279A
HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.3)
77285F
CLAMP, FUEL TUBE, NO.1
77286D
CLAMP, FUEL TUBE, NO.2
77286H
CLAMP, FUEL TUBE, NO.3
77286J
CLAMP, FUEL TUBE, NO.4
77286L
CLAMP, FUEL TUBE, NO.5
77286M
CLAMP, FUEL TUBE, NO.6
77286N
CLAMP, FUEL TUBE, NO.7
77286P
CLAMP, FUEL TUBE, NO.8
77286Q
CLAMP, FUEL TUBE, NO.9
77295C
GROMMET, FUEL TUBE
77704
CANISTER SUB-ASSY, CHARCOAL
77716
BRACKET, FUEL SOLENOID VALVE MAIN
77720E
VALVE ASSY, FUEL TANK SOLENOID RETURN
77740A
HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77740F
TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77740G
TUBE, FUEL, NO.2(FOR CHARCOAL CANISTER)
77751
BRACKET, CHARCOAL CANISTER BASE
77754
HOSE, CHARCOAL CANISTER OUTLET, NO.1
77796
HOSE, CHARCOAL CANISTER OUTLET, NO.3
9011908701
Крепеж
9017906161
Крепеж
9046400744
Крепеж
9046908007
Крепеж
91616A0820
Крепеж
91621J0814
Крепеж
91651B0640
Крепеж
9613251100
Крепеж
9613551100
Крепеж
