Кресла TOYOTA LAND CRUISER VAN, 1995/01 - 1998/01, 4,2 литра, турбо-дизель, VX TYPE, HDJ81, механика

Каталог

Япония

Модель

LAND CRUISER VAN

Двигатель

4,2 литра, турбо-дизель

Класс

VX TYPE

Фрейм

HDJ81

Трансмиссия

механика

Опции

LIFT UP BACK DOOR TURBO DIESEL 4 VALVE

Код

Описание

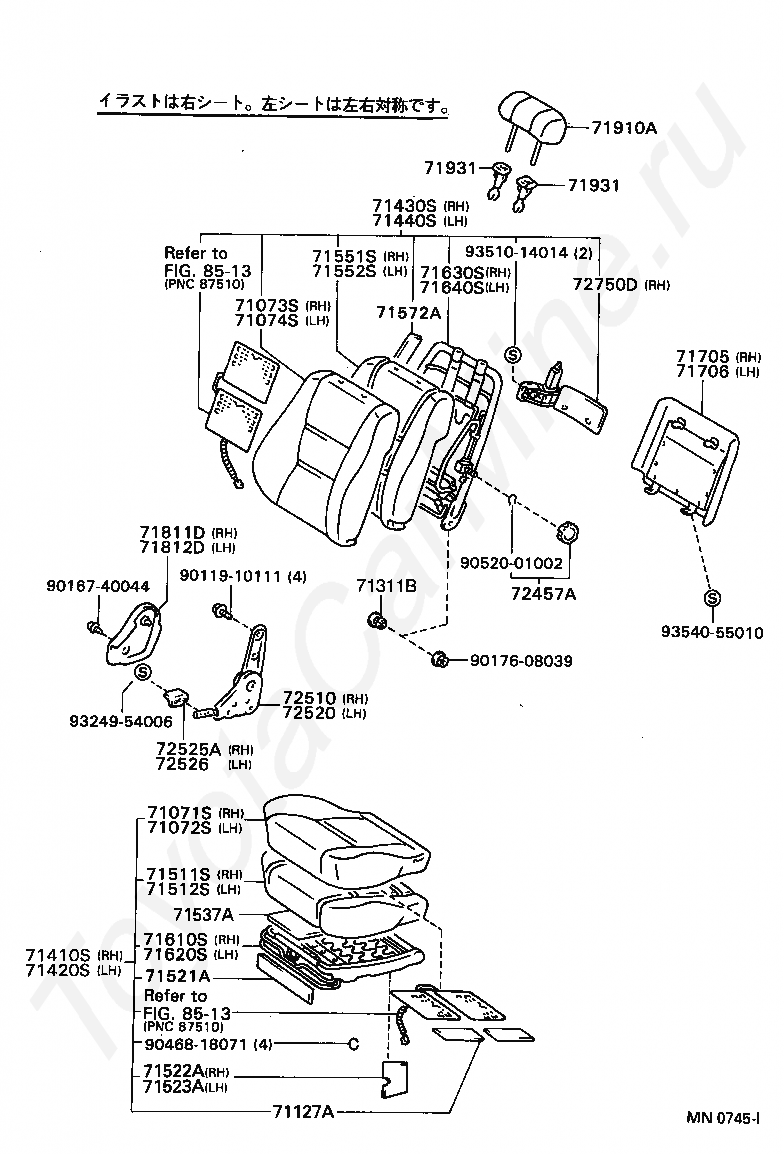

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71127A

PLATE, FR0NT SEAT CUSHION COVER SET

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71521A

PAD,FRONT SEAT CUSHION SILENCER

71522A

PAD, FRONT SEAT CUSHION SILENCER, B

71523A

PAD, FRONT SEAT CUSHION SILENCER, C

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71572A

PAD, FRONT SEAT BACK SILENCER, B

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71705

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71706

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72457A

KNOB, SEAT ADJUSTER

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

8513

переход к группе запчастей

9011910111

Крепеж

9016740044

Крепеж

9017608039

Крепеж

9046818071

Крепеж

9052001002

Крепеж

9324954006

Крепеж

9351014014

Крепеж

9354055010

Крепеж

Код

Описание

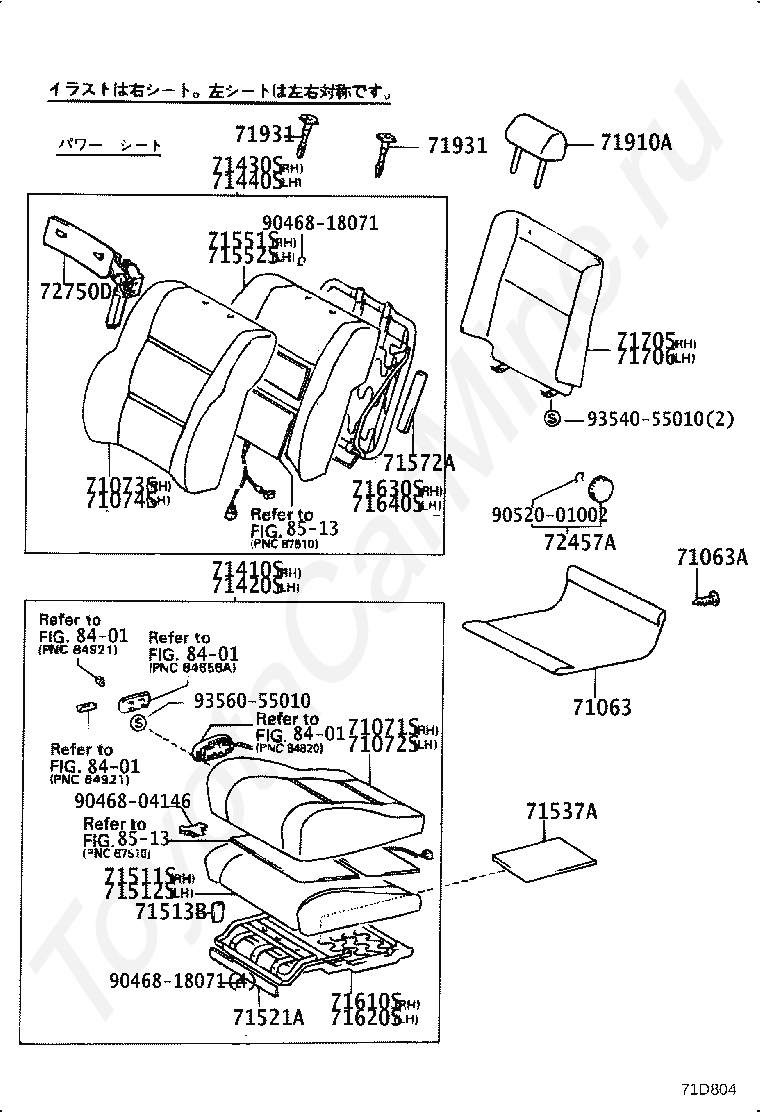

71063

COVER SUB-ASSY, FRONT SEAT BACK, REAR

71063A

CLIP, FRONT SEAT BACK COVER, REAR

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71513B

PAD, FRONT SEAT CUSHION, B

71521A

PAD,FRONT SEAT CUSHION SILENCER

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71572A

PAD, FRONT SEAT BACK SILENCER, B

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71705

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71706

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72457A

KNOB, SEAT ADJUSTER

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

8401

переход к группе запчастей

8513

переход к группе запчастей

9046804146

Крепеж

9046818071

Крепеж

9052001002

Крепеж

9354055010

Крепеж

9356055010

Крепеж

Код

Описание

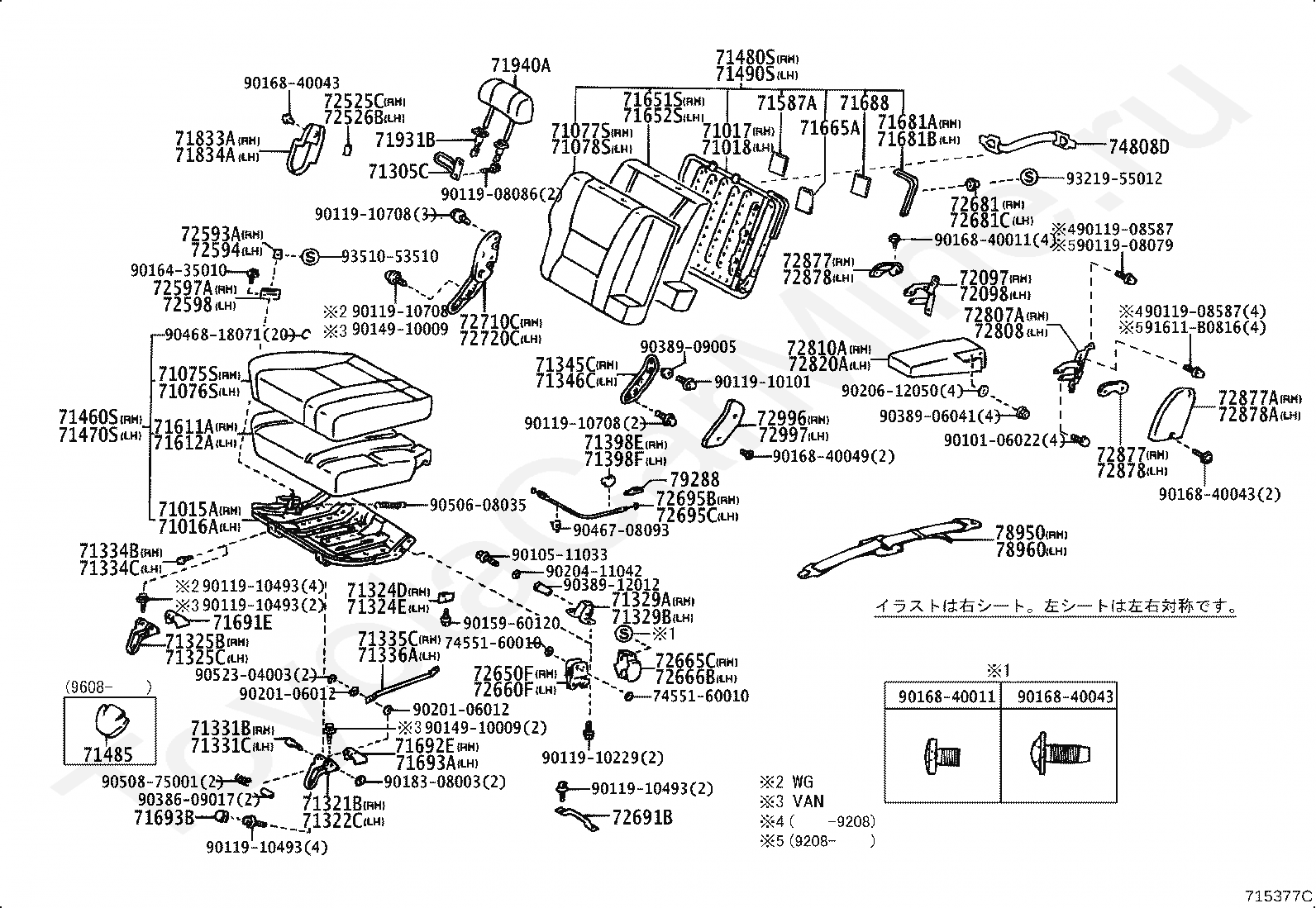

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71305C

STAY SUB-ASSY, REAR SEAT

71321B

HINGE, REAR SEAT CUSHION, RH

71322C

HINGE, REAR SEAT CUSHION, LH

71324D

CUSHION, REAR SEAT, RH

71324E

CUSHION, REAR SEAT, LH

71325B

HINGE, REAR SEAT CUSHION LEG, RH

71325C

HINGE, REAR SEAT CUSHION LEG, LH

71329A

REINFORCEMENT, REAR SEAT CUSHION SUPPORT, RH

71329B

REINFORCEMENT, REAR SEAT CUSHION SUPPORT, LH

71331B

PIN, REAR SEAT HINGE, RH

71331C

PIN, REAR SEAT HINGE, LH

71334B

STOPPER, REAR SEAT LEG, RH

71334C

STOPPER, REAR SEAT LEG, LH

71335C

STAY, REAR SEAT CUSHION LINK, RH

71336A

STAY, REAR SEAT CUSHION LINK, LH

71345C

HINGE, REAR SEAT BACK, RH

71346C

HINGE, REAR SEAT BACK, LH

71398E

GUIDE, REAR SEAT CUSHION SUPPORT, RH

71398F

GUIDE, REAR SEAT CUSHION SUPPORT, LH

71460S

CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE)

71470S

CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71480S

BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

71485

COVER, REAR SEAT HINGE

71490S

BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71587A

PROTECTOR, REAR SEAT BACK EDGE

71611A

PAD, REAR SEAT CUSHION, RH

71612A

PAD, REAR SEAT CUSHION, LH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71665A

PAD, REAR SEAT BACK, SIDE A

71681A

PAD, REAR SEAT BACK CORNER, RH

71681B

PAD, REAR SEAT BACK CORNER, LH

71688

PAD, REAR SEAT BACK CORNER, H

71691E

COVER, REAR SEAT CUSHION HINGE, NO.1

71692E

COVER, REAR SEAT CUSHION HINGE, NO.2

71693A

COVER, REAR SEAT CUSHION HINGE, NO.3

71693B

CAP, REAR SEAT CUSHION HINGE

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72097

LINK SUB-ASSY, REAR SEAT CENTER ARMREST, INNER RH

72098

LINK SUB-ASSY, REAR SEAT CENTER ARMREST, INNER LH

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72593A

KNOB, REMOTE CONTROL LEVER, RH

72594

KNOB, REMOTE CONTROL LEVER, LH

72597A

BEZEL, RECLINING REMOTE CONTROL LEVER, RH

72598

BEZEL, RECLINING REMOTE CONTROL LEVER, LH

72650F

LOCK ASSY, REAR SEAT, RH

72660F

LOCK ASSY, REAR SEAT, LH

72665C

COVER, REAR SEAT LOCK, RH

72666B

COVER, REAR SEAT LOCK, LH

72681

HOOK, REAR SEAT BACK LOCK, LOWER

72681C

HOOK, REAR SEAT BACK LOCK, LOWER

72691B

STRIKER, REAR SEAT CUSHION LOCK

72695B

CABLE, REAR SEAT LOCK CONTROL, RH

72695C

CABLE, REAR SEAT LOCK CONTROL, LH

72710C

ADJUSTER ASSY, NO.1 SEAT RECLINING, RH

72720C

ADJUSTER ASSY, NO.1 SEAT RECLINING, LH

72807A

LINK SUB-ASSY, REAR SEAT CENTER ARMREST, RH

72808

LINK SUB-ASSY, REAR SEAT CENTER ARMREST, LH

72810A

ARMREST ASSY, SEAT, RH

72820A

ARMREST ASSY, SEAT, LH

72877

COVER, SEAT ARMREST, RH

72877A

COVER, SEAT ARMREST, NO.2 RH

72878

COVER, SEAT ARMREST, LH

72878A

COVER, SEAT ARMREST, NO.2 LH

72996

COVER, REAR SEAT BACK, RH

72997

COVER, REAR SEAT BACK, LH

7455160010

Крепеж

74808D

SEPARATER SUB-ASSY, REAR

78950

BAND ASSY, FOLD SEAT STOPPER, NO.1

78960

BAND ASSY, FOLD SEAT STOPPER, NO.2

79288

STOPPER, NO.2 SEAT CUSHION

9010106022

Крепеж

9010511033

Крепеж

9011908079

Крепеж

9011908086

Крепеж

9011908587

Крепеж

9011910101

Крепеж

9011910229

Крепеж

9011910493

Крепеж

9011910708

Крепеж

9014910009

Крепеж

9015960120

Крепеж

9016435010

Крепеж

9016840011

Крепеж

9016840043

Крепеж

9016840049

Крепеж

9018308003

Крепеж

9020106012

Крепеж

9020411042

Крепеж

9020612050

Крепеж

9038609017

Крепеж

9038906041

Крепеж

9038909005

Крепеж

9038912012

Крепеж

9046708093

Крепеж

9046818071

Крепеж

9050608035

Крепеж

9050875001

Крепеж

9052304003

Крепеж

91611B0816

Крепеж

9321955012

Крепеж

9351053510

Крепеж

Код

Описание

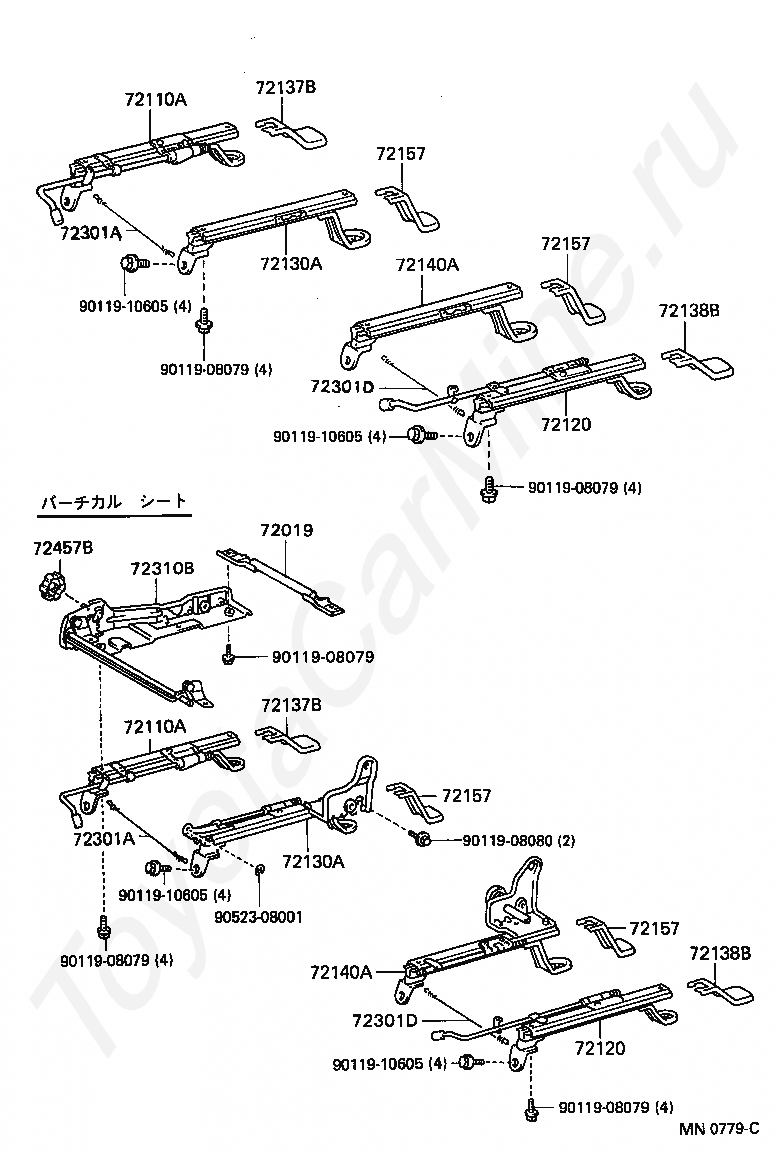

72019

RETAINER SUB-ASSY, SEAT TRACK, REAR RH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72137B

COVER, SEAT TRACK, RH

72138B

COVER, SEAT TRACK, LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72157

COVER, SEAT TRACK BRACKET, INNER

72301A

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

72301D

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH

72310B

ADJUSTER ASSY, FRONT SEAT VERTICAL, RH

72457B

KNOB, VERTICAL SEAT ADJUSTER, RH

9011908079

Крепеж

9011908080

Крепеж

9011910605

Крепеж

9052308001

Крепеж

Код

Описание

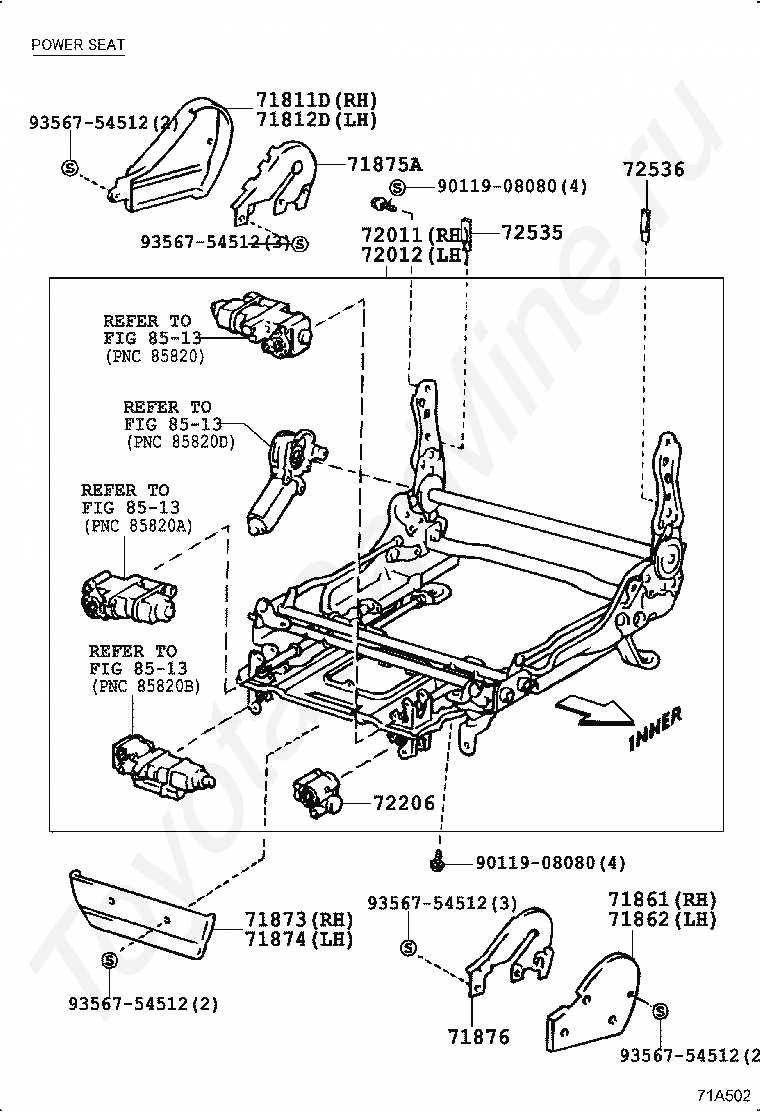

71811D

SHIELD, FRONT SEAT CUSHION, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

72011

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

72012

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

72206

HOUSING SUB-ASSY, POWER SEAT, NO.2

72535

GUIDE, RECLINING PAWL, RH

72536

GUIDE, RECLINING PAWL, LH

8513

переход к группе запчастей

9011908080

Крепеж

9356754512

Крепеж
