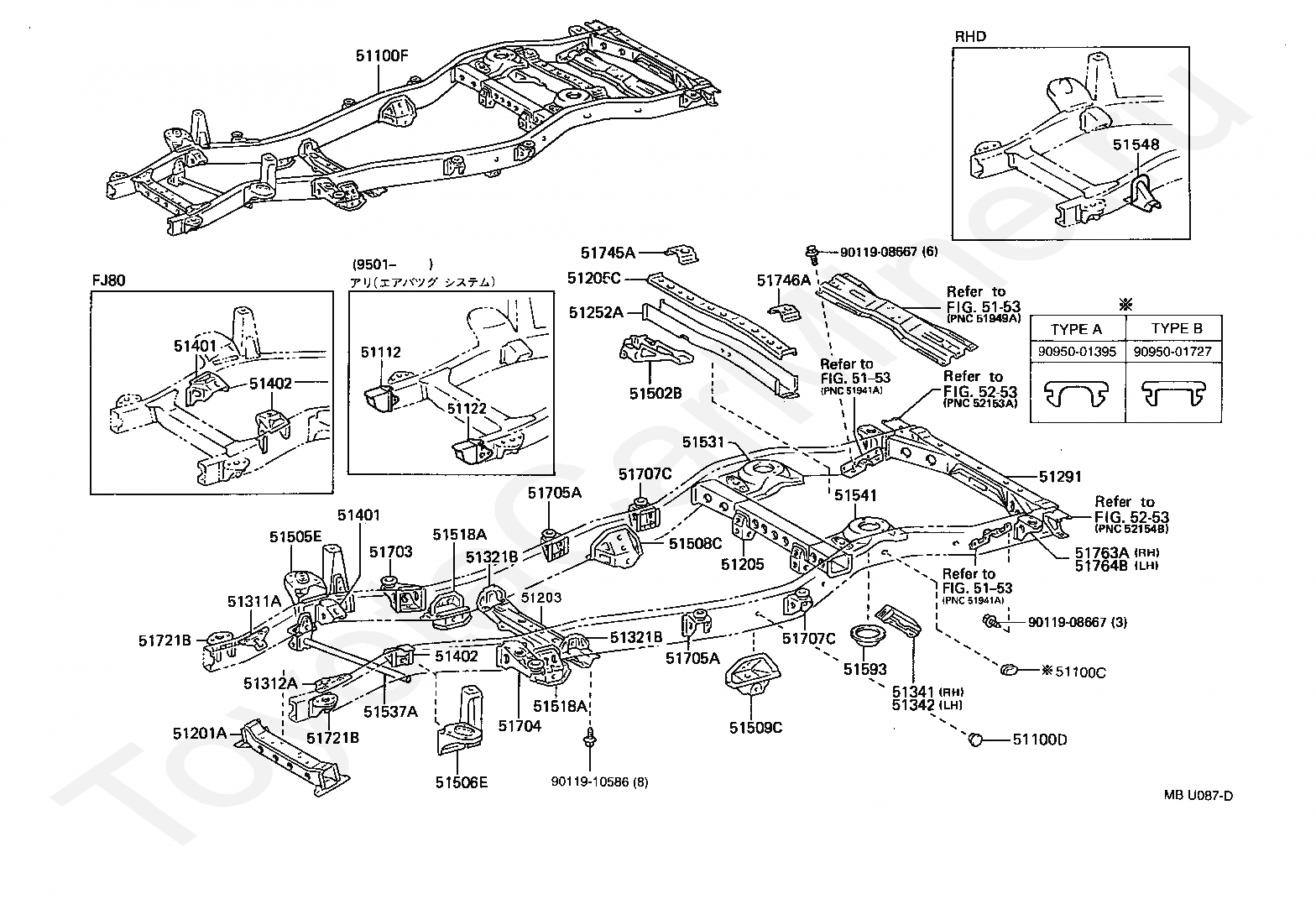

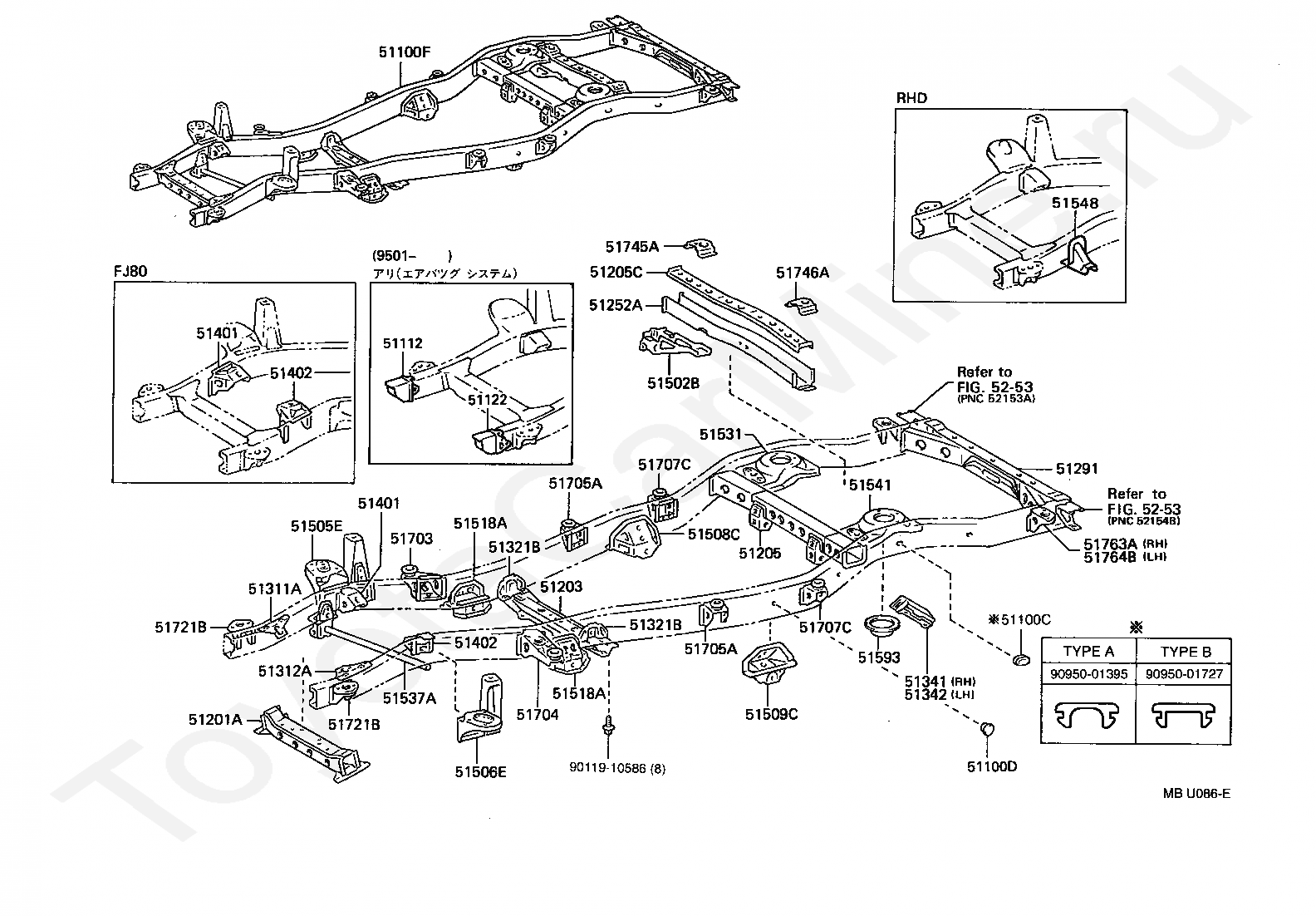

Рама TOYOTA LAND CRUISER VAN, 1995/01 - 1998/01, 4,2 литра, турбо-дизель, VX TYPE, HDJ81, механика

Каталог

Япония

Модель

LAND CRUISER VAN

Двигатель

4,2 литра, турбо-дизель

Класс

VX TYPE

Фрейм

HDJ81

Трансмиссия

механика

Опции

LIFT UP BACK DOOR TURBO DIESEL 4 VALVE

Код

Описание

51100C

PLUG, HOLE(FOR FRAME)

51100D

PLUG, HOLE(FOR FRAME)

51100F

FRAME SUB-ASSY

51112

EXTENSION, SIDE RAIL, RH

51122

EXTENSION, SIDE RAIL, LH

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51205

CROSSMEMBER SUB-ASSY, FRAME, NO.4

51205C

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51252A

CROSSMEMBER, FRAME, NO.5 LOWER

51291

CROSSMEMBER, FRAME, REAR

51311A

GUSSET, REAR FRAME, UPPER RH

51312A

GUSSET, REAR FRAME, UPPER LH

51321B

GUSSET, CROSSMEMBER, NO.2

51341

GUSSET, FRAME NO.4 CROSSMEMBER, RH

51342

GUSSET, FRAME NO.4 CROSSMEMBER, LH

51401

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

51402

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

51502B

BRACKET SUB-ASSY, LATERAL ROD SUPPORT

51505E

BRACKET SUB-ASSY, FRONT SPRING SUPPORT, RH

51506E

BRACKET SUB-ASSY, FRONT SPRING SUPPORT, LH

51508C

BRACKET SUB-ASSY, LOWER CONTROL LINK, RH

51509C

BRACKET SUB-ASSY, LOWER CONTROL LINK, LH

51518A

BRACKET, LEADING ARM

51531

BRACKET, REAR SPRING SUPPORT, RH

51537A

BRACKET, LATERAL ROD SUPPORT, FRONT RH

51541

BRACKET, REAR SPRING SUPPORT, LH

51548

STAY, LATERAL ROD SUPPORT, FRONT LH

51593

BRACKET, REAR SPRING BUMPER

51703

BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

51704

BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

51705A

BRACKET SUB-ASSY, CAB MOUNTING, NO.3

51707C

BRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH

51721B

BRACKET, CAB FRONT MOUNTING, NO.1

51745A

BRACKET, REAR BODY MOUNTING, NO.5 RH

51746A

BRACKET, REAR BODY MOUNTING, NO.5 LH

51763A

BRACKET, BODY SUPPORT, NO.6 RH

51764B

BRACKET, BODY SUPPORT, NO.6 LH

5253

переход к группе запчастей

9011910586

Крепеж

9095001395

Крепеж

9095001727

Крепеж

Код

Описание

51100C

PLUG, HOLE(FOR FRAME)

51100D

PLUG, HOLE(FOR FRAME)

51100F

FRAME SUB-ASSY

51112

EXTENSION, SIDE RAIL, RH

51122

EXTENSION, SIDE RAIL, LH

51201A

CROSSMEMBER SUB-ASSY, FRAME, FRONT

51203

CROSSMEMBER SUB-ASSY, FRAME, NO.2

51205

CROSSMEMBER SUB-ASSY, FRAME, NO.4

51205C

CROSSMEMBER SUB-ASSY, FRAME, NO.5

51252A

CROSSMEMBER, FRAME, NO.5 LOWER

51291

CROSSMEMBER, FRAME, REAR

51311A

GUSSET, REAR FRAME, UPPER RH

51312A

GUSSET, REAR FRAME, UPPER LH

51321B

GUSSET, CROSSMEMBER, NO.2

51341

GUSSET, FRAME NO.4 CROSSMEMBER, RH

51342

GUSSET, FRAME NO.4 CROSSMEMBER, LH

51401

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

51402

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

51502B

BRACKET SUB-ASSY, LATERAL ROD SUPPORT

51505E

BRACKET SUB-ASSY, FRONT SPRING SUPPORT, RH

51506E

BRACKET SUB-ASSY, FRONT SPRING SUPPORT, LH

51508C

BRACKET SUB-ASSY, LOWER CONTROL LINK, RH

51509C

BRACKET SUB-ASSY, LOWER CONTROL LINK, LH

51518A

BRACKET, LEADING ARM

5153

переход к группе запчастей

51531

BRACKET, REAR SPRING SUPPORT, RH

51537A

BRACKET, LATERAL ROD SUPPORT, FRONT RH

51541

BRACKET, REAR SPRING SUPPORT, LH

51548

STAY, LATERAL ROD SUPPORT, FRONT LH

51593

BRACKET, REAR SPRING BUMPER

51703

BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

51704

BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

51705A

BRACKET SUB-ASSY, CAB MOUNTING, NO.3

51707C

BRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH

51721B

BRACKET, CAB FRONT MOUNTING, NO.1

51745A

BRACKET, REAR BODY MOUNTING, NO.5 RH

51746A

BRACKET, REAR BODY MOUNTING, NO.5 LH

51763A

BRACKET, BODY SUPPORT, NO.6 RH

51764B

BRACKET, BODY SUPPORT, NO.6 LH

5253

переход к группе запчастей

9011908667

Крепеж

9011910586

Крепеж

9095001395

Крепеж

9095001727

Крепеж

Рама TOYOTA LAND CRUISER VAN, 1995/01 - 1998/01, 4,2 литра, турбо-дизель, VX TYPE, HDJ81, механика
