Тормозная магистраль TOYOTA LAND CRUISER VAN, 1995/01 - 1998/01, 4,2 литра, турбо-дизель, VX TYPE, HDJ81, механика

Каталог

Япония

Модель

LAND CRUISER VAN

Двигатель

4,2 литра, турбо-дизель

Класс

VX TYPE

Фрейм

HDJ81

Трансмиссия

механика

Опции

LIFT UP BACK DOOR TURBO DIESEL 4 VALVE

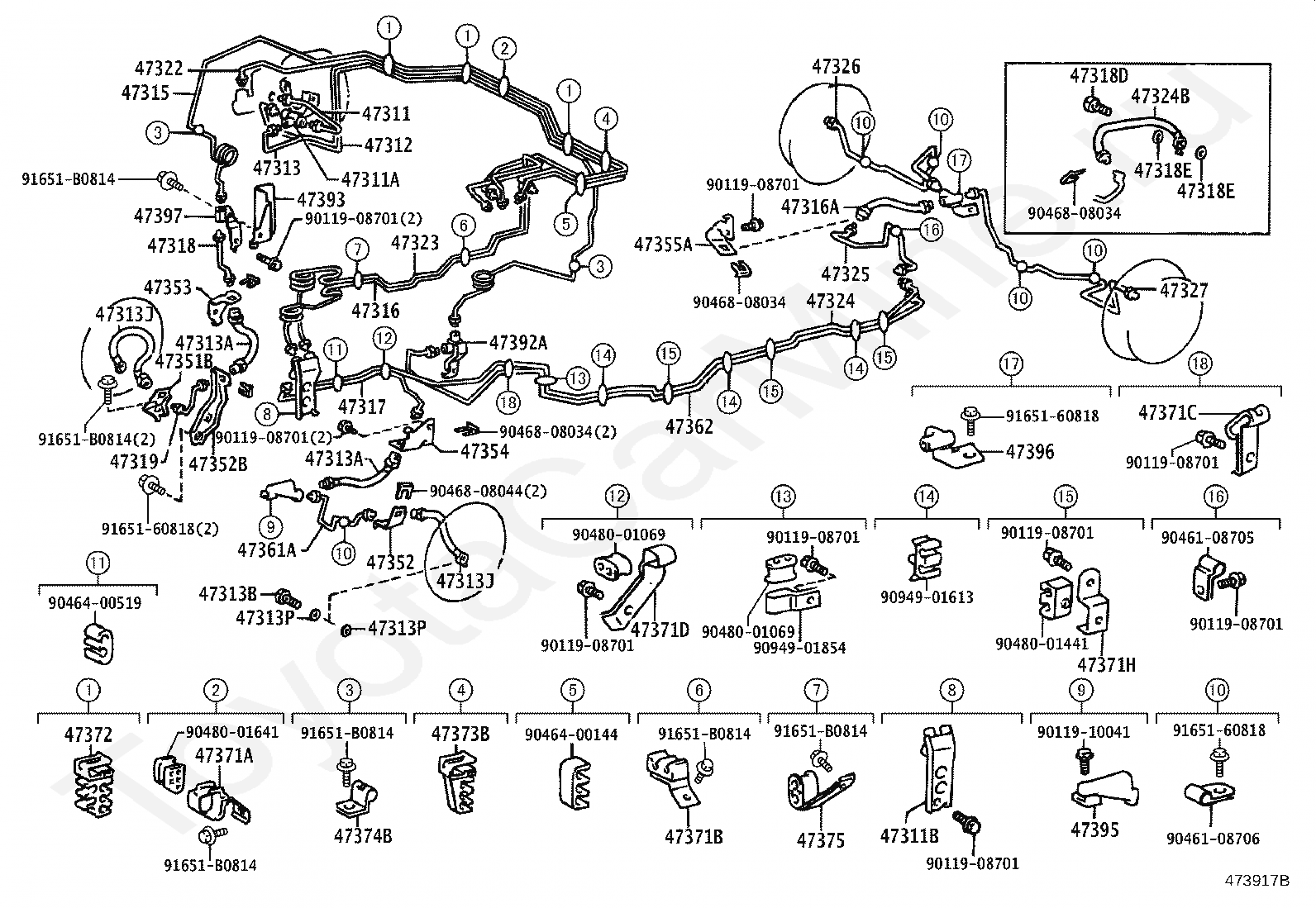

Код

Описание

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313J

HOSE, FLEXIBLE, NO.2(FOR FRONT)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47317

TUBE, FRONT BRAKE, NO.7

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47319

TUBE, FRONT BRAKE, NO.9

47322

TUBE, REAR BRAKE, NO.2

47324

TUBE, REAR BRAKE, NO.4

47324B

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47327

TUBE, REAR BRAKE, NO.7

47351B

BRACKET, FLEXIBLE HOSE, NO.1

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47354

BRACKET, FRONT FLEXIBLE HOSE

47355A

BRACKET, FLEXIBLE HOSE, NO.5

47361A

TUBE, FRONT BRAKE, NO.10

47362

TUBE, FRONT BRAKE, NO.11

47363

TUBE, FRONT BRAKE, NO.12

47371D

CLAMP, BRAKE TUBE, NO.8

47371E

CLAMP, BRAKE TUBE, NO.9

47371F

CLAMP, BRAKE TUBE, NO.10

47371G

CLAMP, BRAKE TUBE, NO.11

47372

CLAMP, BRAKE TUBE, NO.2

47392A

WAY, BRAKE TUBE, NO.2

47395

WAY, BRAKE TUBE, NO.3

47396

WAY, BRAKE TUBE, NO.4

9011908701

Крепеж

9011910041

Крепеж

9046108704

Крепеж

9046108705

Крепеж

9046108706

Крепеж

9046400519

Крепеж

9046808034

Крепеж

9046808044

Крепеж

9048001069

Крепеж

9048001441

Крепеж

9094901613

Крепеж

9094901854

Крепеж

9165160818

Крепеж

91651B0814

Крепеж

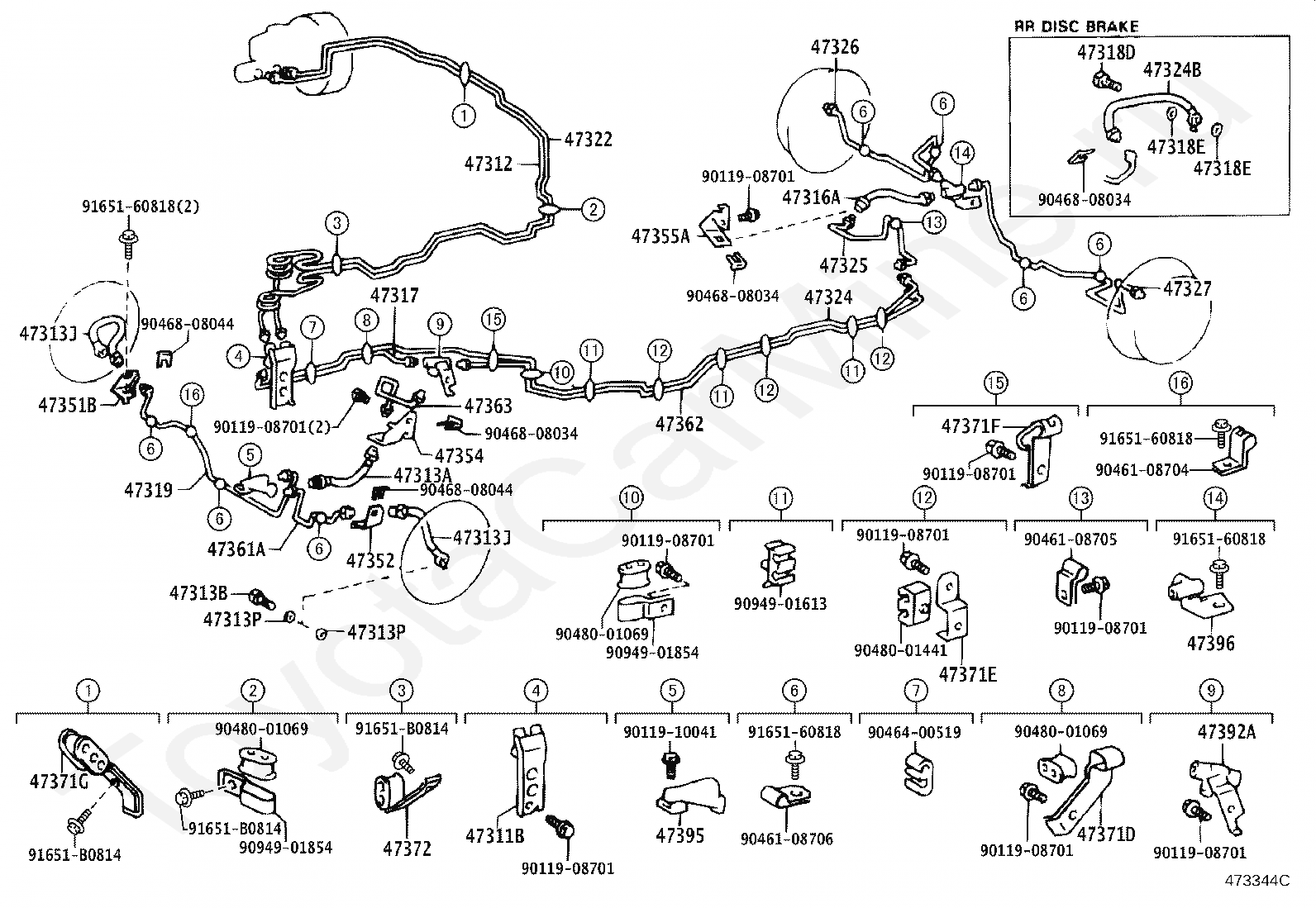

Код

Описание

47311

TUBE, FRONT BRAKE, NO.1

47311A

WAY(FOR FRONT BRAKE TUBE)

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313J

HOSE, FLEXIBLE, NO.2(FOR FRONT)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47315

TUBE, FRONT BRAKE, NO.5

47316

TUBE, FRONT BRAKE, NO.6

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47317

TUBE, FRONT BRAKE, NO.7

47318

TUBE, FRONT BRAKE, NO.8

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47319

TUBE, FRONT BRAKE, NO.9

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47324B

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)

47325

TUBE, REAR BRAKE, NO.5

47326

TUBE, REAR BRAKE, NO.6

47327

TUBE, REAR BRAKE, NO.7

47351B

BRACKET, FLEXIBLE HOSE, NO.1

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47352B

BRACKET, FLEXIBLE HOSE, NO.2

47353

BRACKET, FLEXIBLE HOSE(FOR REAR)

47354

BRACKET, FRONT FLEXIBLE HOSE

47355A

BRACKET, FLEXIBLE HOSE, NO.5

47361A

TUBE, FRONT BRAKE, NO.10

47362

TUBE, FRONT BRAKE, NO.11

47371A

CLAMP, BRAKE TUBE, NO.1

47371B

CLAMP, BRAKE TUBE, NO.6

47371C

CLAMP, BRAKE TUBE, NO.7

47371D

CLAMP, BRAKE TUBE, NO.8

47371H

CLAMP, BRAKE TUBE, NO.12

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

47375

CLAMP, BRAKE TUBE, NO.5

47392A

WAY, BRAKE TUBE, NO.2

47393

INSULATOR, BRAKE TUBE HEAT

47395

WAY, BRAKE TUBE, NO.3

47396

WAY, BRAKE TUBE, NO.4

47397

WAY, BRAKE TUBE, NO.5

9011908701

Крепеж

9011910041

Крепеж

9046108705

Крепеж

9046108706

Крепеж

9046400144

Крепеж

9046400519

Крепеж

9046808034

Крепеж

9046808044

Крепеж

9048001069

Крепеж

9048001441

Крепеж

9048001641

Крепеж

9094901613

Крепеж

9094901854

Крепеж

9165160818

Крепеж

91651B0814

Крепеж

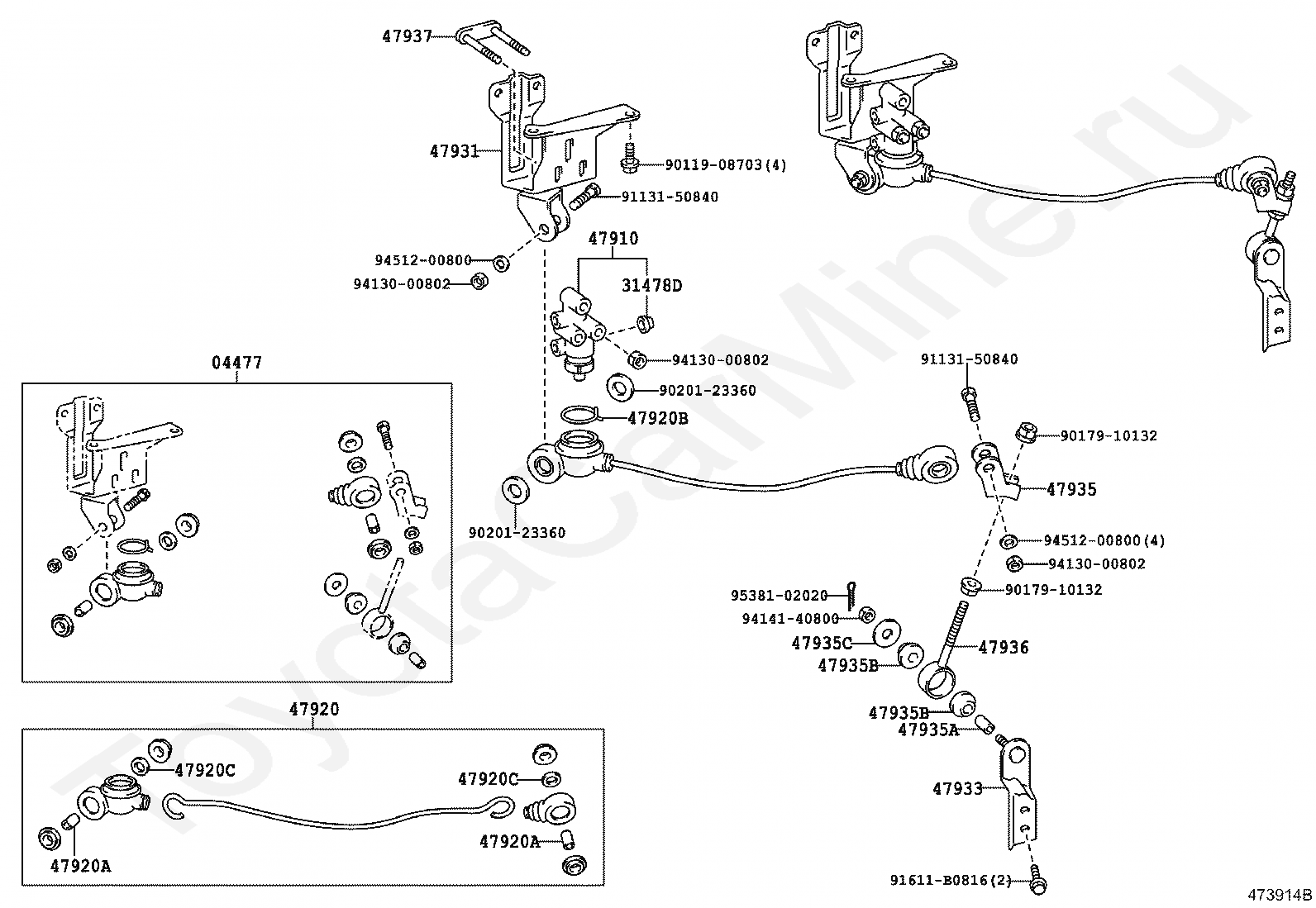

Код

Описание

04477

BUSH & BOOT KIT, LOAD SENSING SPRING

31478D

CAP, BLEEDER PLUG(FOR LSPV)

47910

VALVE ASSY, LOAD SENSING PROPORTIONING

47920

SPRING ASSY, LOAD SENSING

47920A

COLLAR(FOR LOAD SENSING SPRING)

47920B

CLIP(FOR LOAD SENSING VALVE BOOT)

47920C

WASHER(FOR LOAD SENSING SPRING)

47931

BRACKET, LOAD SENSING VALVE

47933

BRACKET, LOAD SENSING SHACKLE, NO.1

47935

SHACKLE, LOAD SENSING SPRING, NO.1

47935A

COLLAR(FOR LOAD SENSING SPRING SHACKLE)

47935B

BUSH(FOR LOAD SENSING SPRING SHACKLE)

47935C

RETAINER(FOR LOAD SENSING SPRING SHACKLE)

47936

SHACKLE, LOAD SENSING SPRING, NO.2

47937

PLATE, LOAD SENSING VALVE SET

9011908703

Крепеж

9017910132

Крепеж

9020123360

Крепеж

9113150840

Крепеж

91611B0816

Крепеж

9413000802

Крепеж

9414140800

Крепеж

9451200800

Крепеж

9538102020

Крепеж

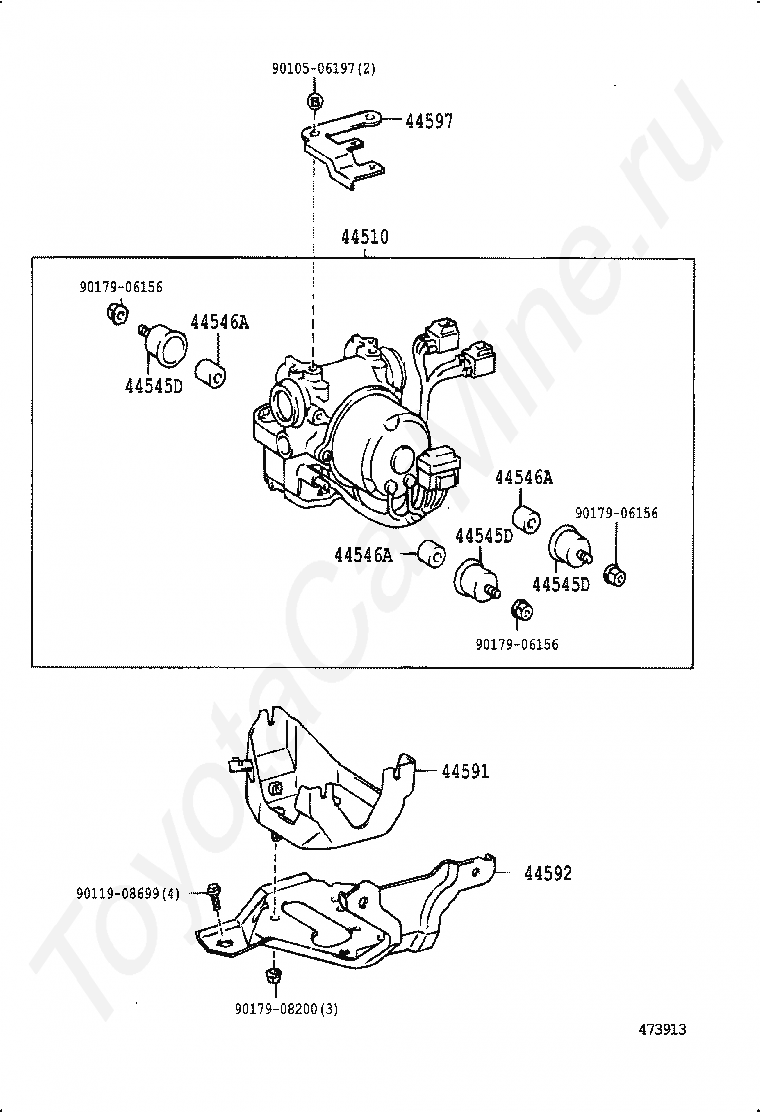

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44591

BRACKET, BRAKE ACTUATOR, NO.1

44592

BRACKET, BRAKE ACTUATOR, NO.2

44597

CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1

9010506197

Крепеж

9011908699

Крепеж

9017906156

Крепеж

9017908200

Крепеж
