Ручной тормоз TOYOTA LAND CRUISER VAN, 1995/01 - 1998/01, 4,2 литра, турбо-дизель, VX TYPE, HDJ81, механика

Каталог

Япония

Модель

LAND CRUISER VAN

Двигатель

4,2 литра, турбо-дизель

Класс

VX TYPE

Фрейм

HDJ81

Трансмиссия

механика

Опции

LIFT UP BACK DOOR TURBO DIESEL 4 VALVE

Код

Описание

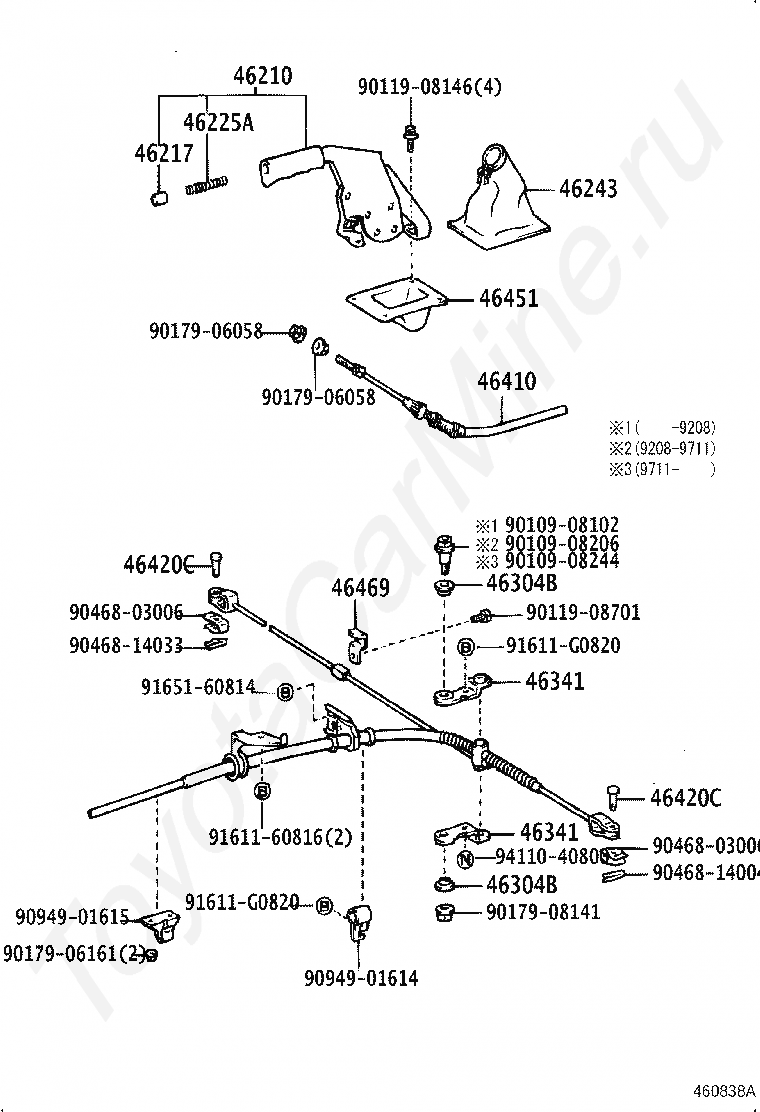

46210

LEVER ASSY, PARKING BRAKE

46217

KNOB, PARKING BRAKE RELEASE ROD

46225A

SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

46243

COVER, PARKING BRAKE LEVER

46304B

BUSH(FOR PARKING BRAKE EQUALIZER)

46341

EQUALIZER, PARKING BRAKE

46410

CABLE ASSY, PARKING BRAKE, NO.1

46420C

PIN, W/HOLE(FOR PARKING BRAKE CABLE)

46451

BRACKET, CABLE SUPPORT

46469

LEVER, CABLE GUIDE SUPPORT

9010908102

Крепеж

9010908206

Крепеж

9010908244

Крепеж

9011908146

Крепеж

9011908701

Крепеж

9017906058

Крепеж

9017906161

Крепеж

9017908141

Крепеж

9046803006

Крепеж

9046814004

Крепеж

9046814033

Крепеж

9094901614

Крепеж

9094901615

Крепеж

9161160816

Крепеж

91611G0820

Крепеж

9165160814

Крепеж

9411040800

Крепеж

Код

Описание

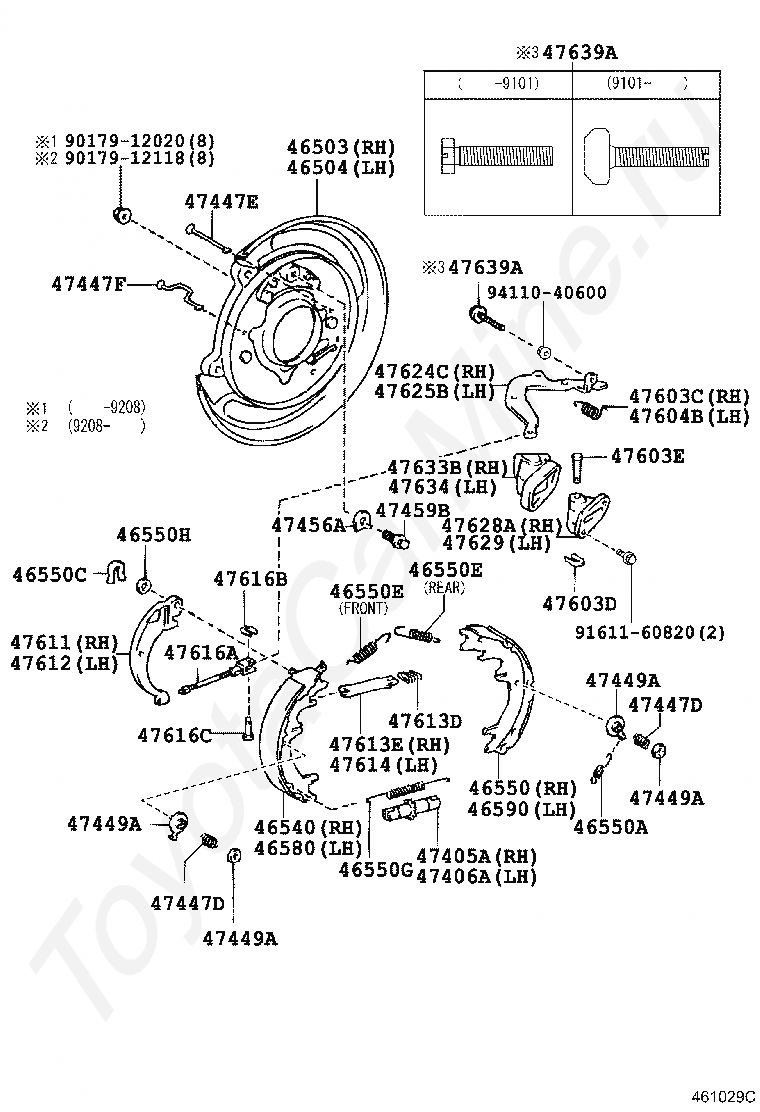

46503

PLATE SUB-ASSY, PARKING BRAKE, RH

46504

PLATE SUB-ASSY, PARKING BRAKE, LH

46540

SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1

46550

SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2

46550A

SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)

46550C

WASHER, TYPE C(FOR PARKING BRAKE SHOE)

46550E

SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)

46550G

SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN)

46550H

SHIM(FOR PARKING BRAKE SHOE)

46580

SHOE ASSY, PARKING BRAKE, LH NO.1

46590

SHOE ASSY, PARKING BRAKE, LH NO.2

47405A

SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)

47406A

SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)

47447D

SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN)

47447E

PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)

47447F

PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE)

47449A

CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)

47456A

PLATE, SHOE GUIDE(FOR PARKING BRAKE)

47459B

BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)

47603C

SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RH)

47603D

WASHER, TYPE C(FOR PARKING BRAKE BELL CRANK)

47603E

PIN(FOR PARKING BRAKE BELL CRANK)

47604B

SPRING, TENSION(FOR PARKING BRAKE BELL CRANK LH)

47611

LEVER, PARKING BRAKE SHOE, RH

47612

LEVER, PARKING BRAKE SHOE, LH

47613D

SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

47613E

STRUT, PARKING BRAKE SHOE, RH

47614

STRUT, PARKING BRAKE SHOE, LH

47616A

WIRE, PARKING BRAKE

47616B

WASHER, TYPE C(FOR PARKING BRAKE WIRE)

47616C

PIN(FOR PARKING BRAKE WIRE)

47624C

CRANK, PARKING BRAKE BELL, RH

47625B

CRANK, PARKING BRAKE BELL, LH

47628A

BRACKET, BELLCRANK, RH(FOR PARKING BRAKE)

47629

BRACKET, BELLCRANK, LH(FOR PARKING BRAKE)

47633B

BOOT, BELLCRANK, RH(FOR PARKING BRAKE)

47634

BOOT, BELLCRANK, LH(FOR PARKING BRAKE)

47639A

BOLT, BELLCRANK STOPPER(FOR PARKING BRAKE)

9017912020

Крепеж

9017912118

Крепеж

9161160820

Крепеж

9411040600

Крепеж
