Каталог
ЯпонияМодель
LAND CRUISER VANДвигатель
4,2 литра, турбо-дизельКласс
VX TYPEФрейм
HDJ81Трансмиссия
механикаОпции
LIFT UP BACK DOOR TURBO DIESEL 4 VALVE

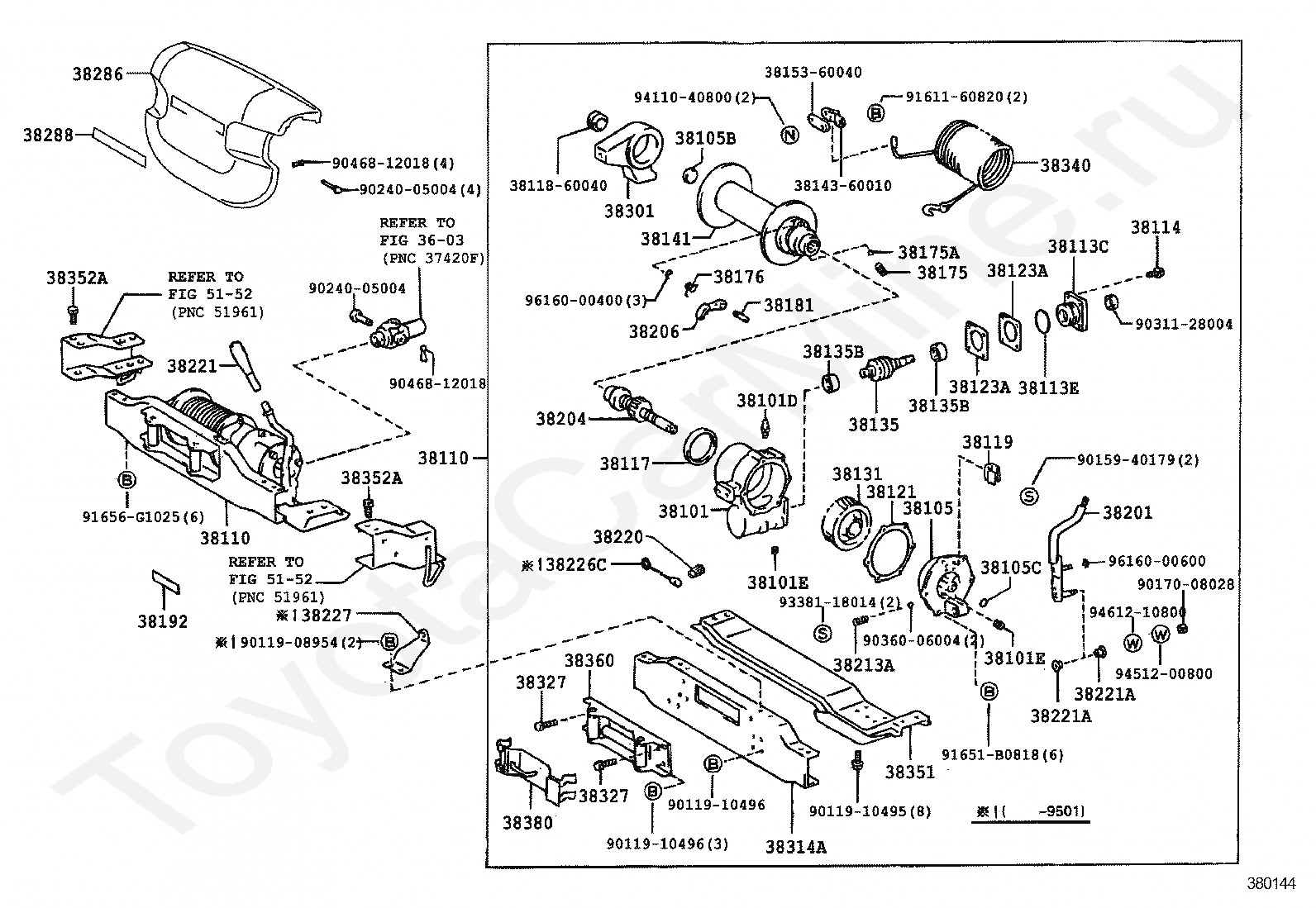

Код
Описание
3603
переход к группе запчастей
38101
CASE SUB-ASSY, WINCH GEAR
38101D
PLUG, BREATHER (FOR WINCH GEAR CASE)
38101E
PLUG (FOR WINCH GEAR CASE)
38105
COVER SUB-ASSY, WINCH GEAR CASE
38105B
PLUG, TIGHT (FOR WINCH GEAR CASE COVER)
38105C
RING, O (FOR WINCH GEAR CASE COVER)
38110
WINCH ASSY
38113C
RETAINER, WORM BEARING, NO.1
38113E
RING, O (FOR WINCH WORM BEARING RETAINER NO.1)
38114
BOLT, WINCH WORM BEARING RETAINER
38117
SEAL, WINCH GEAR CASE COVER
3811860040
Крепеж
38119
CLIP, WINCH GEAR CASE COVER
38121
GASKET, WINCH GEAR CASE COVER
38123A
SHIM, WINCH WORM ADJUST, NO.1
38131
GEAR, WORM
38135
WORM, WINCH
38135B
BEARING (FOR WINCH WORM)
38141
DRUM, WINCH
3814360010
Крепеж
3815360040
Крепеж
38175
SPRING, WINCH BRAKE, NO.1
38175A
BALL (FOR WINCH BRAKE SPRING NO.1)
38176
SPRING, WINCH BRAKE, NO.1
38181
PIN, WINCH BRAKE
38192
PLATE, WINCH CAUTION, NO.2
38201
LEVER SUB-ASSY, WINCH CLUTCH
38204
SHAFT ASSY, WINCH CLUTCH HUB
38206
BRAKE ASSY, WINCH
38213A
SPRING, WINCH CLUTCH HUB SHIFT
38220
CAP ASSY, WINCH CLUTCH LEVER
38221
LEVER, CLUTCH HUB SHIFT
38221A
BUSH (FOR CLUTCH HUB SHIFT LEVER)
38226C
CHAIN, WINCH LEVER
38227
PLATE, WINCH CLUTCH LEVER SHIFT LOCK
38286
COVER, WINCH
38288
LABEL, WINCH COVER
38301
BRACKET SUB-ASSY, WINCH END
38314A
CROSSMEMBER, WINCH SUPPORT, FRONT
38327
BOLT, WINCH R0LLER BRACKET
38340
WIRE ASSY, WINCH CHAIN
38351
BASE, WINCH
38352A
BOLT (FOR WINCH BASE SUPPORT)
38360
BRACKET ASSY, WINCH ROLLER
38380
HOLDER ASSY, WINCH HOOK
5152
переход к группе запчастей
9011908954
Крепеж
9011910495
Крепеж
9011910496
Крепеж
9015940179
Крепеж
9017008028
Крепеж
9024005004
Крепеж
9031128004
Крепеж
9036006004
Крепеж
9046812018
Крепеж
9161160820
Крепеж
91651B0818
Крепеж
91656G1025
Крепеж
9338118014
Крепеж
9411040800
Крепеж
9451200800
Крепеж
9461210800
Крепеж
9616000400
Крепеж
9616000600
Крепеж

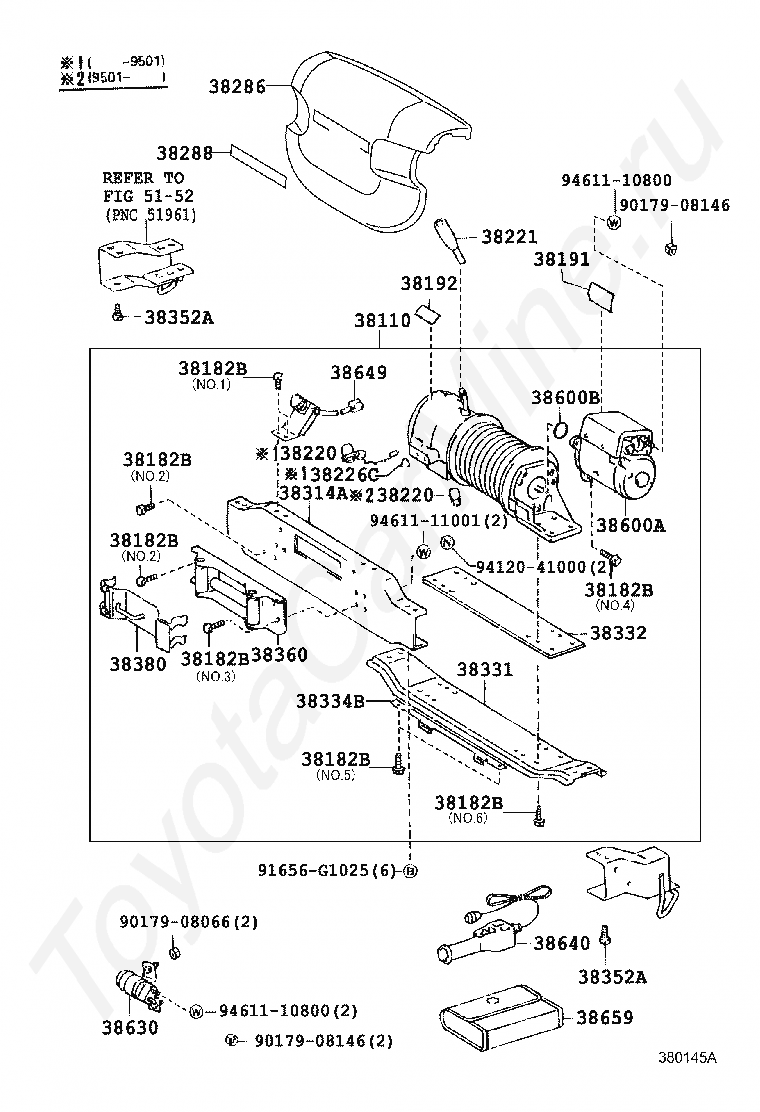

Код
Описание
38110
WINCH ASSY
38182B
BOLT, WINCH, NO.1
38191
PLATE, WINCH CAUTION, NO.1
38192
PLATE, WINCH CAUTION, NO.2
38220
CAP ASSY, WINCH CLUTCH LEVER
38221
LEVER, CLUTCH HUB SHIFT
38226C
CHAIN, WINCH LEVER
38286
COVER, WINCH
38288
LABEL, WINCH COVER
38314A
CROSSMEMBER, WINCH SUPPORT, FRONT
38331
BASE, WINCH, NO.1
38332
BASE, WINCH, NO.2
38334B
BRACKET, WINCH BASE
38352A
BOLT (FOR WINCH BASE SUPPORT)
38360
BRACKET ASSY, WINCH ROLLER
38380
HOLDER ASSY, WINCH HOOK
38600A
MOTOR ASSY, W/MAGNET SWITCH, WINCH
38600B
RING, O (FOR WINCH MOTOR)
38630
SWITCH ASSY, MAGNET, NO.1
38640
SWITCH ASSY, WINCH CONTROL
38649
WIRE, WINCH CONTROL
38659
COVER, WINCH CONTROL SWITCH
5152
переход к группе запчастей
9017908066
Крепеж
9017908146
Крепеж
91656G1025
Крепеж
9412041000
Крепеж
9461110800
Крепеж
9461111001
Крепеж

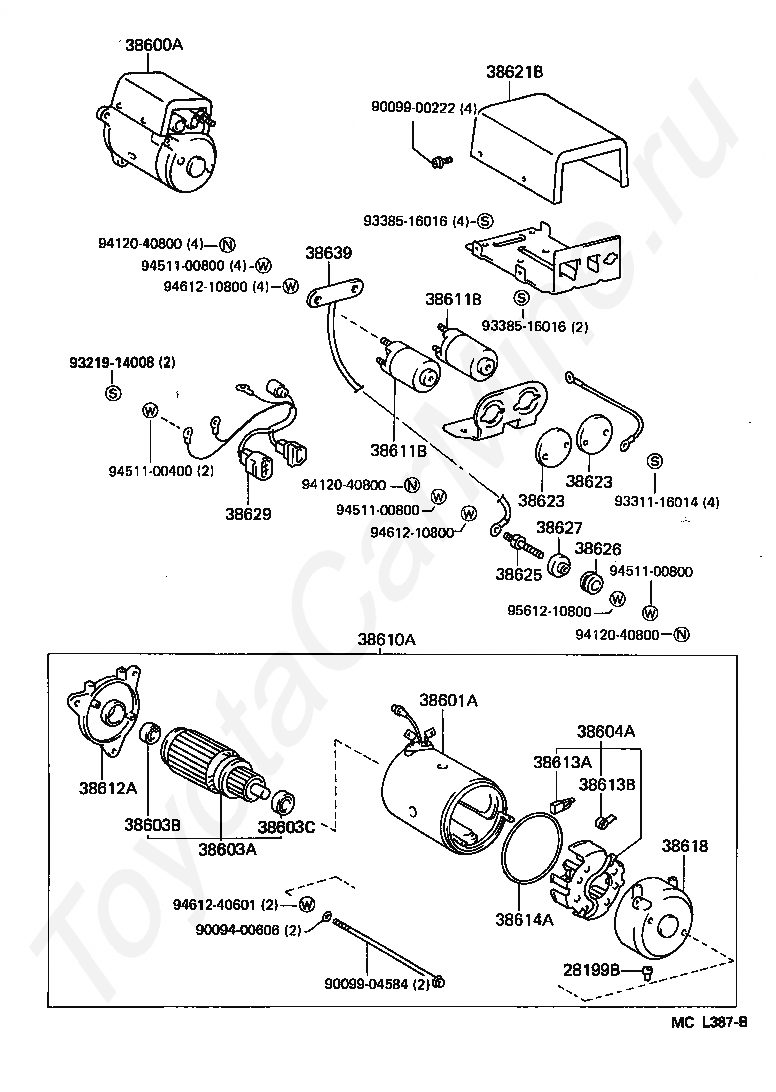

Код
Описание
28199B
PROTECTOR, DUST WINCH MOTOR
38600A
MOTOR ASSY, W/MAGNET SWITCH, WINCH
38601A
YOKE SUB-ASSY, WINCH MOTOR
38603A
ARMATURE SUB-ASSY, WINCH MOTOR
38603B
BEARING, NO.1 (FOR WINCH MOTOR ARMATURE)
38603C
BEARING, NO.2 (FOR WINCH MOTOR ARMATURE)
38604A
HOLDER ASSY, WINCH MOTOR BRUSH
38610A
MOTOR ASSY, WINCH
38611B
SWITCH, MAGNET, NO.2 (FOR WINCH MOTOR)
38612A
FRAME, WINCH MOTOR END
38613A
BRUSH, WINCH MOTOR
38613B
SPRING, WINCH MOTOR BRUSH
38614A
RING, O(FOR WINCH MOTOR)
38618
FRAME, WINCH MOTOR COMMUTATOR END
38621B
COVER, MAGNET SWITCH WINCH
38623
STOPPER, WINCH MOTOR
38625
BOLT, STUD WINCH MOTOR
38626
BUSHING, STEPPED FEMALE WINCH MOTOR
38627
BUSHING, STEPPED MALE WINCH MOTOR
38629
WIRE, WINCH MOTOR
38639
WIRE (FOR WINCH MOTOR)
9009400606
Крепеж
9009900222
Крепеж
9009904584
Крепеж
9321914008
Крепеж
9331116014
Крепеж
9338516016
Крепеж
9412040800
Крепеж
9451100400
Крепеж
9451100800
Крепеж
9461210800
Крепеж
9461240601
Крепеж
9561210800
Крепеж

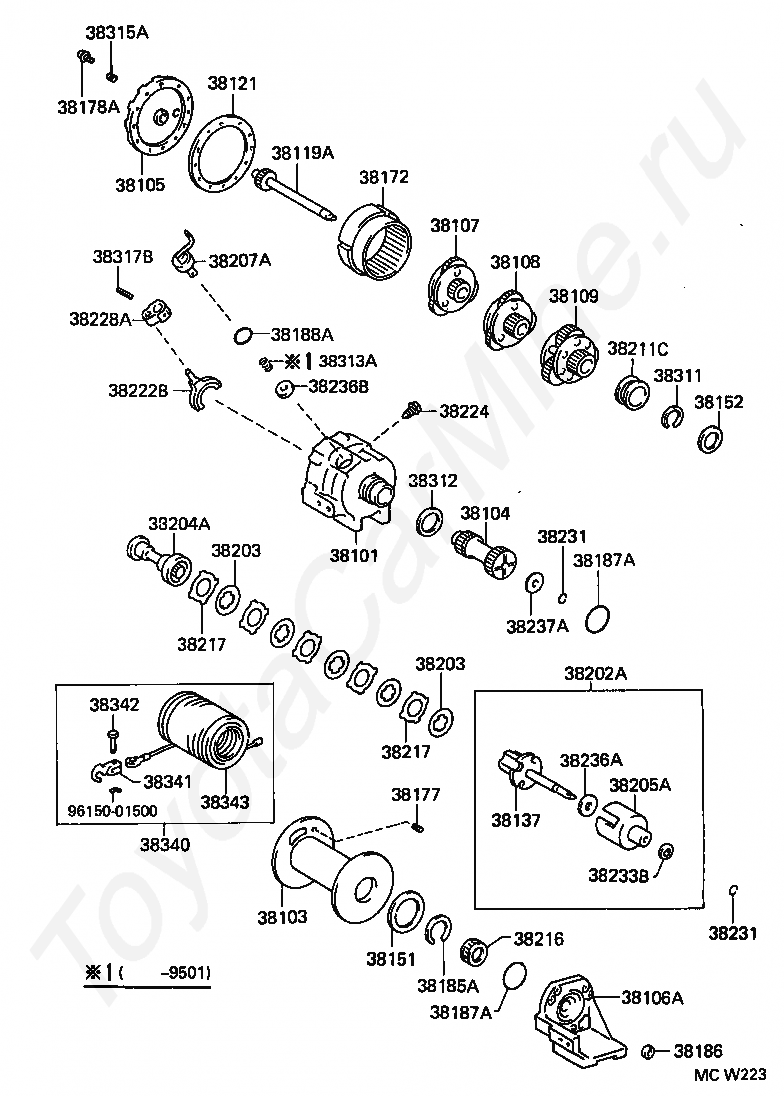

Код
Описание
38101
CASE SUB-ASSY, WINCH GEAR
38103
DRUM SUB-ASSY, WINCH
38104
SHAFT, WINCH OUTPUT
38105
COVER SUB-ASSY, WINCH GEAR CASE
38106A
CASE, WINCH BRAKE
38107
GEAR SUB-ASSY, WINCH PLANETARY, NO.1
38108
GEAR SUB-ASSY, WINCH PLANETARY, NO.2
38109
GEAR SUB-ASSY, WINCH PLANETARY, NO.3
38119A
SHAFT, WINCH DRIVE
38121
GASKET, WINCH GEAR CASE COVER
38137
SHAFT, WINCH INPUT
38151
SPACER, WINCH DRUM, NO.1
38152
SPACER, WINCH DRUM, NO.2
38172
GEAR, WINCH RING
38177
BOLT, WINCH SET
38178A
BOLT, WINCH GEAR CASE COVER
38185A
RING, WINCH 1 WAY CLUTCH SNAP
38186
SEAL, GEAR CASE COVER OIL
38187A
RING, WINCH
38188A
RING, WINCH CLUTCH SHIFT HANDLE
38202A
CLUTCH SUB-ASSY, WINCH, OUTER
38203
DISC SUB-ASSY, WINCH CLUTCH, INNER
38204A
CLUTCH SUB-ASSY, WINCH INNER
38205A
CASE SUB-ASSY, WINCH CLUTCH, OUTER
38207A
LEVER SUB-ASSY, WINCH CLUTCH SHIFT
38211C
SLEEVE, WINCH CLUTCH
38216
CLUTCH, WINCH 1 WAY
38217
DISC, WINCH CLUTCH, OUTER
38222B
FORK, WINCH CLUTCH SHIFT
38224
BOLT, WINCH CLUTCH SHIFT HANDLE
38228A
ADAPTER, WINCH CLUTCH SHIFT
38231
SHOE, BRAKE
38233B
WASHER, WINCH CLUTCH INPUT SHAFT THRUST
38236A
WASHER, WINCH CLUTCH THRUST, NO.1
38236B
WASHWE, WINCH CLUTCH THRUST
38237A
WASHER, WINCH CLUTCH THRUST, NO.2
38311
RING, WINCH OUTPUT SHAFT SNAP
38312
SPACER, WINCH OUTPUT SHAFT, NO.2
38313A
SPRING, WINCH CLUTCH SHIFT HANDLE
38315A
PLUG, WINCH FILLER
38317B
PIN, WINCH CLUTCH SHIFT HANDLE SPRING
38340
WIRE ASSY, WINCH CHAIN
38341
HOOK, WINCH WIRE
38342
PIN, WINCH WIRE HOOK
38343
WINCH WIRE
9615001500
Крепеж
