> Запчасти CRUISER > Поиск по каталогу
Запчасти Аксессуары Масло Расходники Каталог Шины, Диски

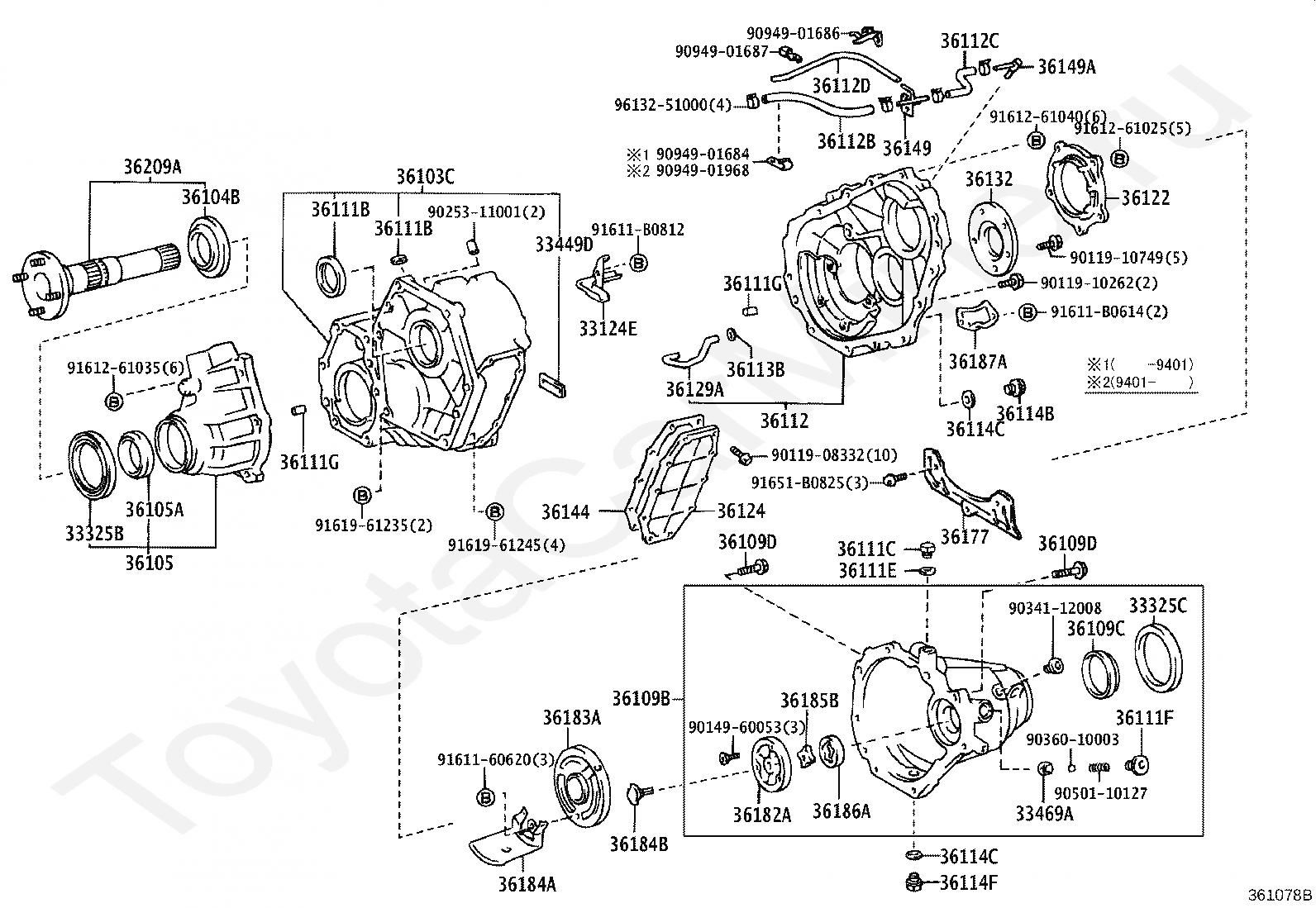

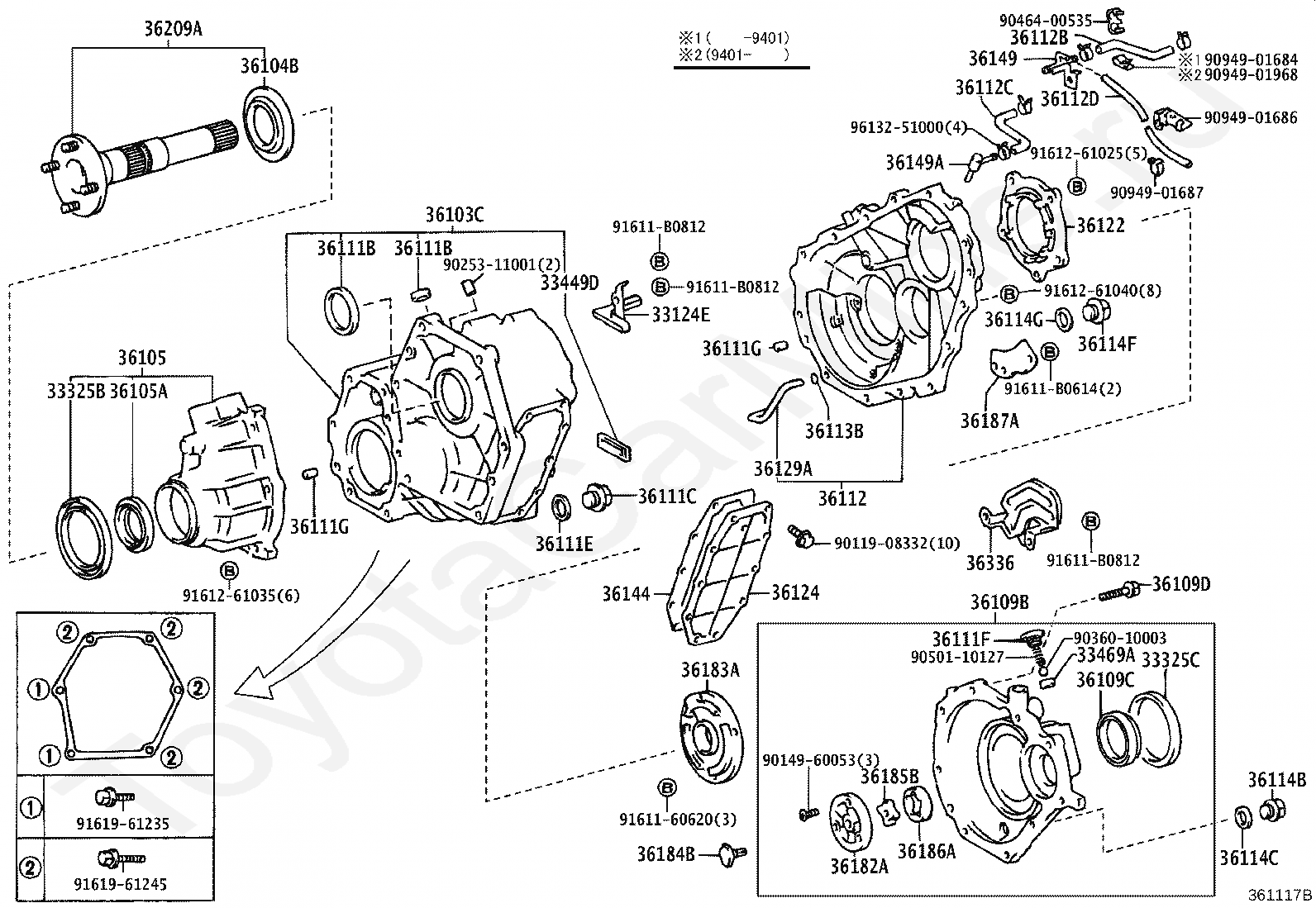

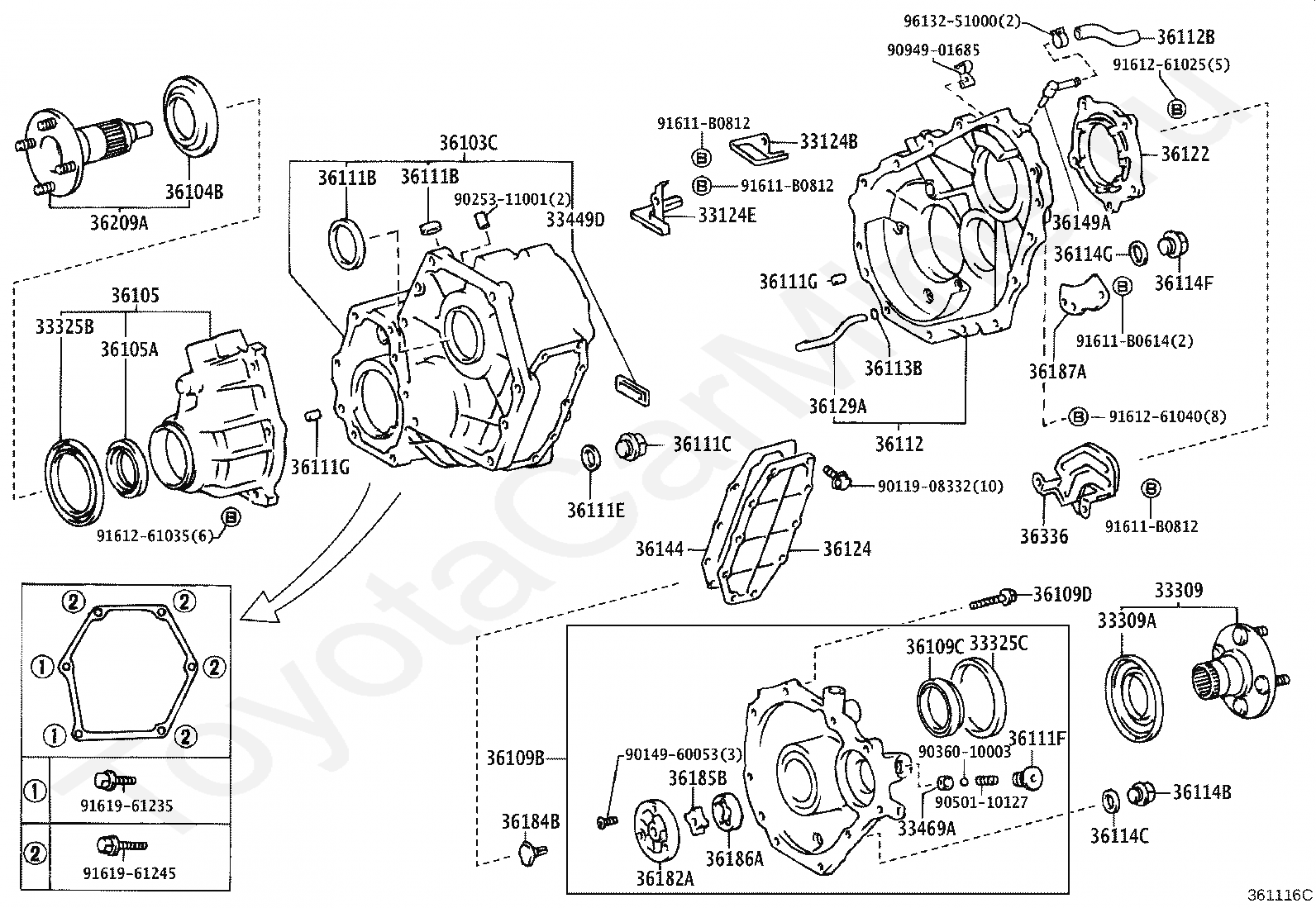

Раздаточная коробка и сальники TOYOTA LAND CRUISER VAN, 1995/01 - 1998/01, 4,2 литра, турбо-дизель, VX TYPE, HDJ81, механика

Каталог

Япония

Модель

LAND CRUISER VAN

Двигатель

4,2 литра, турбо-дизель

Класс

VX TYPE

Фрейм

HDJ81

Трансмиссия

механика

Опции

LIFT UP BACK DOOR TURBO DIESEL 4 VALVE

Двигатель

Подвеска

Кузов

Электрика

  • 1
  • 2
  • 3
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

33124B

PIPE, OIL RECEIVER(FOR TRANSFER REAR CASE)

33124E

PIPE, OIL RECEIVER(FOR TRANSFER)

33309

FLANGE SUB-ASSY, TRANSFER OUTPUT SHAFT COMPANION

33309A

DEFLECTOR, DUST

33325B

DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING)

33325C

DEFLECTOR, DUST (FOR TRANSFER EXTENSION REAR HOUSING)

33449D

MAGNET (FOR TRANSFER CASE)

33469A

SEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING)

36103C

CASE, TRANSFER, FRONT

36104B

DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

36105

HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT

36105A

SEAL, OIL (TRANSFER EXTENSION FRONT HOUSING SUB-ASSY)

36109B

HOUSING SUB-ASSY, TRANSFER EXTENSION, REAR

36109C

SEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY)

36109D

BOLT (FOR TRANSFER EXTENSION REAR HOUSING)

36111B

SEAL, OIL (FOR TRANSFER CASE)

36111C

PLUG (FOR TRANSFER CASE)

36111E

GASKET (FOR TRANSFER CASE)

36111F

PLUG (FOR TRANSFER CASE)

36111G

PIN, STRAIGHT (FOR TRANSFER CASE)

36112

CASE, TRANSFER, REAR

36112B

HOSE, NO.1 (FOR TRANSFER REAR CASE)

36113B

RING, O (FOR TRANSFER CASE PLUG)

36114B

PLUG, NO.1 (FOR TRANSFER CASE)

36114C

GASKET, NO.1 (FOR TRANSFER CASE)

36114F

PLUG (FOR TRANSFER DRAIN)

36114G

GASKET (FOR TRANSFER DRAIN PLUG)

36122

COVER, TRANSFER CASE, NO.2

36124

COVER, TRANSFER POWER TAKE-OFF

36129A

TUBE, TRANSFER OIL

36144

GASKET, TRANSFER POWER TAKE-OFF COVER

36149A

PIPE, TRANSFER BREATHER, NO.2

36182A

COVER, TRANSFER OIL PUMP

36184B

SHAFT, TRANSFER OIL PUMP DRIVE

36185B

ROTOR, TRANSFER OIL PUMP DRIVE

36186A

ROTOR, TRANSFER OIL PUMP DRIVEN

36187A

STRAINR, TRANSFER OIL, NO.1

36209A

SHAFT, TRANSFER OUTPUT, FRONT

36336

INSULATOR, TRANSFER HEAT

9011908332

Крепеж

9014960053

Крепеж

9025311001

Крепеж

9036010003

Крепеж

9050110127

Крепеж

9094901685

Крепеж

91611B0614

Крепеж

91611B0812

Крепеж

9161261025

Крепеж

9161261035

Крепеж

9161261040

Крепеж

9161961235

Крепеж

9161961245

Крепеж

9613251000

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

33124E

PIPE, OIL RECEIVER(FOR TRANSFER)

33325B

DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING)

33325C

DEFLECTOR, DUST (FOR TRANSFER EXTENSION REAR HOUSING)

33449D

MAGNET (FOR TRANSFER CASE)

33469A

SEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING)

36103C

CASE, TRANSFER, FRONT

36104B

DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

36105

HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT

36105A

SEAL, OIL (TRANSFER EXTENSION FRONT HOUSING SUB-ASSY)

36109B

HOUSING SUB-ASSY, TRANSFER EXTENSION, REAR

36109C

SEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY)

36109D

BOLT (FOR TRANSFER EXTENSION REAR HOUSING)

36111B

SEAL, OIL (FOR TRANSFER CASE)

36111C

PLUG (FOR TRANSFER CASE)

36111E

GASKET (FOR TRANSFER CASE)

36111F

PLUG (FOR TRANSFER CASE)

36111G

PIN, STRAIGHT (FOR TRANSFER CASE)

36112

CASE, TRANSFER, REAR

36112B

HOSE, NO.1 (FOR TRANSFER REAR CASE)

36112C

HOSE, NO.2 (FOR TRANSFER REAR CASE)

36112D

HOSE, NO.3 (FOR TRANSFER REAR CASE)

36113B

RING, O (FOR TRANSFER CASE PLUG)

36114B

PLUG, NO.1 (FOR TRANSFER CASE)

36114C

GASKET, NO.1 (FOR TRANSFER CASE)

36114F

PLUG (FOR TRANSFER DRAIN)

36114G

GASKET (FOR TRANSFER DRAIN PLUG)

36122

COVER, TRANSFER CASE, NO.2

36124

COVER, TRANSFER POWER TAKE-OFF

36129A

TUBE, TRANSFER OIL

36144

GASKET, TRANSFER POWER TAKE-OFF COVER

36149

PIPE, TRANSFER BREATHER

36149A

PIPE, TRANSFER BREATHER, NO.2

36182A

COVER, TRANSFER OIL PUMP

36183A

PLATE, TRANSFER OIL PUMP

36184B

SHAFT, TRANSFER OIL PUMP DRIVE

36185B

ROTOR, TRANSFER OIL PUMP DRIVE

36186A

ROTOR, TRANSFER OIL PUMP DRIVEN

36187A

STRAINR, TRANSFER OIL, NO.1

36209A

SHAFT, TRANSFER OUTPUT, FRONT

36336

INSULATOR, TRANSFER HEAT

9011908332

Крепеж

9014960053

Крепеж

9025311001

Крепеж

9036010003

Крепеж

9046400535

Крепеж

9050110127

Крепеж

9094901684

Крепеж

9094901686

Крепеж

9094901687

Крепеж

9094901968

Крепеж

9161160620

Крепеж

91611B0614

Крепеж

91611B0812

Крепеж

9161261025

Крепеж

9161261035

Крепеж

9161261040

Крепеж

9161961235

Крепеж

9161961245

Крепеж

9613251000

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

33124E

PIPE, OIL RECEIVER(FOR TRANSFER)

33325B

DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING)

33325C

DEFLECTOR, DUST (FOR TRANSFER EXTENSION REAR HOUSING)

33449D

MAGNET (FOR TRANSFER CASE)

33469A

SEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING)

36103C

CASE, TRANSFER, FRONT

36104B

DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

36105

HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT

36105A

SEAL, OIL (TRANSFER EXTENSION FRONT HOUSING SUB-ASSY)

36109B

HOUSING SUB-ASSY, TRANSFER EXTENSION, REAR

36109C

SEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY)

36109D

BOLT (FOR TRANSFER EXTENSION REAR HOUSING)

36111B

SEAL, OIL (FOR TRANSFER CASE)

36111C

PLUG (FOR TRANSFER CASE)

36111E

GASKET (FOR TRANSFER CASE)

36111F

PLUG (FOR TRANSFER CASE)

36111G

PIN, STRAIGHT (FOR TRANSFER CASE)

36112

CASE, TRANSFER, REAR

36112B

HOSE, NO.1 (FOR TRANSFER REAR CASE)

36112C

HOSE, NO.2 (FOR TRANSFER REAR CASE)

36112D

HOSE, NO.3 (FOR TRANSFER REAR CASE)

36113B

RING, O (FOR TRANSFER CASE PLUG)

36114B

PLUG, NO.1 (FOR TRANSFER CASE)

36114C

GASKET, NO.1 (FOR TRANSFER CASE)

36114F

PLUG (FOR TRANSFER DRAIN)

36122

COVER, TRANSFER CASE, NO.2

36124

COVER, TRANSFER POWER TAKE-OFF

36129A

TUBE, TRANSFER OIL

36132

RETAINER, OUTPUT SHAFT BEARING, REAR NO.1

36144

GASKET, TRANSFER POWER TAKE-OFF COVER

36149

PIPE, TRANSFER BREATHER

36149A

PIPE, TRANSFER BREATHER, NO.2

36177

GUIDE, TRANSFER AIR

36182A

COVER, TRANSFER OIL PUMP

36183A

PLATE, TRANSFER OIL PUMP

36184A

SEPARATOR, TRANSFER OIL

36184B

SHAFT, TRANSFER OIL PUMP DRIVE

36185B

ROTOR, TRANSFER OIL PUMP DRIVE

36186A

ROTOR, TRANSFER OIL PUMP DRIVEN

36187A

STRAINR, TRANSFER OIL, NO.1

36209A

SHAFT, TRANSFER OUTPUT, FRONT

9011908332

Крепеж

9011910262

Крепеж

9011910749

Крепеж

9014960053

Крепеж

9025311001

Крепеж

9034112008

Крепеж

9036010003

Крепеж

9050110127

Крепеж

9094901684

Крепеж

9094901686

Крепеж

9094901687

Крепеж

9094901968

Крепеж

9161160620

Крепеж

91611B0614

Крепеж

91611B0812

Крепеж

9161261025

Крепеж

9161261035

Крепеж

9161261040

Крепеж

9161961235

Крепеж

9161961245

Крепеж

91651B0825

Крепеж

9613251000

Крепеж
