Каталог
ЯпонияМодель
LAND CRUISER VANДвигатель
4,2 литра, турбо-дизельКласс
VX TYPEФрейм
HDJ81Трансмиссия
механикаОпции
LIFT UP BACK DOOR TURBO DIESEL 4 VALVE
Код
Описание
1603
переход к группе запчастей

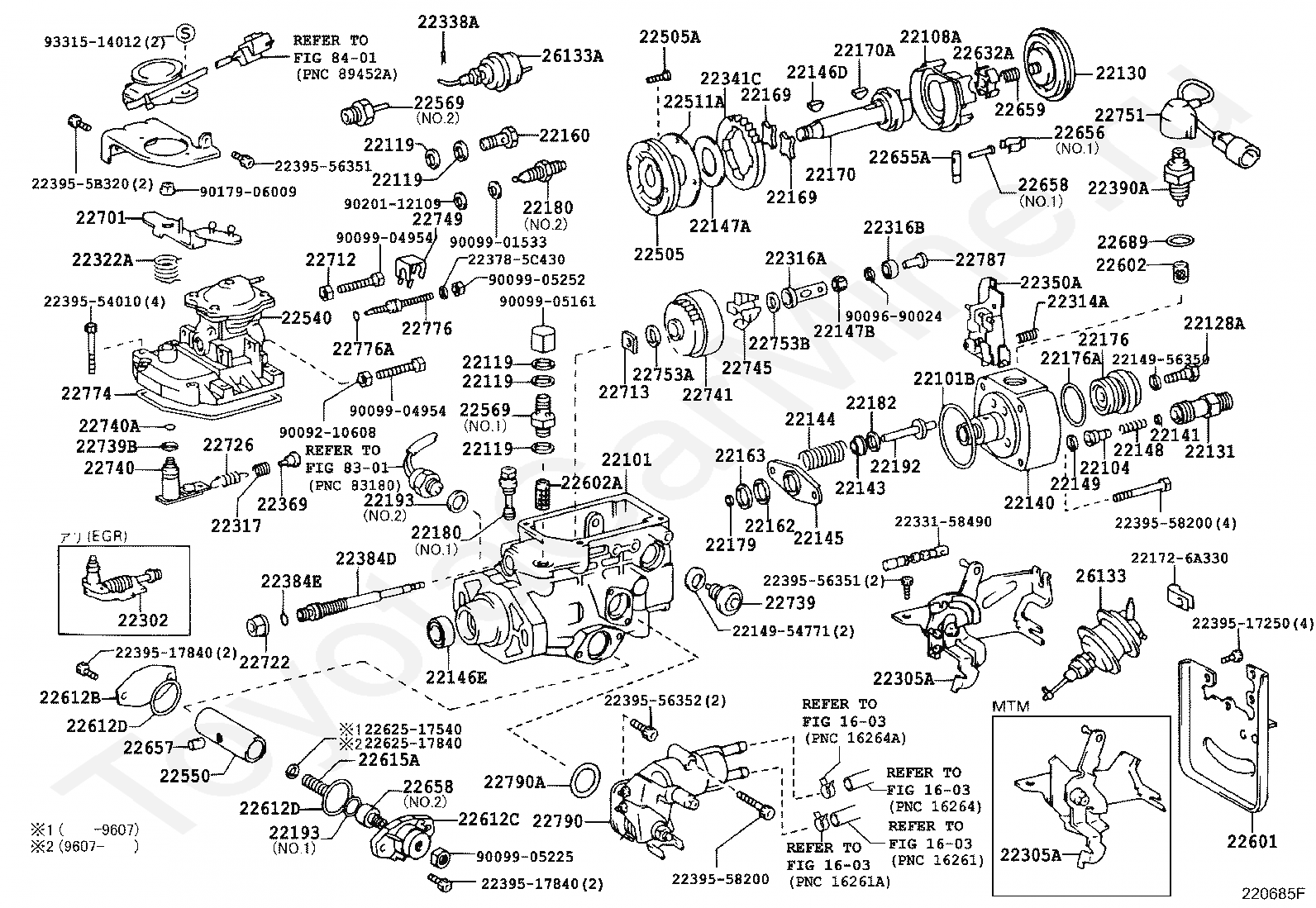

22101
HOUSING SUB-ASSY, INJECTION PUMP
22101B
RING, O(FOR INJECTION PUMP HOUSING)
22104
VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108A
RING SUB-ASSY, ROLLER
22119
WASHER, AIR BLEEDER NIPPLE
22128A
BOLT, DISTRIBUTIVE HEAD
22130
CAMPLATE SUB-ASSY, FACE
22131
HOLDER, DELIVERY VALVE
22140
HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22141
SEAT, DELIVERY VALVE SPRING
22143
SEAT, SPRING UPPER
22144
SPRING, PUMP PLUNGER
22145
SEAT, SPRING, LOWER
22146D
KEY(FOR DRIVE GEAR)
22146E
SEAL(FOR DRIVE SHAFT)
22147A
WASHER, DRIVE SHAFT
22147B
RING, GOVERNOR SLEEVE
22148
SPRING, DELIVERY VALVE
22149
GASKET, DELIVERY VALVE
2214954771
Крепеж
2214956350
Крепеж
22160
SCREW SUB-ASSY, OVERFLOW
22162
PLATE, PLUNGER UPPER
22163
PLATE, PLUNGER LOWER
22169
JOINT, RUBBER
22170
SHAFT SUB-ASSY, DRIVE
22170A
KEY(FOR DRIVE SHAFT)
221726A330
Крепеж
22176
PLUG, DISTRIBUTIVE HEAD
22176A
RING, O(FOR DISTRIBUTIVE HEAD PLUG)
22179
SHIM, PLUNGER ADJUSTING
22180
VALVE SUB-ASSY, REGULATOR
22182
PLATE, TAPPET ADJUSTING SHIM
22192
GUIDE SUB-ASSY, PLUNGER SPRING
22193
RING, O(FOR LEVER CONNECTING PIN)
22302
SHAFT SUB-ASSY, SPEED CONTROL
22305A
IDLE-UP SUB-ASSY
22314A
SPRING, LEVER SUPPORT
22316A
SLEEVE, GOVERNOR
22316B
BEARING, BALL(FOR GOVERNOR SLEEVE)
22317
SPRING, GOVERNOR DOMPER
22322A
SPRING, RETURN
2233158490
Крепеж
22338A
PIN, LEVER CONNECTING
22341C
GEAR, GOVERNOR DRIVE
22350A
GOVERNOR ASSY, TORQUE CONTROL
22369
SEAT, GOVERNOR SPRING
223785C430
Крепеж
22384D
SHAFT, GOVERNOR
22384E
RING, O(FOR GOVERNOR MAIN SHAFT)
22390A
SOLENOID ASSY, FUEL CUT
2239517250
Крепеж
2239517840
Крепеж
2239554010
Крепеж
2239556351
Крепеж
2239556352
Крепеж
2239558200
Крепеж
223955B320
Крепеж
22505
PUMP SUB-ASSY, FUEL FEED
22505A
SCREW(FOR FUEL FEED PUMP)
22511A
COVER, FEED PUMP
22540
COMPENSATOR SUB-ASSY, BOOST
22550
PISTON ASSY, TIMER
22569
SCREW, OVERFLOW
22601
BRACKET SUB-ASSY, IDLE UP
22602
FILTER SUB-ASSY, FUEL INJECTION PUMP
22602A
FILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2
22612B
COVER, TIMER
22612C
COVER, TIMER
22612D
RING, O(FOR TIMER COVER)
22615A
SPRING, TIMER OUTER
2262517540
Крепеж
2262517840
Крепеж
22632A
COUPLING, INJECTION PUMP
22655A
PIN, TIMER SLIDE
22656
CLIP, TIMER
22657
CLIP, TIMER
22658
STOPPER, TIMER
22659
SPRING, COUPLING
22689
WASHER(FOR SWIVEL NIPPLE)
22701
LEVER SUB-ASSY, ADJUSTING
22712
NUT, ROCK
22713
WASHER, GOVERNOR GEAR ADJUSTING
22722
NUT, GOVERNOR SHAFT ROCK
22726
SPRING, SPEED CONTROL
22739
BOLT, GOVERNOR LINK SUPPORT
22739B
WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2)
22740
SHAFT SUB-ASSY, GOVERNOR ADJUSTING
22740A
RING, O(FOR GOVERNOR ADJUSTING SHAFT)
22741
HOLDER SUB-ASSY, FLYWEIGHT
22745
FLYWEIGHT, DISTRIBUTIVE PUMP
22749
COLLAR, SMOKE SET ADJUSTING
22751
WIRE SUB-ASSY, FUEL CUT SOLENOID
22753A
WASHER, FLYWEIGHT, NO.1
22753B
WASHER, FLYWEIGHT, NO.2
22774
GASKET, GOVERNOR COVER
22776
SCREW, SMOKE SET ADJUSTING
22776A
RING, O(FOR SMOKE SET SCREW)
22787
PLUG, GOVERNOR SLEEVE
22790
COVER SUB-ASSY, TIMER
22790A
RING, O(FOR TIMER COVER)
26133
ACTUATOR SET, IDLE-UP
26133A
ACTUATOR SET, IDLE-UP
8301
переход к группе запчастей
8401
переход к группе запчастей
9009210608
Крепеж
9009690024
Крепеж
9009901533
Крепеж
9009904954
Крепеж
9009905161
Крепеж
9009905225
Крепеж
9009905252
Крепеж
9017906009
Крепеж
9020112109
Крепеж
9331514012
Крепеж
Код
Описание

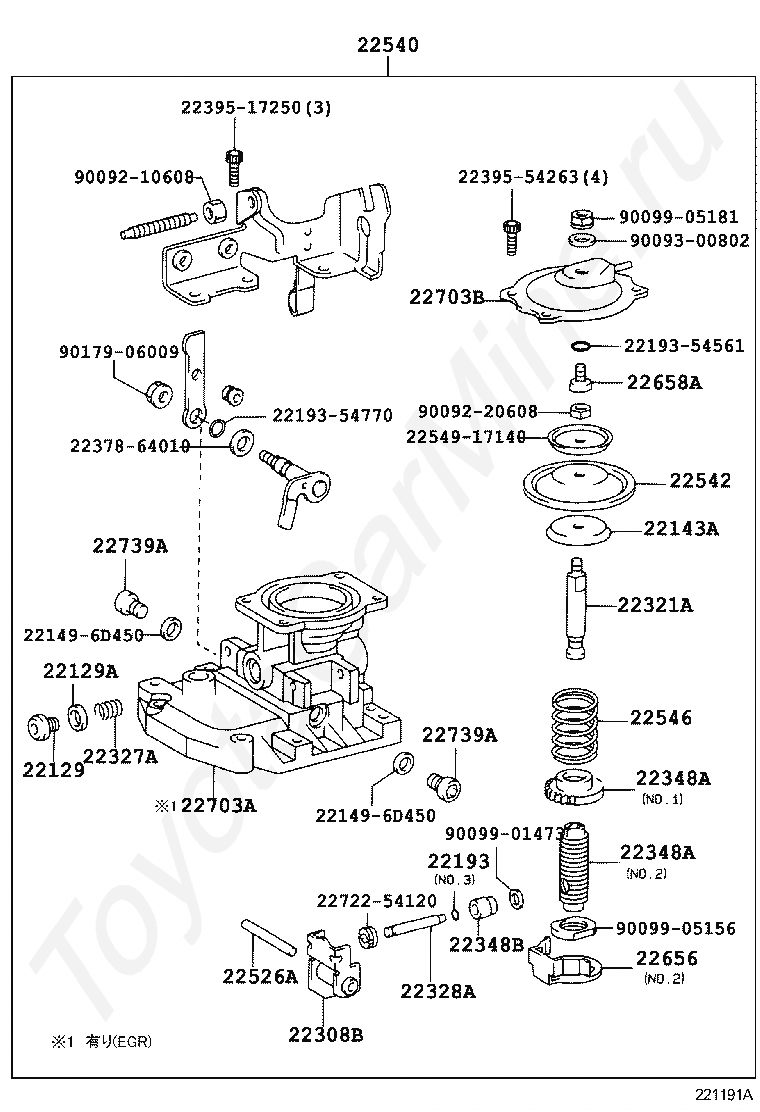

22129
PLUG, SCREW
22129A
WASHER, AIR BLEEDER NIPPLE(FOR SCREW PLUG)
22143A
SEAT, SPRING UPPER, NO.2
221496D450
Крепеж
22193
RING, O(FOR LEVER CONNECTING PIN)
2219354561
Крепеж
2219354770
Крепеж
22308B
LEVER SUB-ASSY, CONTROL
22321A
ROD, PUSH
22327A
SPRING(FOR BELLOWS)
22328A
PIN, LEVER CONNECTING
22348A
BUSHING, GUIDE
22348B
BUSHING, GUIDE(FOR LEVER CONNECTING PIN)
2237864010
Крепеж
2239517250
Крепеж
2239554263
Крепеж
22526A
PIN, LEVER SUPPORT
22540
COMPENSATOR SUB-ASSY, BOOST
22542
DIAPHRAGM(FOR BOOST COMPENSATOR)
22546
SPRING, BOOST COMPENSATOR
2254917140
Крепеж
22656
CLIP, TIMER
22658A
STOPPER, TIMER SLIDE
22703A
COVER SUB-ASSY, GOVERNOR
22703B
COVER, GOVERNOR
2272254120
Крепеж
22739A
BOLT, GOVERNOR LINK SUPPORT NO.2
9009210608
Крепеж
9009220608
Крепеж
9009300802
Крепеж
9009901473
Крепеж
9009905156
Крепеж
9009905181
Крепеж
9017906009
Крепеж
