Каталог
ЯпонияМодель
LAND CRUISER VANДвигатель
4,2 литра, турбо-дизельКласс
VX TYPEФрейм
HDJ81Трансмиссия
механикаОпции
LIFT UP BACK DOOR TURBO DIESEL 4 VALVE

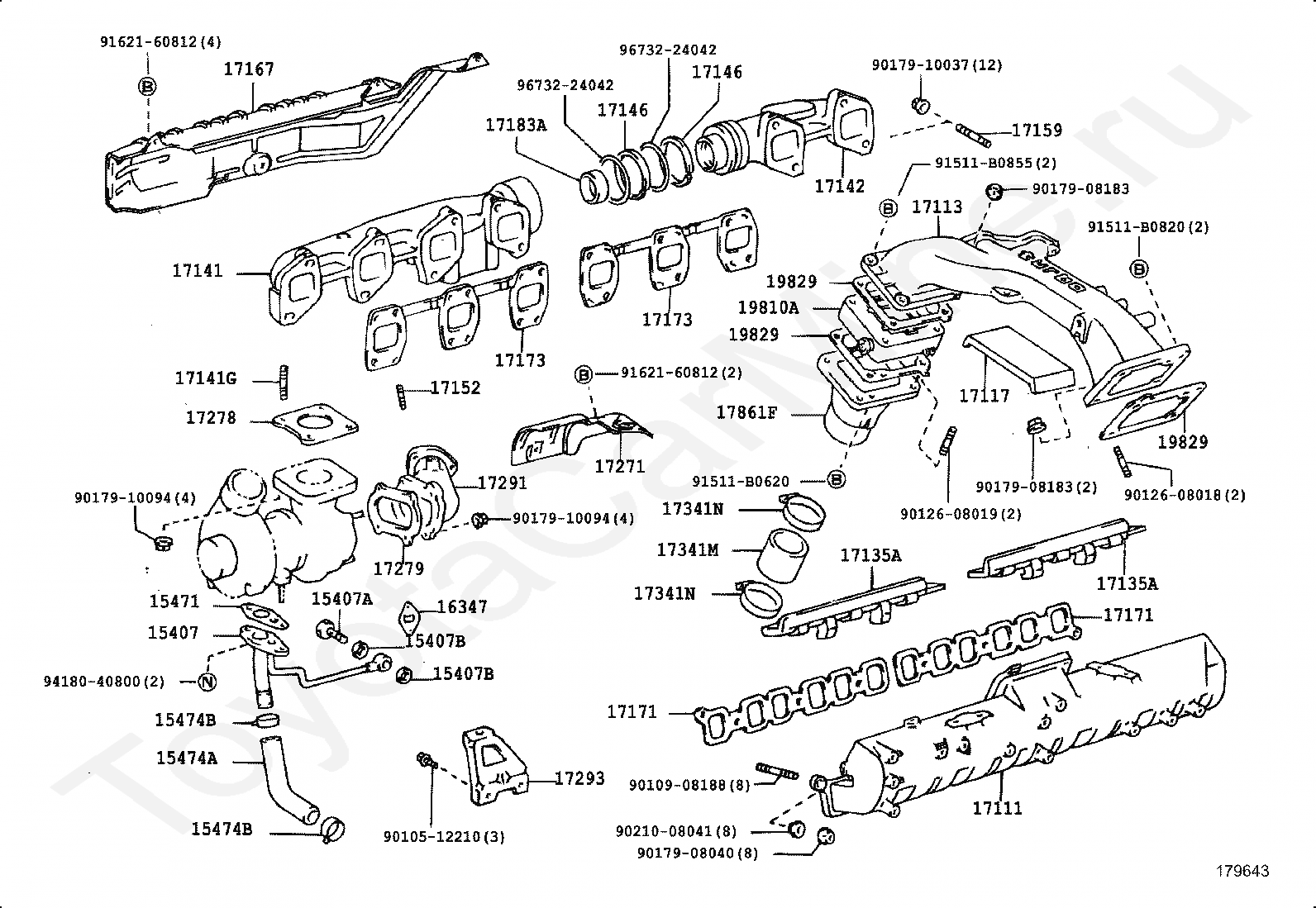

Код
Описание
15407
PIPE SUB-ASSY, TURBO OIL INLET
15407A
BOLT, UNION(FOR TURBO OIL INLET PIPE)
15407B
GASKET(FOR TURBO OIL INLET PIPE)
15471
GASKET, TURBO OIL INLET
15474A
HOSE, TURBO OIL OUTLET
15474B
CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE)
16347
GASKET, WATER BY-PASS
17111
MANIFOLD, INTAKE
17113
PIPE, INTAKE
17117
INSULATOR, INTAKE PIPE
17135A
INSULATOR, INTAKE MANIFOLD, NO.1
17141
MANIFOLD, EXHAUST
17141G
BOLT, STUD(FOR TURBOCHARGER)
17142
CASE, EXHAUST MANIFOLD, NO.2
17146
RING, EXHAUST MANIFOLD
17152
BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159
BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17167
INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17171
GASKET, INTAKE TO EXHAUST MANIFOLD
17173
GASKET, EXHAUST MANIFOLD TO HEAD
17183A
COLLAR, MANIFOLD
17271
INSULATOR, TURBO, NO.1
17278
GASKET, TURBO TO EXHAUST MANIFOLD
17279
GASKET, TURBINE OUTLET ELBOW
17291
ELBOW, TURBINE OUTLET
17293
STAY, TURBOCHARGER
17341M
HOSE, AIR, NO.1
17341N
CLAMP OR CLIP(FOR AIR HOSE, NO.1)
19810A
HEATER ASSY, INTAKE
19829
GASKET, INTAKE HEATER
9010512210
Крепеж
9010908188
Крепеж
9012608019
Крепеж
9017908040
Крепеж
9017908183
Крепеж
9017910037
Крепеж
9017910094
Крепеж
9021008041
Крепеж
91511B0620
Крепеж
91511B0855
Крепеж
9162160812
Крепеж
9418040800
Крепеж
9673224042
Крепеж

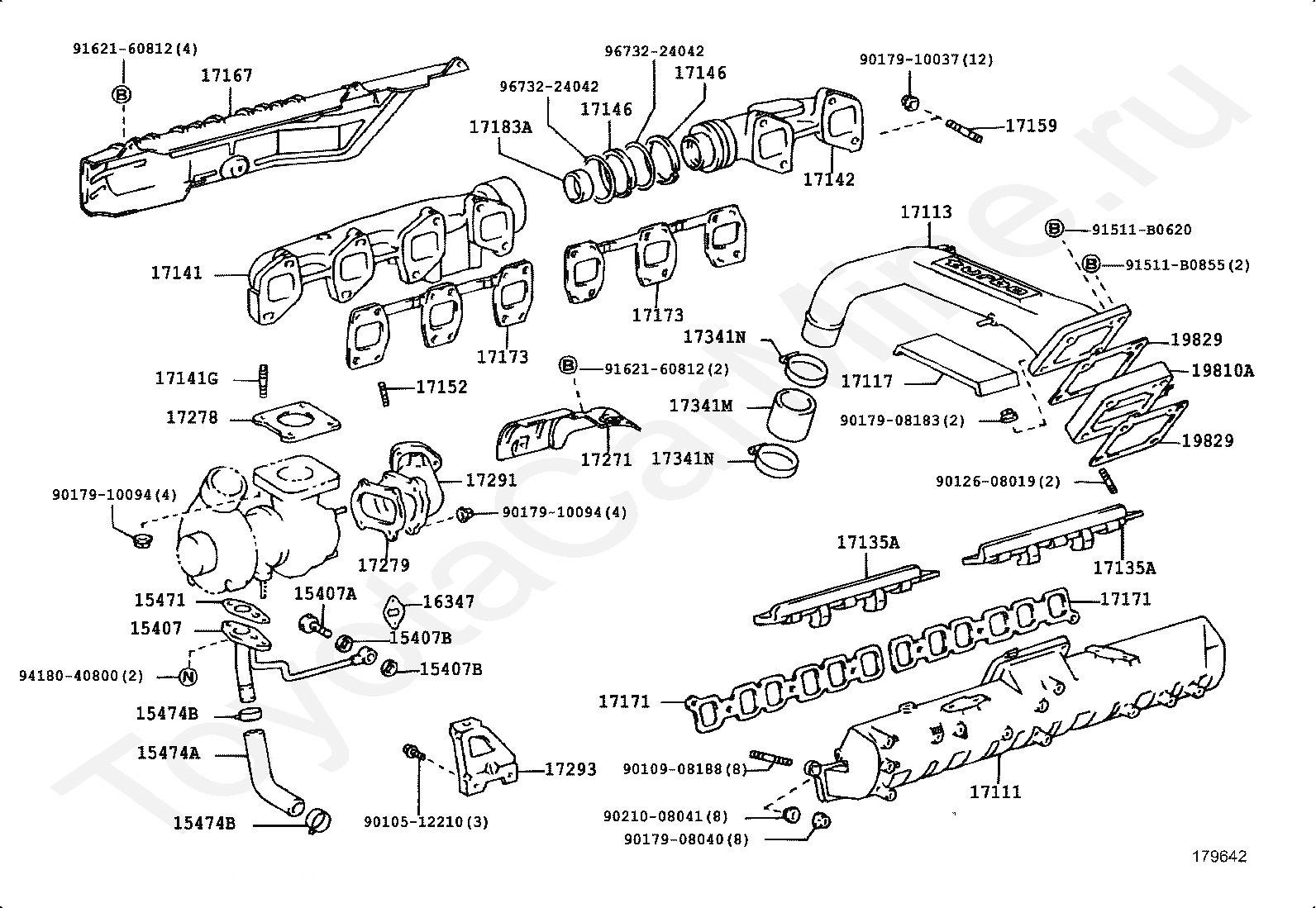

Код
Описание
15407
PIPE SUB-ASSY, TURBO OIL INLET
15407A
BOLT, UNION(FOR TURBO OIL INLET PIPE)
15407B
GASKET(FOR TURBO OIL INLET PIPE)
15471
GASKET, TURBO OIL INLET
15474A
HOSE, TURBO OIL OUTLET
15474B
CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE)
16347
GASKET, WATER BY-PASS
17111
MANIFOLD, INTAKE
17113
PIPE, INTAKE
17117
INSULATOR, INTAKE PIPE
17135A
INSULATOR, INTAKE MANIFOLD, NO.1
17141
MANIFOLD, EXHAUST
17141G
BOLT, STUD(FOR TURBOCHARGER)
17142
CASE, EXHAUST MANIFOLD, NO.2
17146
RING, EXHAUST MANIFOLD
17152
BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159
BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17167
INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17171
GASKET, INTAKE TO EXHAUST MANIFOLD
17173
GASKET, EXHAUST MANIFOLD TO HEAD
17183A
COLLAR, MANIFOLD
17271
INSULATOR, TURBO, NO.1
17278
GASKET, TURBO TO EXHAUST MANIFOLD
17279
GASKET, TURBINE OUTLET ELBOW
17291
ELBOW, TURBINE OUTLET
17293
STAY, TURBOCHARGER
17341M
HOSE, AIR, NO.1
17341N
CLAMP OR CLIP(FOR AIR HOSE, NO.1)
17861F
CONNECTOR, INTAKE AIR
19810A
HEATER ASSY, INTAKE
19829
GASKET, INTAKE HEATER
9010512210
Крепеж
9010908188
Крепеж
9012608018
Крепеж
9012608019
Крепеж
9017908040
Крепеж
9017908183
Крепеж
9017910037
Крепеж
9017910094
Крепеж
9021008041
Крепеж
91511B0620
Крепеж
91511B0820
Крепеж
91511B0855
Крепеж
9162160812
Крепеж
9418040800
Крепеж
9673224042
Крепеж

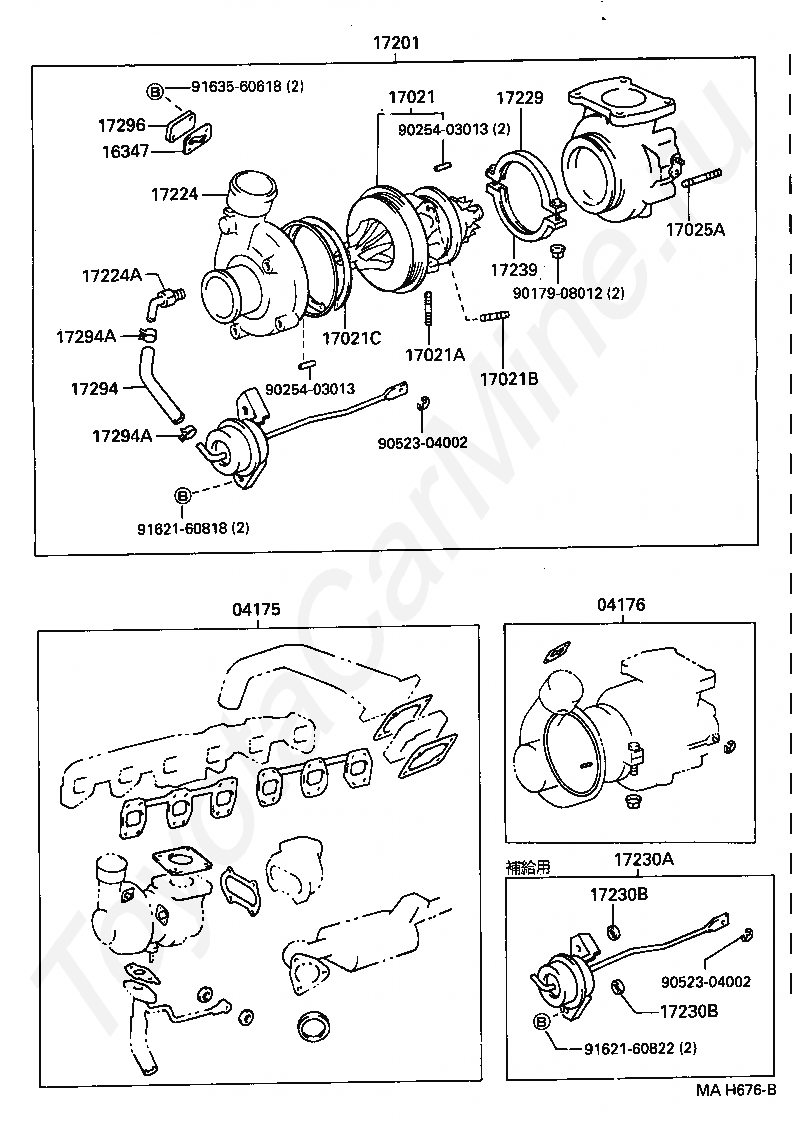

Код
Описание
04175
GASKET KIT, TURBOCHARGER
04176
SEAL KIT, TURBOCHARGER
16347
GASKET, WATER BY-PASS
17021
HOUSING SUB-ASSY, BEARING
17021A
BOLT, STUD(FOR BEARING HOUSING)
17021B
BOLT, STUD
17021C
RING, HOLE SNAP(FOR BEARING HOUSING)
17025A
BOLT, STUD(FOR TURBINE HOUSING)
17201
TURBOCHARGER SUB-ASSY
17224
HOUSING, COMPRESSOR
17224A
UNION(FOR COMPRESSOR HOUSING)
17229
BAND, V
17230A
REPAIR ACTUAOR ASSY, W/BRACKET
17230B
WASHER, PLATE(FOR REPAIR ACTUATOR SET)
17239
CLAMP, V, NO.2
17294
HOSE, ACTUATOR
17294A
CLIP(FOR ACTUATOR HOSE)
17296
PLATE, BEARING HOUSING, SIDE
9017908012
Крепеж
9025403013
Крепеж
9052304002
Крепеж
9162160818
Крепеж
9162160822
Крепеж
9163560618
Крепеж
