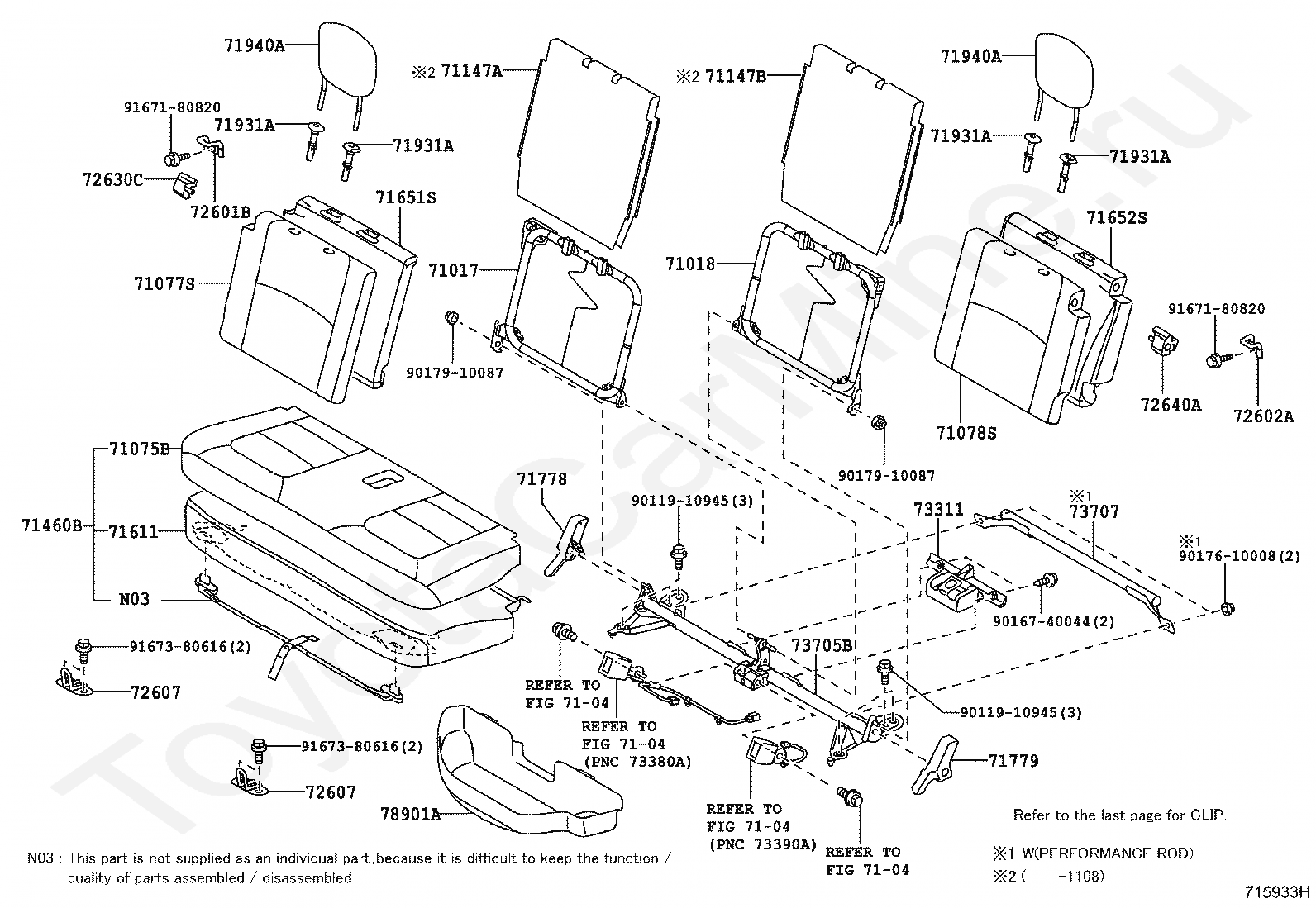

Задние кресла TOYOTA IQ, 2008/11 - 2025, 1 литр, 12 клапанов DOHC, EFI, N(MODEL MARK), KGJ10, автомат, бесступенчатая АКПП

Каталог

Европа

Модель

Двигатель

1 литр, 12 клапанов DOHC, EFI

Класс

N(MODEL MARK)

Фрейм

KGJ10

Трансмиссия

автомат бесступенчатая АКПП

Опции

правый руль 432W

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71147A

SILENCER, REAR SEAT SPRING

71147B

SILENCER, SEAT SPRING

71460B

CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71778

COVER, REAR SEAT SIDE HINGE MALE, RH

71779

COVER, REAR SEAT SIDE HINGE MALE, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72601B

STRIKER SUB-ASSY, REAR SEAT BACK LOCK

72602A

STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH

72607

STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

73311

COVER, REAR SEAT BELT BUCKLE, UPPER

73705B

BRACKET SUB-ASSY, CROSS ANCHOR

73707

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER

78901A

TRAY,SUB-ASSY, REAR SEAT UNDER

9011910945

Крепеж

9016740044

Крепеж

9017610008

Крепеж

9017910087

Крепеж

9167180820

Крепеж

9167380616

Крепеж

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71147A

SILENCER, REAR SEAT SPRING

71147B

SILENCER, SEAT SPRING

71460B

CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

71601A

PAD SUB-ASSY, REAR SEAT CUSHION W/COVER

71603D

PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH

71604D

PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH

71778

COVER, REAR SEAT SIDE HINGE MALE, RH

71779

COVER, REAR SEAT SIDE HINGE MALE, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72601B

STRIKER SUB-ASSY, REAR SEAT BACK LOCK

72602A

STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH

72607

STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

73311

COVER, REAR SEAT BELT BUCKLE, UPPER

73705B

BRACKET SUB-ASSY, CROSS ANCHOR

73707

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER

78901A

TRAY,SUB-ASSY, REAR SEAT UNDER

9011910945

Крепеж

9016740044

Крепеж

9017610008

Крепеж

9017910087

Крепеж

9167180820

Крепеж

9167380616

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Задние кресла TOYOTA IQ, 2008/11 - 2025, 1 литр, 12 клапанов DOHC, EFI, N(MODEL MARK), KGJ10, автомат, бесступенчатая АКПП
