Кресла TOYOTA INNOVA, 2016/08 - 2020/09, 2,8 литра, турбо-дизель, 2.8E TYPE, GUN143, автомат, АКПП, 6 скоростей

Каталог

Ближний Восток

Модель

INNOVA

Двигатель

2,8 литра, турбо-дизель

Класс

2.8E TYPE

Фрейм

GUN143

Трансмиссия

автомат АКПП, 6 скоростей

Опции

левый руль Филиппины INDONESIA PRODUCT система впрыска дизельного топлива 579W

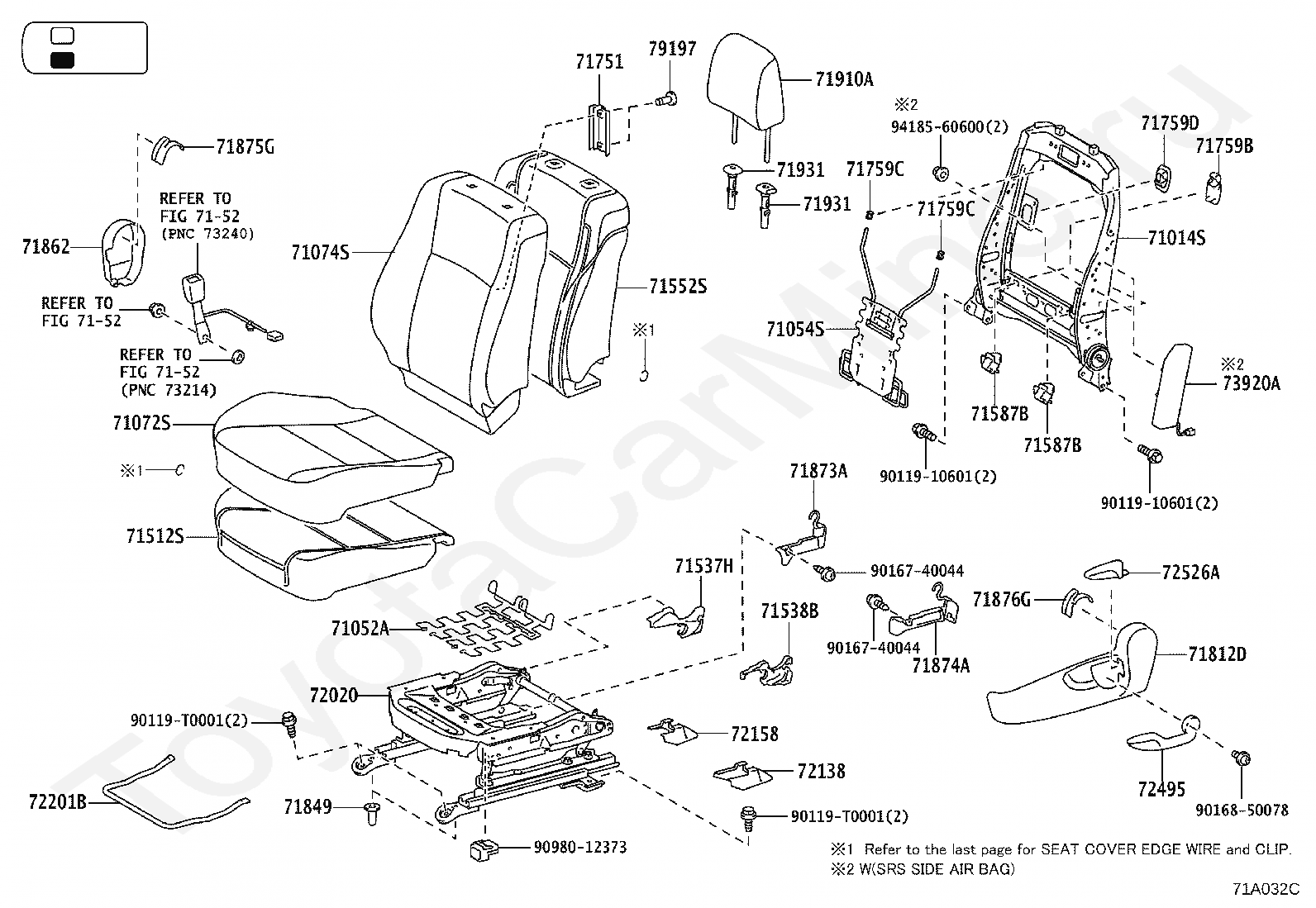

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71537H

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587B

PROTECTOR, FRONT SEAT BACK EDGE

71751

HANGER, SEAT COVER

71759B

HOOK, FRONT SEAT BACK

71759C

HOOK, FRONT SEAT BACK, NO.1

71759D

HOOK, FRONT SEAT BACK, NO.2

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72020

ADJUSTER ASSY, FRONT SEAT, LH

72138

COVER, SEAT TRACK, OUTER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72495

HANDLE, VERTICAL ADJUSTING, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

79197

HOOK, SEAT BACK COVER

9011910601

Крепеж

90119T0001

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9098012373

Крепеж

9418560600

Крепеж

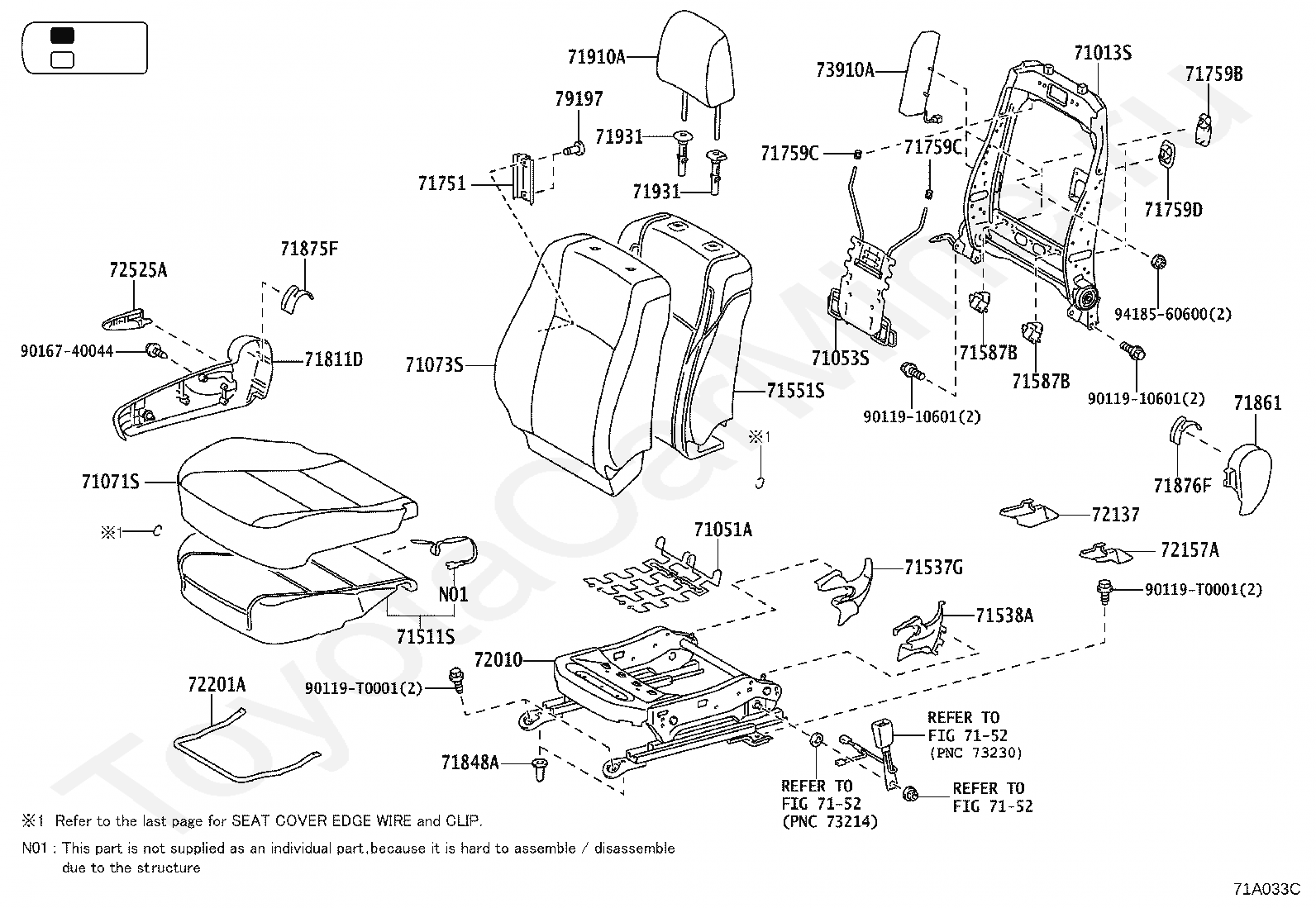

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71537G

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

71538A

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71587B

PROTECTOR, FRONT SEAT BACK EDGE

71751

HANGER, SEAT COVER

71759B

HOOK, FRONT SEAT BACK

71759C

HOOK, FRONT SEAT BACK, NO.1

71759D

HOOK, FRONT SEAT BACK, NO.2

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72010

ADJUSTER ASSY, FRONT SEAT, RH

72137

COVER, SEAT TRACK, OUTER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

79197

HOOK, SEAT BACK COVER

9011910601

Крепеж

90119T0001

Крепеж

9016740044

Крепеж

9418560600

Крепеж

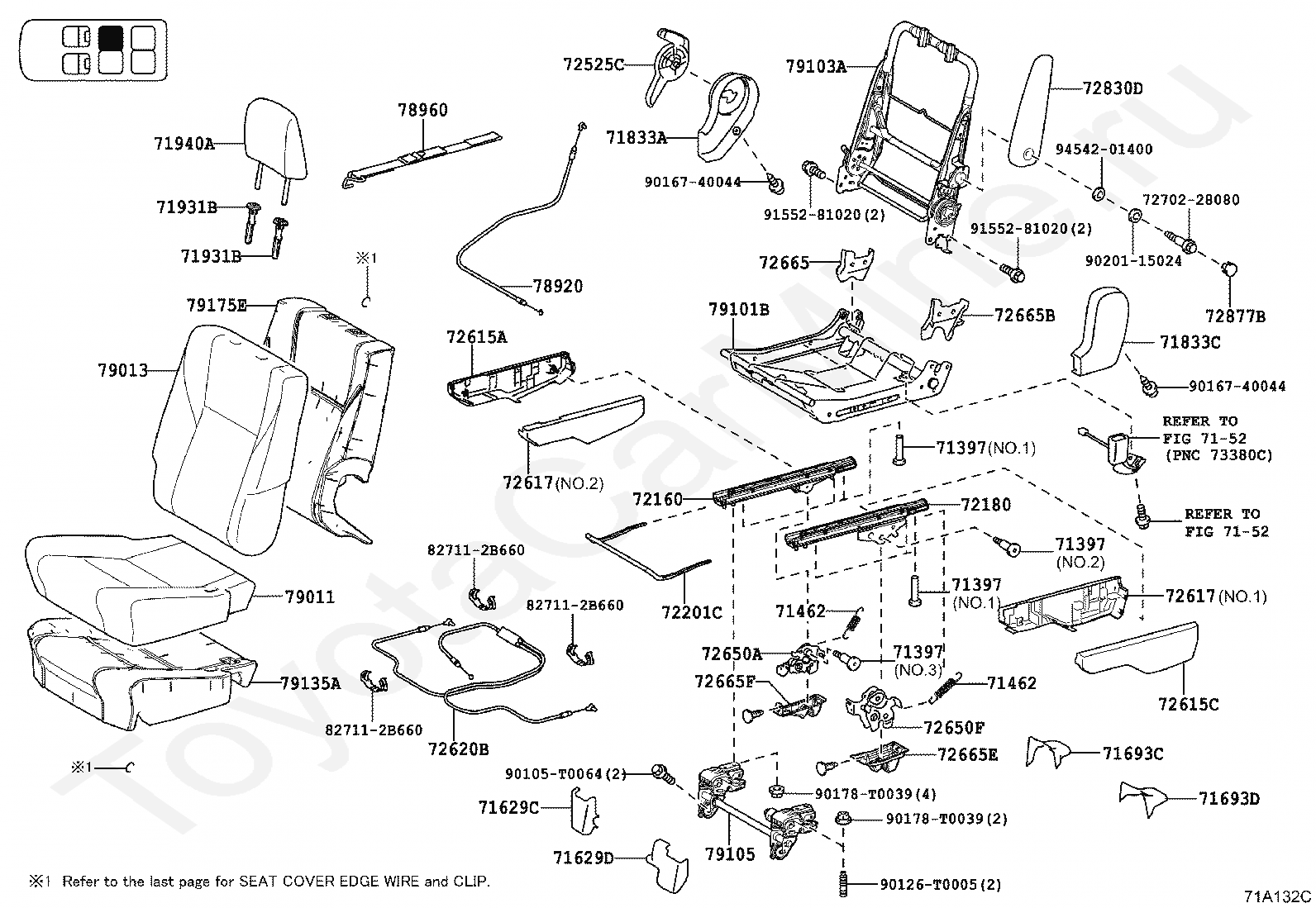

Код

Описание

71397

STOPPER, REAR SEAT

71462

SPRING, REAR SEAT CUSHION, NO.2

7152

переход к группе запчастей

71629C

COVER, REAR SEAT CUSHION HINGE, OUTER RH

71629D

COVER, REAR SEAT CUSHION HINGE, INNER RH

71693C

COVER, REAR SEAT CUSHION HINGE, OUTER RH

71693D

COVER, REAR SEAT CUSHION HINGE, INNER RH

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71833C

COVER, REAR SEAT RECLINING, NO.2 RH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72160

TRACK ASSY, REAR SEAT, OUTER RH

72180

TRACK ASSY, REAR SEAT, INNER RH

72201C

HANDLE SUB-ASSY, SEAT TRACK, RH

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72615A

COVER, REAR SEAT BACK LOCK STRIKER, RH

72615C

COVER, REAR SEAT BACK LOCK STRIKER

72617

RETAINER, SEAT BACK LOCK STRIKER COVER

72620B

CABLE ASSY, REAR NO.1 SEAT LOCK

72650A

LOCK ASSY, REAR SEAT, RH

72650F

LOCK ASSY, REAR SEAT, RH

72665

COVER, REAR SEAT BACK LOCK, RH

72665B

COVER, REAR SEAT BACK LOCK

72665E

COVER, REAR SEAT LOCK, NO.2 RH

72665F

COVER, REAR SEAT LOCK, RH(FOR RH SEAT)

7270228080

Крепеж

72830D

ARMREST ASSY, REAR SEAT, RH

72877B

COVER, SEAT ARMREST, RH

78920

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2

78960

BAND ASSY, FOLD SEAT STOPPER, NO.2

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79101B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79103A

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79135A

PAD, NO.1 SEAT CUSHION, RH

79175E

PAD, NO.1 SEAT BACK, RH

827112B660

Крепеж

90105T0064

Крепеж

90126T0005

Крепеж

9016740044

Крепеж

90178T0039

Крепеж

9020115024

Крепеж

9155281020

Крепеж

9454201400

Крепеж

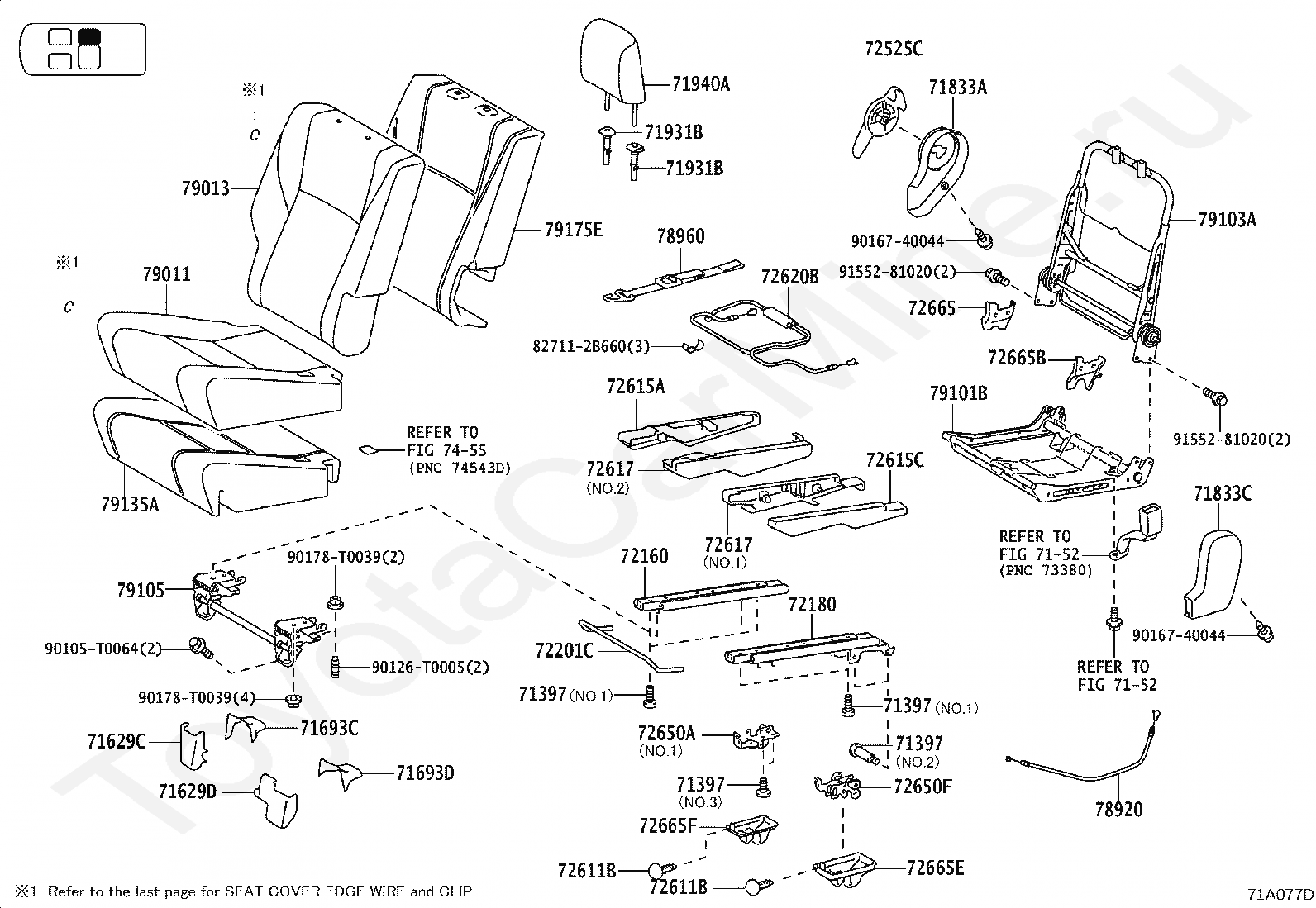

Код

Описание

71397

STOPPER, REAR SEAT

71462

SPRING, REAR SEAT CUSHION, NO.2

7152

переход к группе запчастей

71629C

COVER, REAR SEAT CUSHION HINGE, OUTER RH

71629D

COVER, REAR SEAT CUSHION HINGE, INNER RH

71693C

COVER, REAR SEAT CUSHION HINGE, OUTER RH

71693D

COVER, REAR SEAT CUSHION HINGE, INNER RH

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71833C

COVER, REAR SEAT RECLINING, NO.2 RH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72160

TRACK ASSY, REAR SEAT, OUTER RH

72180

TRACK ASSY, REAR SEAT, INNER RH

72201C

HANDLE SUB-ASSY, SEAT TRACK, RH

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72615A

COVER, REAR SEAT BACK LOCK STRIKER, RH

72615C

COVER, REAR SEAT BACK LOCK STRIKER

72617

RETAINER, SEAT BACK LOCK STRIKER COVER

72620B

CABLE ASSY, REAR NO.1 SEAT LOCK

72650A

LOCK ASSY, REAR SEAT, RH

72650F

LOCK ASSY, REAR SEAT, RH

72665

COVER, REAR SEAT BACK LOCK, RH

72665B

COVER, REAR SEAT BACK LOCK

72665E

COVER, REAR SEAT LOCK, NO.2 RH

72665F

COVER, REAR SEAT LOCK, RH(FOR RH SEAT)

7270228080

Крепеж

72830D

ARMREST ASSY, REAR SEAT, RH

72877B

COVER, SEAT ARMREST, RH

78920

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2

78960

BAND ASSY, FOLD SEAT STOPPER, NO.2

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79101B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79103A

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79135A

PAD, NO.1 SEAT CUSHION, RH

79175E

PAD, NO.1 SEAT BACK, RH

827112B660

Крепеж

90105T0064

Крепеж

90126T0005

Крепеж

9016740044

Крепеж

90178T0039

Крепеж

9020115024

Крепеж

9155281020

Крепеж

9454201400

Крепеж

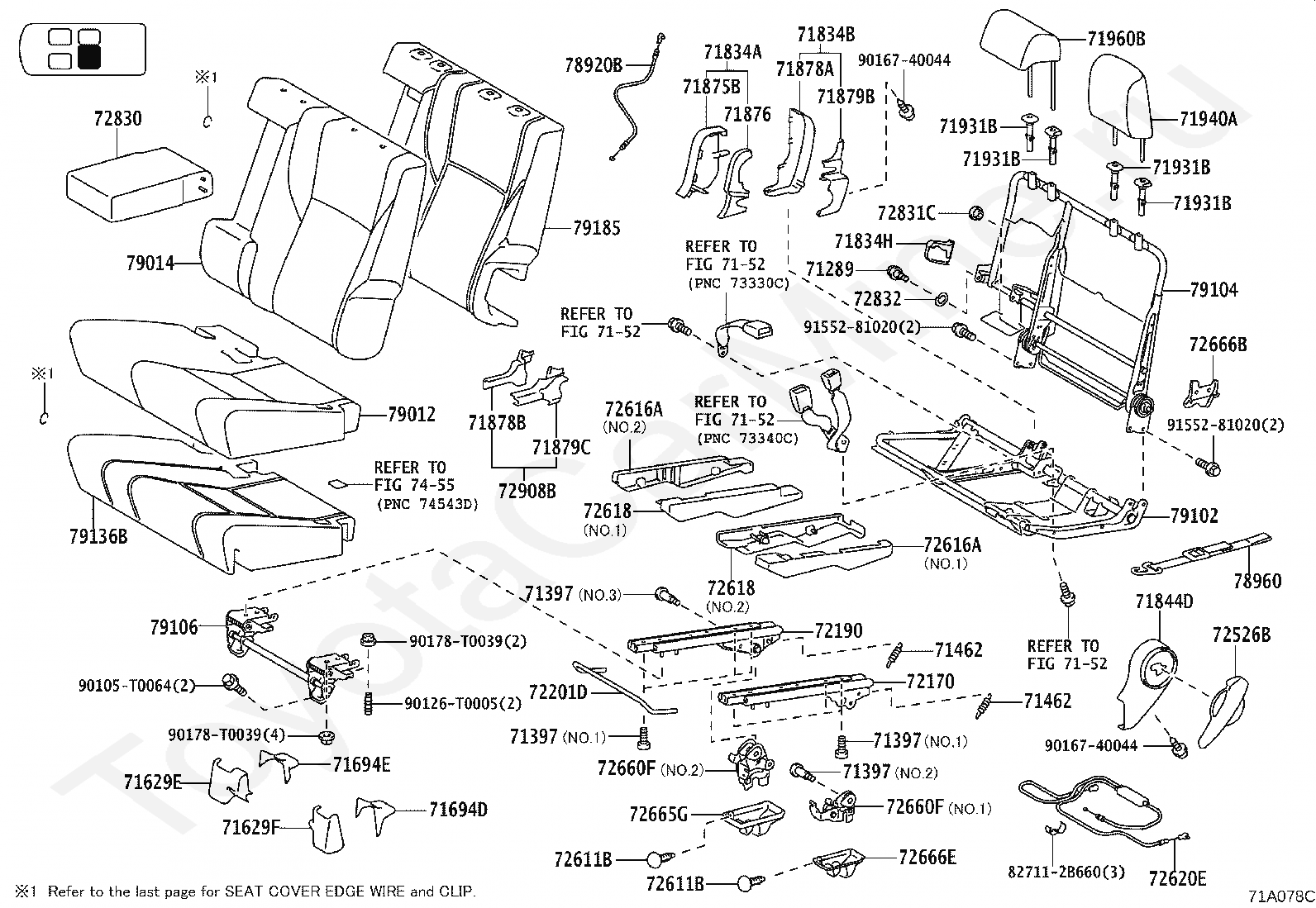

Код

Описание

71370A

HOLDER ASSY, REAR SEAT CUSHION

71397

STOPPER, REAR SEAT

71462

SPRING, REAR SEAT CUSHION, NO.2

7152

переход к группе запчастей

71629E

COVER, REAR SEAT CUSHION HINGE, INNER LH

71629F

COVER, REAR SEAT CUSHION HINGE, OUTER LH

71694D

COVER, REAR SEAT CUSHION HINGE, OUTER LH

71694E

COVER, REAR SEAT CUSHION HINGE, INNER LH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71844D

COVER, REAR SEAT RECLINING, LH (FOR LH SEAT)

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72170

TRACK ASSY, REAR SEAT, OUTER LH

72190

TRACK ASSY, REAR SEAT INNER, LH

72201D

HANDLE SUB-ASSY, SEAT TRACK, LH

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72616A

COVER, REAR SEAT BACK LOCK STRIKER, LH

72618

PROTECTOR, REAR SEAT BACK LOCK STRIKER

72620E

CABLE ASSY, REAR NO.1 SEAT LOCK

72660F

LOCK ASSY, REAR SEAT, LH

72665G

COVER, REAR SEAT LOCK, RH(FOR LH SEAT)

72666

COVER, REAR SEAT BACK LOCK, LH

72666B

COVER, REAR SEAT LOCK, LH

72666E

COVER, REAR SEAT LOCK, LH(FOR LH SEAT)

7270228080

Крепеж

72840D

ARMREST ASSY, REAR SEAT, LH

72878B

COVER, SEAT ARMREST, LH

78920B

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 LH

78960

BAND ASSY, FOLD SEAT STOPPER, NO.2

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79136B

PAD, NO.1 SEAT CUSHION, LH

79185

PAD, NO.1 SEAT BACK, LH

827112B660

Крепеж

90105T0064

Крепеж

90126T0005

Крепеж

9016740044

Крепеж

90178T0039

Крепеж

9020115024

Крепеж

9155281020

Крепеж

9454201400

Крепеж

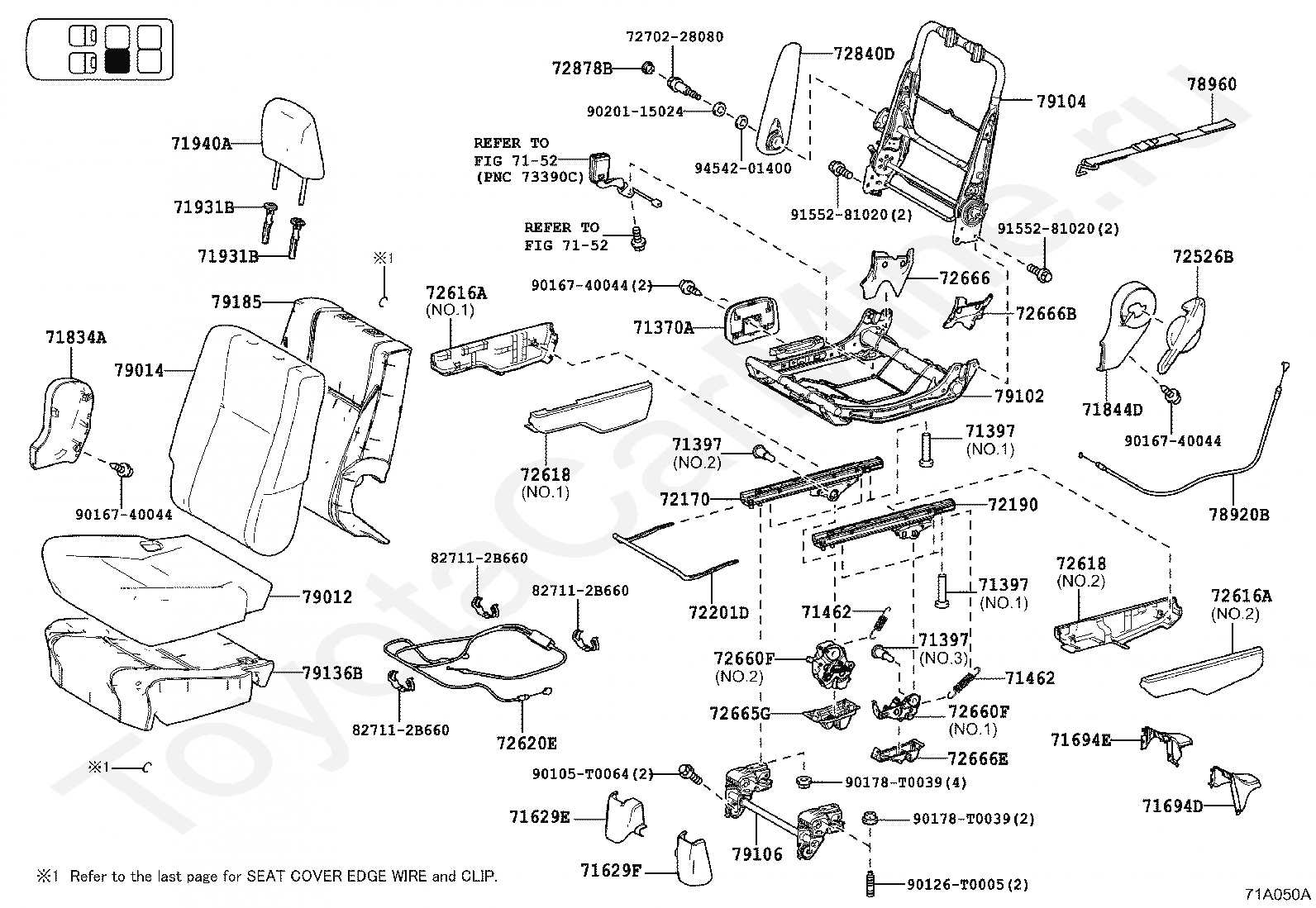

Код

Описание

71370A

HOLDER ASSY, REAR SEAT CUSHION

71397

STOPPER, REAR SEAT

71462

SPRING, REAR SEAT CUSHION, NO.2

7152

переход к группе запчастей

71629E

COVER, REAR SEAT CUSHION HINGE, INNER LH

71629F

COVER, REAR SEAT CUSHION HINGE, OUTER LH

71694D

COVER, REAR SEAT CUSHION HINGE, OUTER LH

71694E

COVER, REAR SEAT CUSHION HINGE, INNER LH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71844D

COVER, REAR SEAT RECLINING, LH (FOR LH SEAT)

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72170

TRACK ASSY, REAR SEAT, OUTER LH

72190

TRACK ASSY, REAR SEAT INNER, LH

72201D

HANDLE SUB-ASSY, SEAT TRACK, LH

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72616A

COVER, REAR SEAT BACK LOCK STRIKER, LH

72618

PROTECTOR, REAR SEAT BACK LOCK STRIKER

72620E

CABLE ASSY, REAR NO.1 SEAT LOCK

72660F

LOCK ASSY, REAR SEAT, LH

72665G

COVER, REAR SEAT LOCK, RH(FOR LH SEAT)

72666

COVER, REAR SEAT BACK LOCK, LH

72666B

COVER, REAR SEAT LOCK, LH

72666E

COVER, REAR SEAT LOCK, LH(FOR LH SEAT)

7270228080

Крепеж

72840D

ARMREST ASSY, REAR SEAT, LH

72878B

COVER, SEAT ARMREST, LH

78920B

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 LH

78960

BAND ASSY, FOLD SEAT STOPPER, NO.2

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79136B

PAD, NO.1 SEAT CUSHION, LH

79185

PAD, NO.1 SEAT BACK, LH

827112B660

Крепеж

90105T0064

Крепеж

90126T0005

Крепеж

9016740044

Крепеж

90178T0039

Крепеж

9020115024

Крепеж

9155281020

Крепеж

9454201400

Крепеж

Код

Описание

71397

STOPPER, REAR SEAT

7152

переход к группе запчастей

71629C

COVER, REAR SEAT CUSHION HINGE, OUTER RH

71629D

COVER, REAR SEAT CUSHION HINGE, INNER RH

71693C

COVER, REAR SEAT CUSHION HINGE, OUTER RH

71693D

COVER, REAR SEAT CUSHION HINGE, INNER RH

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71833C

COVER, REAR SEAT RECLINING, NO.2 RH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72160

TRACK ASSY, REAR SEAT, OUTER RH

72180

TRACK ASSY, REAR SEAT, INNER RH

72201C

HANDLE SUB-ASSY, SEAT TRACK, RH

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72611B

CLIP(FOR REAR SEAT LOCK BASE)

72615A

COVER, REAR SEAT BACK LOCK STRIKER, RH

72615C

COVER, REAR SEAT BACK LOCK STRIKER

72617

RETAINER, SEAT BACK LOCK STRIKER COVER

72620B

CABLE ASSY, REAR NO.1 SEAT LOCK

72650A

LOCK ASSY, REAR SEAT, RH

72650F

LOCK ASSY, REAR SEAT, RH

72665

COVER, REAR SEAT BACK LOCK, RH

72665B

COVER, REAR SEAT BACK LOCK

72665E

COVER, REAR SEAT LOCK, NO.2 RH

72665F

COVER, REAR SEAT LOCK, RH(FOR RH SEAT)

7455

переход к группе запчастей

78920

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2

78960

BAND ASSY, FOLD SEAT STOPPER, NO.2

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79101B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79103A

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79135A

PAD, NO.1 SEAT CUSHION, RH

79175E

PAD, NO.1 SEAT BACK, RH

827112B660

Крепеж

90105T0064

Крепеж

90126T0005

Крепеж

9016740044

Крепеж

90178T0039

Крепеж

9155281020

Крепеж

Код

Описание

71397

STOPPER, REAR SEAT

7152

переход к группе запчастей

71629C

COVER, REAR SEAT CUSHION HINGE, OUTER RH

71629D

COVER, REAR SEAT CUSHION HINGE, INNER RH

71693C

COVER, REAR SEAT CUSHION HINGE, OUTER RH

71693D

COVER, REAR SEAT CUSHION HINGE, INNER RH

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71833C

COVER, REAR SEAT RECLINING, NO.2 RH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72160

TRACK ASSY, REAR SEAT, OUTER RH

72180

TRACK ASSY, REAR SEAT, INNER RH

72201C

HANDLE SUB-ASSY, SEAT TRACK, RH

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72611B

CLIP(FOR REAR SEAT LOCK BASE)

72615A

COVER, REAR SEAT BACK LOCK STRIKER, RH

72615C

COVER, REAR SEAT BACK LOCK STRIKER

72617

RETAINER, SEAT BACK LOCK STRIKER COVER

72620B

CABLE ASSY, REAR NO.1 SEAT LOCK

72650A

LOCK ASSY, REAR SEAT, RH

72650F

LOCK ASSY, REAR SEAT, RH

72665

COVER, REAR SEAT BACK LOCK, RH

72665B

COVER, REAR SEAT BACK LOCK

72665E

COVER, REAR SEAT LOCK, NO.2 RH

72665F

COVER, REAR SEAT LOCK, RH(FOR RH SEAT)

7455

переход к группе запчастей

78920

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2

78960

BAND ASSY, FOLD SEAT STOPPER, NO.2

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79101B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79103A

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79135A

PAD, NO.1 SEAT CUSHION, RH

79175E

PAD, NO.1 SEAT BACK, RH

827112B660

Крепеж

90105T0064

Крепеж

90126T0005

Крепеж

9016740044

Крепеж

90178T0039

Крепеж

9155281020

Крепеж

Код

Описание

71289

PIN, REAR SEAT CENTER ARMREST

71397

STOPPER, REAR SEAT

71462

SPRING, REAR SEAT CUSHION, NO.2

7152

переход к группе запчастей

71629E

COVER, REAR SEAT CUSHION HINGE, INNER LH

71629F

COVER, REAR SEAT CUSHION HINGE, OUTER LH

71694D

COVER, REAR SEAT CUSHION HINGE, OUTER LH

71694E

COVER, REAR SEAT CUSHION HINGE, INNER LH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71834B

COVER, REAR SEAT RECLINING, NO.2 LH

71834H

COVER, REAR SEAT RECLINING, NO.1 LH

71844D

COVER, REAR SEAT RECLINING, LH (FOR LH SEAT)

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71878B

COVER, REAR SEAT RECLINING, INNER RH

71879B

COVER, REAR SEAT RECLINING, INNER LH

71879C

COVER, REAR SEAT RECLINING, INNER LH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72170

TRACK ASSY, REAR SEAT, OUTER LH

72190

TRACK ASSY, REAR SEAT INNER, LH

72201D

HANDLE SUB-ASSY, SEAT TRACK, LH

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72611B

CLIP(FOR REAR SEAT LOCK BASE)

72616A

COVER, REAR SEAT BACK LOCK STRIKER, LH

72618

PROTECTOR, REAR SEAT BACK LOCK STRIKER

72620E

CABLE ASSY, REAR NO.1 SEAT LOCK

72660F

LOCK ASSY, REAR SEAT, LH

72665G

COVER, REAR SEAT LOCK, RH(FOR LH SEAT)

72666B

COVER, REAR SEAT LOCK, LH

72666E

COVER, REAR SEAT LOCK, LH(FOR LH SEAT)

72830

ARMREST ASSY, REAR SEAT, CENTER

72831C

PLATE, REAR SEAT CENTER ARMREST, NO.2

72832

PLATE, REAR SEAT ARMREST

72908B

COVER SUB-ASSY, REAR SEAT CUSH UNDER, LH

7455

переход к группе запчастей

78920B

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 LH

78960

BAND ASSY, FOLD SEAT STOPPER, NO.2

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79136B

PAD, NO.1 SEAT CUSHION, LH

79185

PAD, NO.1 SEAT BACK, LH

827112B660

Крепеж

90105T0064

Крепеж

90126T0005

Крепеж

9016740044

Крепеж

90178T0039

Крепеж

9155281020

Крепеж

Код

Описание

71289

PIN, REAR SEAT CENTER ARMREST

71397

STOPPER, REAR SEAT

71462

SPRING, REAR SEAT CUSHION, NO.2

7152

переход к группе запчастей

71629E

COVER, REAR SEAT CUSHION HINGE, INNER LH

71629F

COVER, REAR SEAT CUSHION HINGE, OUTER LH

71694D

COVER, REAR SEAT CUSHION HINGE, OUTER LH

71694E

COVER, REAR SEAT CUSHION HINGE, INNER LH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71834B

COVER, REAR SEAT RECLINING, NO.2 LH

71834H

COVER, REAR SEAT RECLINING, NO.1 LH

71844D

COVER, REAR SEAT RECLINING, LH (FOR LH SEAT)

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71878B

COVER, REAR SEAT RECLINING, INNER RH

71879B

COVER, REAR SEAT RECLINING, INNER LH

71879C

COVER, REAR SEAT RECLINING, INNER LH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72170

TRACK ASSY, REAR SEAT, OUTER LH

72190

TRACK ASSY, REAR SEAT INNER, LH

72201D

HANDLE SUB-ASSY, SEAT TRACK, LH

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72611B

CLIP(FOR REAR SEAT LOCK BASE)

72616A

COVER, REAR SEAT BACK LOCK STRIKER, LH

72618

PROTECTOR, REAR SEAT BACK LOCK STRIKER

72620E

CABLE ASSY, REAR NO.1 SEAT LOCK

72660F

LOCK ASSY, REAR SEAT, LH

72665G

COVER, REAR SEAT LOCK, RH(FOR LH SEAT)

72666B

COVER, REAR SEAT LOCK, LH

72666E

COVER, REAR SEAT LOCK, LH(FOR LH SEAT)

72830

ARMREST ASSY, REAR SEAT, CENTER

72831C

PLATE, REAR SEAT CENTER ARMREST, NO.2

72832

PLATE, REAR SEAT ARMREST

72908B

COVER SUB-ASSY, REAR SEAT CUSH UNDER, LH

7455

переход к группе запчастей

78920B

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 LH

78960

BAND ASSY, FOLD SEAT STOPPER, NO.2

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79136B

PAD, NO.1 SEAT CUSHION, LH

79185

PAD, NO.1 SEAT BACK, LH

827112B660

Крепеж

90105T0064

Крепеж

90126T0005

Крепеж

9016740044

Крепеж

90178T0039

Крепеж

9155281020

Крепеж

Код

Описание

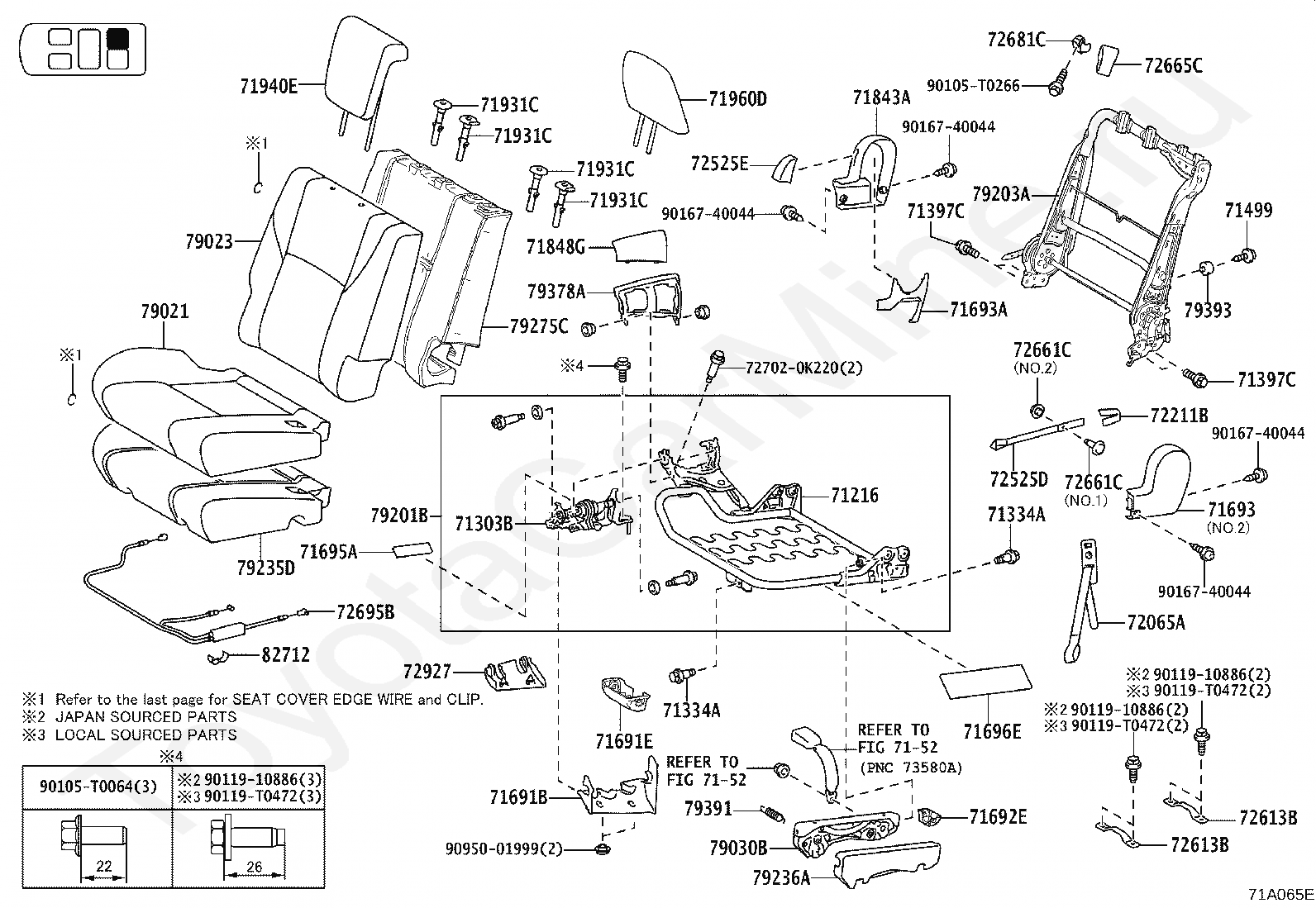

71216

FRAME, REAR SEAT CUSHION, REAR RH

71303B

HINGE SUB-ASSY, REAR NO.2 SEAT, RH

71334A

STOPPER, REAR SEAT LEG

71397C

STOPPER, REAR SEAT

71499

STOPPER, REAR SEAT BACK

7152

переход к группе запчастей

71691B

COVER, REAR SEAT LOCK, OUTER RH

71691E

COVER, REAR SEAT CUSHION HINGE, NO.1

71692E

COVER, REAR SEAT CUSHION HINGE, NO.2

71693

COVER, REAR SEAT CUSHION HINGE, LOWER RH

71693A

COVER, REAR SEAT CUSHION HINGE, NO.3

71695A

PROTECTOR, REAR SEAT, NO.1 RH

71696E

PROTECTOR, REAR SEAT, NO.2 RH

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71848G

CAP, SEAT ADJUSTER COVER, NO.2

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71940E

HEADREST ASSY, NO.2 SEAT

71960D

HEADREST ASSY, REAR NO.2 SEAT, CENTER

72065A

HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,RH

72211B

HANDLE, SEAT TRACK ADJUSTING

72525D

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH

72525E

HANDLE, RECLINING ADJUSTER RELEASE, NO.3 RH

72613B

STRIKER, REAR SEAT LOCK

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72665C

COVER, REAR SEAT LOCK, RH

72681C

HOOK, REAR SEAT BACK LOCK, LOWER

72695B

CABLE, REAR SEAT LOCK CONTROL, RH

727020K220

Крепеж

72927

COVER, REAR SEAT CUSHION UNDER, RH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79030B

LEG ASSY, REAR NO.2 SEAT, RH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79235D

PAD, NO.2 SEAT CUSHION, RH

79236A

COVER, NO.2 SEAT LEG

79275C

PAD, NO.2 SEAT BACK, RH

79378A

COVER, NO.3 SEAT CUSHION HINGE, RH

79391

SPRING, REAR SEAT CUSHION

79393

CUSHION, REAR NO.2 SEAT BACK

82712

CLAMP, WIRING HARNESS

90105T0064

Крепеж

90105T0266

Крепеж

9011910886

Крепеж

90119T0472

Крепеж

9016740044

Крепеж

9095001999

Крепеж

Код

Описание

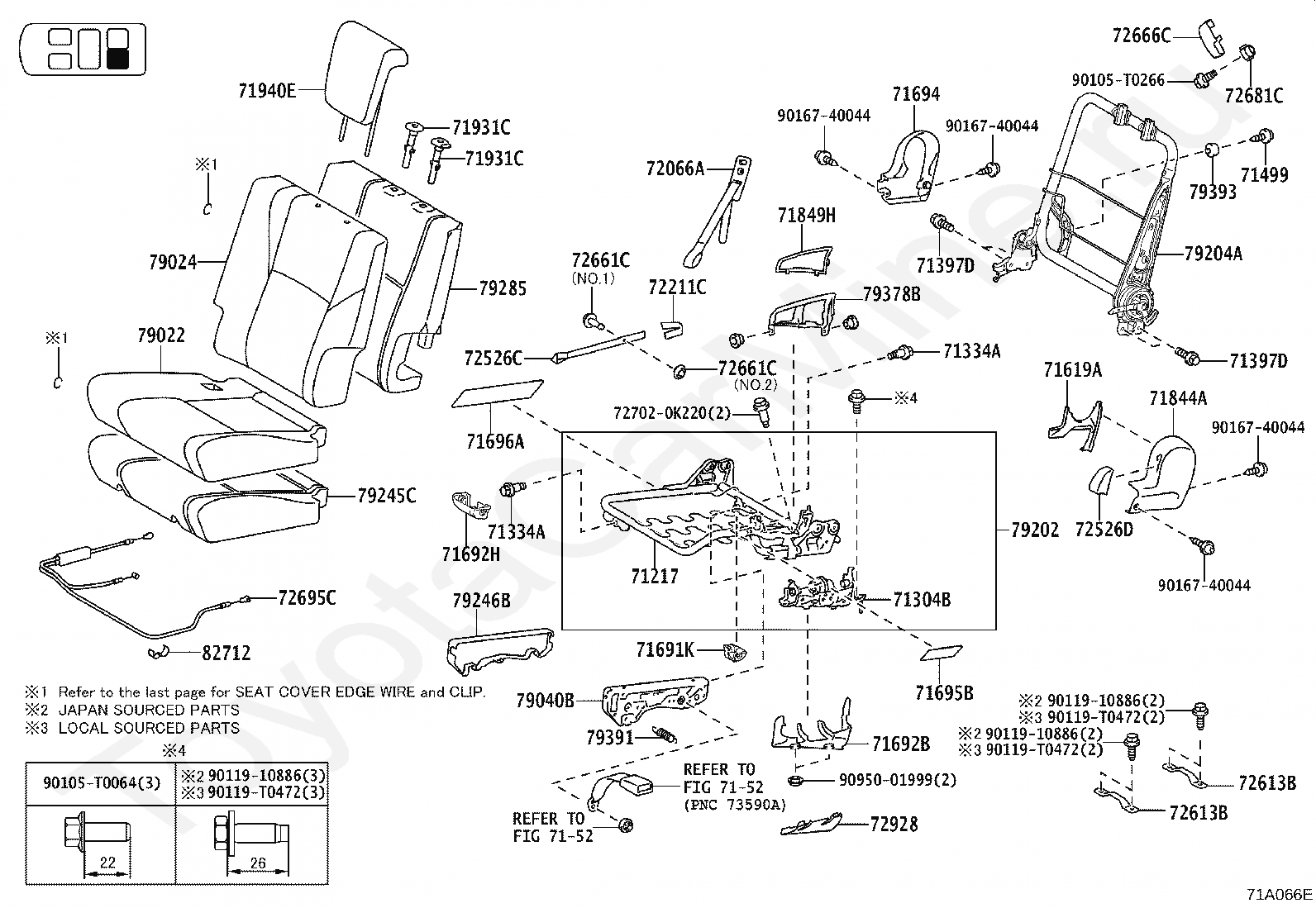

71217

FRAME, REAR SEAT CUSHION, REAR LH

71304B

HINGE SUB-ASSY, REAR NO.2 SEAT, LH

71334A

STOPPER, REAR SEAT LEG

71397D

STOPPER, REAR SEAT

71499

STOPPER, REAR SEAT BACK

7152

переход к группе запчастей

71619A

COVER, REAR SEAT CUSHION HINGE, LOWER LH

71691K

COVER, REAR SEAT CUSHION HINGE, NO.4

71692B

COVER, REAR SEAT LOCK, OUTER LH

71692H

COVER, REAR SEAT CUSHION HINGE, NO.3

71694

COVER, REAR SEAT CUSHION HINGE, LOWER LH

71695B

PROTECTOR, REAR SEAT, NO.1 LH

71696A

PROTECTOR, REAR SEAT, NO.2 LH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71849H

CAP, REAR NO.2 SEAT ADJUSTER COVER, LH

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71940E

HEADREST ASSY, NO.2 SEAT

72066A

HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72526C

HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH

72526D

HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH

72613B

STRIKER, REAR SEAT LOCK

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72666C

COVER, REAR SEAT LOCK, NO.2 LH

72681C

HOOK, REAR SEAT BACK LOCK, LOWER

72695C

CABLE, REAR SEAT LOCK CONTROL, LH

727020K220

Крепеж

72928

COVER, REAR SEAT CUSHION UNDER, LH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79040B

LEG ASSY, REAR NO.2 SEAT, LH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79245C

PAD, NO.2 SEAT CUSHION, LH

79246B

COVER, NO.2 SEAT LEG, B

79285

PAD, NO.2 SEAT BACK, LH

79378B

COVER, NO.3 SEAT CUSHION HINGE, LH

79391

SPRING, REAR SEAT CUSHION

79393

CUSHION, REAR NO.2 SEAT BACK

82712

CLAMP, WIRING HARNESS

90105T0064

Крепеж

90105T0266

Крепеж

9011910886

Крепеж

90119T0472

Крепеж

9016740044

Крепеж

9095001999

Крепеж

Код

Описание

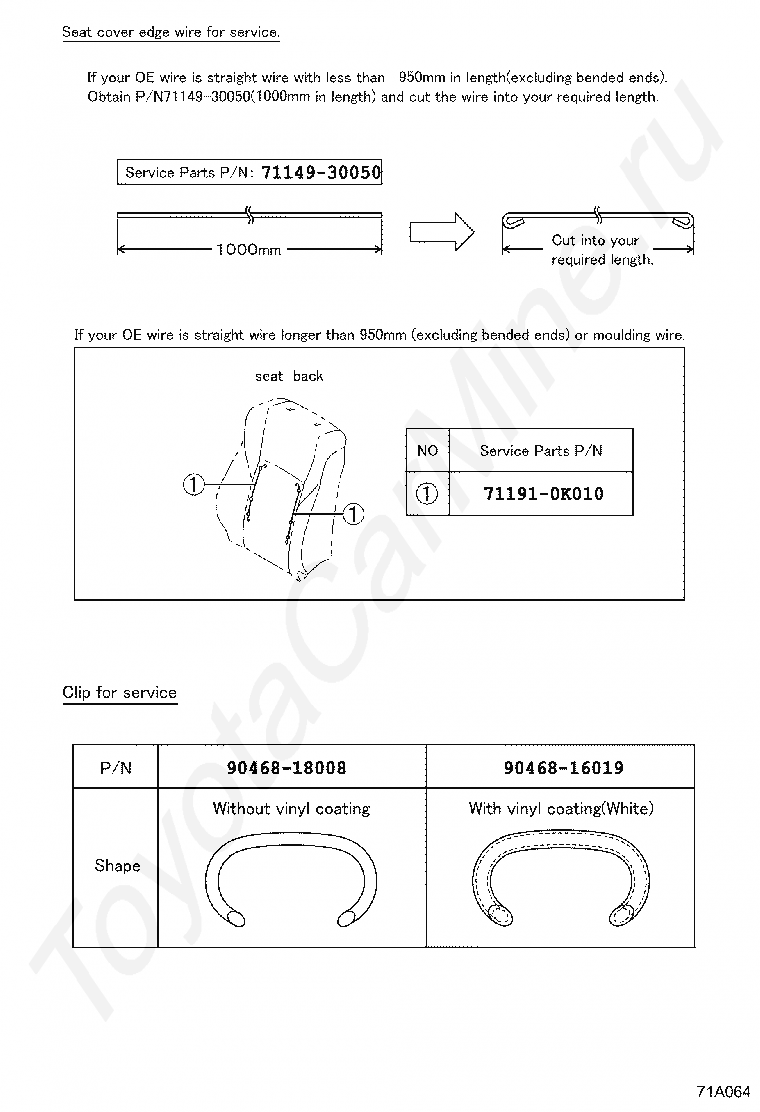

7114930050

Крепеж

711910K010

Крепеж

9046816019

Крепеж

9046818008

Крепеж

Кресла TOYOTA INNOVA, 2016/08 - 2020/09, 2,8 литра, турбо-дизель, 2.8E TYPE, GUN143, автомат, АКПП, 6 скоростей

Товар добавлен в корзину!

Заполните форму
