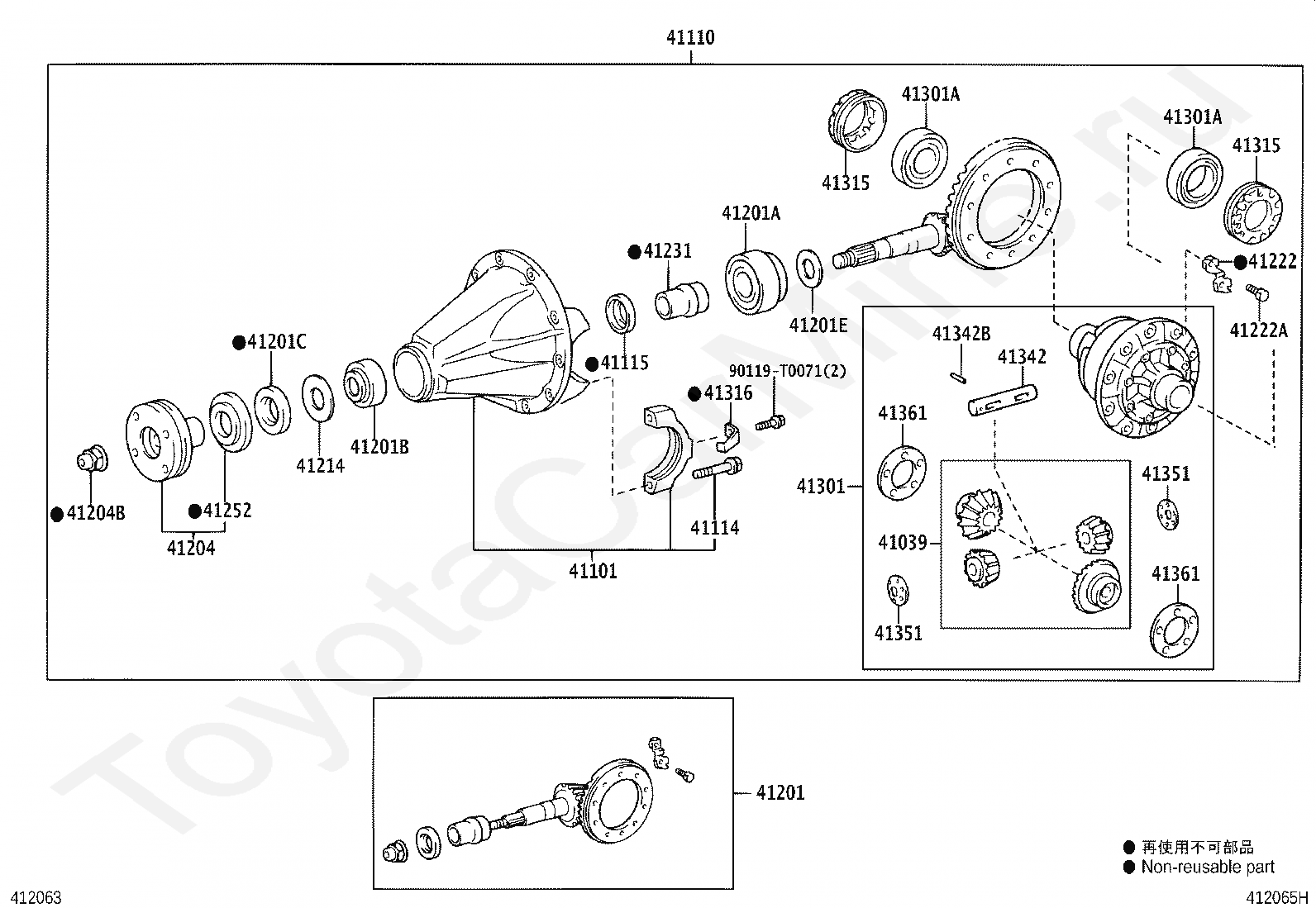

Задний мост TOYOTA HILUX, 2008/08 - 2011/07, 2,5 литра, турбо-дизель, DELUX SPECIFICATION, KUN15, МКПП, 5 скоростей

Каталог

Европа

Модель

HILUX

Двигатель

2,5 литра, турбо-дизель

Класс

DELUX SPECIFICATION

Фрейм

KUN15

Трансмиссия

МКПП, 5 скоростей

Опции

левый руль THAILAND PRODUCED SINGLE CAB SLIDE DOOR система впрыска дизельного топлива высокой мощности COMPLETED VEHICLE 408W

Код

Описание

41039

GEAR KIT, DIFFERENTIAL, REAR

41101

CARRIER SUB-ASSY, DIFFERENTIAL, REAR

41110

CARRIER ASSY, DIFFERENTIAL, REAR

41114

BOLT, REAR DIFFERENTIAL BEARING CAP

41115

RING, DIFFERENTIAL OIL STORAGE

41201

FINAL GEAR KIT, DIFFERENTIAL, REAR

41201A

BEARING (FOR REAR DRIVE PINION REAR)

41201B

BEARING (FOR REAR DRIVE PINION FRONT)

41201C

SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

41201E

SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

41204

FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

41204B

NUT (FOR REAR DRIVE PINION)

41214

SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

41222

PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

41222A

BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

41231

SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

41252

DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

41301

CASE SUB-ASSY, REAR DIFFERENTIAL

41301A

BEARING(FOR REAR DIFFERENTIAL CASE)

41315

NUT, REAR DIFFERENTIAL BEARING ADJUSTING

41316

LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

41342

SHAFT, REAR DIFFERENTIAL PINION

41342B

PIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)

41351

WASHER, REAR DIFFERENTIAL PINION THRUST

41361

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

90119T0071

Крепеж

Код

Описание

41039

GEAR KIT, DIFFERENTIAL, REAR

41101

CARRIER SUB-ASSY, DIFFERENTIAL, REAR

41110

CARRIER ASSY, DIFFERENTIAL, REAR

41114

BOLT, REAR DIFFERENTIAL BEARING CAP

41115

RING, DIFFERENTIAL OIL STORAGE

41201

FINAL GEAR KIT, DIFFERENTIAL, REAR

41201A

BEARING (FOR REAR DRIVE PINION REAR)

41201B

BEARING (FOR REAR DRIVE PINION FRONT)

41201C

SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

41204

FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

41204B

NUT (FOR REAR DRIVE PINION)

41214

SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

41222

PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

41222A

BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

41231

SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

41252

DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

41301A

BEARING(FOR REAR DIFFERENTIAL CASE)

41302

CASE SUB-ASSY, REAR DIFFERENTIAL

41302A

BOLT(FOR REAR DIFFERENTIAL CASE)

41306

SPIDER SUB-ASSY, FRONT DIFFERENTIAL

41315

NUT, REAR DIFFERENTIAL BEARING ADJUSTING

41316

LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

41331A

SPRING, COMPRESSION

41351

WASHER, REAR DIFFERENTIAL PINION THRUST

41361

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

41362

WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2

41385

PLATE, CLUTCH

41387

RETAINER, SPRING, RH

41388

RETAINER, SPRING, LH

90119T0071

Крепеж

Код

Описание

04412

GASKET KIT, REAR DIFFERENTIAL CARRIER

41110A

BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

42110

HOUSING ASSY, REAR AXLE

42110A

PLUG (FOR REAR AXLE HOUSING FILLER)

42110B

GASKET (FOR REAR AXLE HOUSING FILLER PLUG)

42110C

PLUG, BREATHER (FOR REAR AXLE HOUSING)

42110D

GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

42110E

PLUG (FOR REAR AXLE HOUSING DRAIN)

42181

GASKET, REAR DIFFERENTIAL CARRIER

9017008042

Крепеж

9020108002

Крепеж
