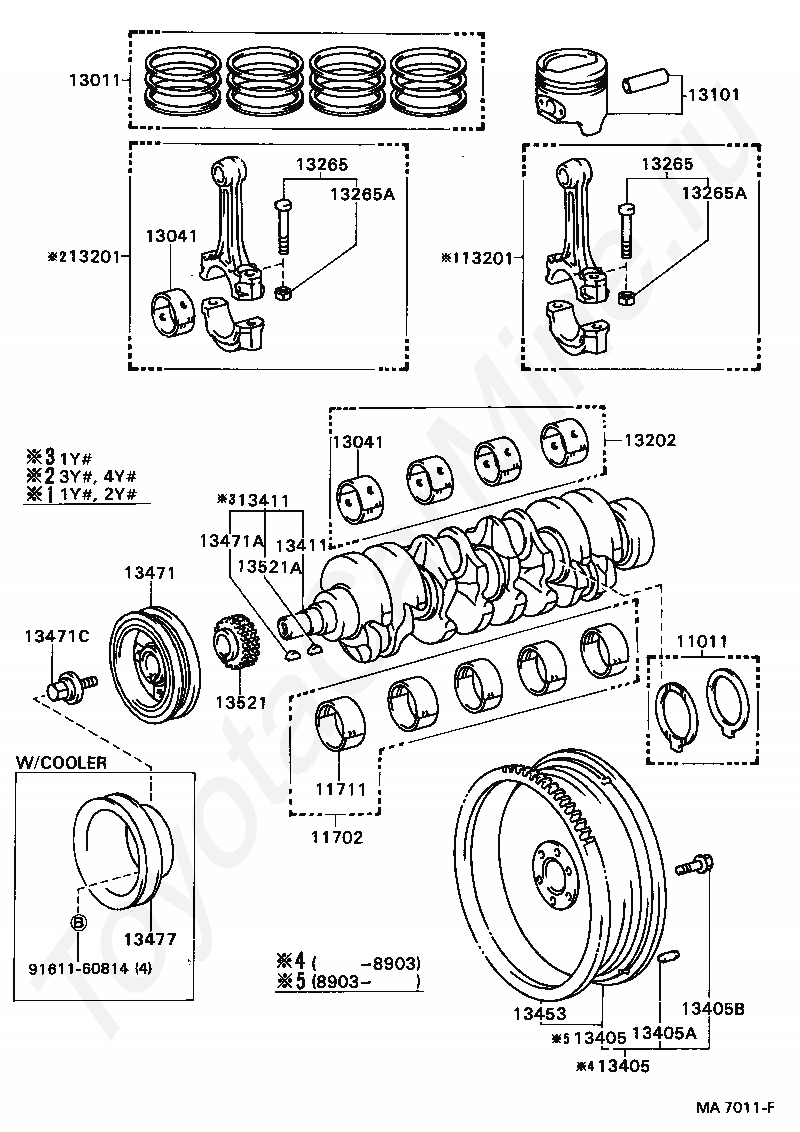

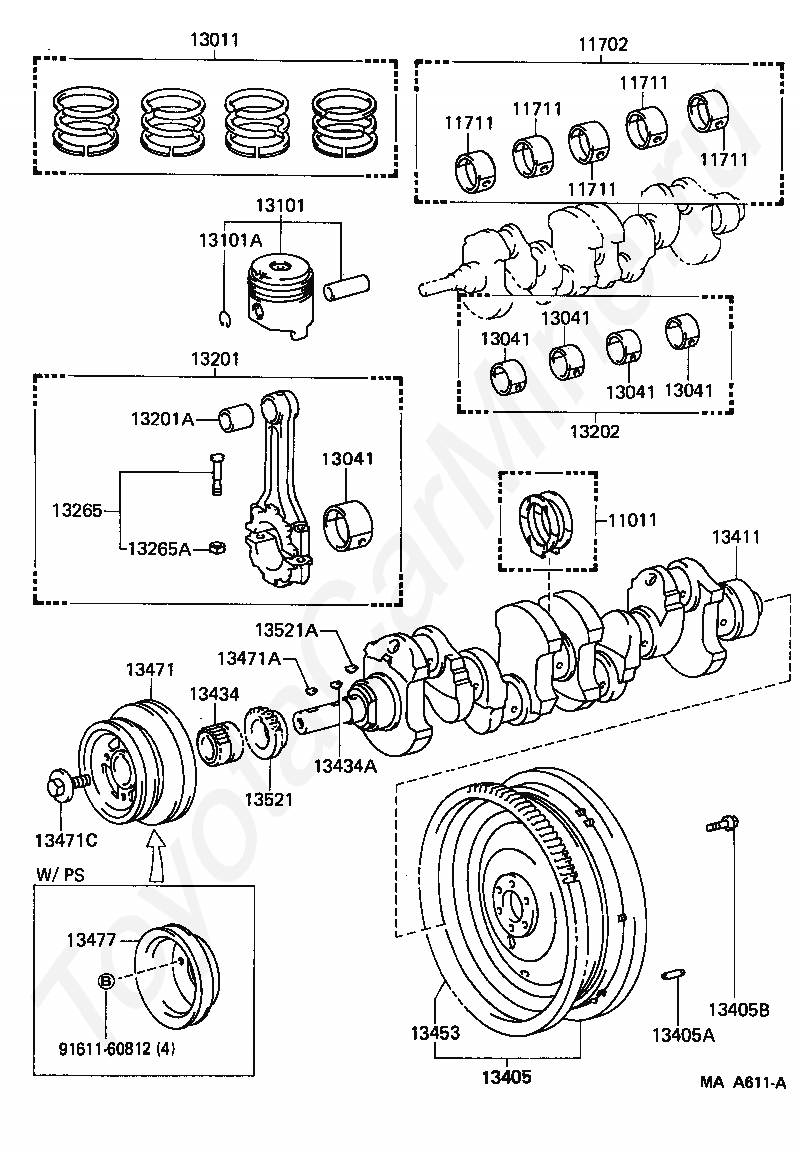

Коленвал и поршни TOYOTA HILUX, 1985/08 - 1992/01, 2,2 литра, DOUBLE CAB TRUCK, STANDARD TYPE, YN67, механика, МКПП, 5 скоростей

Каталог

Ближний Восток

Модель

HILUX

Двигатель

2,2 литра

Кузов

DOUBLE CAB TRUCK

Класс

STANDARD TYPE

Фрейм

YN67

Трансмиссия

механика МКПП, 5 скоростей

Опции

левый руль GENERAL COUNTRIES STANDARD CARBURETOR SPECIFICATION COMPLETED VEHICLE

Код

Описание

11011

WASHER SET, CRANKSHAFT THRUST

11702

BEARING SET, CRANKSHAFT

11711

BEARING, CRANKSHAFT

13011

RING SET, PISTON

13041

BEARING, CONNECTING ROD

13101

PISTON SUB-ASSY, W/PIN

13101A

RING, HOLE SNAP(FOR PISTON PIN)

13201

ROD SUB-ASSY, CONNECTING

13201A

BUSH(FOR CONNECTING ROD SMALL END)

13202

BEARING SET, CONNECTING ROD

13265

BOLT, CONNECTING ROD

13265A

NUT, HEXAGON(FOR CONNECTING ROD BOLT)

13405

FLYWHEEL SUB-ASSY

13405A

PIN, STRAIGHT(FOR FLYWHEEL)

13405B

BOLT, FLYWHEEL SETTING

13411

CRANKSHAFT

13434

SPLINE, OIL PUMP DRIVE

13434A

KEY(FOR OIL PUMP DRIVE SPLINE)

13453

GEAR, FLYWHEEL RING

13471

PULLEY, CRANKSHAFT

13471A

KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

13471C

BOLT(FOR CRANKSHAFT PULLEY SET)

13477

PULLEY, CRANKSHAFT, NO.2

13521

GEAR OR SPROCKET, CRANKSHAFT TIMING

13521A

KEY(FOR CRANKSHAFT TIMING GEAR)

9161160812

Крепеж

Код
