Задние кресла TOYOTA HIGHLANDER (CHINA), 2015/03 - 2025, 2 литра, 16 клапанов, DOHC, EFI, турбо, фургон, D(MODEL MARK), ASU50, автомат, АКПП, 6 скоростей

Каталог

Ближний Восток

Модель

HIGHLANDER (CHINA)

Двигатель

2 литра, 16 клапанов, DOHC, EFI, турбо

Кузов

фургон

Класс

D(MODEL MARK)

Фрейм

ASU50

Трансмиссия

автомат АКПП, 6 скоростей

Опции

левый руль WITH TURBO (HARGER) 611W

Код

Описание

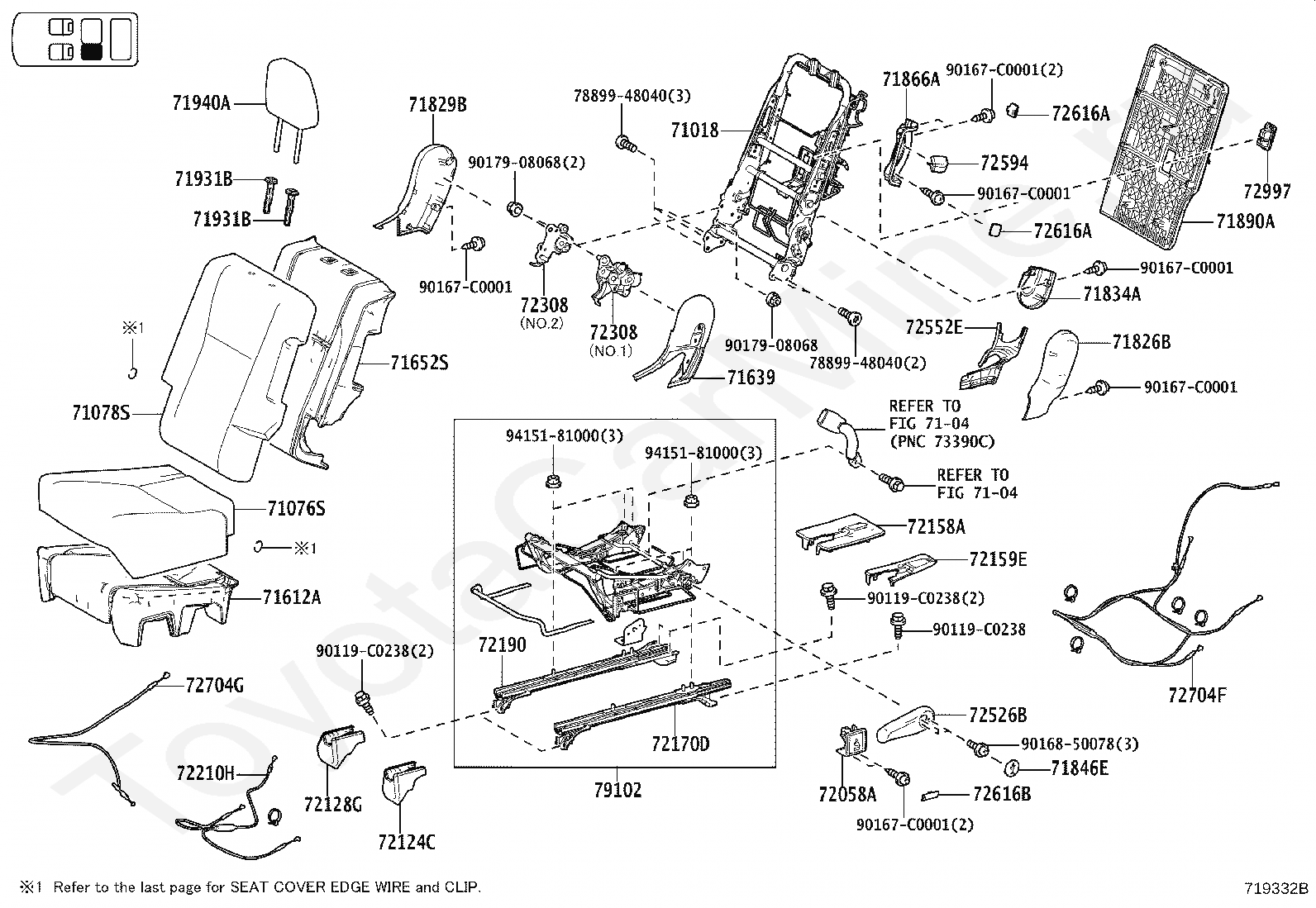

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71612A

PAD, REAR SEAT CUSHION, LH

71639

COVER, REAR SEAT CUSHION HINGE, LH

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71826B

MOULDING, REAR SEAT CUSHION, LH

71829B

MOULDING, REAR SEAT CUSHION, REAR LH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71846E

CAP, REAR SEAT COVER, LH

71866A

BEZEL, REAR SEAT COVER, NO.2

71890A

CARPET ASSY, REAR SEAT BACK BOARD, LH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72058A

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH

72124C

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72128G

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72158A

COVER, REAR SEAT TRACK BRACKET, INNER LH

72159E

COVER, REAR SEAT TRACK BRACKET, OUTER LH

72170D

TRACK ASSY, REAR SEAT, OUTER LH

72190

TRACK ASSY, REAR SEAT INNER, LH

72210H

CABLE ASSY, REAR NO.1 SEAT TRACK CONTROL, LH

72308

LINK SUB-ASSY, RECLINING CONTROL, LH

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72552E

COVER, RECLINING HINGE, LH

72594

KNOB, REMOTE CONTROL LEVER, LH

72616A

COVER, REAR SEAT BACK LOCK STRIKER, LH

72616B

COVER, REAR SEAT LOCK STRIKER

72704F

CABLE, REAR SEAT RECLINING CONTROL, NO.3

72704G

CABLE, REAR SEAT RECLINING CONTROL, NO.4

72997

COVER, REAR SEAT BACK, LH

7889948040

Крепеж

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

90119C0238

Крепеж

90167C0001

Крепеж

9016850078

Крепеж

9017908068

Крепеж

9415181000

Крепеж

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

7104

переход к группе запчастей

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71485A

COVER, REAR SEAT HINGE, NO.2 RH

71485C

COVER, REAR SEAT HINGE, RH

71486C

COVER, REAR SEAT HINGE, LH

71611A

PAD, REAR SEAT CUSHION, RH

71629A

COVER, REAR SEAT CUSHION HINGE, RH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71825B

MOULDING, REAR SEAT CUSHION, RH

71828B

MOULDING, REAR SEAT CUSHION, REAR RH

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71845D

CAP, REAR SEAT COVER, RH

71865

BEZEL, REAR SEAT COVER, NO.1

71880A

CARPET ASSY, REAR SEAT BACK BOARD, RH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72057

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

72084

PAD SUB-ASSY, REAR SEAT CENTER ARMREST, NO.2

72087

COVER, REAR SEAT CENTER ARMREST, NO.1

72123C

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127G

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137S

COVER, SEAT TRACK BRACKET, OUTER REAR RH

72157B

COVER, REAR SEAT TRACK BRACKET, INNER RH

72160E

TRACK ASSY, REAR SEAT, OUTER RH

72180C

TRACK ASSY, REAR SEAT, INNER RH

72210G

CABLE ASSY, REAR NO.1 SEAT TRACK CONTROL, RH

72307

LINK SUB-ASSY, RECLINING CONTROL, RH

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72551E

COVER, RECLINING HINGE, RH

72593A

KNOB, REMOTE CONTROL LEVER, RH

72615A

COVER, REAR SEAT BACK LOCK STRIKER, RH

72615J

COVER, REAR SEAT LOCK STRIKER, RH

72704A

CABLE, REAR SEAT RECLINING CONTROL

72704B

CABLE, REAR SEAT RECLINING CONTROL, NO.2

72806D

HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

72830

ARMREST ASSY, REAR SEAT, CENTER

72831B

PLATE, REAR SEAT CENTER ARMREST, NO.1

72831C

PLATE, REAR SEAT CENTER ARMREST, NO.2

72868

COVER, CENTER ARMREST HINGE, RH

72996

COVER, REAR SEAT BACK, RH

72996A

COVER, REAR SEAT BACK

7889928050

Крепеж

7889942010

Крепеж

7889948040

Крепеж

79101B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

90119C0238

Крепеж

90167C0001

Крепеж

9016850078

Крепеж

9017908068

Крепеж

9356054016

Крепеж

9415181000

Крепеж

Код

Описание

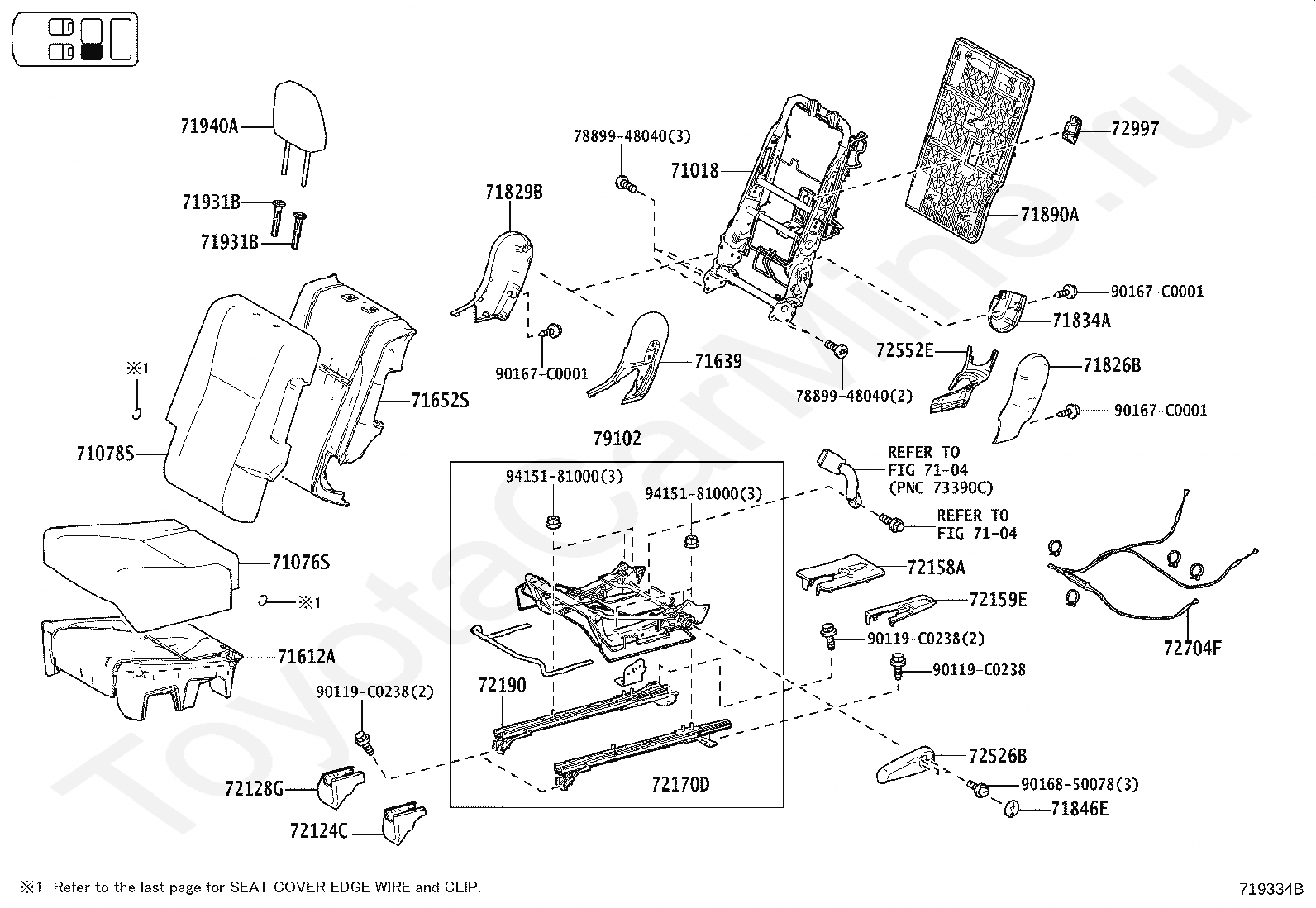

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71612A

PAD, REAR SEAT CUSHION, LH

71639

COVER, REAR SEAT CUSHION HINGE, LH

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71826B

MOULDING, REAR SEAT CUSHION, LH

71829B

MOULDING, REAR SEAT CUSHION, REAR LH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71846E

CAP, REAR SEAT COVER, LH

71890A

CARPET ASSY, REAR SEAT BACK BOARD, LH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72124C

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72128G

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72158A

COVER, REAR SEAT TRACK BRACKET, INNER LH

72159E

COVER, REAR SEAT TRACK BRACKET, OUTER LH

72170D

TRACK ASSY, REAR SEAT, OUTER LH

72190

TRACK ASSY, REAR SEAT INNER, LH

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72552E

COVER, RECLINING HINGE, LH

72704F

CABLE, REAR SEAT RECLINING CONTROL, NO.3

72997

COVER, REAR SEAT BACK, LH

7889948040

Крепеж

79102

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

90119C0238

Крепеж

90167C0001

Крепеж

9016850078

Крепеж

9415181000

Крепеж

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

7104

переход к группе запчастей

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71485A

COVER, REAR SEAT HINGE, NO.2 RH

71485C

COVER, REAR SEAT HINGE, RH

71486C

COVER, REAR SEAT HINGE, LH

71611A

PAD, REAR SEAT CUSHION, RH

71629A

COVER, REAR SEAT CUSHION HINGE, RH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71825B

MOULDING, REAR SEAT CUSHION, RH

71828B

MOULDING, REAR SEAT CUSHION, REAR RH

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71845D

CAP, REAR SEAT COVER, RH

71880A

CARPET ASSY, REAR SEAT BACK BOARD, RH

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72084

PAD SUB-ASSY, REAR SEAT CENTER ARMREST, NO.2

72087

COVER, REAR SEAT CENTER ARMREST, NO.1

72123C

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127G

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137S

COVER, SEAT TRACK BRACKET, OUTER REAR RH

72157B

COVER, REAR SEAT TRACK BRACKET, INNER RH

72160E

TRACK ASSY, REAR SEAT, OUTER RH

72180C

TRACK ASSY, REAR SEAT, INNER RH

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72551E

COVER, RECLINING HINGE, RH

72704A

CABLE, REAR SEAT RECLINING CONTROL

72806D

HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

72830

ARMREST ASSY, REAR SEAT, CENTER

72831B

PLATE, REAR SEAT CENTER ARMREST, NO.1

72831C

PLATE, REAR SEAT CENTER ARMREST, NO.2

72868

COVER, CENTER ARMREST HINGE, RH

72996

COVER, REAR SEAT BACK, RH

72996A

COVER, REAR SEAT BACK

7889928050

Крепеж

7889942010

Крепеж

7889948040

Крепеж

79101B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

90119C0238

Крепеж

90167C0001

Крепеж

9016850078

Крепеж

9356054016

Крепеж

9415181000

Крепеж

Код

Описание

7104

переход к группе запчастей

71628E

SPACER, REAR SEAT CUSHION

71691K

COVER, REAR SEAT CUSHION HINGE, NO.4

71693A

COVER, REAR SEAT CUSHION HINGE, NO.3

71704

BAND SUB-ASSY, REAR SIDE SEAT

71704B

BAND SUB-ASSY, REAR SIDE SEAT, NO.2

71778C

MOULDING, REAR SEAT BACK

71844D

COVER, REAR SEAT RECLINING, LH (FOR LH SEAT)

71844E

COVER, REAR SEAT RECLINING, RH (FOR LH SEAT)

71866B

BEZEL, REAR SEAT COVER, NO.2

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71940E

HEADREST ASSY, NO.2 SEAT

72660L

CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK, LH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79202

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79204A

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79209B

BOARD SUB-ASSY, NO.2 SEAT BACK, LH

79220B

CLIP, NO.2 SEAT CUSHION

79245C

PAD, NO.2 SEAT CUSHION, LH

79273

COVER, NO.2 SEAT HINGE

79273A

COVER, NO.2 SEAT HINGE, NO.2

79285

PAD, NO.2 SEAT BACK, LH

90167C0001

Крепеж

9016840061

Крепеж

9050608035

Крепеж

Код

Описание

7104

переход к группе запчастей

71628E

SPACER, REAR SEAT CUSHION

71691E

COVER, REAR SEAT CUSHION HINGE, NO.1

71692E

COVER, REAR SEAT CUSHION HINGE, NO.2

71704

BAND SUB-ASSY, REAR SIDE SEAT

71704B

BAND SUB-ASSY, REAR SIDE SEAT, NO.2

71778C

MOULDING, REAR SEAT BACK

71843E

COVER, REAR SEAT RECLINING, RH (FOR RH SEAT)

71843F

COVER, REAR SEAT RECLINING, LH (FOR RH SEAT)

71866B

BEZEL, REAR SEAT COVER, NO.2

71931C

SUPPORT ASSY, REAR NO.2 SEAT HEADREST

71940E

HEADREST ASSY, NO.2 SEAT

725480E020

Крепеж

72649

SPRING, REAR SEAT CUSHION SUPPORT

72660K

CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK, RH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79201B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79203A

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79207B

BOARD SUB-ASSY, NO.2 SEAT BACK, RH

79220B

CLIP, NO.2 SEAT CUSHION

79235D

PAD, NO.2 SEAT CUSHION, RH

79273

COVER, NO.2 SEAT HINGE

79273A

COVER, NO.2 SEAT HINGE, NO.2

79275C

PAD, NO.2 SEAT BACK, RH

90167C0001

Крепеж

9016840061

Крепеж

9050608035

Крепеж

9616001000

Крепеж

Код

Описание

71439A

CLIP

71848K

CAP, SEAT ADJUSTER COVER

72622C

BUSH, REAR SEAT BACK PROTECTOR SHAFT

73316A

COVER, RR SEAT BELT, INNER LH

79020B

LEG ASSY, NO.2 SEAT

79959

COVER, RR SEAT LEG

79959C

COVER, REAR SEAT LEG

90119C0238

Крепеж

9017808012

Крепеж

9155281022

Крепеж

Код

Описание

7114930050

Крепеж

9046816019

Крепеж

9046818008

Крепеж
