Кресла TOYOTA HIACE/REGIUSACE, 1993/08 - 2003/08, 2 литра, EFI, COMMUTER, DELUX SPECIFICATION, RZH124, МКПП, 5 скоростей

Каталог

Япония

Модель

HIACE/REGIUSACE

Двигатель

2 литра, EFI

Кузов

COMMUTER

Класс

DELUX SPECIFICATION

Фрейм

RZH124

Трансмиссия

МКПП, 5 скоростей

Опции

высокая крыша 4 двери боковое стекло 15-местный EFI 2WD

Двигатель

Подвеска

Кузов

Электрика

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

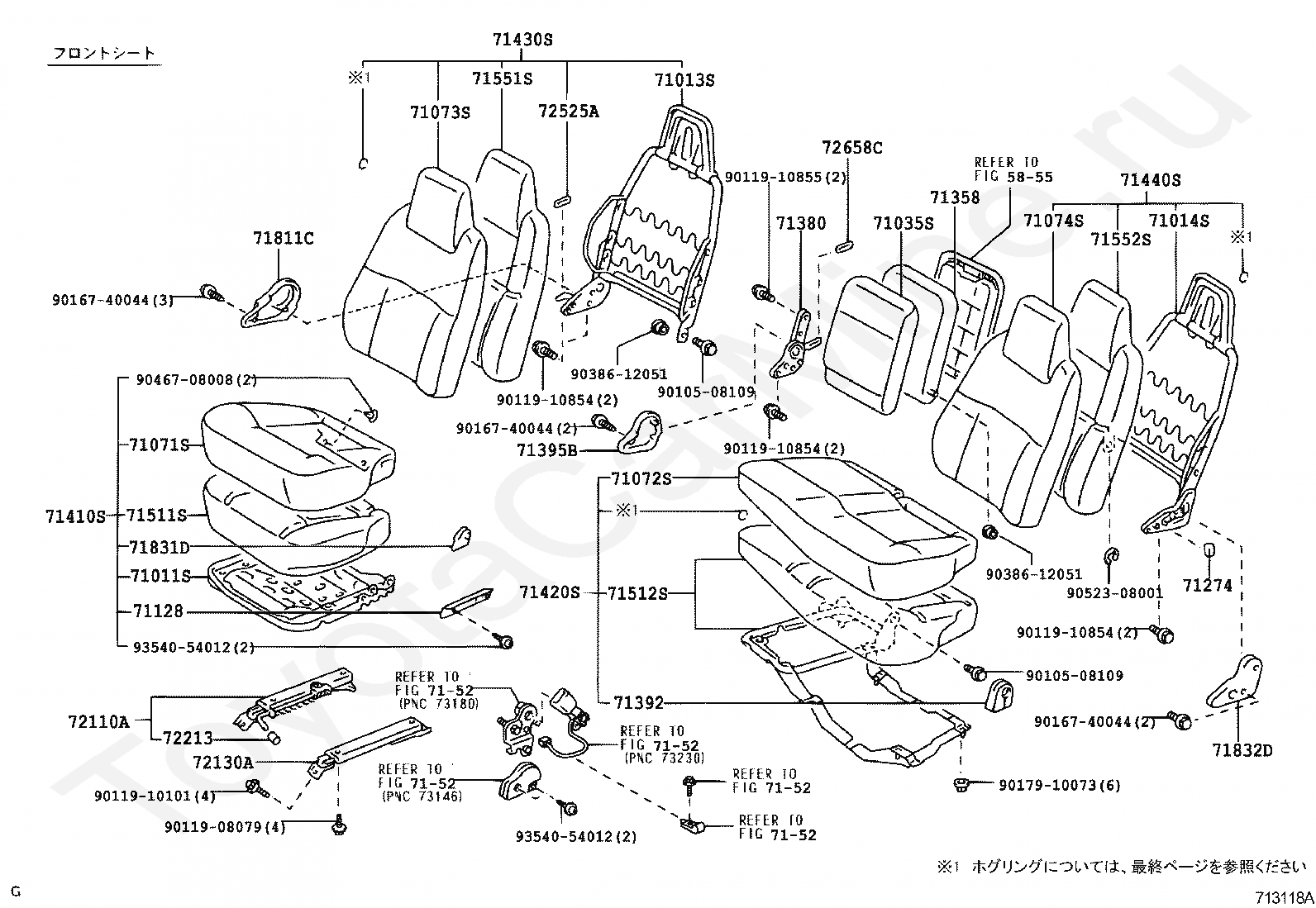

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71035S

COVER, FRONT SEAT BACK, CENTER

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71128

PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH

71274

KNOB, FRONT SEAT HINGE

71350S

BACK ASSY, FRONT SEAT, CENTER

71358

PAD, CENTER SEAT BACK

71380

HINGE ASSY, CENTER SEAT, RH

71392

COVER, CENTER SEAT CUSHION BRACKET, LH

71395B

COVER, CENTER SEAT HINGE, RH

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71811C

COVER, RECLINING ADJUSTER, RH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72658C

KNOB, FRONT SEAT LOCK HANDLE

73178B

CAP, SEAT BELT ANCHOR COVER

9010508109

Крепеж

9011908079

Крепеж

9011910101

Крепеж

9011910854

Крепеж

9011910855

Крепеж

9016740044

Крепеж

9017910073

Крепеж

9038610027

Крепеж

9038612051

Крепеж

9038612061

Крепеж

9046708008

Крепеж

9052308001

Крепеж

91612B1020

Крепеж

9354054012

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71035S

COVER, FRONT SEAT BACK, CENTER

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71128

PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH

71274

KNOB, FRONT SEAT HINGE

71350S

BACK ASSY, FRONT SEAT, CENTER

71358

PAD, CENTER SEAT BACK

71380

HINGE ASSY, CENTER SEAT, RH

71392

COVER, CENTER SEAT CUSHION BRACKET, LH

71395B

COVER, CENTER SEAT HINGE, RH

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71811C

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72658C

KNOB, FRONT SEAT LOCK HANDLE

73178B

CAP, SEAT BELT ANCHOR COVER

9010508109

Крепеж

9011908079

Крепеж

9011910101

Крепеж

9011910116

Крепеж

9011910855

Крепеж

9016740044

Крепеж

9017910073

Крепеж

9038610027

Крепеж

9038612051

Крепеж

9046708008

Крепеж

9052308001

Крепеж

91612B1020

Крепеж

9354054012

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71128

PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71705

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71706

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71811C

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72137

COVER, SEAT TRACK, OUTER RH

72137C

COVER, SEAT TRACK INNER, RH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72296

BEZEL, FRONT SEAT SLIDE SWITCH

72297

BRACKET, FRONT SEAT SLIDE SWITCH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

73178B

CAP, SEAT BELT ANCHOR COVER

8401

переход к группе запчастей

9010508109

Крепеж

9011908079

Крепеж

9011908269

Крепеж

9011910101

Крепеж

9011910116

Крепеж

9016740044

Крепеж

9017910073

Крепеж

9038610027

Крепеж

9038612051

Крепеж

9046708008

Крепеж

9053006007

Крепеж

9161160616

Крепеж

9354054012

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71128

PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH

71274

KNOB, FRONT SEAT HINGE

71361

BRACKET, FRONT SEAT SET, NO.1

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71811C

COVER, RECLINING ADJUSTER, RH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

9010508109

Крепеж

9011908079

Крепеж

9011910101

Крепеж

9011910854

Крепеж

9016740044

Крепеж

9017910073

Крепеж

9038612051

Крепеж

9046708008

Крепеж

9052308001

Крепеж

9354054012

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

5855

переход к группе запчастей

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71035S

COVER, FRONT SEAT BACK, CENTER

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71128

PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH

71274

KNOB, FRONT SEAT HINGE

71350S

BACK ASSY, FRONT SEAT, CENTER

71358

PAD, CENTER SEAT BACK

71380

HINGE ASSY, CENTER SEAT, RH

71392

COVER, CENTER SEAT CUSHION BRACKET, LH

71395B

COVER, CENTER SEAT HINGE, RH

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71811C

COVER, RECLINING ADJUSTER, RH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72658C

KNOB, FRONT SEAT LOCK HANDLE

9010508109

Крепеж

9011908079

Крепеж

9011910101

Крепеж

9011910854

Крепеж

9011910855

Крепеж

9016740044

Крепеж

9017910073

Крепеж

9038612051

Крепеж

9046708008

Крепеж

9052308001

Крепеж

9354054012

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

5855

переход к группе запчастей

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71035S

COVER, FRONT SEAT BACK, CENTER

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71128

PLATE, FRONT SEAT CUSHION COVER SET, OUTSIDE LH

71274

KNOB, FRONT SEAT HINGE

71358

PAD, CENTER SEAT BACK

71380

HINGE ASSY, CENTER SEAT, RH

71392

COVER, CENTER SEAT CUSHION BRACKET, LH

71395B

COVER, CENTER SEAT HINGE, RH

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71811C

COVER, RECLINING ADJUSTER, RH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72213

KNOB, SEAT TRACK ADJUSTING HANDLE

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72658C

KNOB, FRONT SEAT LOCK HANDLE

9010508109

Крепеж

9011908079

Крепеж

9011910101

Крепеж

9011910854

Крепеж

9011910855

Крепеж

9016740044

Крепеж

9017910073

Крепеж

9038612051

Крепеж

9046708008

Крепеж

9052308001

Крепеж

9354054012

Крепеж

+
+
+
+
+
+
+
+
+
+

Код

Описание

71274

KNOB, FRONT SEAT HINGE

72329

COVER, SEAT ADJUSTER BOLT

7451

переход к группе запчастей

7456

переход к группе запчастей

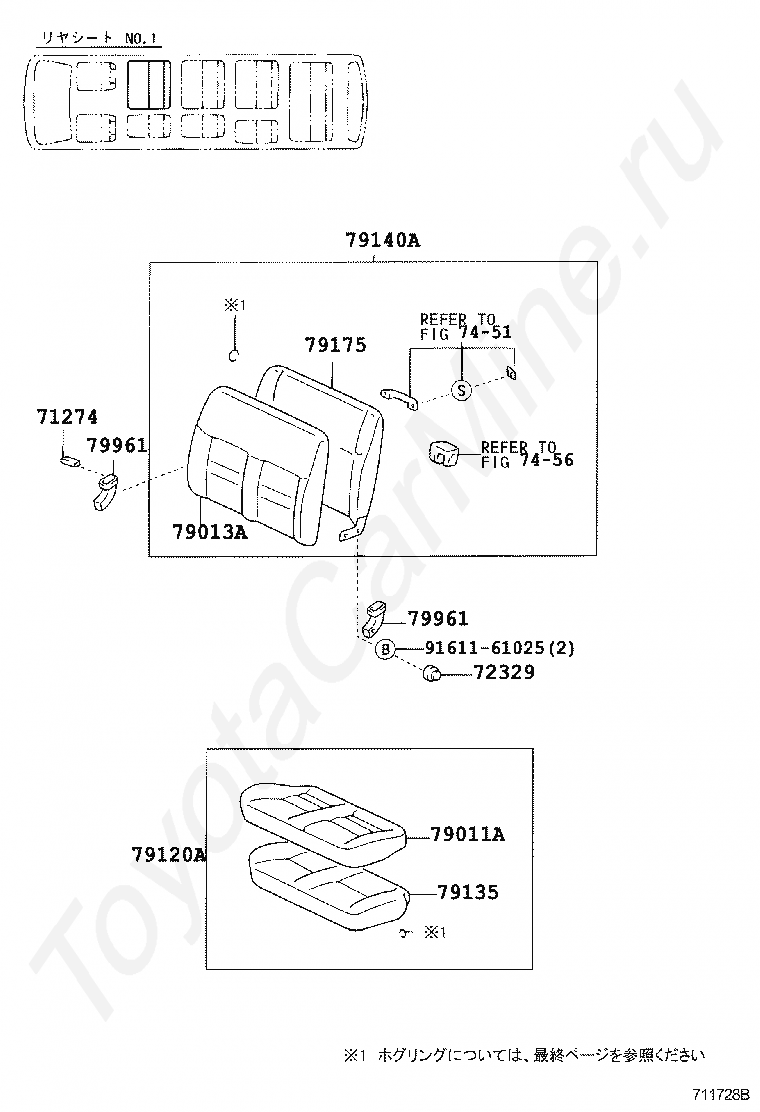

79011A

COVER SUB-ASSY, NO.1 SEAT CUSHION

79013A

COVER SUB-ASSY, NO.1 SEAT BACK

79120A

CUSHION ASSY, NO.1 SEAT

79135

PAD, NO.1 SEAT CUSHION

79140A

BACK ASSY, NO.1 SEAT

79175

PAD, NO.1 SEAT BACK

79961

COVER, NO.1 SEAT BACK

9161161025

Крепеж

+

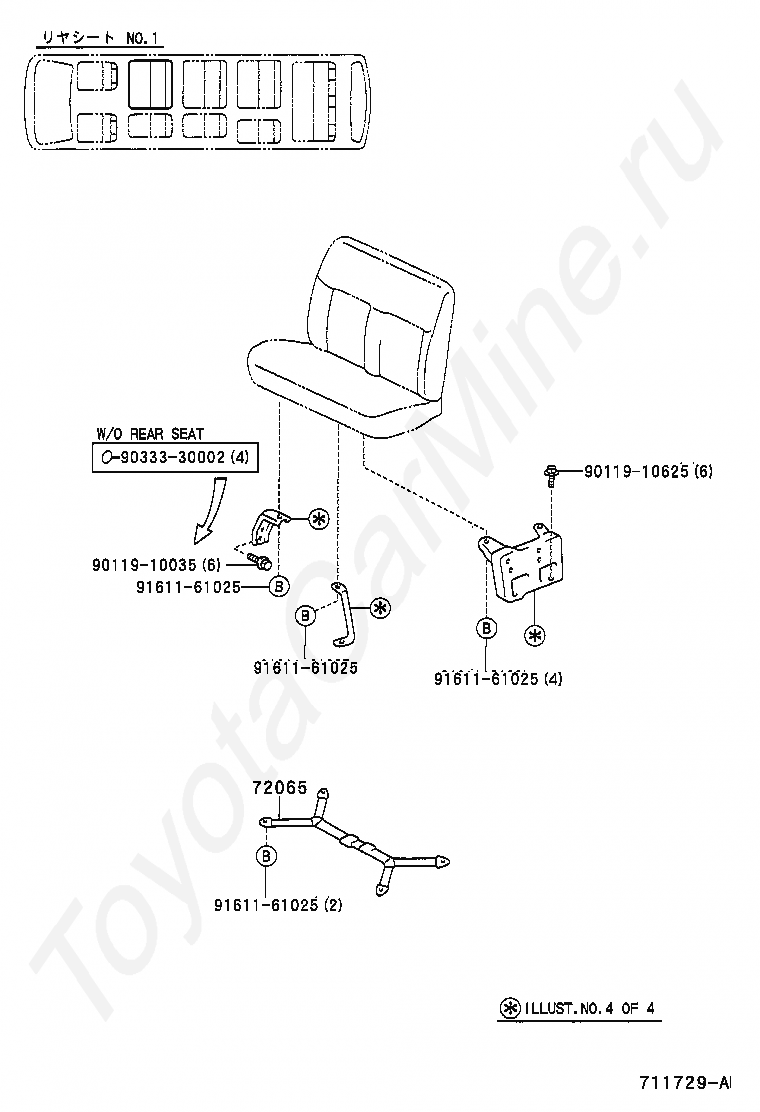

Код

Описание

72065

BELT SUB-ASSY, REAR SEAT HOOK, RH

9011910035

Крепеж

9011910625

Крепеж

9033330002

Крепеж

9161161025

Крепеж

+
+
+
+
+
+
+
+
+
+

Код

Описание

71274

KNOB, FRONT SEAT HINGE

72329

COVER, SEAT ADJUSTER BOLT

7451

переход к группе запчастей

7456

переход к группе запчастей

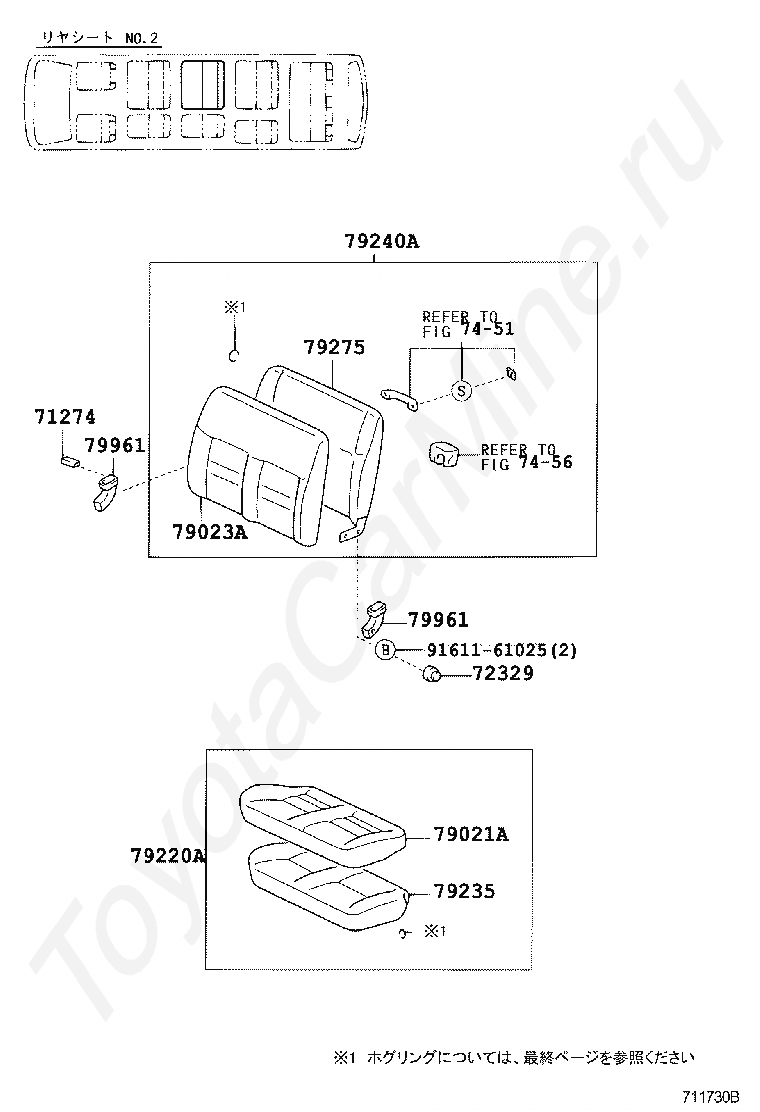

79021A

COVER SUB-ASSY, NO.2 SEAT CUSHION

79023A

COVER SUB-ASSY, NO.2 SEAT BACK

79220A

CUSHION ASSY, NO.2 SEAT

79235

PAD, NO.2 SEAT CUSHION

79240A

BACK ASSY, NO.2 SEAT

79275

PAD, NO.2 SEAT BACK

79961

COVER, NO.1 SEAT BACK

9161161025

Крепеж

+

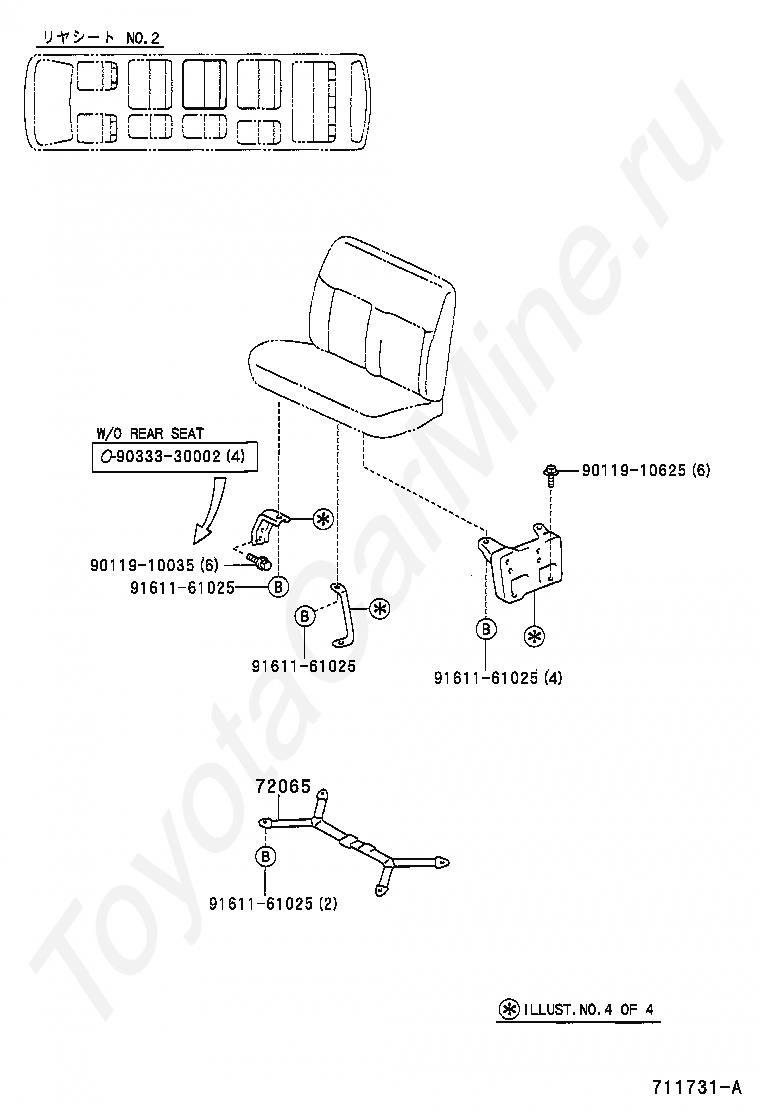

Код

Описание

72065

BELT SUB-ASSY, REAR SEAT HOOK, RH

9011910035

Крепеж

9011910625

Крепеж

9033330002

Крепеж

9161161025

Крепеж

+
+
+
+
+
+
+
+
+
+

Код

Описание

71274

KNOB, FRONT SEAT HINGE

72329

COVER, SEAT ADJUSTER BOLT

7451

переход к группе запчастей

7456

переход к группе запчастей

79031A

COVER SUB-ASSY, NO.3 SEAT CUSHION

79033A

COVER SUB-ASSY, NO.3 SEAT BACK

79320A

CUSHION ASSY, NO.3 SEAT

79335

PAD, NO.3 SEAT CUSHION

79340A

BACK ASSY, NO.3 SEAT

79375

PAD, NO.3 SEAT BACK

79961

COVER, NO.1 SEAT BACK

9161261022

Крепеж

+

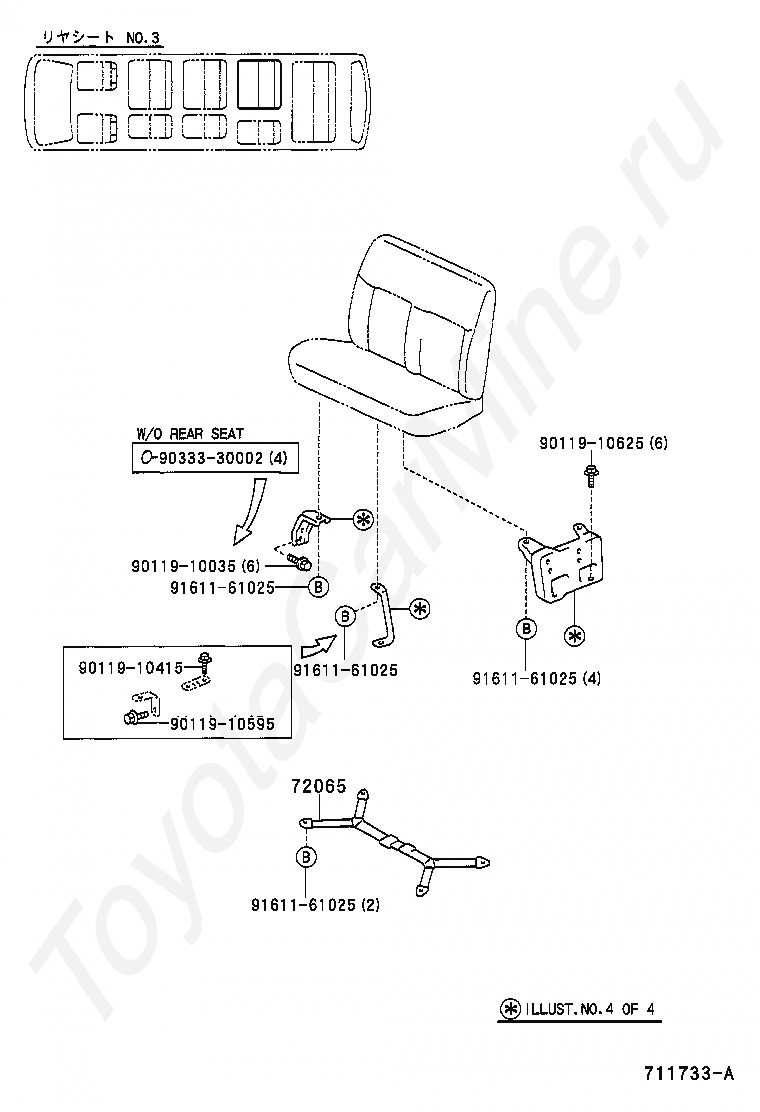

Код

Описание

72065

BELT SUB-ASSY, REAR SEAT HOOK, RH

9011910035

Крепеж

9011910415

Крепеж

9011910595

Крепеж

9011910625

Крепеж

9033330002

Крепеж

9161161025

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+

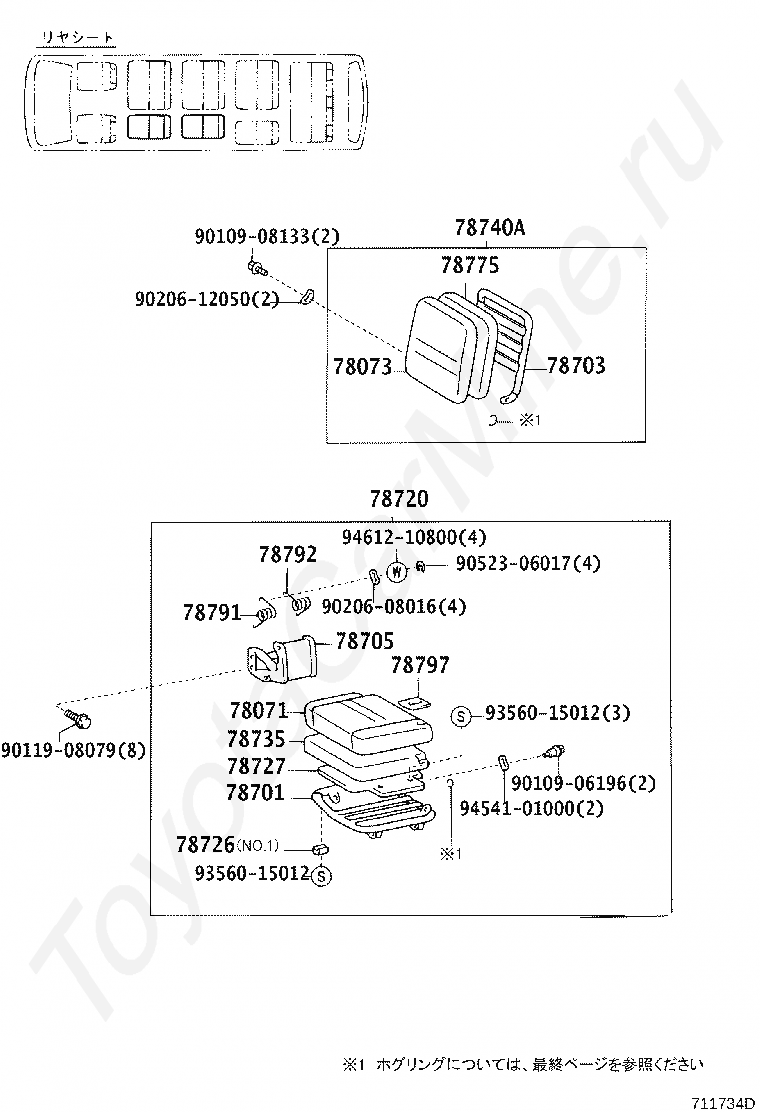

Код

Описание

78071

COVER SUB-ASSY, SUB SEAT CUSHION, RH

78073

COVER SUB-ASSY, SUB SEAT BACK, RH

78701

FRAME SUB-ASSY, SUB SEAT CUSHION, RH

78703

FRAME SUB-ASSY, SUB SEAT BACK

78705

BRACKET SUB-ASSY, SUB SEAT CUSHION

78720

CUSHION ASSY, SUB SEAT, RH

78726

CUSHION, SUB SEAT CUSHION FRAME

78727

BOARD, SUB SEAT CUSHION

78735

PAD, SUB SEAT CUSHION

78740A

BACK ASSY, SUB SEAT, RH

78775

PAD, SUB SEAT BACK

78791

SPRING, SUB SEAT LINK, NO.1

78792

SPRING, SUB SEAT LINK, NO.2

78797

COVER, SUB SEAT

9010906196

Крепеж

9010908133

Крепеж

9011908079

Крепеж

9020608016

Крепеж

9020612050

Крепеж

9052306017

Крепеж

9356015012

Крепеж

9454101000

Крепеж

9461210800

Крепеж

+
+
+
+
+

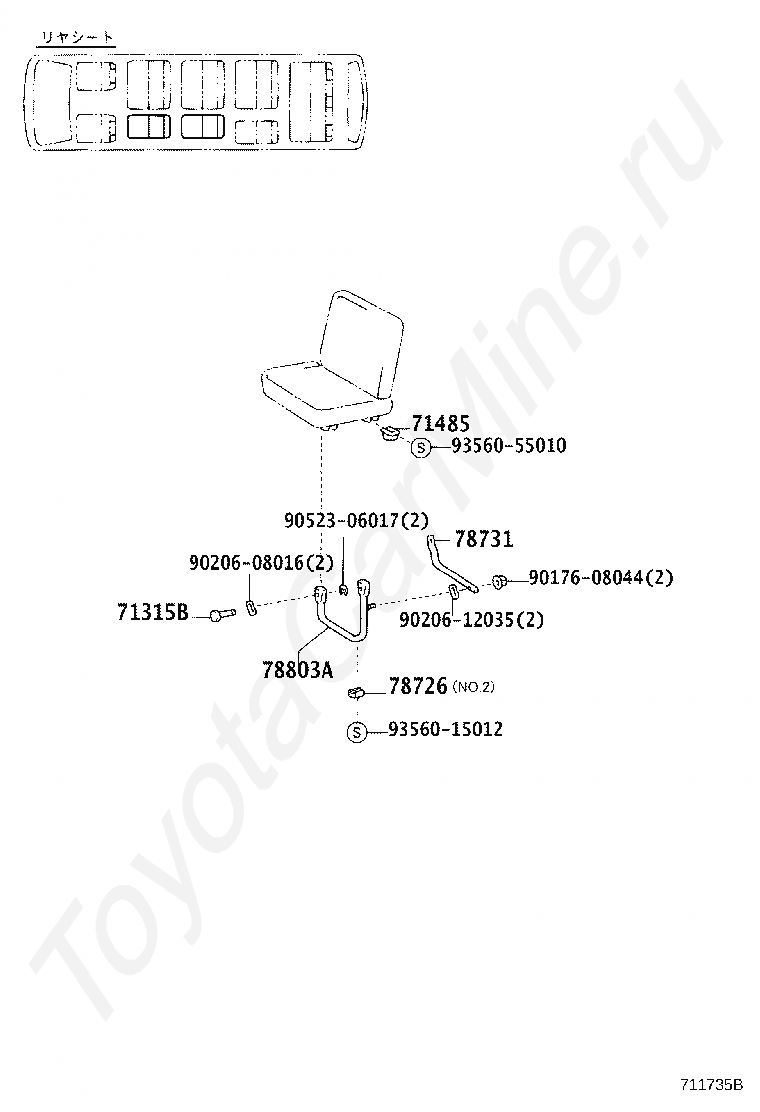

Код

Описание

71315B

PIN, REAR SEAT HINGE

71485

COVER, REAR SEAT HINGE

78726

CUSHION, SUB SEAT CUSHION FRAME

78731

ARM, SUB SEAT LINK, NO.1

78803A

LEG SUB-ASSY, SUB SEAT, RH

9017608044

Крепеж

9020608016

Крепеж

9020612035

Крепеж

9052306017

Крепеж

9356015012

Крепеж

9356055010

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

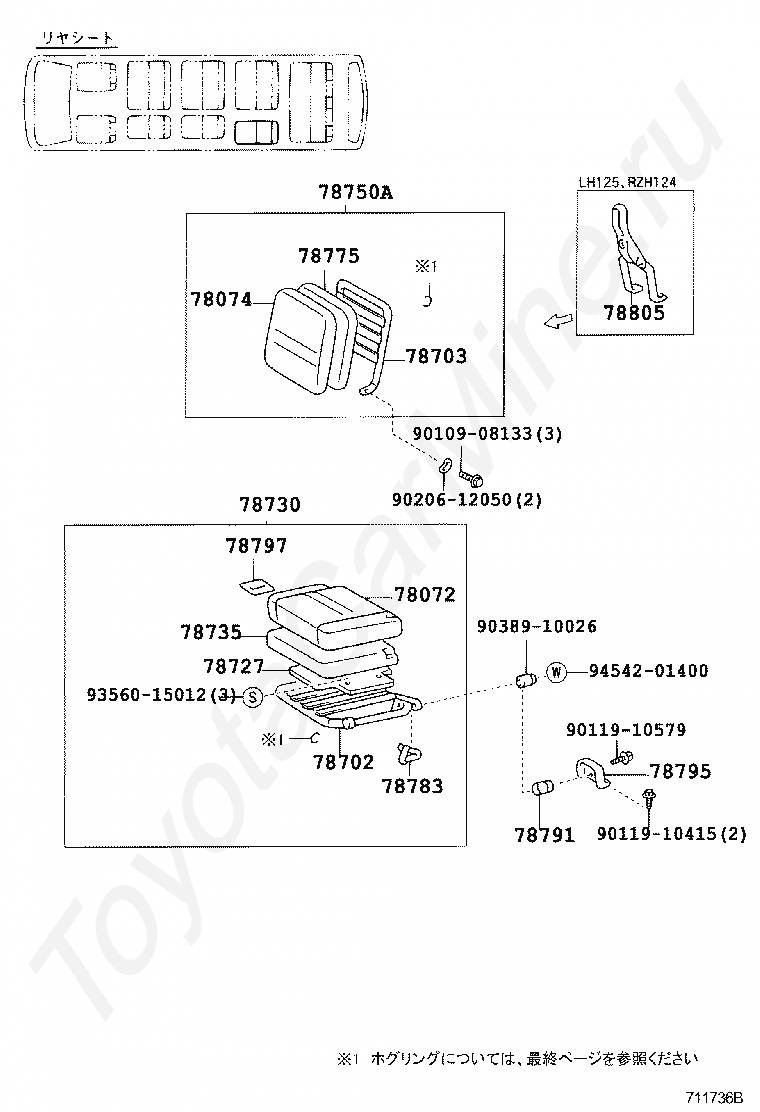

78072

COVER SUB-ASSY, SUB SEAT CUSHION, LH

78074

COVER SUB-ASSY, SUB SEAT BACK, LH

78702

FRAME SUB-ASSY, SUB SEAT CUSHION, LH

78703

FRAME SUB-ASSY, SUB SEAT BACK

78727

BOARD, SUB SEAT CUSHION

78730

CUSHION ASSY, SUB SEAT, LH

78735

PAD, SUB SEAT CUSHION

78750A

BACK ASSY, SUB SEAT, LH

78775

PAD, SUB SEAT BACK

78783

COVER, SUB SEAT HINGE, LH

78791

SPRING, SUB SEAT LINK, NO.1

78795

BRACKET, SUB SEAT, NO.2

78797

COVER, SUB SEAT

78805

BRACKET SUB-ASSY, SUB SEAT CUSHION, REAR RH

9010908133

Крепеж

9011910415

Крепеж

9011910579

Крепеж

9020612050

Крепеж

9038910026

Крепеж

9356015012

Крепеж

9454201400

Крепеж

+
+
+
+
+
+

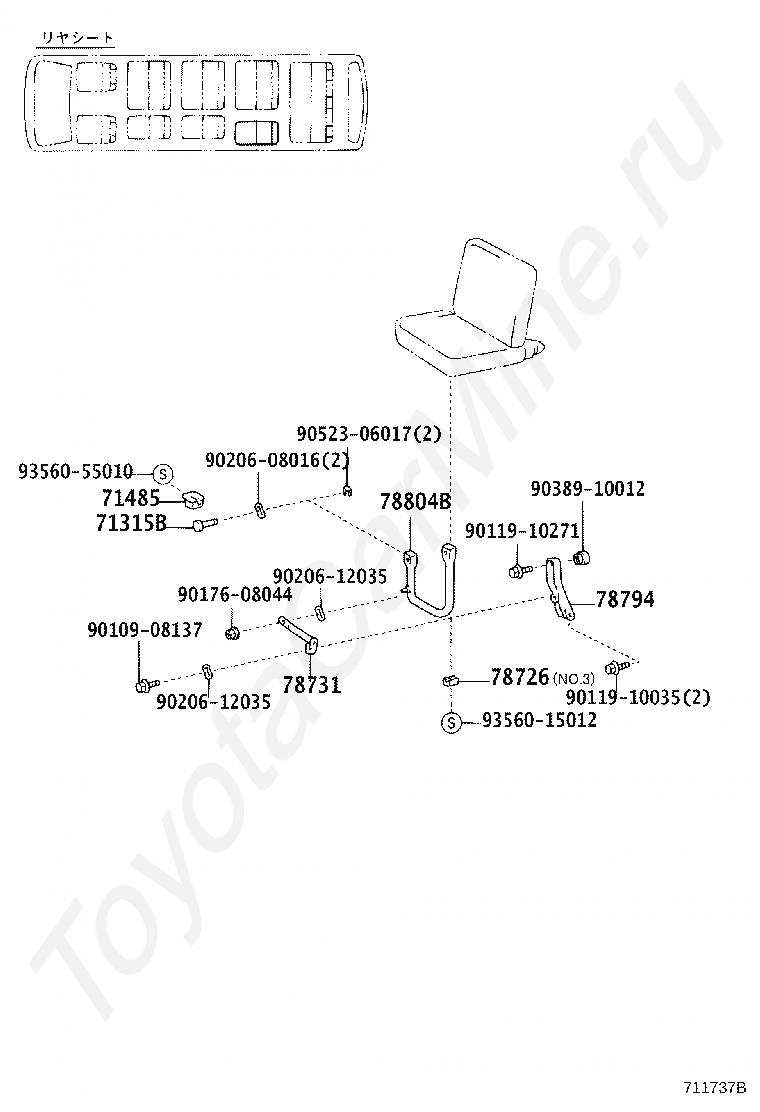

Код

Описание

71315B

PIN, REAR SEAT HINGE

71485

COVER, REAR SEAT HINGE

78726

CUSHION, SUB SEAT CUSHION FRAME

78731

ARM, SUB SEAT LINK, NO.1

78794

BRACKET, SUB SEAT, NO.1

78804B

LEG SUB-ASSY, SUB SEAT, LH

9010908137

Крепеж

9011910035

Крепеж

9011910271

Крепеж

9017608044

Крепеж

9020608016

Крепеж

9020612035

Крепеж

9038910012

Крепеж

9052306017

Крепеж

9356015012

Крепеж

9356055010

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

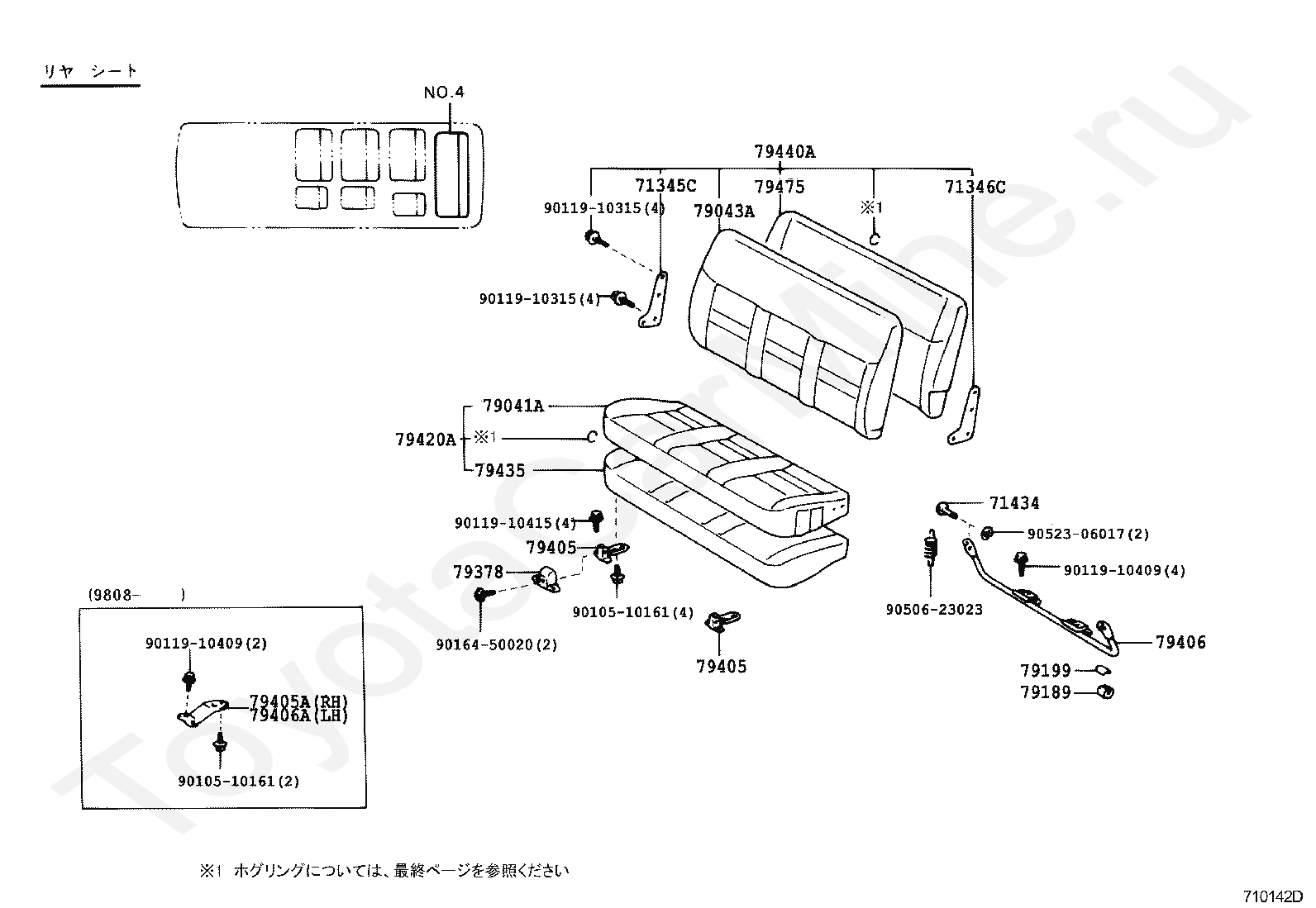

Код

Описание

71345C

HINGE, REAR SEAT BACK, RH

71346C

HINGE, REAR SEAT BACK, LH

71434

PIN, REAR SEAT CUSHION LEG, REAR

79041A

COVER SUB-ASSY, NO.4 SEAT CUSHION

79043A

COVER SUB-ASSY, NO.4 SEAT BACK

79189

STOPPER, NO.1 SEAT LEG

79199

HOLDER, NO.1 SEAT LEG STOPPER

79378

COVER, NO.3 SEAT CUSHION HINGE

79405

LEG SUB-ASSY, NO.4 SEAT, FRONT

79405A

LEG SUB-ASSY, NO.4 SEAT, RH

79406

LEG SUB-ASSY, NO.4 SEAT, REAR

79406A

LEG SUB-ASSY, NO.4 SEAT, LH

79420A

CUSHION ASSY, NO.4 SEAT

79435

PAD, NO.4 SEAT CUSHION

79440A

BACK ASSY, NO.4 SEAT

79475

PAD, NO.4 SEAT BACK

9010510161

Крепеж

9011910315

Крепеж

9011910409

Крепеж

9011910415

Крепеж

9016450020

Крепеж

9050623023

Крепеж

9052306017

Крепеж

+
+
+
+
+
+
+
+
+

Код

Описание

71333

LEG, REAR SEAT CUSHION, NO.1

71333A

LEG, REAR SEAT CUSHION, NO.2

71333B

LEG, REAR SEAT CUSHION, NO.3

7152

переход к группе запчастей

79105A

LEG SUB-ASSY, NO.1 SEAT

79205

LEG SUB-ASSY, NO.2 SEAT

79305

LEG SUB-ASSY, NO.3 SEAT

9161261030

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Оформить заказ Продолжить покупку

Товар добавлен в корзину!

Оформить заказ Продолжить покупку

Заполните форму

Наш менеджер перезвонит в ближайшее время

Введите ваше имя

Введите ваш телефон
