Каталог
ЯпонияМодель
HIACE/REGIUSACEДвигатель
3 литра, турбо-дизельКузов
фургонКласс
SUPER CUSTOM LIMITED SPECIFICATIONФрейм
KZH100Трансмиссия
АКПП, 4 ступениОпции
MIDDLE ROOF 4 двери боковое стекло 7-местный TDE 2WDКод

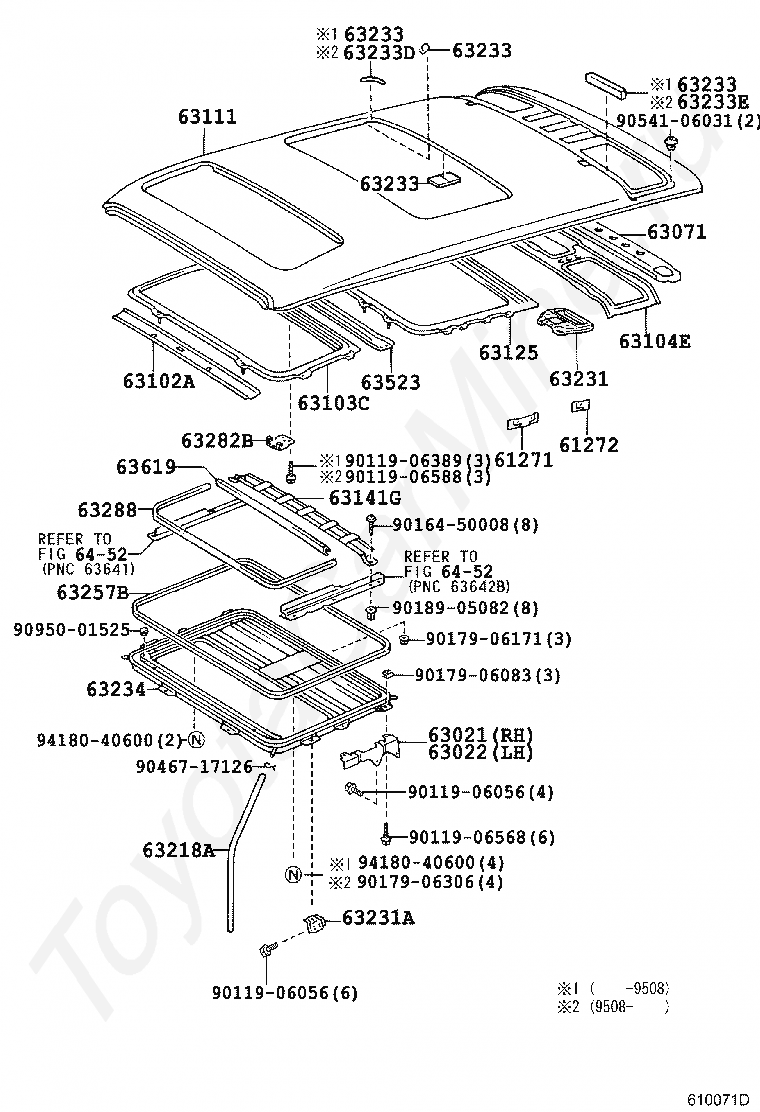

Описание
61271
RETAINER, SLIDING ROOF HOUSING BRACKET, NO.1
61272
RETAINER, SLIDING ROOF HOUSING BRACKET, NO.2
63021
BRACKET SUB-ASSY, TILT ROOF HOUSING, RH
63022
BRACKET SUB-ASSY, TILT ROOF HOUSING, LH
63071
FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63102A
PANEL SUB-ASSY, WINDSHIELD HEADER
63103C
REINFORCEMENT SUB-ASSY, ROOF PANEL
63104E
REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63111
PANEL, ROOF
63125
REINFORCEMENT, ROOF PANEL, NO.2
63141G
REINFORCEMENT, ROOF PANEL, NO.1
63218A
HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63231
BRACKET, ROOM LAMP
63231A
BRACKET, TILT ROOF HOUSING, FRONT
63233
PROTECTOR, SLIDE ROOF PANEL
63233D
PROTECTOR, SLIDE ROOF PANEL
63233E
PROTECTOR, SLIDE ROOF PANEL
63234
PROTECTOR, SLIDE ROOF HOUSING
63257B
SEAL, SLIDING ROOF
63282B
STRIKER, TILT ROOF LOCK
63288
COVER, TILT ROOF HOUSING
63523
SUPPORT, TELEVISION RACK, NO.1
63619
COVER, TILT ROOF PANEL
6452
переход к группе запчастей
9011906056
Крепеж
9011906389
Крепеж
9011906568
Крепеж
9011906588
Крепеж
9016450008
Крепеж
9017906083
Крепеж
9017906171
Крепеж
9017906306
Крепеж
9018905082
Крепеж
9046717126
Крепеж
9054106031
Крепеж
9095001525
Крепеж
9418040600
Крепеж

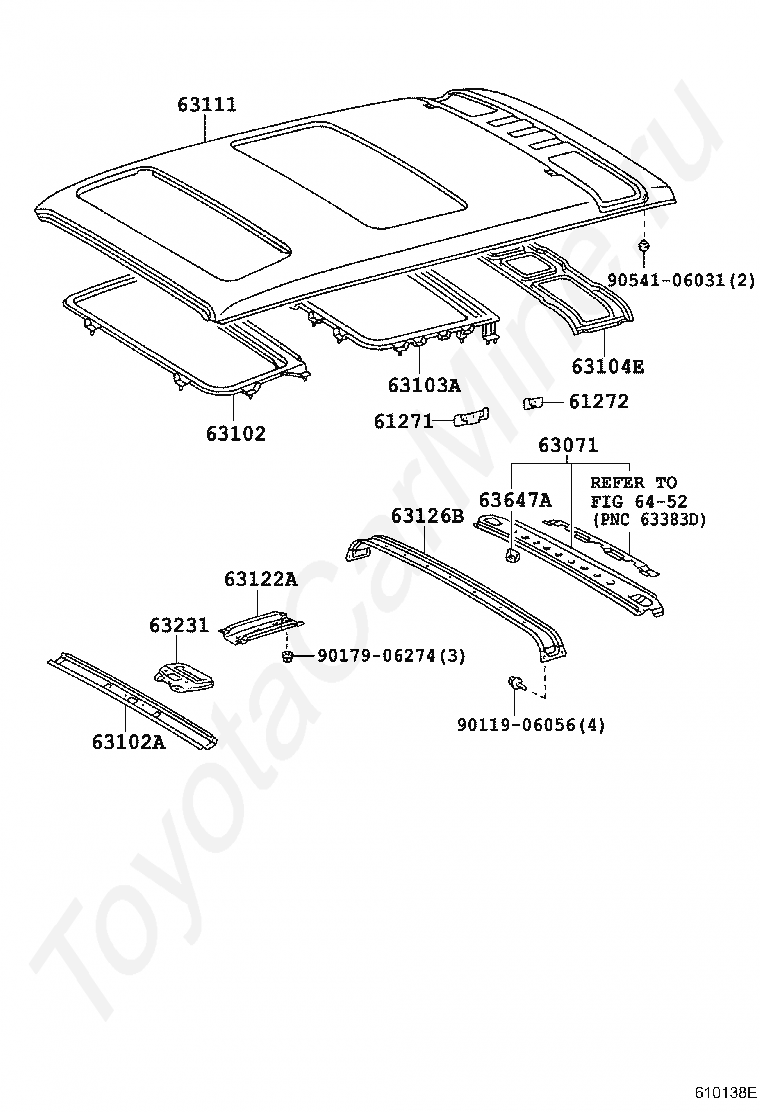

Код
Описание
61271
RETAINER, SLIDING ROOF HOUSING BRACKET, NO.1
61272
RETAINER, SLIDING ROOF HOUSING BRACKET, NO.2
63071
FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63102
REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63102A
PANEL SUB-ASSY, WINDSHIELD HEADER
63103A
REINFORCEMENT SUB-ASSY, ROOF PANEL
63104E
REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63111
PANEL, ROOF
63122A
REINFORCEMENT, ROOF PANEL, FRONT
63126B
REINFORCEMENT, ROOF PANEL, REAR NO.2
63231
BRACKET, ROOM LAMP
63647A
BRACKET, SLIDING ROOF HOUSING, REAR
6452
переход к группе запчастей
9011906056
Крепеж
9017906274
Крепеж
9054106031
Крепеж

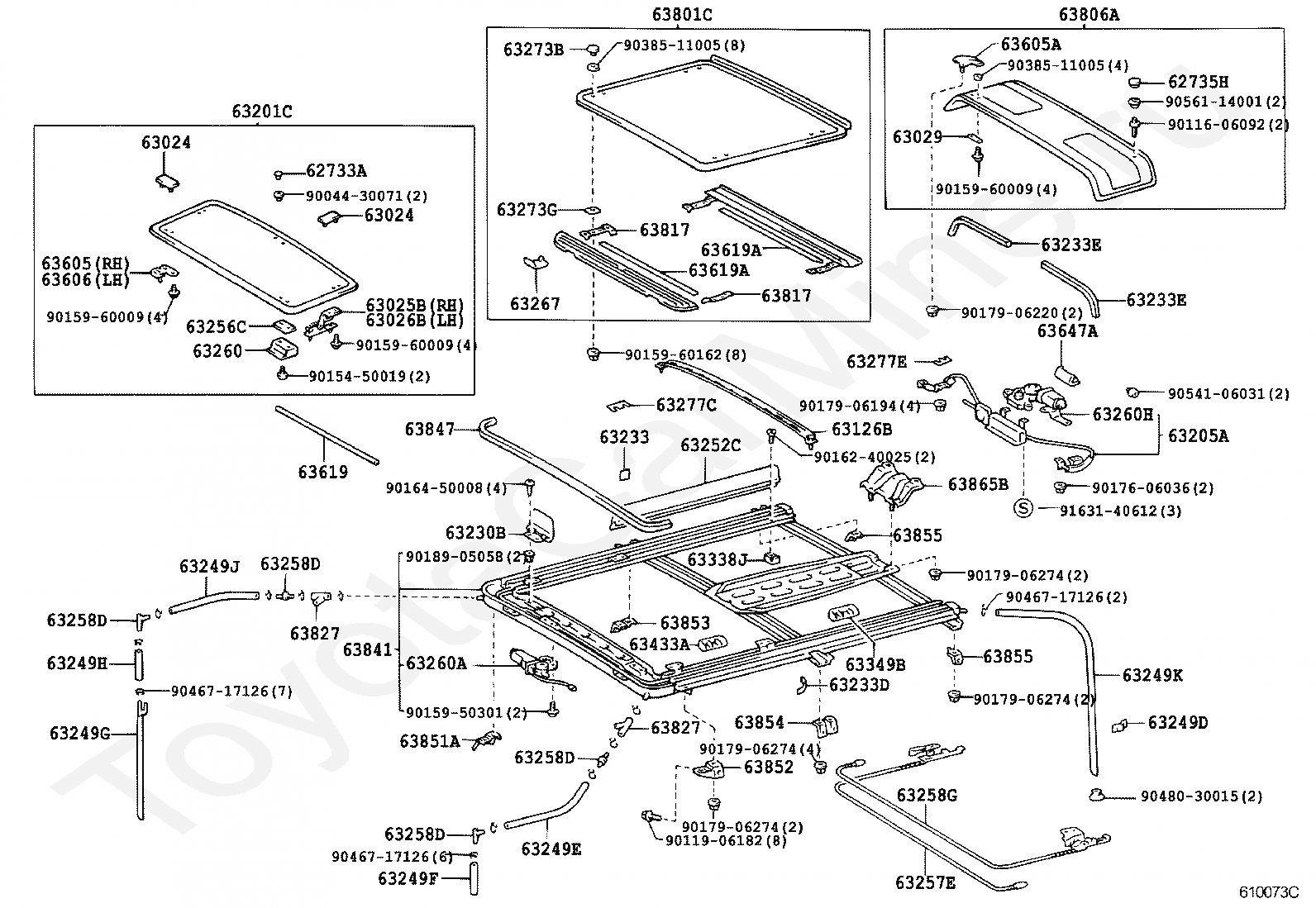

Код
Описание
62733A
RETAINER, QUARTER WINDOW HINGE
62735H
RETAINER, QUARTER WINDOW HINGE
63024
SEAL SUB-ASSY, ROOF WINDOW HINGE, NO.1
63025B
LINK SUB-ASSY, TILT ROOF, RH
63026B
LINK SUB-ASSY, TILT ROOF, LH
63029
SEAL SUB-ASSY, ROOF WINDOW HINGE
63068A
BRACKET SUB-ASSY, SLIDING ROOF MOUNT, LH
63087
BRACKET SUB-ASSY, REAR SLIDE HOUSING, NO.4 RH
63126B
REINFORCEMENT, ROOF PANEL, REAR NO.2
63201C
GLASS SUB-ASSY, TILT ROOF
63205A
CABLE SUB-ASSY, SLIDING ROOF DRIVE
63218A
HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63230B
PANEL ASSY, ROOF WIND DEFLECTOR
63249D
SUPPORT, SLIDE ROOF RAIN CHANNEL HOSE
63256C
SEAL, TILT ROOF GLASS
63258D
JOINT, SLIDE ROOF DRAIN HOSE
63260
HANDLE ASSY, REMOVABLE ROOF LOCK
63260A
GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260H
GEAR ASSY, SLIDING ROOF DRIVE
63267
PROTECTOR, SLIDING ROOF WEATHERSTRIP
63273B
RETAINER, ROOF WINDOW HINGE
63273G
PACKING, SLIDE ROOF
63277
SHIM, SLIDING ROOF RAIL
63277C
SHIM, SLIDING ROOF PANEL
63349B
GARNISH, ROOF HEADLINING, REAR
63433A
GARNISH, ROOF SIDE, UPPER NO.2
63605
HINGE SUB-ASSY, TILT ROOF, RH
63605A
HINGE SUB-ASSY, TILT ROOF, RH
63606
HINGE SUB-ASSY, TILT ROOF, LH
63619
COVER, TILT ROOF PANEL
63619A
PROTECTOR, REMOVABLE ROOF PANEL, INNER
63647A
BRACKET, SLIDING ROOF HOUSING, REAR
63801C
GLASS SUB-ASSY, REAR SLIDE ROOF
63803A
CABLE SUB-ASSY, REAR SLIDE ROOF DRIVE
63806A
GLASS SUB-ASSY, REAR TILT ROOF
63807B
BRACKET SUB-ASSY, REAR SLIDE HOUSING, NO.2 RH
63808A
BRACKET SUB-ASSY, REAR SLIDE HOUSING, NO.2 LH
63809A
HANDLE SUB-ASSY, REAR TILT ROOF REGULATOR
63817
RETAINER, REAR SLIDE ROOF SHOE, FRONT RH
63827
JOINT, REAR SLIDE ROOF DRAIN HOSE
63841
PANEL, REAR SLIDE ROOF HOUSING
63847
SEAL, REAR SLIDE ROOF HOUSING
63852
BRACKET, REAR SLIDE ROOF HOUSING, NO.1 LH
63855
BRACKET, REAR SLIDE ROOF HOUSING, NO.3
63889
GARNISH, REAR TILT ROOF REGULATOR
9004430071
Крепеж
9011606092
Крепеж
9011906182
Крепеж
9015450019
Крепеж
9015950301
Крепеж
9015960009
Крепеж
9015960162
Крепеж
9016240025
Крепеж
9016450008
Крепеж
9017606036
Крепеж
9017906171
Крепеж
9017906194
Крепеж
9017906220
Крепеж
9018905058
Крепеж
9038511005
Крепеж
9046717126
Крепеж
9048030015
Крепеж
9056114001
Крепеж
9095001530
Крепеж
9163140612
Крепеж
9321016012
Крепеж
9322954012
Крепеж
Код
Описание
62733A
RETAINER, QUARTER WINDOW HINGE
62735H
RETAINER, QUARTER WINDOW HINGE
63024
SEAL SUB-ASSY, ROOF WINDOW HINGE, NO.1
63025B
LINK SUB-ASSY, TILT ROOF, RH
63026B
LINK SUB-ASSY, TILT ROOF, LH
63029
SEAL SUB-ASSY, ROOF WINDOW HINGE
63126B
REINFORCEMENT, ROOF PANEL, REAR NO.2
63201C
GLASS SUB-ASSY, TILT ROOF
63205A
CABLE SUB-ASSY, SLIDING ROOF DRIVE
63230B
PANEL ASSY, ROOF WIND DEFLECTOR
63233
PROTECTOR, SLIDE ROOF PANEL
63233D
PROTECTOR, SLIDE ROOF PANEL
63233E
PROTECTOR, SLIDE ROOF PANEL
63249D
SUPPORT, SLIDE ROOF RAIN CHANNEL HOSE
63249E
HOSE, SLIDING ROOF DRAIN
63249F
HOSE, SLIDING ROOF DRAIN
63249G
HOSE, SLIDING ROOF DRAIN
63249H
HOSE, SLIDING ROOF DRAIN
63249J
HOSE, SLIDING ROOF DRAIN
63249K
HOSE, SLIDING ROOF DRAIN
63252C
WEATHERSTRIP, SLIDING ROOF, REAR
63256C
SEAL, TILT ROOF GLASS
63257E
HOLDER, SLIDING ROOF GUIDE RAIL, RH
63258D
JOINT, SLIDE ROOF DRAIN HOSE
63258G
HOLDER, SLIDING ROOF GUIDE RAIL, LH
63260
HANDLE ASSY, REMOVABLE ROOF LOCK
63260A
GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260H
GEAR ASSY, SLIDING ROOF DRIVE
63267
PROTECTOR, SLIDING ROOF WEATHERSTRIP
63273B
RETAINER, ROOF WINDOW HINGE
63273G
PACKING, SLIDE ROOF
63277C
SHIM, SLIDING ROOF PANEL
63277E
SHIM, SLIDING ROOF PANEL
63338J
STOPPER, SUNSHADE LOCK, NO.2
63349B
GARNISH, ROOF HEADLINING, REAR
63433A
GARNISH, ROOF SIDE, UPPER NO.2
63605
HINGE SUB-ASSY, TILT ROOF, RH
63605A
HINGE SUB-ASSY, TILT ROOF, RH
63606
HINGE SUB-ASSY, TILT ROOF, LH
63619
COVER, TILT ROOF PANEL
63619A
PROTECTOR, REMOVABLE ROOF PANEL, INNER
63647A
BRACKET, SLIDING ROOF HOUSING, REAR
63801C
GLASS SUB-ASSY, REAR SLIDE ROOF
63806A
GLASS SUB-ASSY, REAR TILT ROOF
63817
RETAINER, REAR SLIDE ROOF SHOE, FRONT RH
63827
JOINT, REAR SLIDE ROOF DRAIN HOSE
63841
PANEL, REAR SLIDE ROOF HOUSING
63847
SEAL, REAR SLIDE ROOF HOUSING
63851A
BRACKET, REAR SLIDE ROOF HOUSING, NO.1 RH
63852
BRACKET, REAR SLIDE ROOF HOUSING, NO.1 LH
63853
BRACKET, REAR SLIDE ROOF HOUSING, NO.2 RH
63854
BRACKET, REAR SLIDE ROOF HOUSING, NO.2 LH
63855
BRACKET, REAR SLIDE ROOF HOUSING, NO.3
63865B
BRACKET, REAR SLIDE ROOF HOUSING, NO.2 REAR RH
9004430071
Крепеж
9011606092
Крепеж
9011906182
Крепеж
9015450019
Крепеж
9015950301
Крепеж
9015960009
Крепеж
9015960162
Крепеж
9016240025
Крепеж
9016450008
Крепеж
9017606036
Крепеж
9017906194
Крепеж
9017906220
Крепеж
9017906274
Крепеж
9018905058
Крепеж
9038511005
Крепеж
9046717126
Крепеж
9048030015
Крепеж
9054106031
Крепеж
9056114001
Крепеж
9163140612
Крепеж

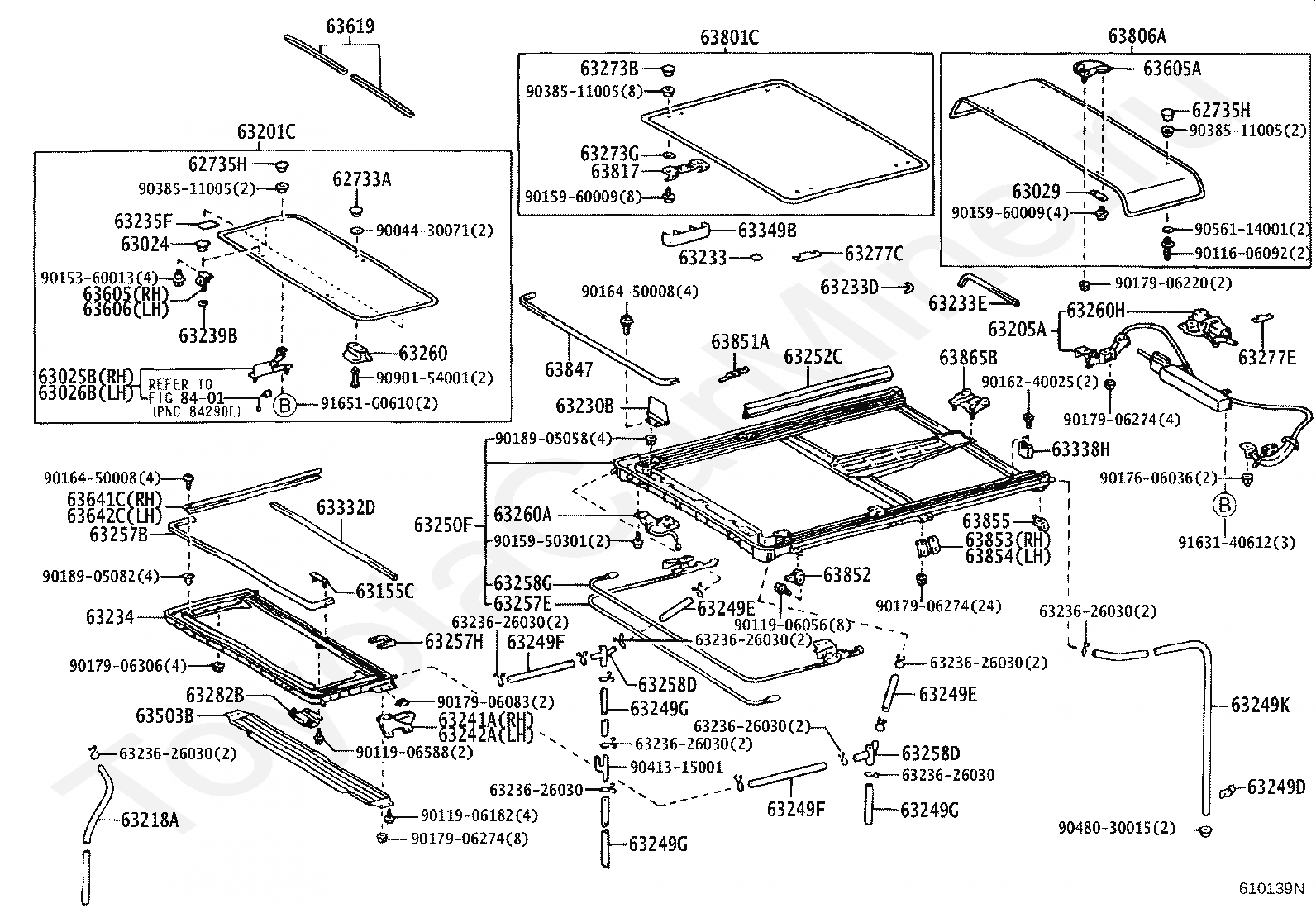

Код
Описание
62733A
RETAINER, QUARTER WINDOW HINGE
62735H
RETAINER, QUARTER WINDOW HINGE
63024
SEAL SUB-ASSY, ROOF WINDOW HINGE, NO.1
63025B
LINK SUB-ASSY, TILT ROOF, RH
63026B
LINK SUB-ASSY, TILT ROOF, LH
63029
SEAL SUB-ASSY, ROOF WINDOW HINGE
63155C
RETAINER, ROOF PANEL SUPPORT
63201C
GLASS SUB-ASSY, TILT ROOF
63205A
CABLE SUB-ASSY, SLIDING ROOF DRIVE
63218A
HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63230B
PANEL ASSY, ROOF WIND DEFLECTOR
63233
PROTECTOR, SLIDE ROOF PANEL
63233D
PROTECTOR, SLIDE ROOF PANEL
63233E
PROTECTOR, SLIDE ROOF PANEL
63234
PROTECTOR, SLIDE ROOF HOUSING
63235F
PROTECTOR, TILT ROOF GLASS
6323626030
Крепеж
63239B
PAD, TILT ROOF GLASS
63241A
BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH
63242A
BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH
63249D
SUPPORT, SLIDE ROOF RAIN CHANNEL HOSE
63249E
HOSE, SLIDING ROOF DRAIN
63249F
HOSE, SLIDING ROOF DRAIN
63249G
HOSE, SLIDING ROOF DRAIN
63249K
HOSE, SLIDING ROOF DRAIN
63250F
HOUSING ASSY, SLIDING ROOF
63252C
WEATHERSTRIP, SLIDING ROOF, REAR
63257B
SEAL, SLIDING ROOF
63257E
HOLDER, SLIDING ROOF GUIDE RAIL, RH
63257H
SEAL, REMOVABLE ROOF
63258D
JOINT, SLIDE ROOF DRAIN HOSE
63258G
HOLDER, SLIDING ROOF GUIDE RAIL, LH
63260
HANDLE ASSY, REMOVABLE ROOF LOCK
63260A
GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260H
GEAR ASSY, SLIDING ROOF DRIVE
63273B
RETAINER, ROOF WINDOW HINGE
63273G
PACKING, SLIDE ROOF
63277C
SHIM, SLIDING ROOF PANEL
63277E
SHIM, SLIDING ROOF PANEL
63282B
STRIKER, TILT ROOF LOCK
63332D
PAD, SUN ROOF HEADLINING
63338H
STOPPER, SUNSHADE LOCK, NO.2
63349B
GARNISH, ROOF HEADLINING, REAR
63503B
SUPPORT SUB-ASSY, AIR CONDITIONER MOUNTING
63605
HINGE SUB-ASSY, TILT ROOF, RH
63605A
HINGE SUB-ASSY, TILT ROOF, RH
63606
HINGE SUB-ASSY, TILT ROOF, LH
63619
COVER, TILT ROOF PANEL
63641C
RAIL, SUNSHADE, NO.1 FRONT RH
63642C
RAIL, SUNSHADE, NO.1 FRONT LH
63801C
GLASS SUB-ASSY, REAR SLIDE ROOF
63806A
GLASS SUB-ASSY, REAR TILT ROOF
63817
RETAINER, REAR SLIDE ROOF SHOE, FRONT RH
63847
SEAL, REAR SLIDE ROOF HOUSING
63851A
BRACKET, REAR SLIDE ROOF HOUSING, NO.1 RH
63852
BRACKET, REAR SLIDE ROOF HOUSING, NO.1 LH
63853
BRACKET, REAR SLIDE ROOF HOUSING, NO.2 RH
63854
BRACKET, REAR SLIDE ROOF HOUSING, NO.2 LH
63855
BRACKET, REAR SLIDE ROOF HOUSING, NO.3
63865B
BRACKET, REAR SLIDE ROOF HOUSING, NO.2 REAR RH
8401
переход к группе запчастей
9004430071
Крепеж
9011606092
Крепеж
9011906056
Крепеж
9011906182
Крепеж
9011906588
Крепеж
9015360013
Крепеж
9015950301
Крепеж
9015960009
Крепеж
9016240025
Крепеж
9016450008
Крепеж
9017606036
Крепеж
9017906083
Крепеж
9017906220
Крепеж
9017906274
Крепеж
9017906306
Крепеж
9018905058
Крепеж
9018905082
Крепеж
9038511005
Крепеж
9041315001
Крепеж
9048030015
Крепеж
9056114001
Крепеж
9090154001
Крепеж
9163140612
Крепеж
91651G0610
Крепеж
