VALVE BODY & OIL STRAINER (ATM) TOYOTA HIACE/REGIUSACE, 1993/08 - 2004/08, 3 литра, турбо-дизель, фургон, SUPER CUSTOM LIMITED SPECIFICATION, KZH100, АКПП, 4 ступени

Каталог

Япония

Модель

HIACE/REGIUSACE

Двигатель

3 литра, турбо-дизель

Кузов

фургон

Класс

SUPER CUSTOM LIMITED SPECIFICATION

Фрейм

KZH100

Трансмиссия

АКПП, 4 ступени

Опции

MIDDLE ROOF 4 двери боковое стекло 7-местный TDE 2WD

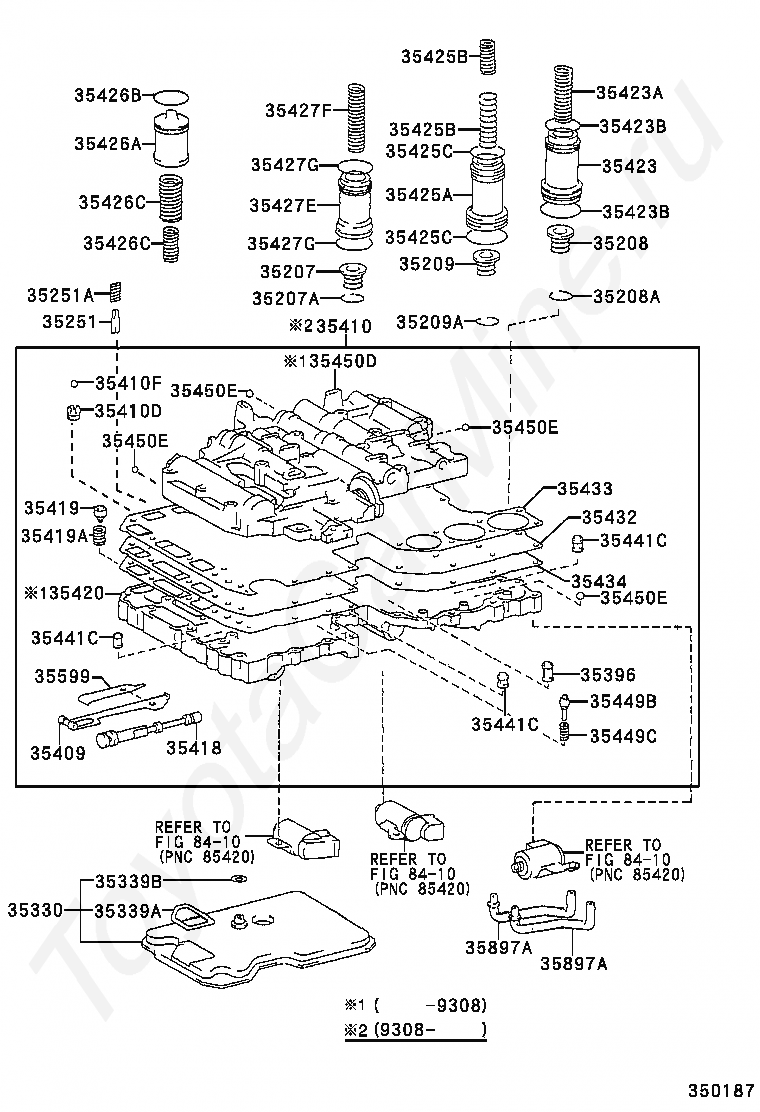

Код

Описание

35207

SPRING SUB-ASSY, B-0 ACCUMULATOR

35207A

RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)

35208

SPRING SUB-ASSY, B-2 ACCUMULATOR

35208A

RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

35209

SPRING SUB-ASSY, C-2 ACCUMULATOR

35209A

RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)

35251

BODY, CHECK BALL

35251A

SPRING, COMPRESSION (FOR CHECK BALL BODY)

35330

STRAINER ASSY, VALVE BODY OIL

35339A

GASKET, OIL STRAINER, NO.1

35339B

GASKET, OIL STRAINER, NO.2

35396

STRAINER, THROTTLE OIL

35409

SPRING SUB-ASSY, MANUAL DETENT

35410

BODY ASSY, TRANSMISSION VALVE

35410D

VALVE, CHECK

35410F

BALL (FOR CHECK VALVE)

35418

VALVE, MANUAL

35419

VALVE, CHECK, NO.1

35419A

SPRING, COMPRESSION (FOR CHECK VALVE)

35420

BODY ASSY, LOWER VALVE

35423

PISTON, B-2 ACCUMULATOR

35423A

SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35425A

PISTON, C-2 ACCUMULATOR

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35426A

PISTON, C-0 ACCUMULATOR

35426B

RING, O (FOR C-0 ACCUMULATOR PISTON)

35426C

SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)

35427E

PISTON, B-0 ACCUMULATOR

35427F

SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)

35427G

RING, O (FOR B-0 ACCUMULATOR PISTON)

35432

PLATE, VALVE BODY, NO.1

35433

GASKET, VALVE BODY, NO.1

35434

GASKET, VALVE BODY, NO.2

35441C

STRAINER, SOLENOID OIL

35449B

VALVE, PRESSURE RELIEF

35449C

SPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF)

35450D

BODY ASSY, UPPER VALVE

35450E

BALL (FOR UPPER VALVE BODY)

35599

COVER, MANUAL DETENT SPRING

35897A

TUBE, 1ST & REVERSE BRAKE, NO.1

8410

переход к группе запчастей

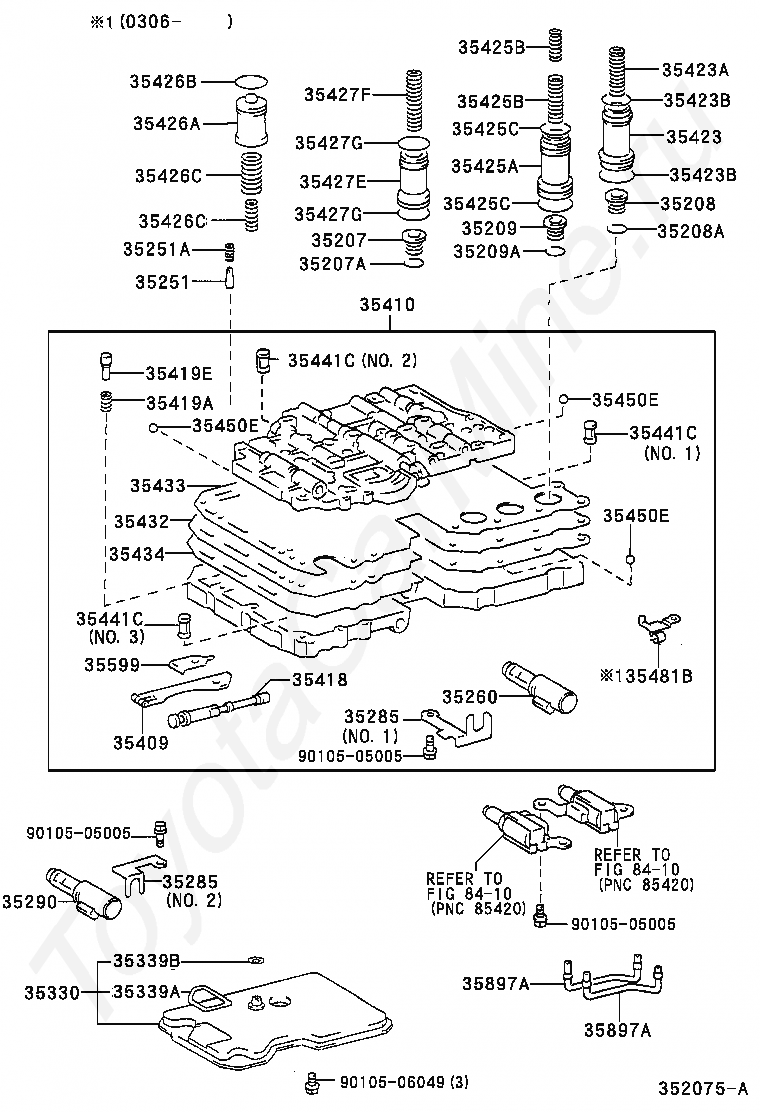

Код

Описание

35207

SPRING SUB-ASSY, B-0 ACCUMULATOR

35207A

RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING)

35208

SPRING SUB-ASSY, B-2 ACCUMULATOR

35208A

RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

35209

SPRING SUB-ASSY, C-2 ACCUMULATOR

35209A

RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)

35251

BODY, CHECK BALL

35251A

SPRING, COMPRESSION (FOR CHECK BALL BODY)

35260

ACCUMLATOR ASSY, THROTTLE PRESSURE

35285

PLATE, SOLENOID LOCK

35290

SOLENOID ASSY, LINE PRESSURE CONTROL

35330

STRAINER ASSY, VALVE BODY OIL

35339A

GASKET, OIL STRAINER, NO.1

35339B

GASKET, OIL STRAINER, NO.2

35409

SPRING SUB-ASSY, MANUAL DETENT

35410

BODY ASSY, TRANSMISSION VALVE

35418

VALVE, MANUAL

35419A

SPRING, COMPRESSION (FOR CHECK VALVE)

35419E

VALVE, CHECK, NO.3

35423

PISTON, B-2 ACCUMULATOR

35423A

SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35425A

PISTON, C-2 ACCUMULATOR

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35426A

PISTON, C-0 ACCUMULATOR

35426B

RING, O (FOR C-0 ACCUMULATOR PISTON)

35426C

SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)

35427E

PISTON, B-0 ACCUMULATOR

35427F

SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON)

35427G

RING, O (FOR B-0 ACCUMULATOR PISTON)

35432

PLATE, VALVE BODY, NO.1

35433

GASKET, VALVE BODY, NO.1

35434

GASKET, VALVE BODY, NO.2

35441C

STRAINER, SOLENOID OIL

35450E

BALL (FOR UPPER VALVE BODY)

35481B

CLAMP, VALVE BODY WIRE HARNESS

35599

COVER, MANUAL DETENT SPRING

35897A

TUBE, 1ST & REVERSE BRAKE, NO.1

8410

переход к группе запчастей

9010505005

Крепеж

9010506049

Крепеж

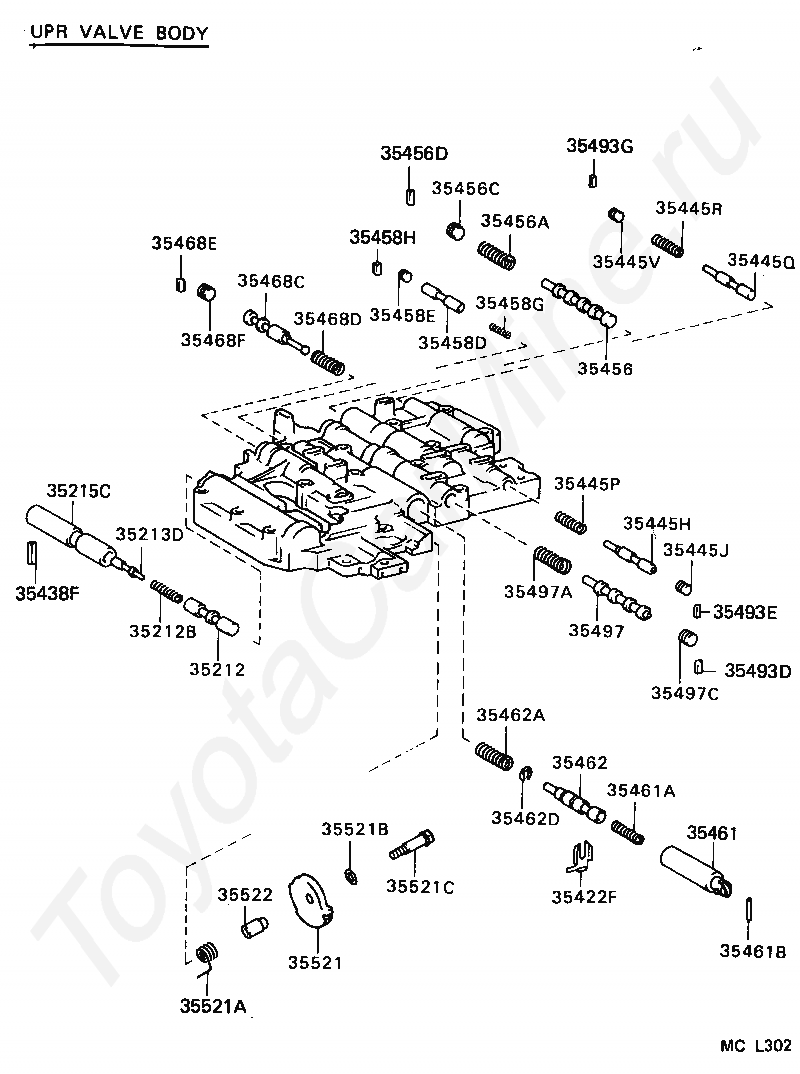

Код

Описание

35212

VALVE, LOCK UP RELAY

35212B

SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)

35213D

PLUNGER, LOCK UP RELAY VALVE

35215C

SLEEVE, LOCK UP RELAY VALVE, NO.1

35422F

STOPPER, VALVE VIBRATING

35438F

SEAT, DETENT SPRING

35445H

VALVE, 2ND COAST MODULATOR

35445J

PLUG (FOR 2ND COAST MODULATOR VALVE)

35445P

SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE)

35445Q

VALVE, LOW COAST MODULATOR

35445R

SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE)

35445V

PLUG (FOR LOW COAST MODULATOR VALVE)

35456

VALVE, 2-3 SHIFT

35456A

SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

35456C

PLUG (FOR 2-3 SHIFT VALVE)

35456D

SEAT (FOR 2-3 SHIFT VALVE)

35458D

VALVE, CUT BACK

35458E

PLUG (FOR CUT BACK VALVE)

35458G

SPRING, COMPRESSION (FOR CUT BACK VALVE)

35458H

KEY, STRAIGHT (FOR CUT BACK VALVE)

35461

PLUG, DOWN SHIFT

35461A

SPRING, COMPRESSION (FOR DOWN SHIFT PLUG)

35461B

PIN, STRAIGHT (FOR DOWN SHIFT PLUG)

35462

VALVE, THROTTLE

35462A

SPRING, COMPRESSION (FOR THROTTLE VALVE)

35462D

RING, E (FOR THROTTLE VALVE)

35468C

VALVE, SECONDARY REGULATOR

35468D

SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

35468E

KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE)

35468F

PLUG (FOR SECONDARY REGULATOR VALVE)

35493D

SEAT, 3-4 SHIFT VALVE PLUG

35493E

SEAT, 2ND COAST MODULATOR VALVE PLUG

35493G

SEAT, LOW COAST MODULATOR VALVE PLUG

35497

VALVE, 3-4 SHIFT

35497A

SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)

35497C

PLUG (FOR 3-4 SHIFT VALVE)

35521

CAM, THROTTLE VALVE

35521A

SPRING (FOR THROTTLE VALVE CAM RETURN)

35521B

WASHER (FOR THROTTLE VALVE CAM SET)

35521C

BOLT (FOR THROTTLE VALVE CAM SET)

35522

PIN, THROTTLE VALVE CAM

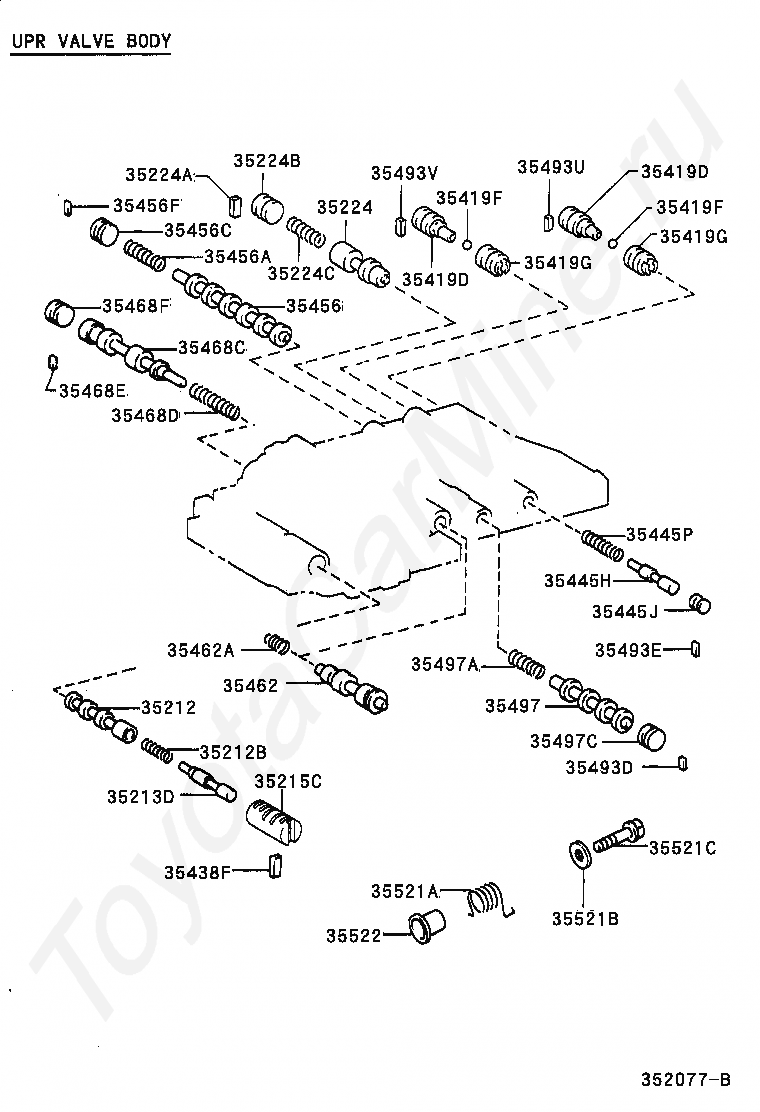

Код

Описание

35212

VALVE, LOCK UP RELAY

35212B

SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)

35213D

PLUNGER, LOCK UP RELAY VALVE

35215C

SLEEVE, LOCK UP RELAY VALVE, NO.1

35224

VALVE, REVERSE CONTROL

35224A

KEY, STRAIGHT (FOR REVERSE CONTROL VALVE)

35224B

PLUG (FOR REVERSE CONTROL VALVE)

35224C

SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE)

35419D

VALVE, CHECK, NO.2

35419F

BALL, CHECK VALVE

35419G

VALVE, CHECK, NO.4

35438F

SEAT, DETENT SPRING

35445H

VALVE, 2ND COAST MODULATOR

35445J

PLUG (FOR 2ND COAST MODULATOR VALVE)

35445P

SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE)

35456

VALVE, 2-3 SHIFT

35456A

SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

35456C

PLUG (FOR 2-3 SHIFT VALVE)

35456F

KEY, STRAIGHT (FOR 2-3 SHIFT VALVE)

35462

VALVE, THROTTLE

35462A

SPRING, COMPRESSION (FOR THROTTLE VALVE)

35468C

VALVE, SECONDARY REGULATOR

35468D

SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

35468E

KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE)

35468F

PLUG (FOR SECONDARY REGULATOR VALVE)

35493D

SEAT, 3-4 SHIFT VALVE PLUG

35493E

SEAT, 2ND COAST MODULATOR VALVE PLUG

35493U

SEAT, CHECK VALVE, NO.1

35493V

SEAT, CHECK VALVE, NO.2

35497

VALVE, 3-4 SHIFT

35497A

SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)

35497C

PLUG (FOR 3-4 SHIFT VALVE)

35521A

SPRING (FOR THROTTLE VALVE CAM RETURN)

35521B

WASHER (FOR THROTTLE VALVE CAM SET)

35521C

BOLT (FOR THROTTLE VALVE CAM SET)

35522

PIN, THROTTLE VALVE CAM

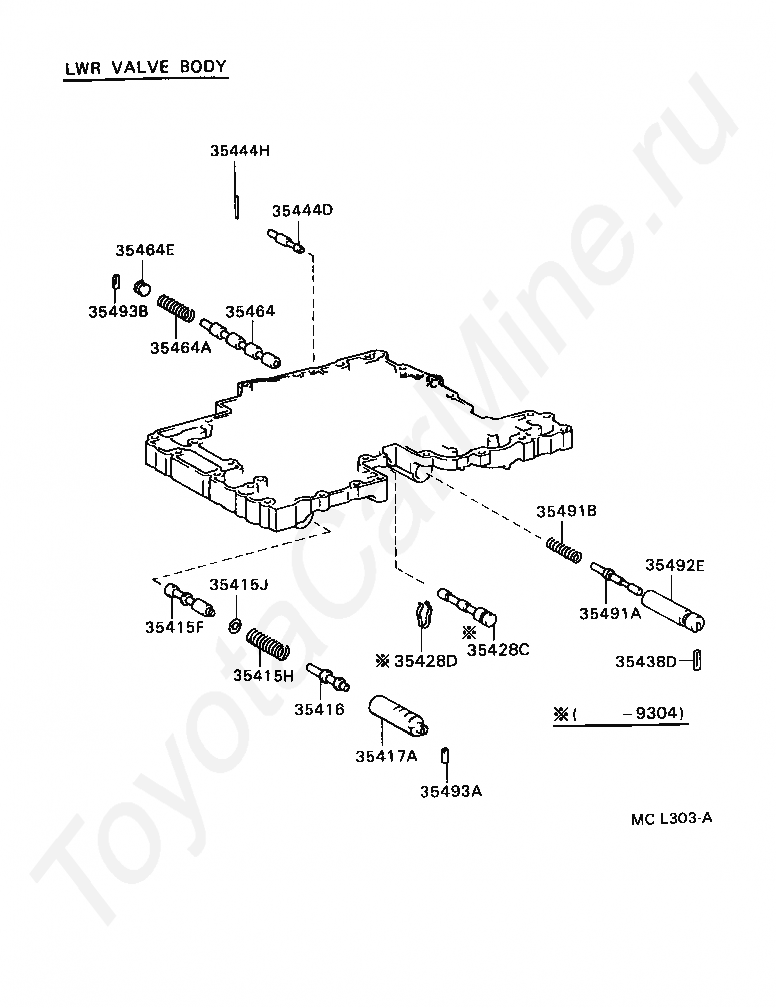

Код

Описание

35415F

VALVE, PRIMARY REGULATOR

35415H

SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE)

35415J

WASHER (FOR PRIMARY REGULATOR VALVE)

35416

PLUNGER, PRIMARY REGULATOR VALVE, NO.1

35417A

SLEEVE, PRIMARY REGULATOR VALVE

35428C

PLUG, PRESSURE REDUCING

35428D

CLIP (FOR PRESSURE REDUCING PLUG)

35438D

SEAT, ACCUMULATOR CONTROL VALVE SPRING

35444D

VALVE, RELEASE CONTROL

35444H

PIN,STRAIGHT(FOR INTERMEDIATE MODULATOR PLUG)

35464

VALVE, 1-2 SHIFT

35464A

SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)

35464E

PLUG (FOR 1-2 SHIFT VALVE)

35491A

VALVE, ACCUMULATOR CONTROL, NO.1

35491B

SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1)

35492E

SLEEVE, ACCUMULATOR CONTROL VALVE

35493A

SEAT, PRIMARY REGULATOR VALVE PLUG

35493B

SEAT, 1-2 SHIFT VALVE PLUG

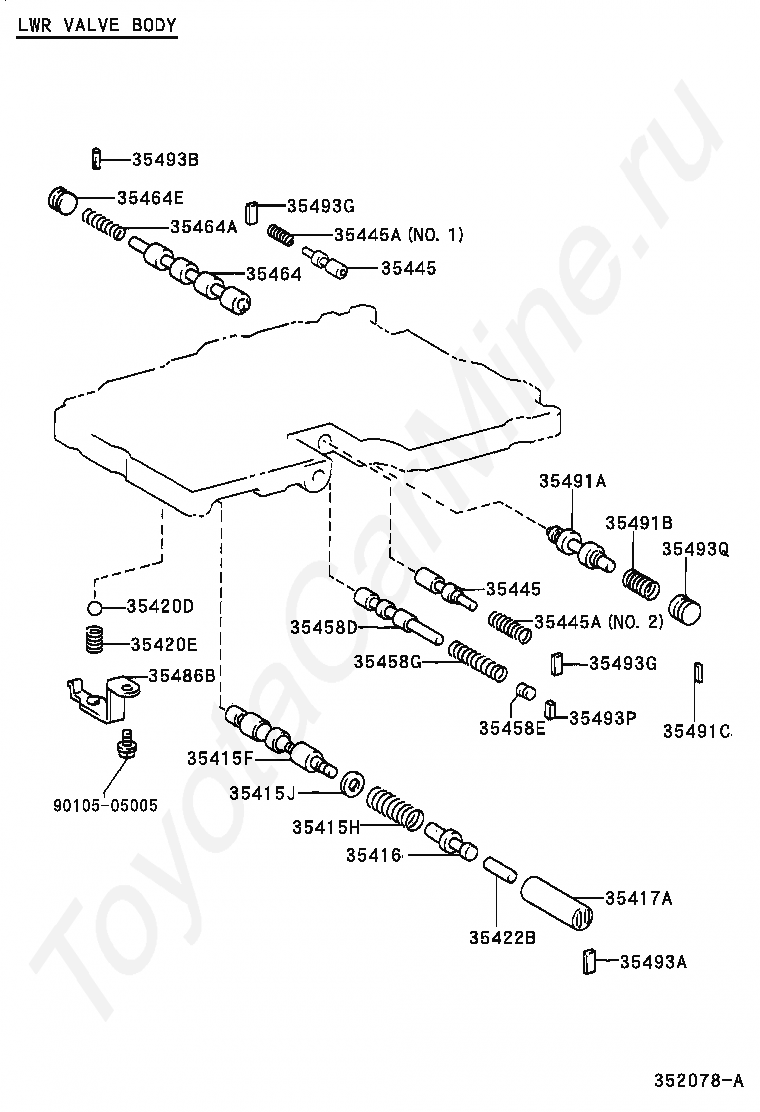

Код

Описание

35415F

VALVE, PRIMARY REGULATOR

35415H

SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE)

35415J

WASHER (FOR PRIMARY REGULATOR VALVE)

35416

PLUNGER, PRIMARY REGULATOR VALVE, NO.1

35417A

SLEEVE, PRIMARY REGULATOR VALVE

35420D

BALL (FOR LOWER VALVE BODY)

35420E

SPRING (FOR LOWER VALVE BODY)

35422B

PLUNGER, PRIMARY REGULATOR VALVE, NO.2

35445

VALVE, LOW MODULATOR

35445A

SPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

35458D

VALVE, CUT BACK

35458E

PLUG (FOR CUT BACK VALVE)

35458G

SPRING, COMPRESSION (FOR CUT BACK VALVE)

35464

VALVE, 1-2 SHIFT

35464A

SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)

35464E

PLUG (FOR 1-2 SHIFT VALVE)

35486B

SEAT, PRESSURE RELIEF VALVE SPRING

35491A

VALVE, ACCUMULATOR CONTROL, NO.1

35491B

SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1)

35491C

KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1)

35493A

SEAT, PRIMARY REGULATOR VALVE PLUG

35493B

SEAT, 1-2 SHIFT VALVE PLUG

35493G

SEAT, LOW COAST MODULATOR VALVE PLUG

35493P

SEAT, CUT BACK VALVE PLUG

35493Q

SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.1

9010505005

Крепеж

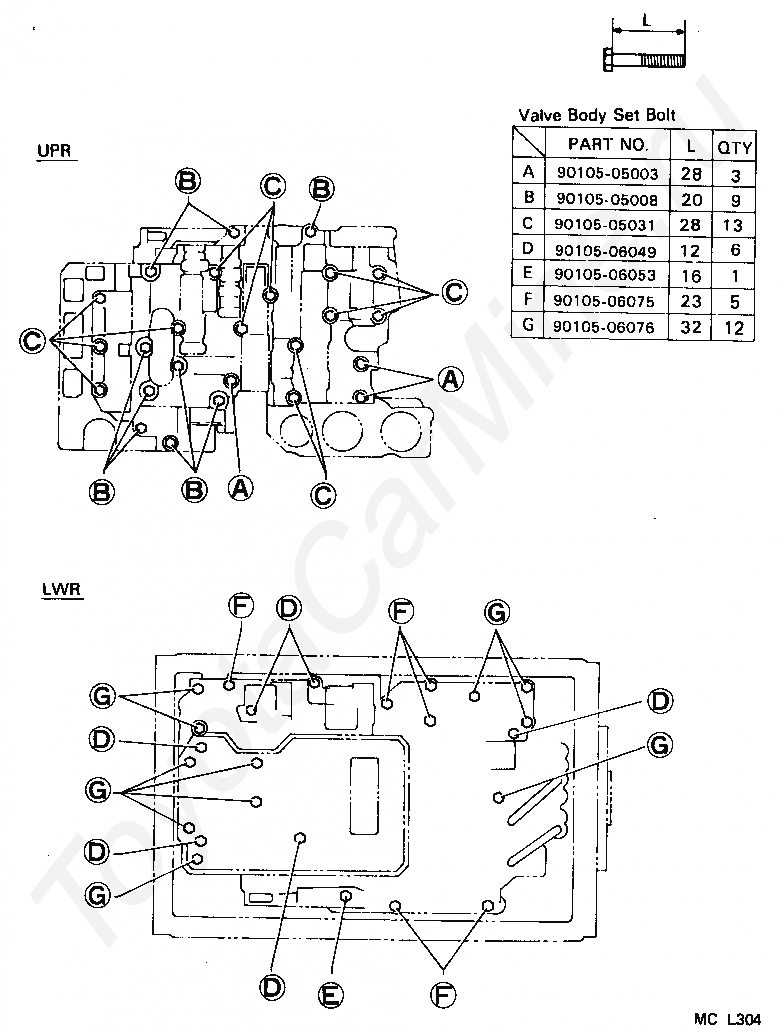

Код

Описание

9010505003

Крепеж

9010505008

Крепеж

9010505031

Крепеж

9010506049

Крепеж

9010506053

Крепеж

9010506075

Крепеж

9010506076

Крепеж

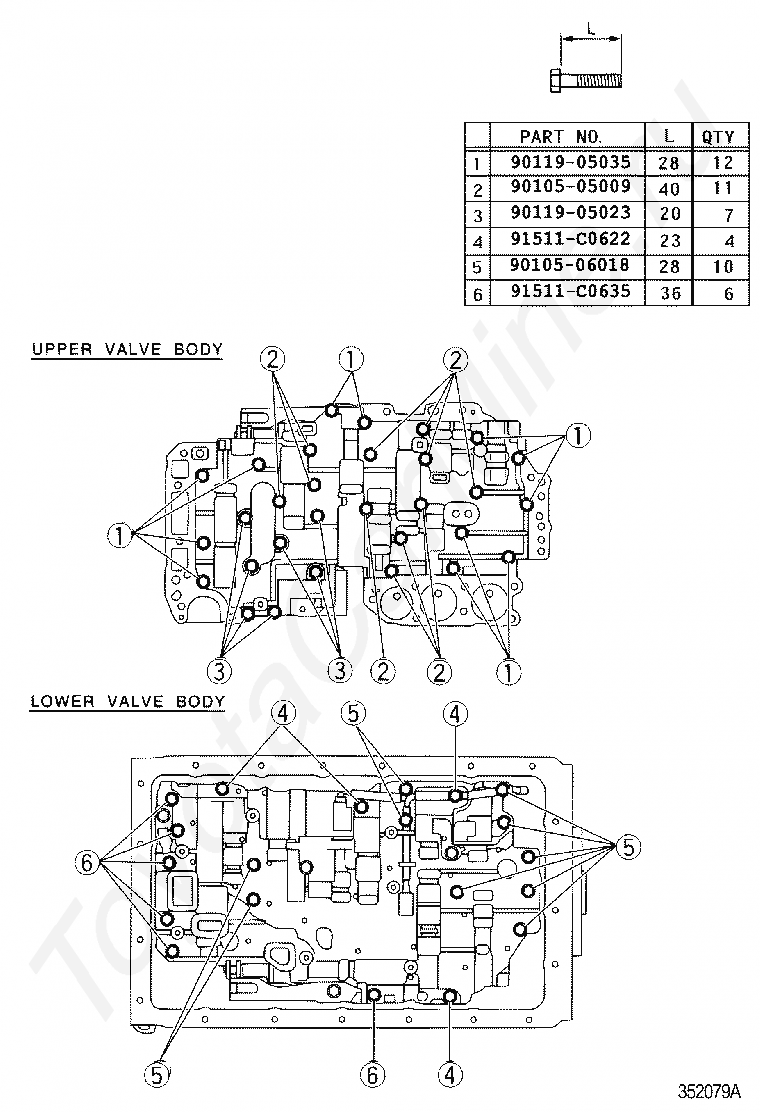

Код

Описание

9010505009

Крепеж

9010506018

Крепеж

9011905023

Крепеж

9011905035

Крепеж

91511C0622

Крепеж

91511C0635

Крепеж

VALVE BODY & OIL STRAINER (ATM) TOYOTA HIACE/REGIUSACE, 1993/08 - 2004/08, 3 литра, турбо-дизель, фургон, SUPER CUSTOM LIMITED SPECIFICATION, KZH100, АКПП, 4 ступени
