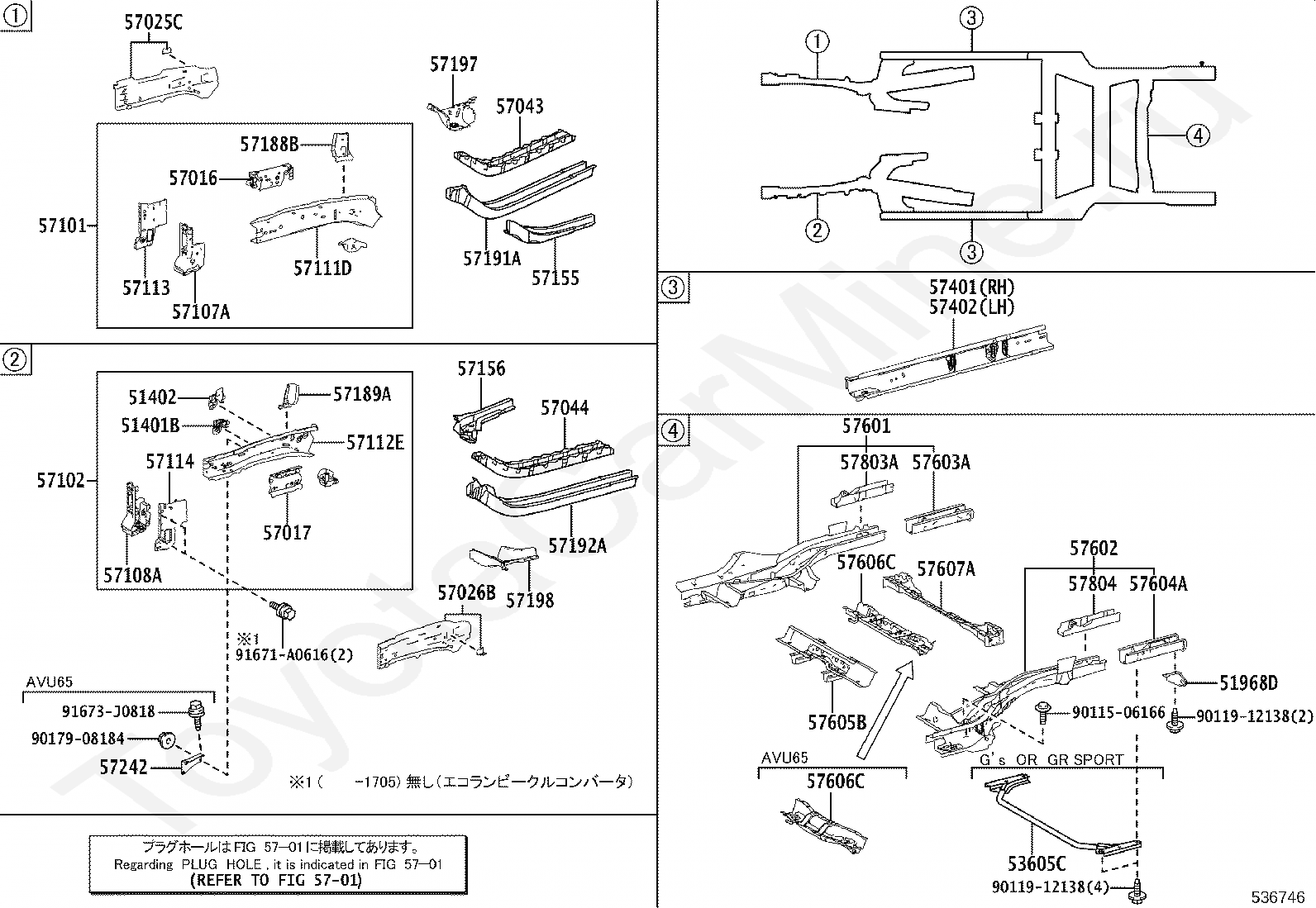

FLOOR SIDE MEMBER TOYOTA HARRIER/HYBRID, 2017/05 - 2020/05, 2 литра, 16 клапанов, DOHC, EFI, фургон, PROGRESS TYPE, ZSU65, вариатор

Каталог

Япония

Модель

HARRIER/HYBRID

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Кузов

фургон

Класс

PROGRESS TYPE

Фрейм

ZSU65

Трансмиссия

вариатор

Опции

5-местный HIGH EFFICIENCY TWIN CAM (VALVEMATIC) 726W

Код

Описание

51401B

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING

51402

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

51968D

HOOK, TRANSPORT, REAR LH

53605C

BRACE SUB-ASSY, REAR FLOOR SIDE MEMBER

5701

переход к группе запчастей

57016

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

57017

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

57025C

MEMBER SUB-ASSY, FRONT SIDE, OUTER RH

57026B

MEMBER SUB-ASSY, FRONT SIDE, OUTER LH

57043

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

57044

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

57101

MEMBER SUB-ASSY, FRONT SIDE, RH

57102

MEMBER SUB-ASSY, FRONT SIDE, LH

57107A

PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

57108A

PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

57111D

MEMBER, FRONT SIDE, INNER RH

57112E

MEMBER, FRONT SIDE, INNER LH

57113

EXTENSION, FRONT SIDE MEMBER, RH

57114

EXTENSION, FRONT SIDE MEMBER, LH

57155

REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

57156

REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

57188B

GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

57189A

GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

57191A

MEMBER, FRONT SIDE, INNER REAR RH

57192A

MEMBER, FRONT SIDE, INNER REAR LH

57197

BOX, TORQUE, FRONT RH

57198

BOX, TORQUE, FRONT LH

57242

REINFORCEMENT, FRONT SIDE MEMBER, NO.5 LH

57401

MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

57402

MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

57601

MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

57602

MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

57603A

MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

57604A

MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

57605B

MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

57606C

MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

57607A

MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

57803A

REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

57804

REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

9011506166

Крепеж

9011912138

Крепеж

9017908184

Крепеж

91671A0616

Крепеж

91673J0818

Крепеж

FLOOR SIDE MEMBER TOYOTA HARRIER/HYBRID, 2017/05 - 2020/05, 2 литра, 16 клапанов, DOHC, EFI, фургон, PROGRESS TYPE, ZSU65, вариатор
