Каталог
ЯпонияМодель
HARRIER/HYBRIDДвигатель
2 литра, 16 клапанов, DOHC, EFIКузов
фургонКласс
PROGRESS TYPEФрейм
ZSU65Трансмиссия
вариаторОпции
5-местный HIGH EFFICIENCY TWIN CAM (VALVEMATIC) 726W
Код
Описание
4102
переход к группе запчастей

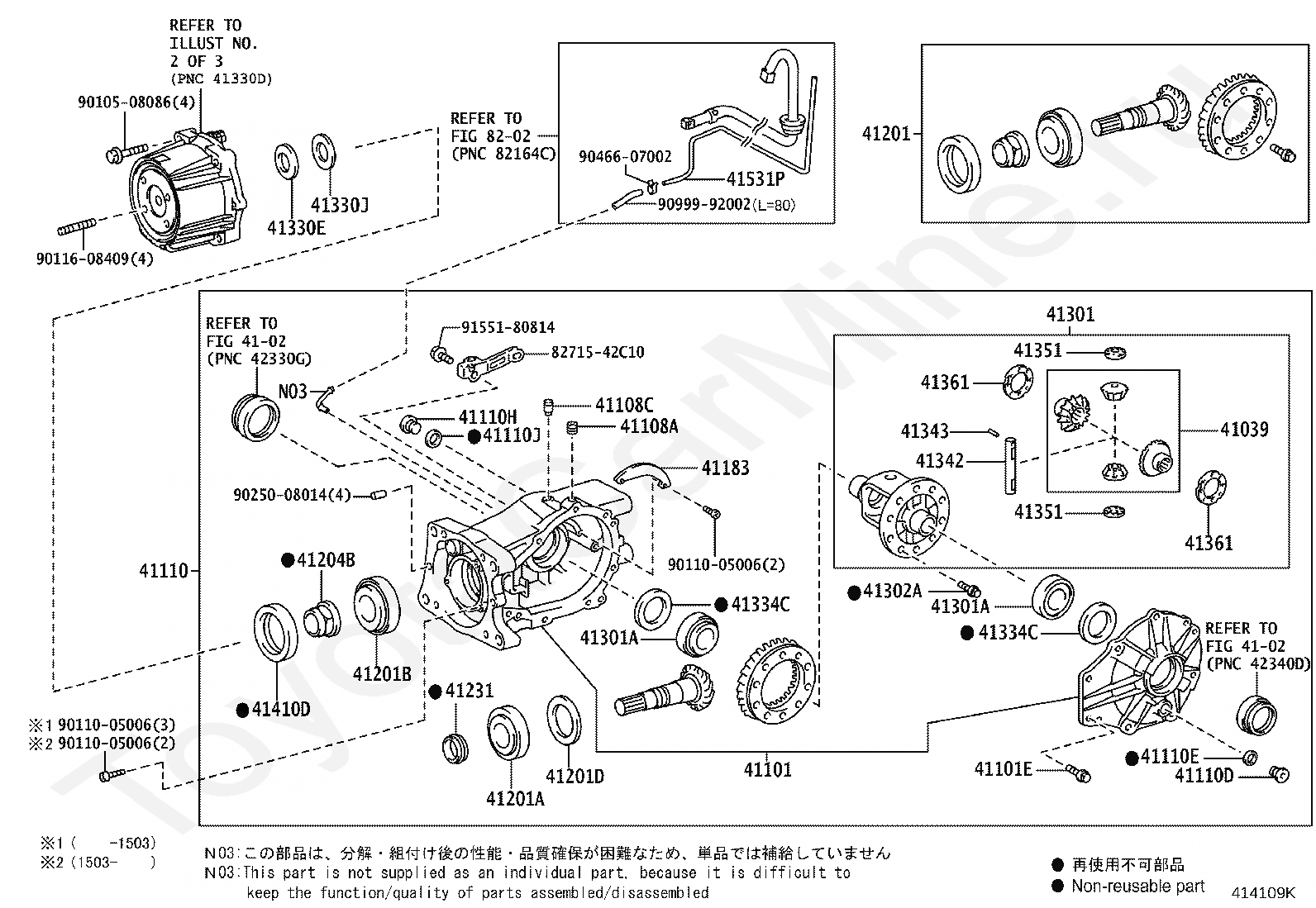

41039
GEAR KIT, DIFFERENTIAL, REAR
41101
CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101E
BOLT (FOR REAR DIFFERENTIAL CARRIER)
41108A
PLUG (FOR REAR DIFFERENTIAL CARRIER COVER)
41108C
PLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)
41110
CARRIER ASSY, DIFFERENTIAL, REAR
41110D
PLUG (FOR REAR DIFFERENTIAL DRAIN)
41110E
GASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41110H
PLUG (FOR REAR DIFFERENTIAL FILLER)
41110J
GASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41183
DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL
41201
FINAL GEAR KIT, DIFFERENTIAL, REAR
41201A
BEARING (FOR REAR DRIVE PINION REAR)
41201B
BEARING (FOR REAR DRIVE PINION FRONT)
41201D
WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
41204B
NUT (FOR REAR DRIVE PINION)
41231
SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41301
CASE SUB-ASSY, REAR DIFFERENTIAL
41301A
BEARING(FOR REAR DIFFERENTIAL CASE)
41302A
BOLT(FOR REAR DIFFERENTIAL CASE)
41330E
WASHER, CONICAL SPRING (FOR TRANSMISSION COUPLING)
41330J
SHIM (FOR TRANSMISSION COUPLING)
41334C
WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41342
SHAFT, REAR DIFFERENTIAL PINION
41343
PIN, REAR DIFFERENTIAL PINION SHAFT
41351
WASHER, REAR DIFFERENTIAL PINION THRUST
41361
WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41410D
SEAL, OIL DIAPHRAGM
41531P
HOSE, REAR DIFFERENTIAL VACUUM
8202
переход к группе запчастей
8271542C10
Крепеж
9010508086
Крепеж
9011005006
Крепеж
9011608409
Крепеж
9025008014
Крепеж
9046607002
Крепеж
9099992002
Крепеж
9155180814
Крепеж
Код
Описание

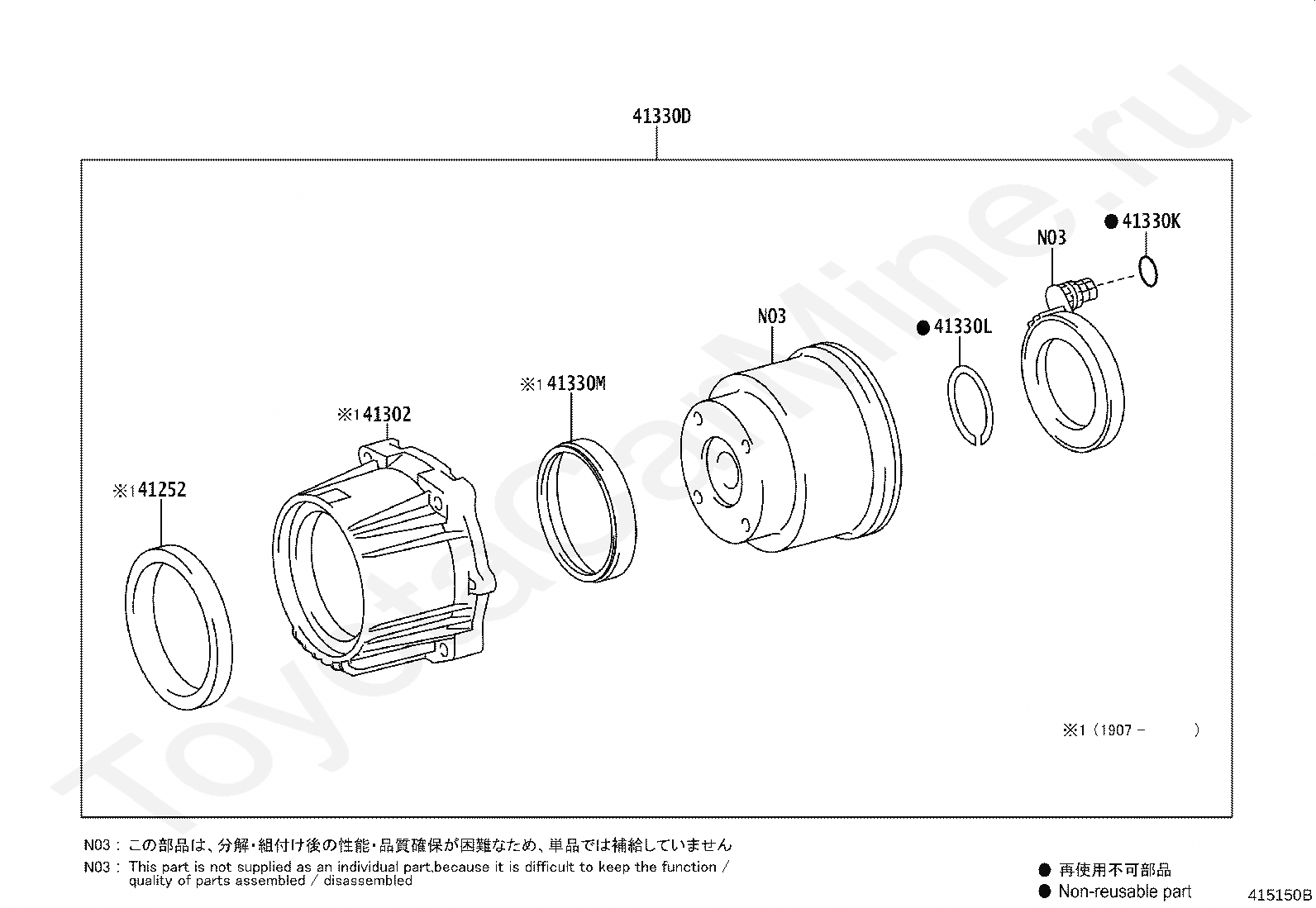

41252
DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41302
CASE SUB-ASSY, REAR DIFFERENTIAL
41330D
COUPLING ASSY, TRANSMISSION
41330K
RING, O (FOR TRANSMISSION COUPLING)
41330L
RING, SNAP (FOR TRANSMISSION COUPLING)
41330M
SEAL, DUST (FOR TRANSMISSION COUPLING)
Код
Описание

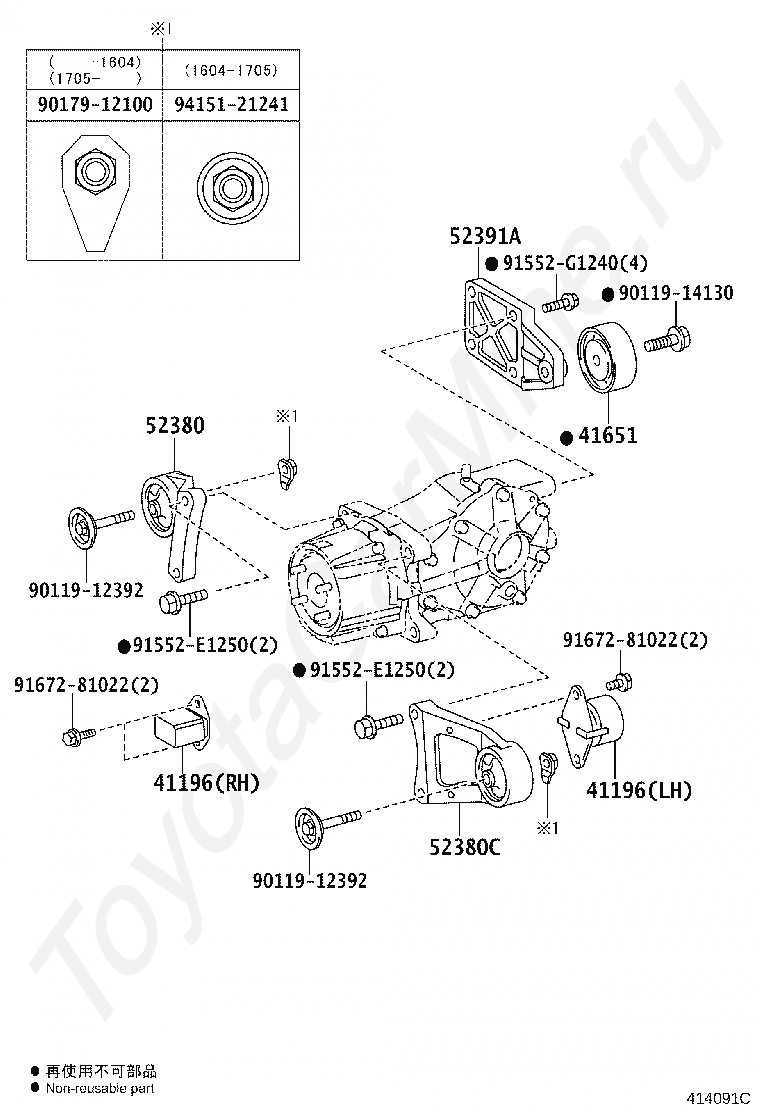

41196
DAMPER, REAR DIFFERENTIAL DYNAMIC
41651
CUSHION, REAR DIFFERENTIAL MOUNT, NO.1
52380
SUPPORT, REAR DIFFERENTIAL, NO.1
52380C
SUPPORT, REAR DIFFERENTIAL, NO.2
52391A
SUPPORT, REAR DIFFERENTIAL
9011912392
Крепеж
9011914130
Крепеж
9017912100
Крепеж
91552E1250
Крепеж
91552G1240
Крепеж
9167281022
Крепеж
9415121241
Крепеж
