Ближний ВостокМодель
GT86/86Двигатель
2000CC 16-VALVE DOHCКласс
HIGH TYPEФрейм
ZN6BLТрансмиссия
автомат АКПП, 6 скоростейОпции
левый руль Европа 3 литра, дизель 538WКод

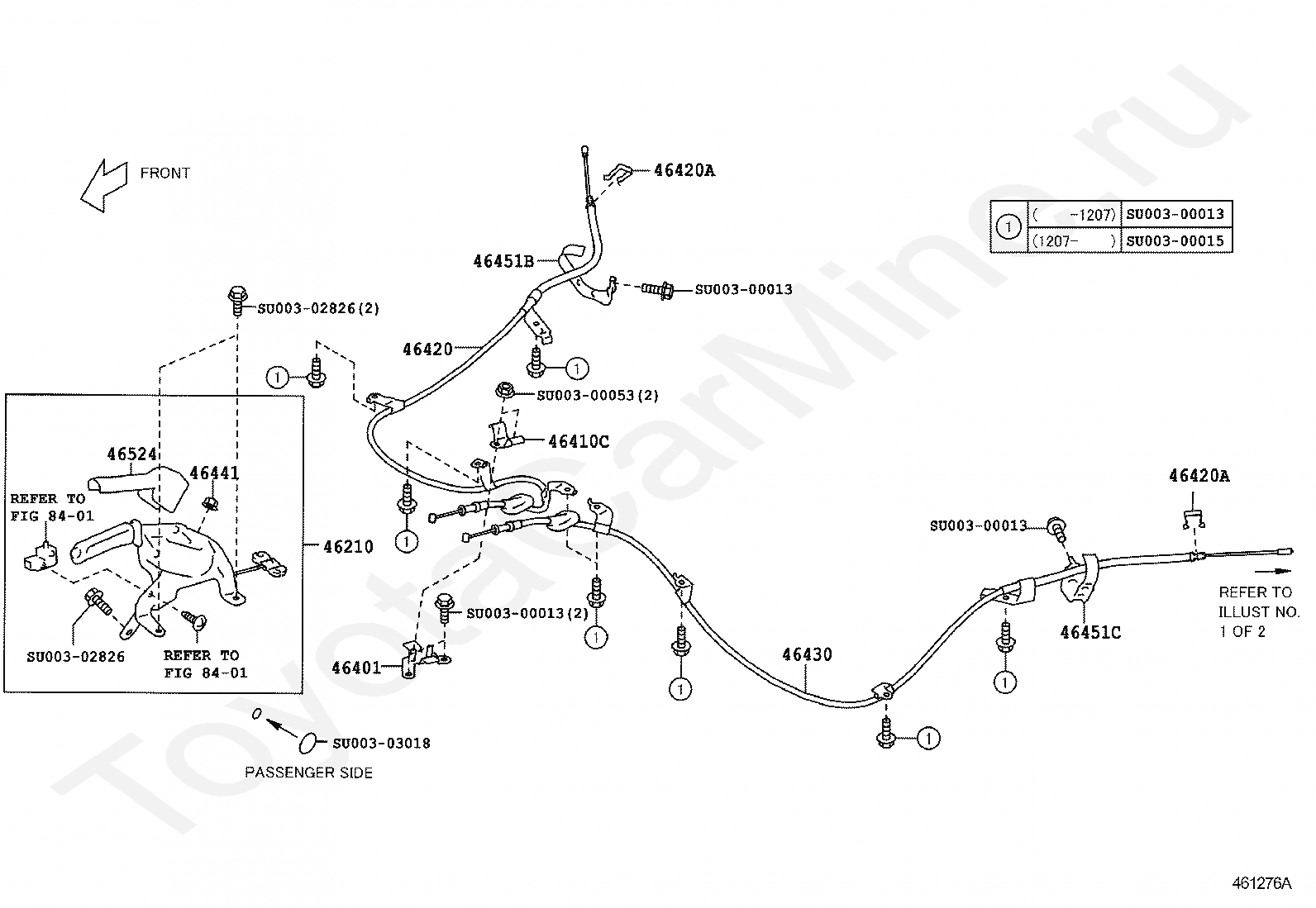

Описание
46210
LEVER ASSY, PARKING BRAKE
46401
BRACKET SUB-ASSY, CABLE SUPPORT
46410C
CLAMP(FOR PARKING BRAKE FRONT CABLE)
46420
CABLE ASSY, PARKING BRAKE, NO.2
46420A
CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46430
CABLE ASSY, PARKING BRAKE, NO.3
46441
NUT, WIRE ADJUSTING, NO.1
46451B
BRACKET, PARKING BRAKE CABLE SUPPORT
46451C
BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46524
COVER, PARKING BRAKE DUST
8401
переход к группе запчастей
SU00300013
Крепеж
SU00300015
Крепеж
SU00300053
Крепеж
SU00302826
Крепеж
SU00303018
Крепеж
Код
Описание

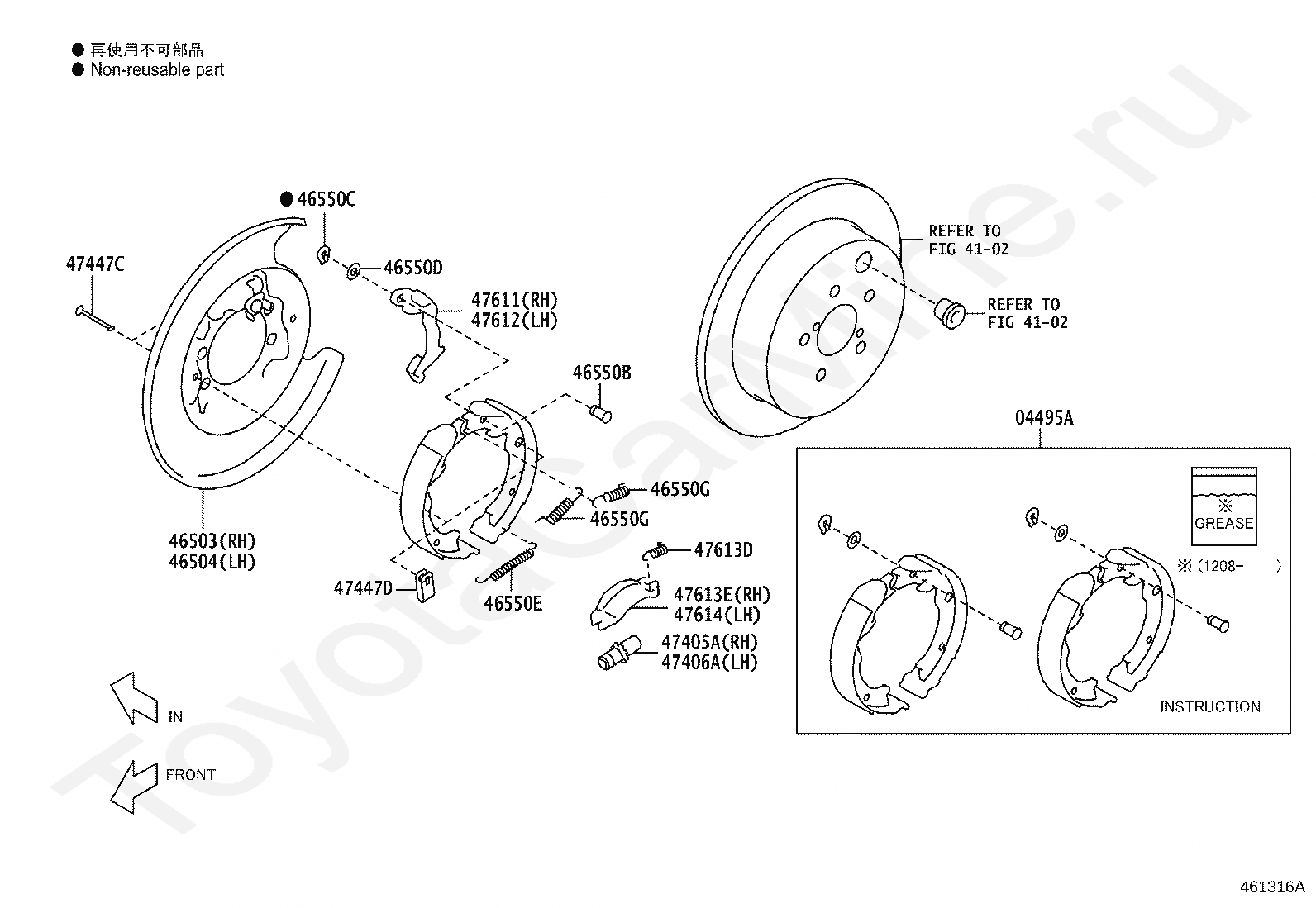

04495A
SHOE KIT, PARKING BRAKE
4102
переход к группе запчастей
46503
PLATE SUB-ASSY, PARKING BRAKE, RH
46504
PLATE SUB-ASSY, PARKING BRAKE, LH
46550B
PIN(FOR PARKING BRAKE SHOE)
46550C
WASHER, TYPE C(FOR PARKING BRAKE SHOE)
46550D
WASHER, WAVE(FOR PARKING BRAKE SHOE)
46550E
SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
46550G
SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN)
47405A
SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)
47406A
SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)
47447C
PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE)
47447D
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN)
47611
LEVER, PARKING BRAKE SHOE, RH
47612
LEVER, PARKING BRAKE SHOE, LH
47613D
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
47613E
STRUT, PARKING BRAKE SHOE, RH
47614
STRUT, PARKING BRAKE SHOE, LH
