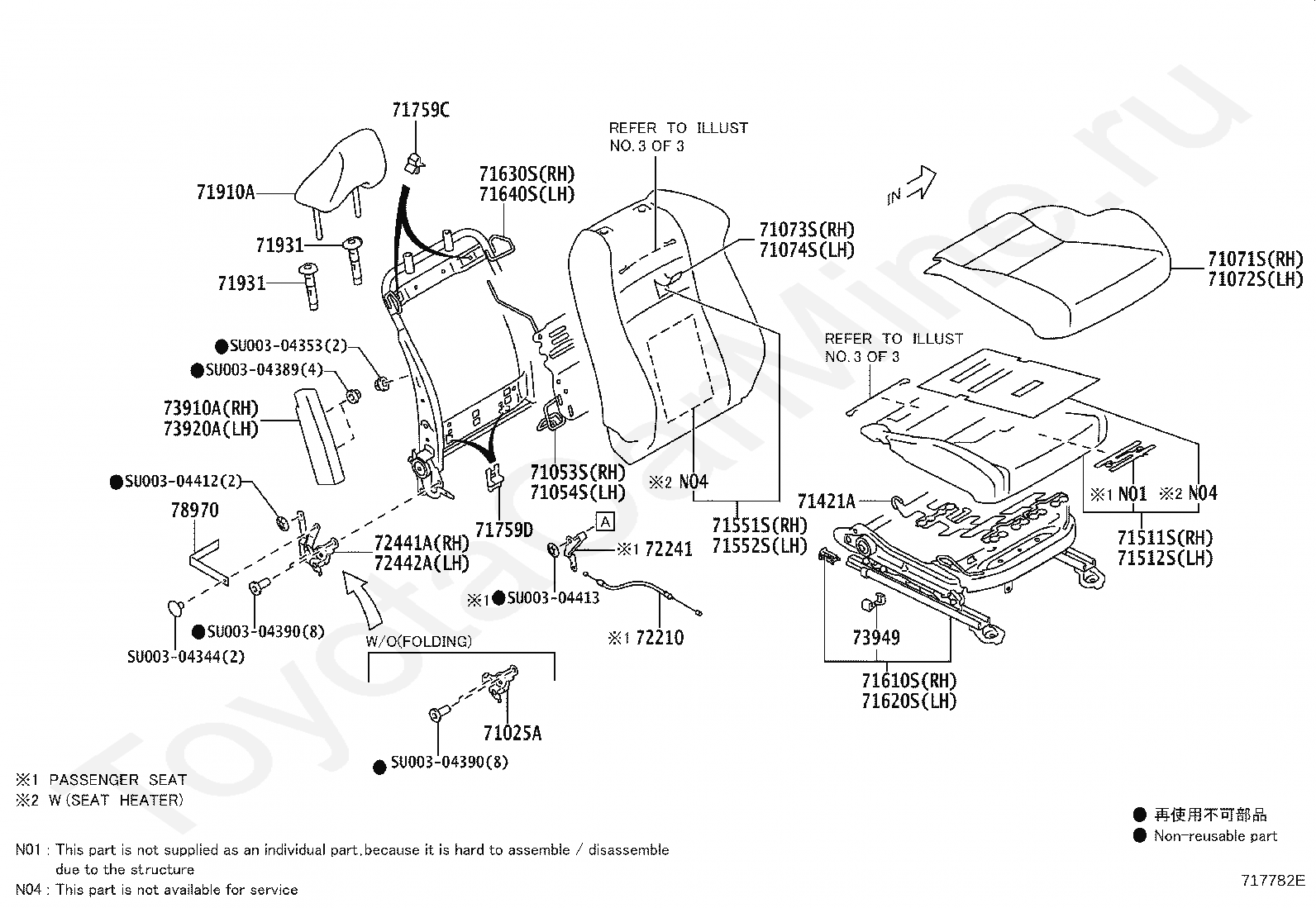

Передние кресла TOYOTA GT86/86, 2013/09 - 2025, 2000CC 16-VALVE DOHC, HIGH TYPE, ZN6BC, механика, МКПП, 6 скоростей

Каталог

Европа

Модель

GT86/86

Двигатель

2000CC 16-VALVE DOHC

Класс

HIGH TYPE

Фрейм

ZN6BC

Трансмиссия

механика МКПП, 6 скоростей

Опции

левый руль Китай EMISSION REGULATION(CHINA 5) 3 литра, дизель 538W

Код

Описание

71025A

BRACKET SUB-ASSY, FRONT SEAT BACK

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71421A

SPRING, FRONT SEAT CUSHION

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71759C

HOOK, FRONT SEAT BACK, NO.1

71759D

HOOK, FRONT SEAT BACK, NO.2

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72210

CABLE ASSY, SEAT TRACK CONTROL

72241

BRACKET, SEAT TRACK CABLE

72441A

LINK, FRONT SEAT TRAVEL, NO.1

72442A

LINK, FRONT SEAT TRAVEL, NO.2

73910A

AIR BAG ASSY, FRONT SEAT, RH

73920A

AIR BAG ASSY, FRONT SEAT, LH

73949

CAP

78970

BAND ASSY, SEAT LOCK

SU00304344

Крепеж

SU00304353

Крепеж

SU00304389

Крепеж

SU00304390

Крепеж

SU00304412

Крепеж

SU00304413

Крепеж

Код

Описание

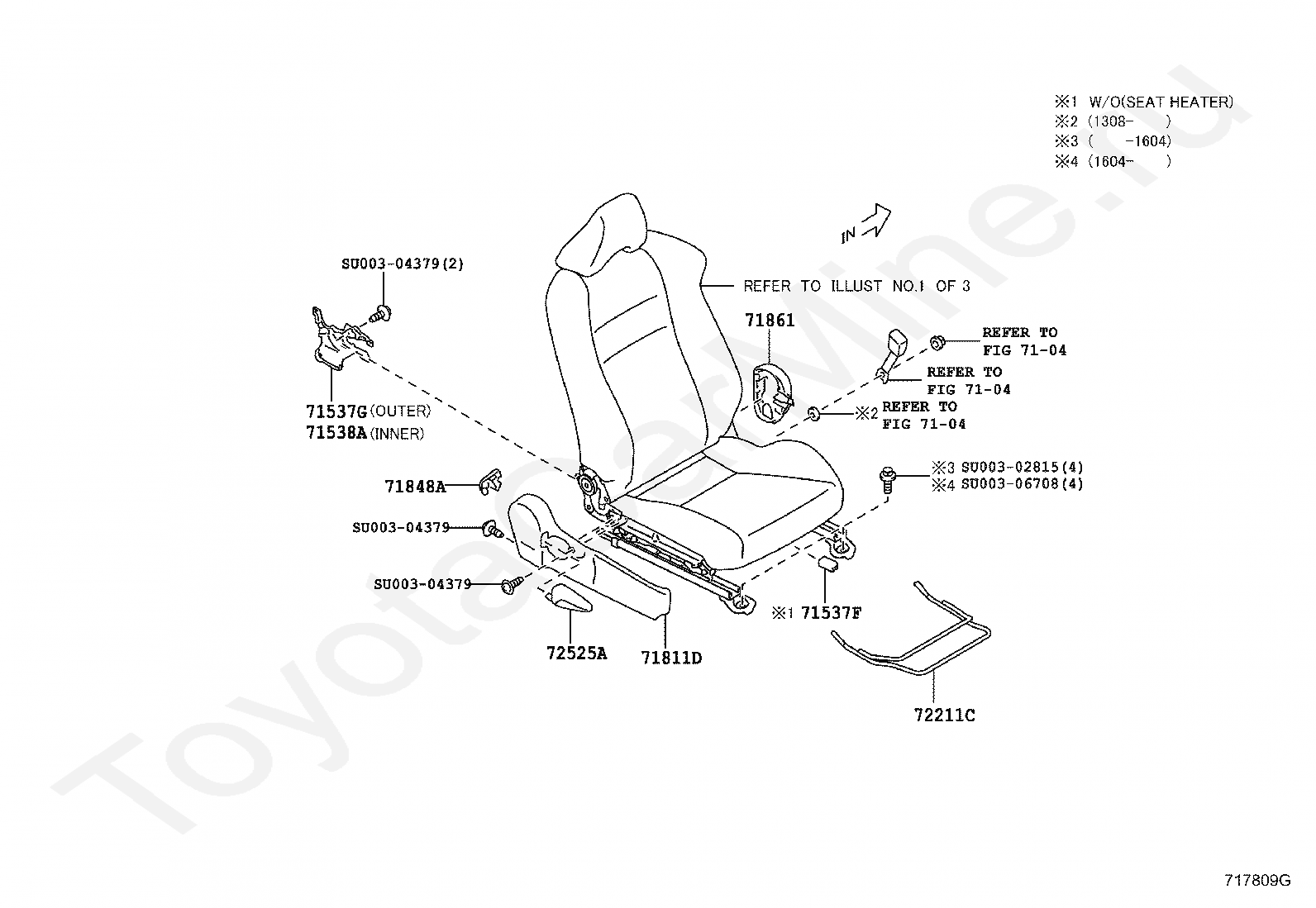

7104

переход к группе запчастей

71537F

PROTECTOR, FRONT SEAT CUSHION, NO.2

71537G

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

71538A

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

72211C

HANDLE, SEAT TRACK ADJUSTING

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

SU00302815

Крепеж

SU00304379

Крепеж

SU00306708

Крепеж

Код

Описание

7104

переход к группе запчастей

71537E

PROTECTOR, FRONT SEAT CUSHION, NO.1

71537F

PROTECTOR, FRONT SEAT CUSHION, NO.2

71537H

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

72211

HANDLE, SEAT TRACK ADJUSTING

72495

HANDLE, VERTICAL ADJUSTING, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

SU00302815

Крепеж

SU00304379

Крепеж

SU00304403

Крепеж

SU00306708

Крепеж

Код

Описание

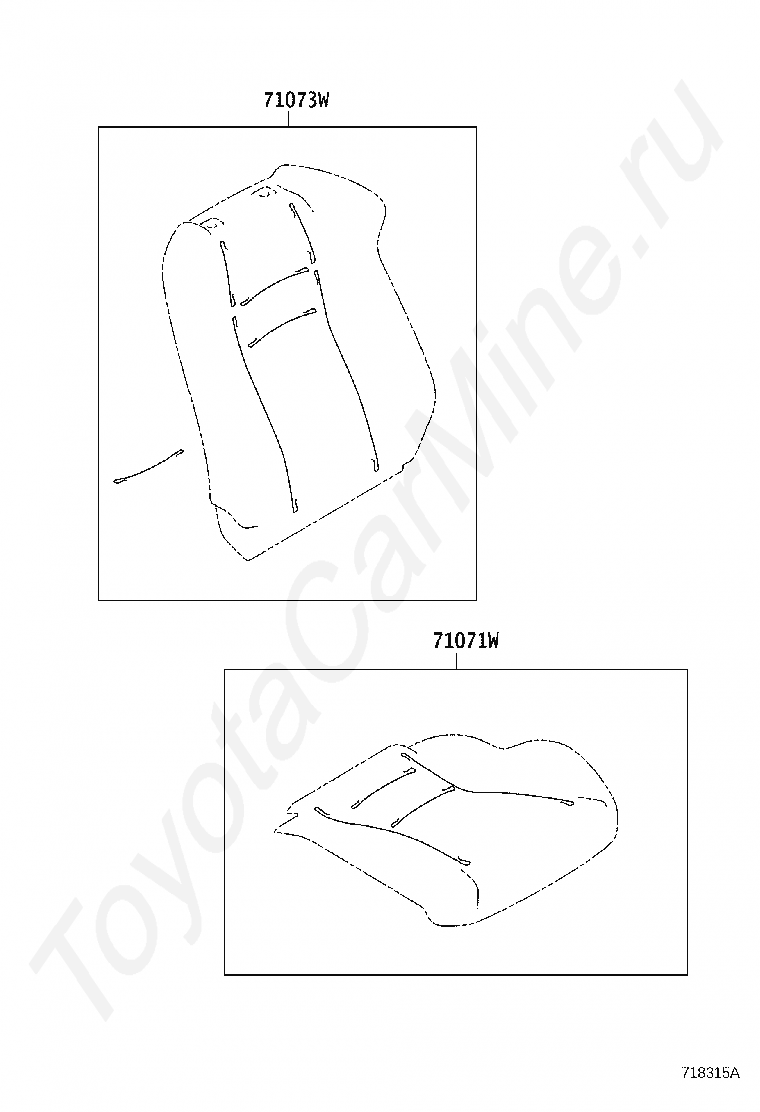

71071W

WIRE, FRONT SEAT CUSHION COVER

71073W

WIRE, FRONT SEAT BACK COVER
