Каталог
Ближний ВостокМодель
GRNVA/HIACE/MJSTYДвигатель
2,8 литра, турбо-дизельФрейм
GDH320Трансмиссия
механика МКПП, 6 скоростейОпции
левый руль высокая крыша 5 дверей SEPARATE SEAT D GEN 694W

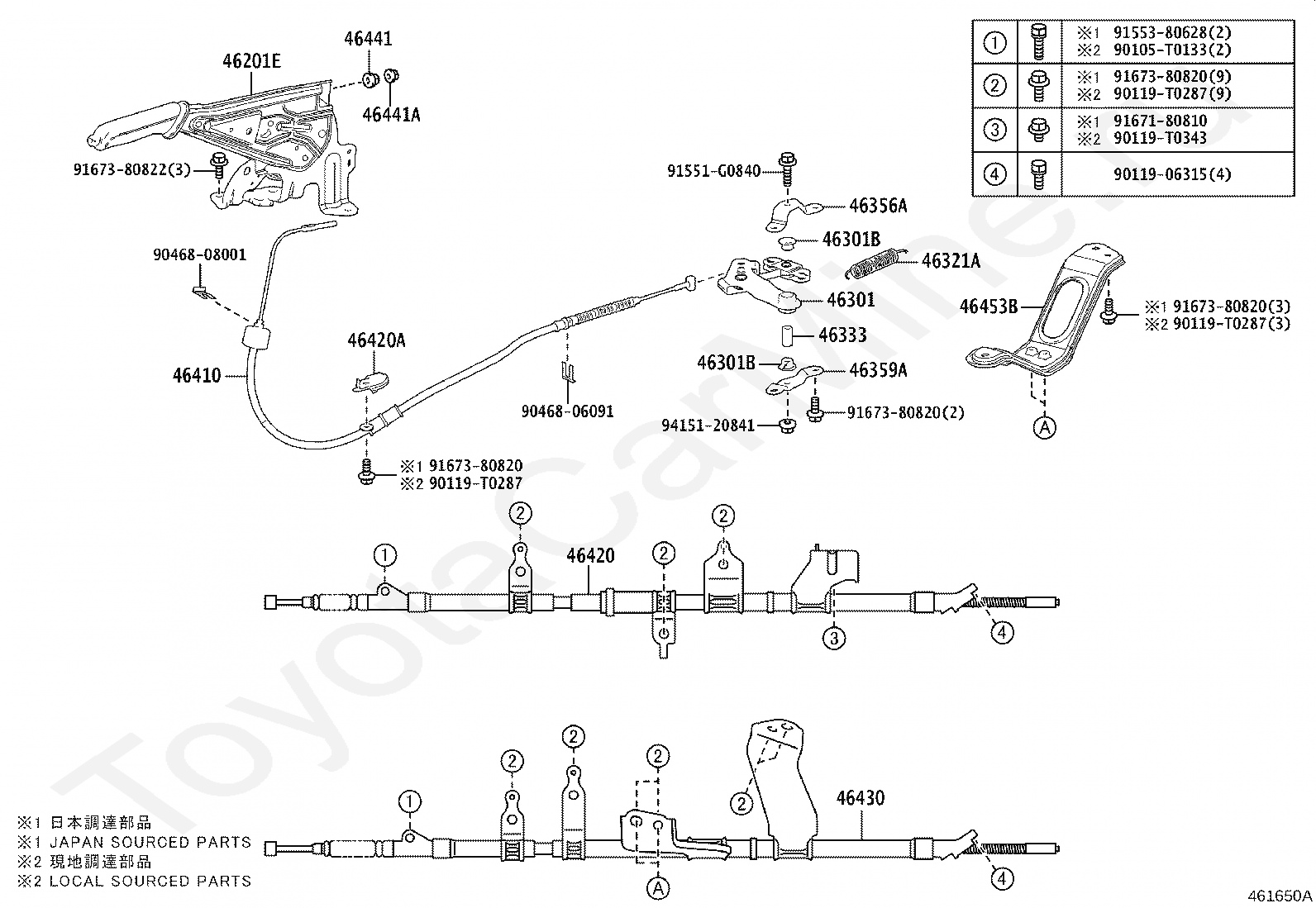

Код
Описание
46201E
LEVER SUB-ASSY, PARKING BRAKE
46301
LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301B
BUSH(FOR INTERMEDIATE LEVER)
46321A
SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)
46333
PIPE, INTERMEDIATE LEVER
46356A
BRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE)
46359A
BRACKET, PARKING BRAKE INTERMEDIATE LEVER SUPPORT
46410
CABLE ASSY, PARKING BRAKE, NO.1
46420
CABLE ASSY, PARKING BRAKE, NO.2
46420A
CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46430
CABLE ASSY, PARKING BRAKE, NO.3
46441
NUT, WIRE ADJUSTING, NO.1
46441A
NUT, WIRE ADJUSTING, NO.2
46453B
BRACKET, CABLE SUPPORT, NO.3
90105T0133
Крепеж
9011906315
Крепеж
90119T0287
Крепеж
90119T0343
Крепеж
9046806091
Крепеж
9046808001
Крепеж
91551G0840
Крепеж
9155380628
Крепеж
9167180810
Крепеж
9167380820
Крепеж
9167380822
Крепеж
9415120841
Крепеж

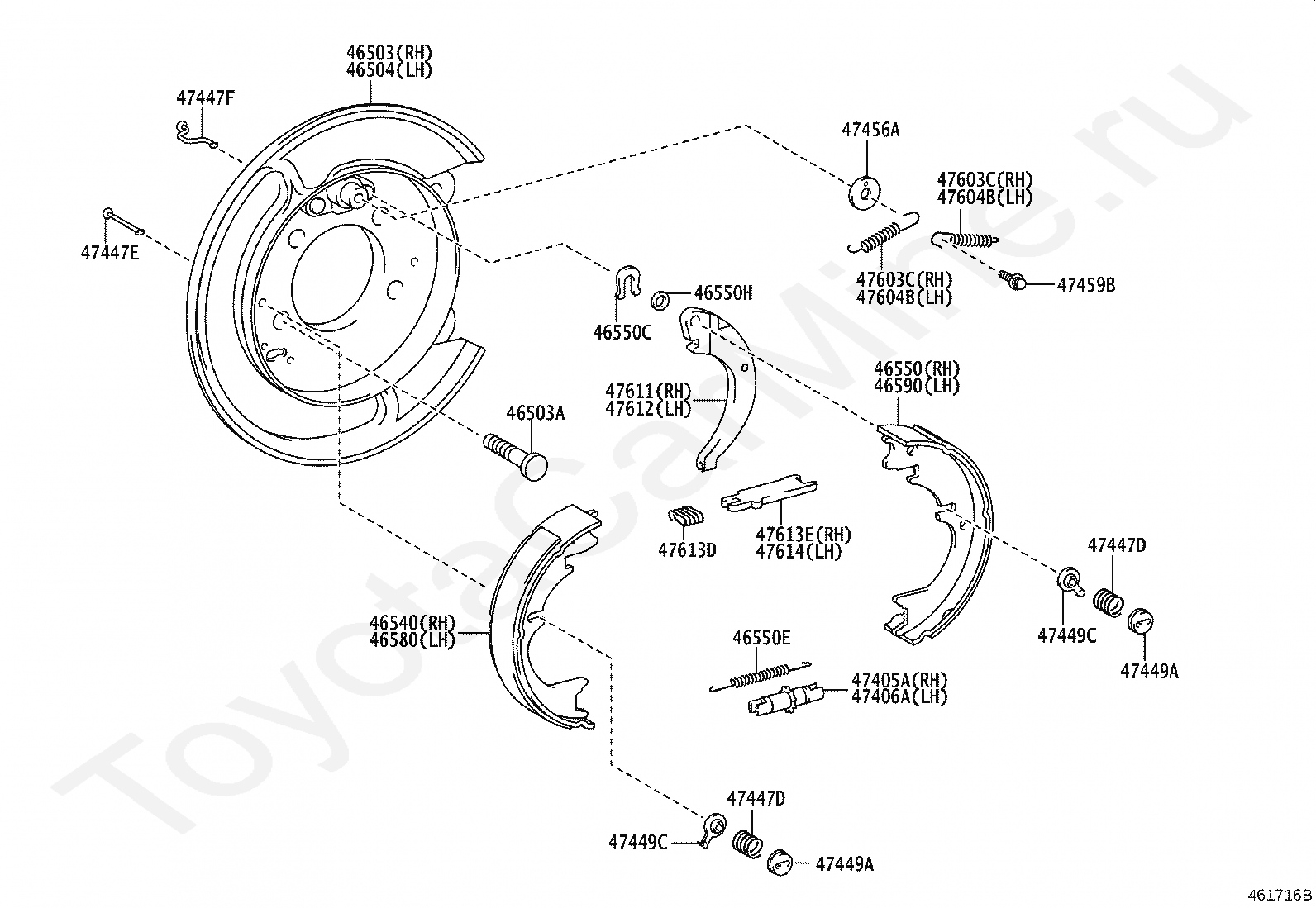

Код
Описание
46503
PLATE SUB-ASSY, PARKING BRAKE, RH
46503A
BOLT(FOR PARKING BRAKE PLATE TO REAR AXLE HOUSING)
46504
PLATE SUB-ASSY, PARKING BRAKE, LH
46540
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46550
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550C
WASHER, TYPE C(FOR PARKING BRAKE SHOE)
46550E
SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
46550H
SHIM(FOR PARKING BRAKE SHOE)
46580
SHOE ASSY, PARKING BRAKE, LH NO.1
46590
SHOE ASSY, PARKING BRAKE, LH NO.2
47405A
SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)
47406A
SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)
47447D
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN)
47447E
PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47447F
PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE)
47449A
CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47449C
CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE)
47456A
PLATE, SHOE GUIDE(FOR PARKING BRAKE)
47459B
BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)
47603C
SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RH)
47604B
SPRING, TENSION(FOR PARKING BRAKE BELL CRANK LH)
47611
LEVER, PARKING BRAKE SHOE, RH
47612
LEVER, PARKING BRAKE SHOE, LH
47613D
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
47613E
STRUT, PARKING BRAKE SHOE, RH
47614
STRUT, PARKING BRAKE SHOE, LH
