Каталог
ЯпонияМодель
ESTIMA HYBRIDДвигатель
2,4 литра, 16 клапанов DOHC, EFIФрейм
AHR10Опции
7-местный
Код
Описание

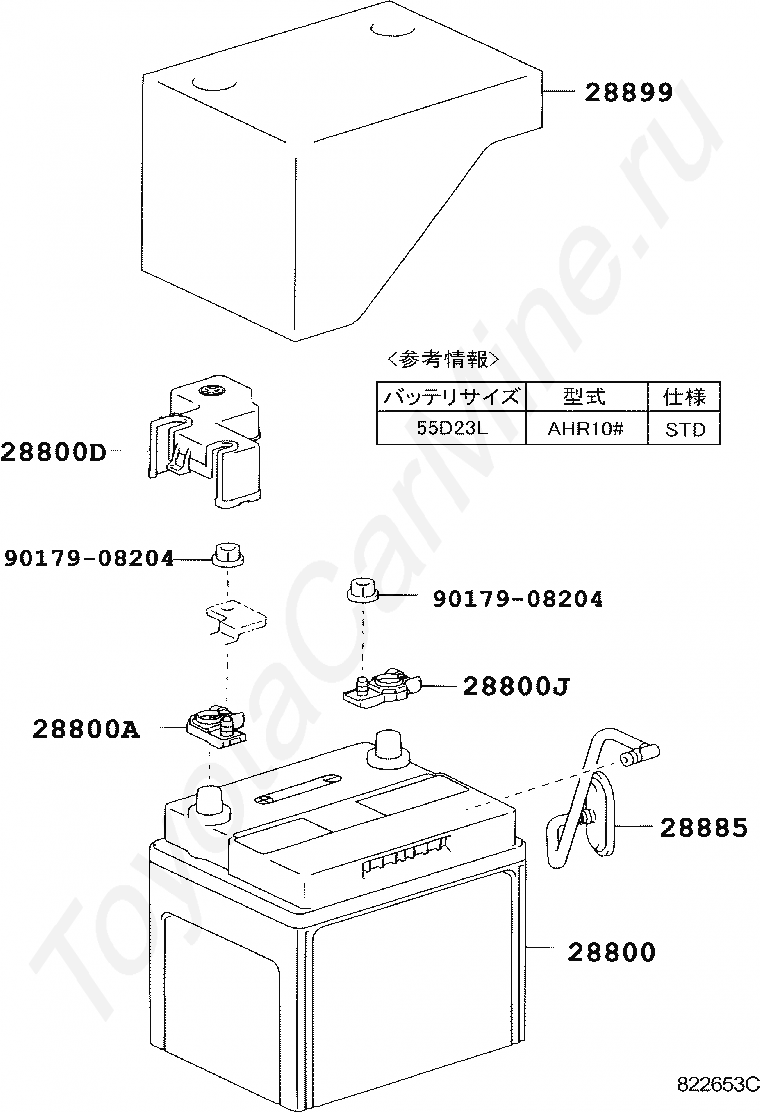

28800
BATTERY
28800A
TERMINAL, BATTERY POSITIVE
28800D
COVER, CONNECTOR(FOR BATTERY TERMINAL)
28800J
TERMINAL, BATTERY NEGATIVE
28885
HOSE, BATTERY ROOM VENTILATION
28899
INSULATOR, BATTERY
9017908204
Крепеж
Код
Описание

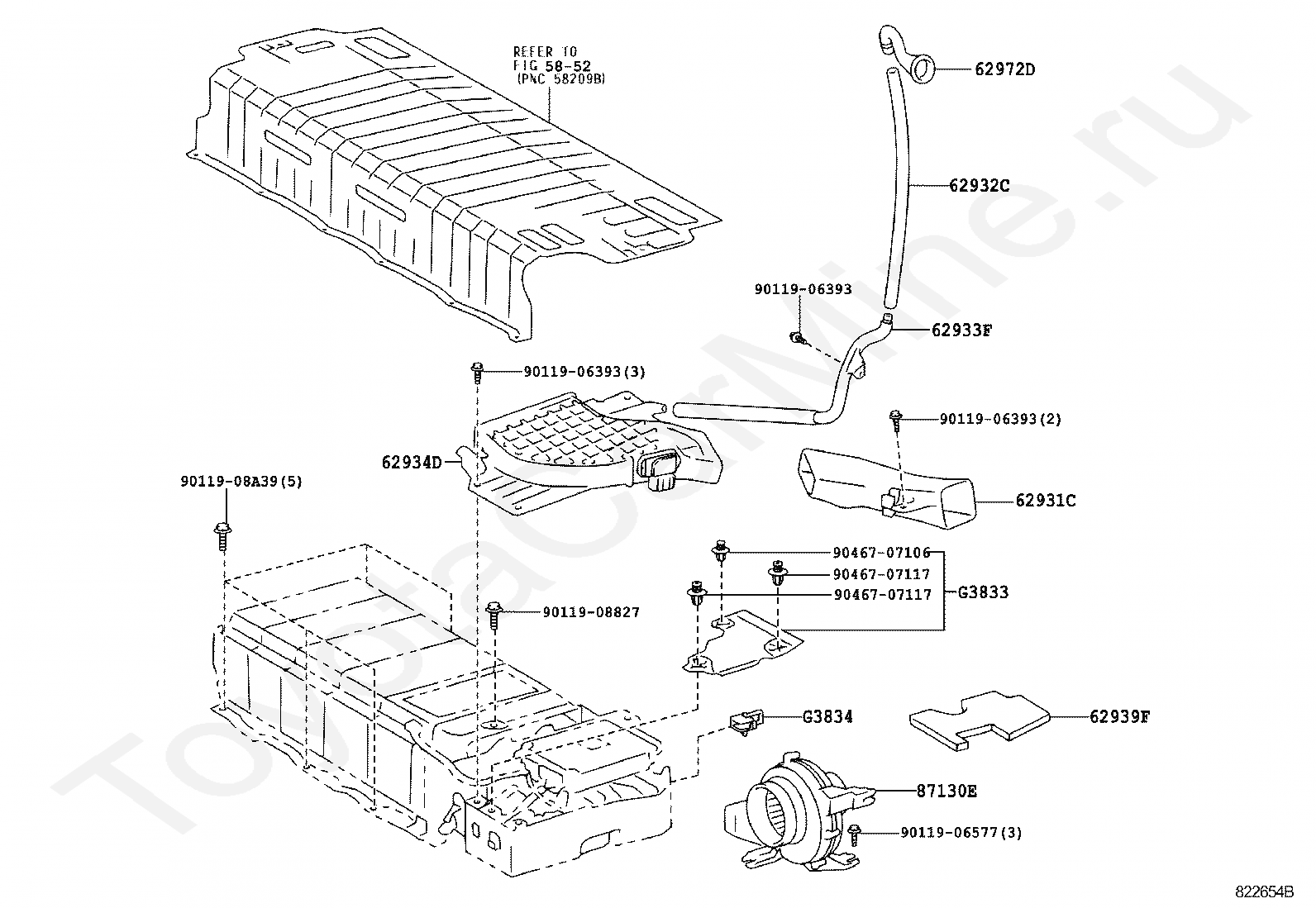

5852
переход к группе запчастей
62931C
DUCT, QUARTER VENT
62932C
DUCT, QUARTER VENT, NO.2
62933F
DUCT, QUARTER VENT, INNER
62934D
DUCT, QUARTER VENT, INNER NO.2
62939F
SILENCER, QUARTER VENT
62972D
DUCT, ROOF SIDE AIR, LH
87130E
BLOWER ASSY, BATTERY
9011906393
Крепеж
9011906577
Крепеж
9011908827
Крепеж
9011908A39
Крепеж
9046707106
Крепеж
9046707117
Крепеж
G3833
COVER, ELECTRIC VEHICLE BATTERY FUSE
G3834
GRIP, SERVICE PLUG
Код
Описание

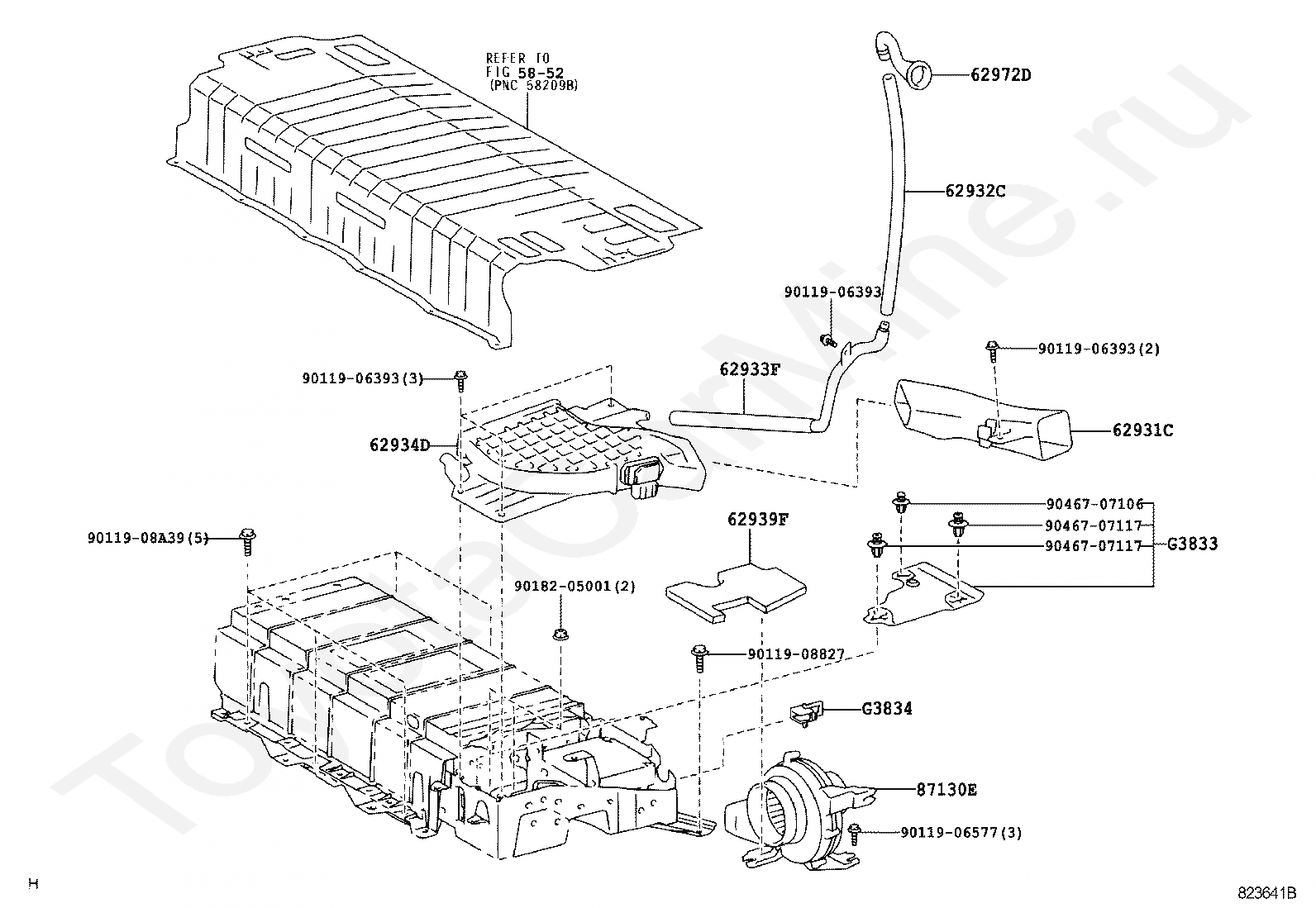

5852
переход к группе запчастей
62931C
DUCT, QUARTER VENT
62932C
DUCT, QUARTER VENT, NO.2
62933F
DUCT, QUARTER VENT, INNER
62934D
DUCT, QUARTER VENT, INNER NO.2
62939F
SILENCER, QUARTER VENT
62972D
DUCT, ROOF SIDE AIR, LH
87130E
BLOWER ASSY, BATTERY
9011906393
Крепеж
9011906577
Крепеж
9011908827
Крепеж
9011908A39
Крепеж
9018205001
Крепеж
9046707106
Крепеж
9046707117
Крепеж
G3833
COVER, ELECTRIC VEHICLE BATTERY FUSE
G3834
GRIP, SERVICE PLUG
Код
Описание

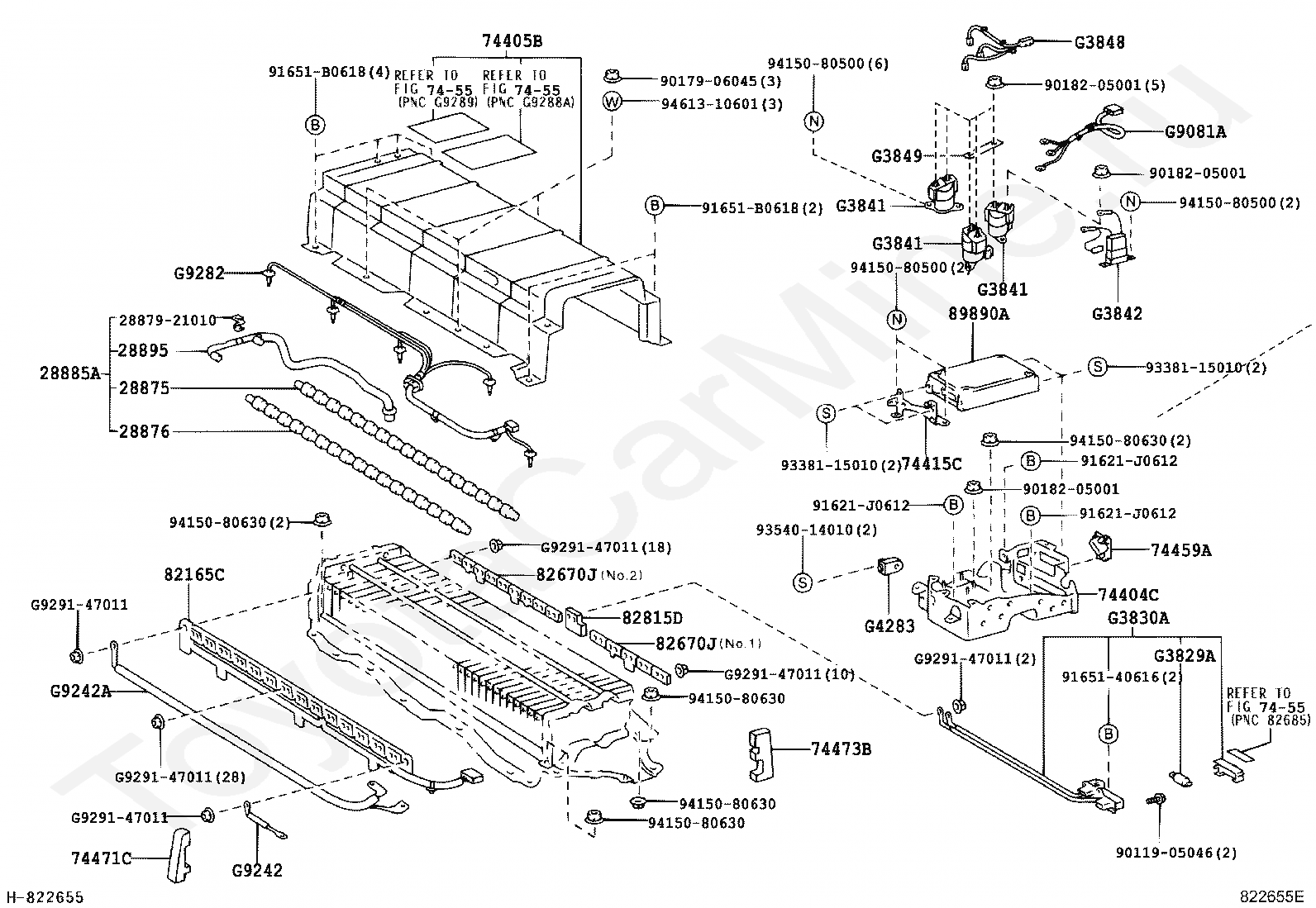

28875
DUCT, BATTERY INSULATOR, NO.1
28876
DUCT, BATTERY INSULATOR, NO.2
2887921010
Крепеж
28885A
HOSE, BATTERY ROOM VENTILATION
28895
RUBBER, BATTERY INSULATOR
74404C
CARRIER SUB-ASSY, BATTERY, UPR
74405B
COVER SUB-ASSY, BATTERY
74415C
BRACKET, BATTERY ECU
74459A
LID, BATTERY COVER, NO.2
74471C
PAD, BATTERY CLAMP
74473B
CUSHION, BATTERY CARRIER, NO.3
7455
переход к группе запчастей
82165C
WIRE, FRAME, NO.2
82670J
BLOCK ASSY, JUNCTION
82815D
COVER, WIRING HARNESS PROTECTOR, NO.2
89890A
COMPUTER ASSY, BATTERY
9011905046
Крепеж
9017906045
Крепеж
9018205001
Крепеж
91621J0612
Крепеж
9165140616
Крепеж
91651B0618
Крепеж
9338115010
Крепеж
9354014010
Крепеж
9415080500
Крепеж
9415080630
Крепеж
9461310601
Крепеж
G3829A
FUSE, ELECTRIC VEHICLE
G3830A
PLUG ASSY, ELECTRIC VEHICLE BATTERY
G3841
RELAY, SYSTEM VEHICLE
G3842
RESISTOR, SYSTEM MAIN
G3848
WIRE, SYSTEM MAIN RELAY
G3849
PLATE, SYSTEM MAIN RELAY
G4283
SENSOR, BATTERY CURRENT
G9081A
CABLE, ELECTRIC VEHICLE CHARGER
G9242
CABLE, MAIN BATTERY
G9242A
CABLE, MAIN BATTERY, NO.2
G9282
THERMISTOR, HYBRID BATTERY
G929147011
Крепеж
Код
Описание

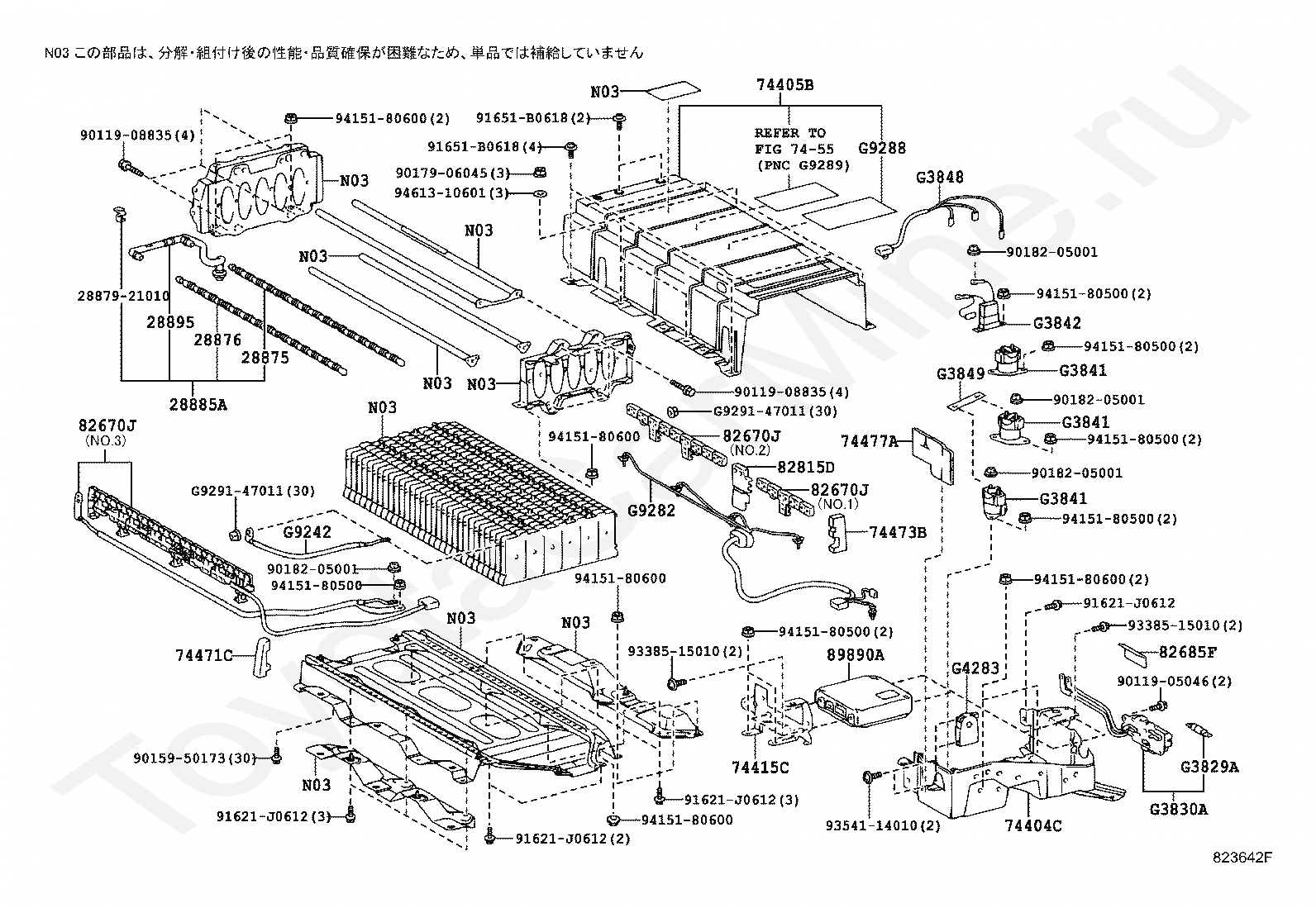

28875
DUCT, BATTERY INSULATOR, NO.1
28876
DUCT, BATTERY INSULATOR, NO.2
2887921010
Крепеж
28885A
HOSE, BATTERY ROOM VENTILATION
28895
RUBBER, BATTERY INSULATOR
74404C
CARRIER SUB-ASSY, BATTERY, UPR
74405B
COVER SUB-ASSY, BATTERY
74415C
BRACKET, BATTERY ECU
74471C
PAD, BATTERY CLAMP
74473B
CUSHION, BATTERY CARRIER, NO.3
74477A
SHEET, BATTERY CARRIER
7455
переход к группе запчастей
82670J
BLOCK ASSY, JUNCTION
82685F
MAIN BATTERY CAUTION PLATE, NO.1
82815D
COVER, WIRING HARNESS PROTECTOR, NO.2
89890A
COMPUTER ASSY, BATTERY
9011905046
Крепеж
9011908835
Крепеж
9015950173
Крепеж
9017906045
Крепеж
9018205001
Крепеж
91621J0612
Крепеж
91651B0618
Крепеж
9338515010
Крепеж
9354114010
Крепеж
9415180500
Крепеж
9415180600
Крепеж
9461310601
Крепеж
G3829A
FUSE, ELECTRIC VEHICLE
G3830A
PLUG ASSY, ELECTRIC VEHICLE BATTERY
G3841
RELAY, SYSTEM VEHICLE
G3842
RESISTOR, SYSTEM MAIN
G3848
WIRE, SYSTEM MAIN RELAY
G3849
PLATE, SYSTEM MAIN RELAY
G4283
SENSOR, BATTERY CURRENT
G9242
CABLE, MAIN BATTERY
G9282
THERMISTOR, HYBRID BATTERY
G9288
LABEL, BATTERY CHARGING NOTICE
G929147011
Крепеж
Код
Описание

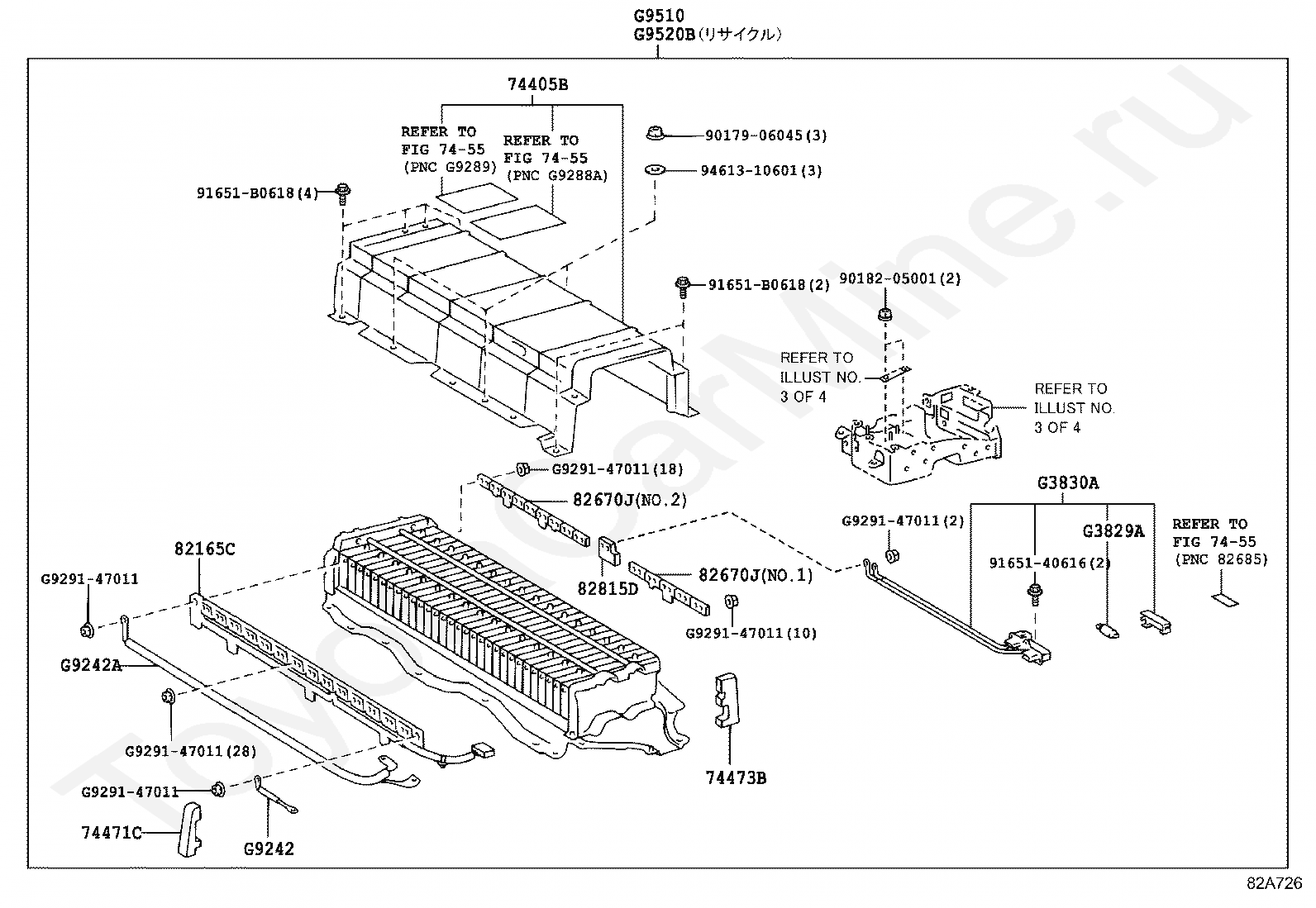

74405B
COVER SUB-ASSY, BATTERY
74471C
PAD, BATTERY CLAMP
74473B
CUSHION, BATTERY CARRIER, NO.3
7455
переход к группе запчастей
82165C
WIRE, FRAME, NO.2
82670J
BLOCK ASSY, JUNCTION
82815D
COVER, WIRING HARNESS PROTECTOR, NO.2
9017906045
Крепеж
9018205001
Крепеж
9165140616
Крепеж
91651B0618
Крепеж
9461310601
Крепеж
G3829A
FUSE, ELECTRIC VEHICLE
G3830A
PLUG ASSY, ELECTRIC VEHICLE BATTERY
G9242
CABLE, MAIN BATTERY
G9242A
CABLE, MAIN BATTERY, NO.2
G929147011
Крепеж
G9510
BATTERY ASSY, HV SUPPLY
G9520B
BATTERY ASSY, HV RECYCLE
Код
Описание

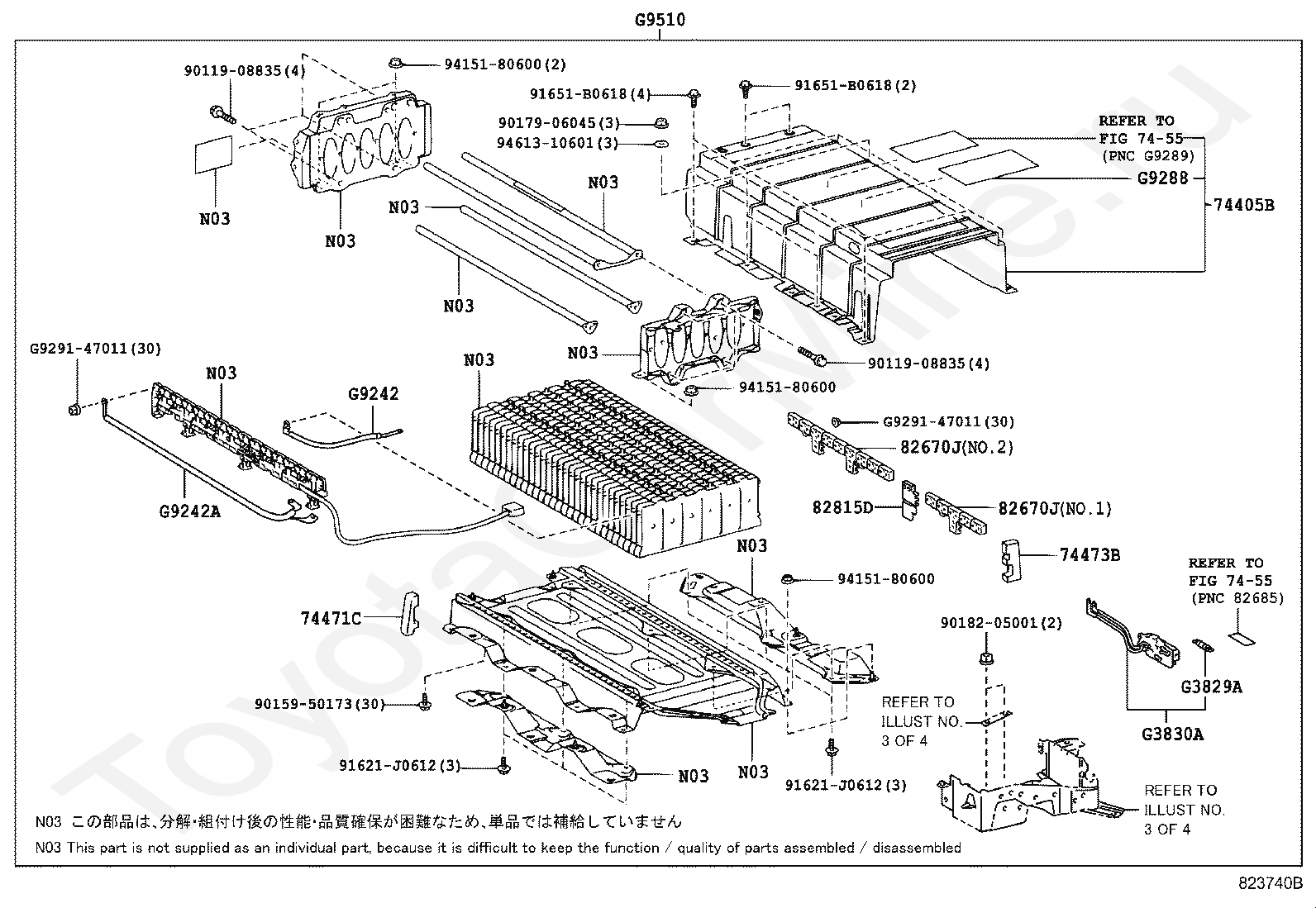

74405B
COVER SUB-ASSY, BATTERY
74471C
PAD, BATTERY CLAMP
74473B
CUSHION, BATTERY CARRIER, NO.3
7455
переход к группе запчастей
82670J
BLOCK ASSY, JUNCTION
82815D
COVER, WIRING HARNESS PROTECTOR, NO.2
9011908835
Крепеж
9015950173
Крепеж
9017906045
Крепеж
9018205001
Крепеж
91621J0612
Крепеж
91651B0618
Крепеж
9415180600
Крепеж
9461310601
Крепеж
G3829A
FUSE, ELECTRIC VEHICLE
G3830A
PLUG ASSY, ELECTRIC VEHICLE BATTERY
G9242
CABLE, MAIN BATTERY
G9242A
CABLE, MAIN BATTERY, NO.2
G9288
LABEL, BATTERY CHARGING NOTICE
G929147011
Крепеж
G9510
BATTERY ASSY, HV SUPPLY
