Каталог
ЯпонияМодель
DYNA/TOYOACEДвигатель
3,7 литра, дизельКузов
TRUCK (EXCLUDING DUMP TRUCK)Фрейм
BU72Трансмиссия
МКПП, 5 скоростейОпции
DYNA HIGH FLAT DECK OPENING ON THREE SIDES 3-местный DOUBLE TIRE 20T DSL CBU

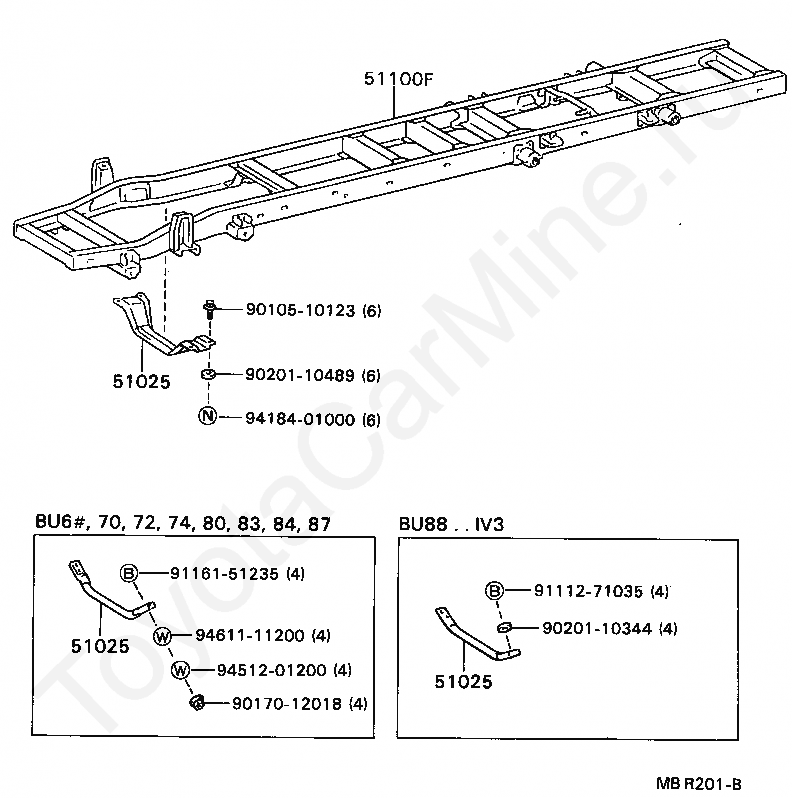

Код
Описание
51025
MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51100F
FRAME SUB-ASSY
9010510123
Крепеж
9017012018
Крепеж
9020110344
Крепеж
9020110489
Крепеж
9111271035
Крепеж
9116151235
Крепеж
9418401000
Крепеж
9451201200
Крепеж
9461111200
Крепеж

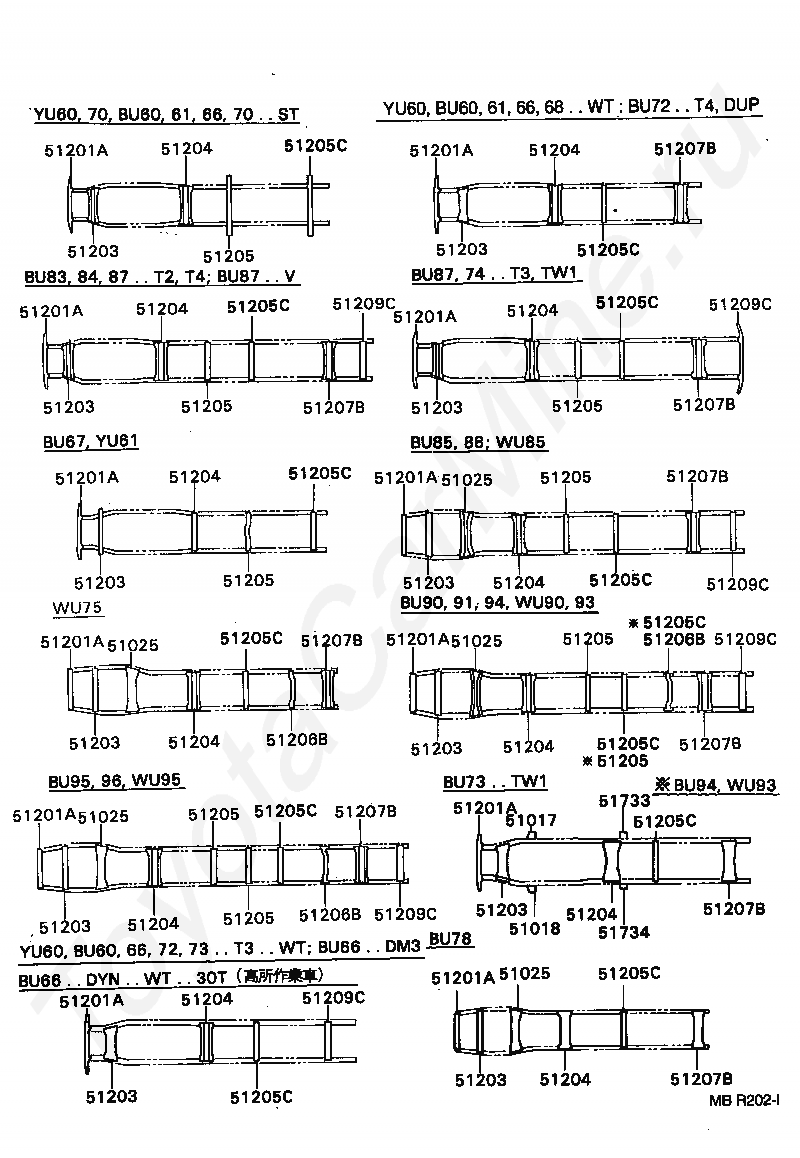

Код
Описание
51017
REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51018
REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51025
MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51201A
CROSSMEMBER SUB-ASSY, FRAME, FRONT
51203
CROSSMEMBER SUB-ASSY, FRAME, NO.2
51204
CROSSMEMBER SUB-ASSY, FRAME, NO.3
51205
CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205C
CROSSMEMBER SUB-ASSY, FRAME, NO.5
51206B
CROSSMEMBER SUB-ASSY, FRAME, NO.6
51207B
CROSSMEMBER SUB-ASSY, FRAME, NO.7
51209C
CROSSMEMBER SUB-ASSY, FRAME, REAR
51733
BRACKET, CAB REAR MOUNTING, NO.2 RH
51734
BRACKET, CAB REAR MOUNTING, NO.2 LH

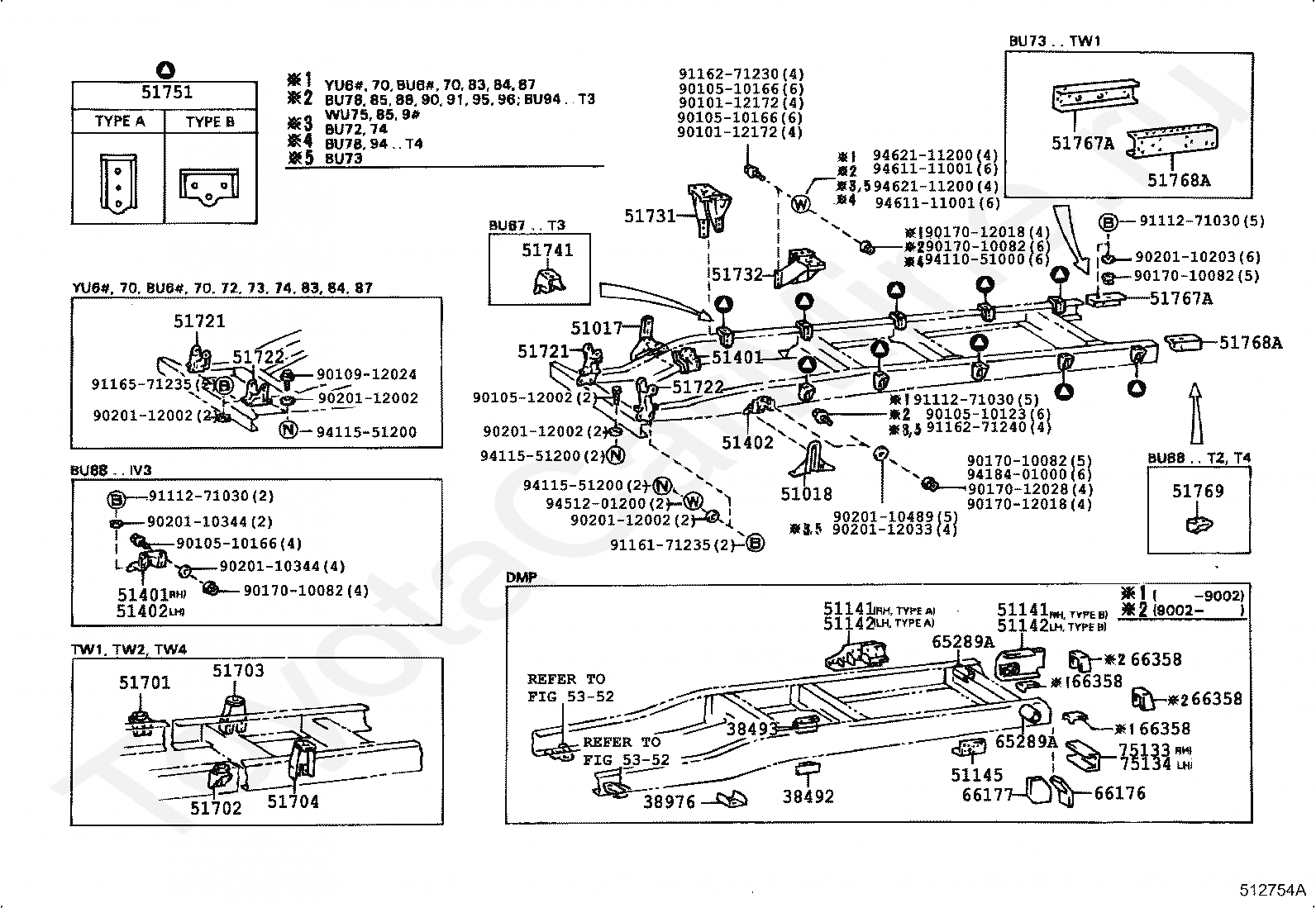

Код
Описание
38492
BRACKET, POWER OIL PUMP, NO.2
38493
BRACKET, POWER OIL PUMP, NO.3
38976
STAY, POWER TAKE-OFF CONTROL
51017
REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51018
REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51141
REINFORCEMENT, SIDE RAIL, RH
51142
REINFORCEMENT, SIDE RAIL, LH
51145
STIFFENER, FRAME SIDE RAIL
51401
BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402
BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51701
BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702
BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51703
BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704
BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51721
BRACKET, CAB FRONT MOUNTING, RH
51722
BRACKET, CAB FRONT MOUNTING, LH
51731
BRACKET, CAB REAR MOUNTING, RH
51732
BRACKET, CAB REAR MOUNTING, LH
51741
BRACKET, REAR BODY MOUNTING, NO.1
51751
BRACKET, BODY SUPPORT, NO.1
51767A
BRACKET, FRAME BODY MOUNTING, NO.8 RH
51768A
BRACKET, FRAME BODY MOUNTING, NO.8 LH
51769
BRACKET, BODY REAR END MOUNTING
5352
переход к группе запчастей
65289A
SUPPORT, VESSEL HINGE
66358
PLATE, FRAME END
75133
BASE, COMBINATION REAR LAMP BRACKET, RH
75134
BASE, COMBINATION REAR LAMP BRACKET, LH
9010112172
Крепеж
9010510123
Крепеж
9010510166
Крепеж
9010512002
Крепеж
9010912024
Крепеж
9017010082
Крепеж
9017012018
Крепеж
9017012028
Крепеж
9020110203
Крепеж
9020110344
Крепеж
9020110489
Крепеж
9020112002
Крепеж
9020112033
Крепеж
9111271030
Крепеж
9116171235
Крепеж
9116271230
Крепеж
9116271240
Крепеж
9116571235
Крепеж
9411051000
Крепеж
9411551200
Крепеж
9418401000
Крепеж
9451201200
Крепеж
9461111001
Крепеж
9462111200
Крепеж

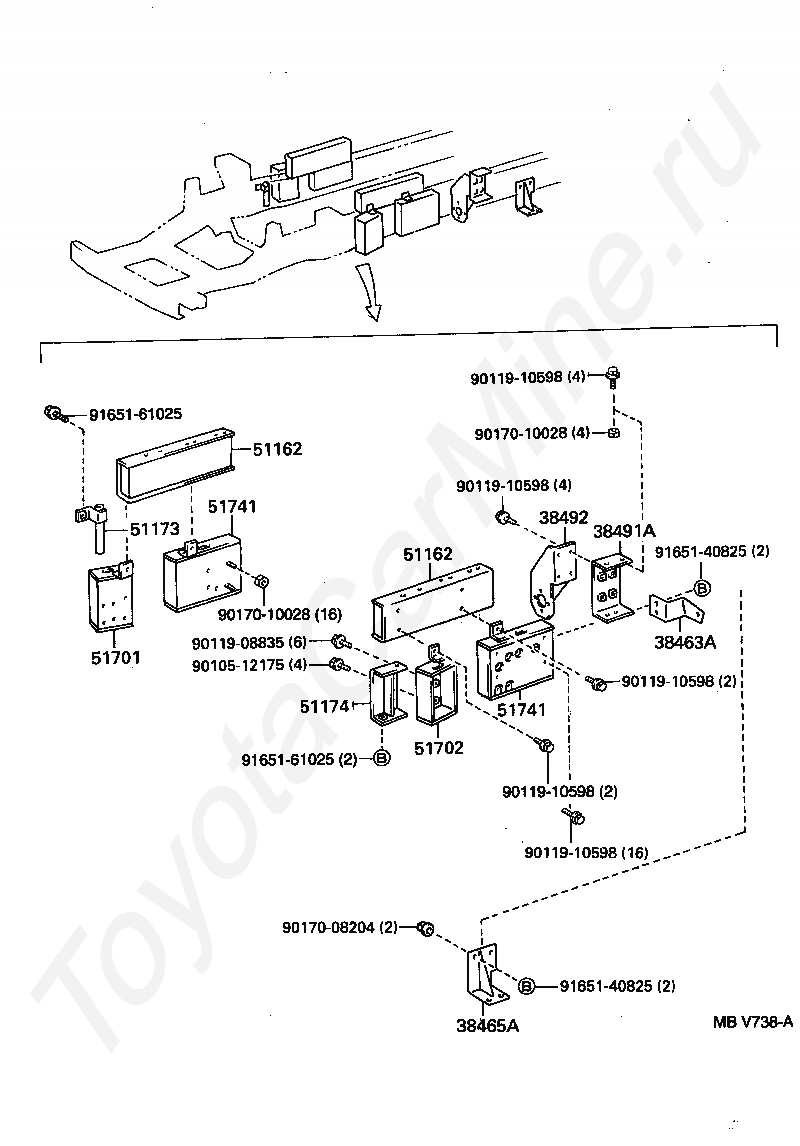

Код
Описание
38463A
BRACKET, POWER OIL PUMP HOSE CLAMP
38465A
BRACKET, POWER OIL PUMP HOSE CLAMP, NO.2
38491A
BRACKET, POWER OIL PUMP, NO.1
38492
BRACKET, POWER OIL PUMP, NO.2
51162
REINFORCEMENT, SIDE RAIL, UPPER NO.1
51173
REINFORCEMENT, FRONT INNER CHANNEL, RH
51174
REINFORCEMENT, FRONT INNER CHANNEL, LH
51701
BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702
BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51741
BRACKET, REAR BODY MOUNTING, NO.1
9010512175
Крепеж
9011908835
Крепеж
9011910598
Крепеж
9017008204
Крепеж
9017010028
Крепеж
9165140825
Крепеж
9165161025
Крепеж
