Каталог
ЯпонияМодель
DYNA/TOYOACEДвигатель
3,7 литра, дизельКузов
TRUCK (EXCLUDING DUMP TRUCK)Фрейм
BU72Трансмиссия
МКПП, 5 скоростейОпции
DYNA HIGH FLAT DECK OPENING ON THREE SIDES 3-местный DOUBLE TIRE 20T DSL CBU

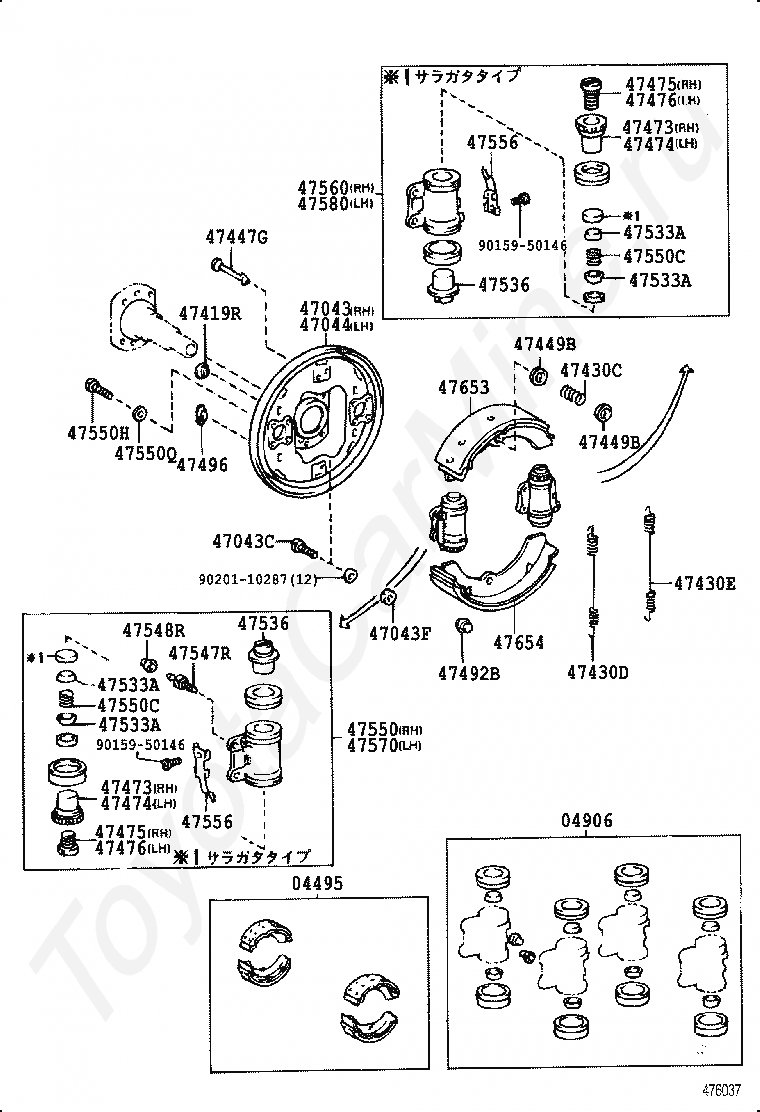

Код
Описание
04495
SHOE KIT, REAR BRAKE
04906
CUP KIT, REAR WHEEL CYLINDER
47043
PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043C
BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47043F
NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47044
PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47419R
PLUG, HOLE(FOR REAR BRAKE)
47430C
SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47430D
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430E
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47447G
PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449B
CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47473
NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)
47474
NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47475
BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)
47476
BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47492B
PLUG, SHOE INSPECTION(FOR REAR BRAKE)
47496
PLUG, HOLE(FOR REAR BRAKE)
47533A
SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
47536
PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47547R
PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548R
CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550
CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550C
SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47550H
BOLT(FOR REAR WHEEL CYLINDER)
47550Q
WASHER(FOR REAR WHEEL CYLINDER)
47556
SPRING, ADJUSTER LOCK(FOR REAR BRAKE)
47560
CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)
47570
CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47580
CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)
47653
LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)
47654
LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)
9015950146
Крепеж
9020110287
Крепеж

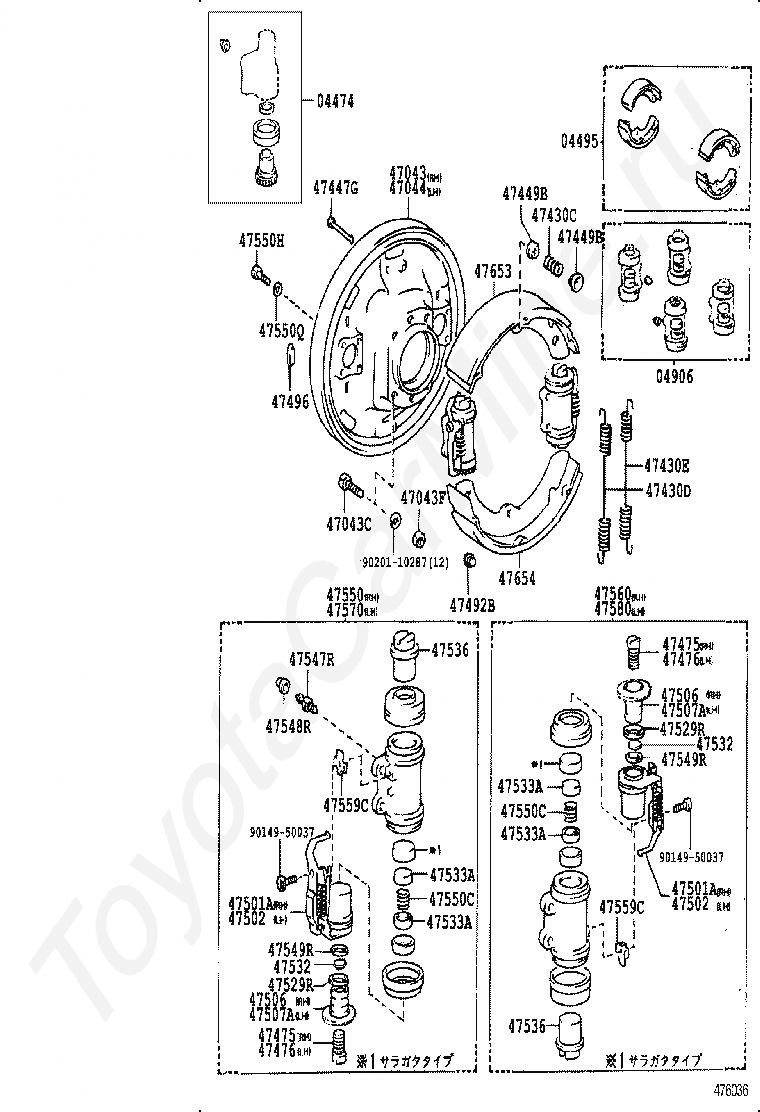

Код
Описание
04474
CYLINDER KIT, REAR WHEEL
04495
SHOE KIT, REAR BRAKE
04906
CUP KIT, REAR WHEEL CYLINDER
47043
PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043C
BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47043F
NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47044
PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47430C
SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
47430D
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430E
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47447G
PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449B
CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47475
BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)
47476
BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47492B
PLUG, SHOE INSPECTION(FOR REAR BRAKE)
47496
PLUG, HOLE(FOR REAR BRAKE)
47501A
PISTON SUB-ASSY, REAR WHEEL BRAKE CYLINDER, RH
47502
PISTON SUB-ASSY, REAR WHEEL BRAKE CYLINDER, LH
47506
NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)
47507A
NUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)
47529R
SEAL, REAR WHEEL BRAKE CYLINDER ADJUST NUT DUST
47532
INSERT, REAR WHEEL CYLINDER PISTON
47533A
SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
47536
PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47547R
PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548R
CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47549R
SEAT, REAR BRAKE AUTOMATIC ADJUST NUT
47550
CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550C
SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
47550H
BOLT(FOR REAR WHEEL CYLINDER)
47550Q
WASHER(FOR REAR WHEEL CYLINDER)
47559C
SPRING, REAR AUTOMATIC ADJUST LEVER SUPPORT
47560
CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)
47570
CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47580
CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)
47653
LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)
47654
LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)
9014950037
Крепеж
9020110287
Крепеж
