Каталог
ЯпонияМодель
DYNA/TOYOACEДвигатель
3,7 литра, дизельКузов
TRUCK (EXCLUDING DUMP TRUCK)Фрейм
BU72Трансмиссия
МКПП, 5 скоростейОпции
DYNA HIGH FLAT DECK OPENING ON THREE SIDES 3-местный DOUBLE TIRE 20T DSL CBU
Код
Описание

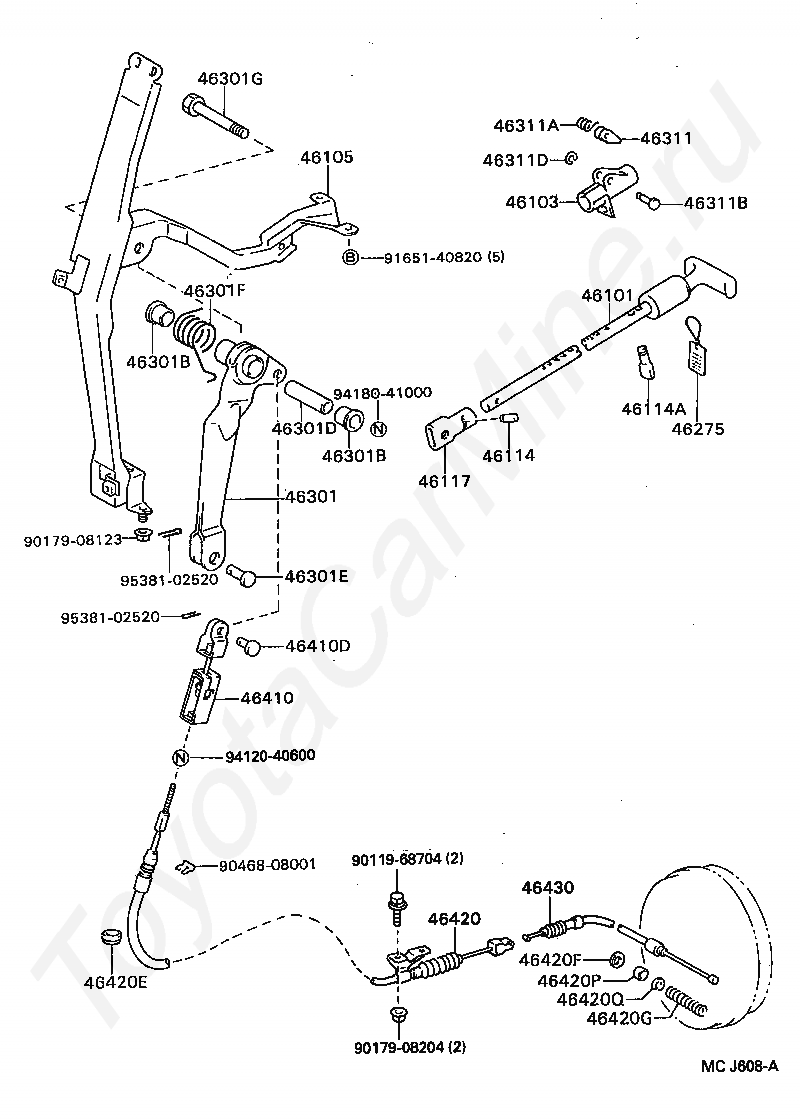

46101
HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46103
GUIDE SUB-ASSY, PARKING BRAKE PLUNGER
46105
BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL
46114
PIN, PARKING BRAKE PLUNGER
46114A
PIN, PARKING BRAKE PLUNGER
46117
SLEEVE, PARKING BRAKE PLUNGER
46275
PLATE, PARKING BRAKE RELEASE CAUTION
46301
LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301B
BUSH(FOR INTERMEDIATE LEVER)
46301D
COLLAR(FOR INTERMEDIATE LEVER)
46301E
PIN, W/HOLE(FOR INTERMEDIATE LEVER)
46301F
SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)
46301G
BOLT(FOR INTERMEDIATE LEVER)
46311
PAWL, PARKING BRAKE
46311A
SPRING(FOR PARKING BRAKE PAWL)
46311B
PIN, PARKING BRAKE PAWL PIVOT
46311D
WASHER, TYPE C(FOR PARKING BRAKE PAWL)
46410
CABLE ASSY, PARKING BRAKE, NO.1
46410D
PIN(FOR PARKING BRAKE FRONT CABLE)
46420
CABLE ASSY, PARKING BRAKE, NO.2
46420E
GROMMET(FOR PARKING BRAKE CABLE CLAMP)
46420F
SEAL, DUST(FOR PARKING BRAKE CABLE)
46420G
SPRING(FOR PARKING CABLE INNER WIRE SET)
46420P
SPACER, PARKING BRAKE
46420Q
RING, E(FOR PARKING BRAKE CABLE)
46430
CABLE ASSY, PARKING BRAKE, NO.3
9011968704
Крепеж
9017908123
Крепеж
9017908204
Крепеж
9046808001
Крепеж
9165140820
Крепеж
9412040600
Крепеж
9418041000
Крепеж
9538102520
Крепеж
Код
Описание

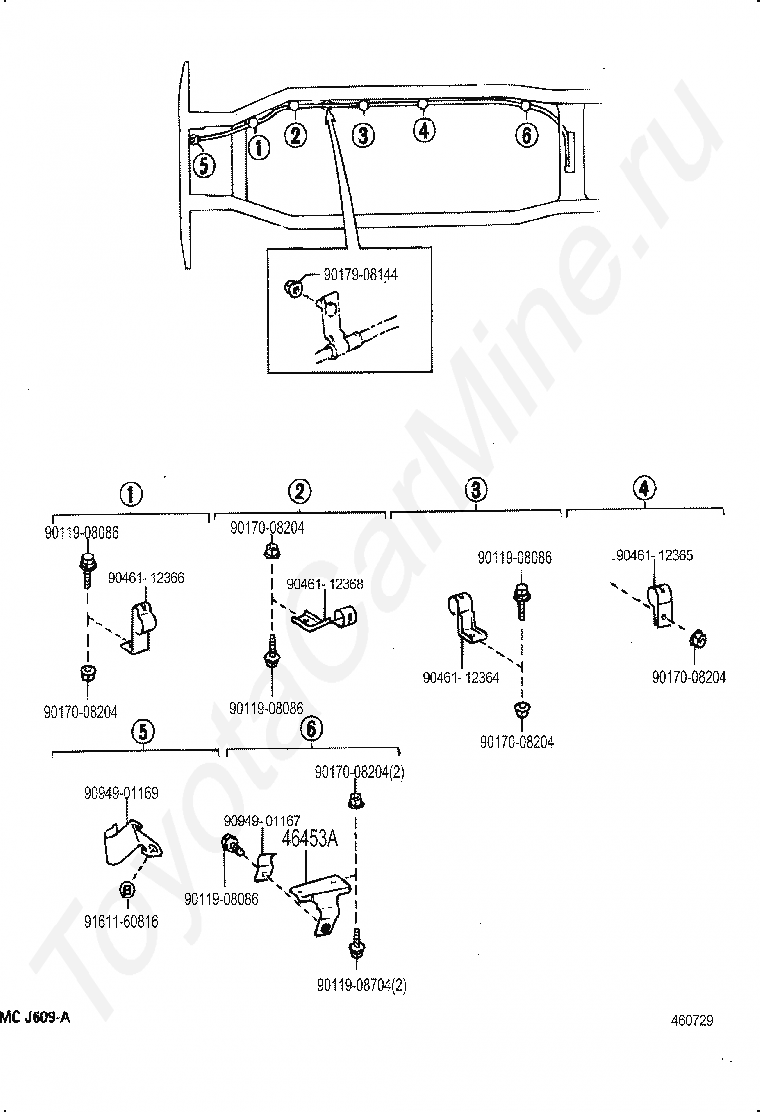

46453A
BRACKET, CABLE SUPPORT, NO.3
9011908086
Крепеж
9011908704
Крепеж
9017008204
Крепеж
9017908144
Крепеж
9046112364
Крепеж
9046112365
Крепеж
9046112366
Крепеж
9046112368
Крепеж
9094901167
Крепеж
9094901169
Крепеж
9161160816
Крепеж
Код
Описание

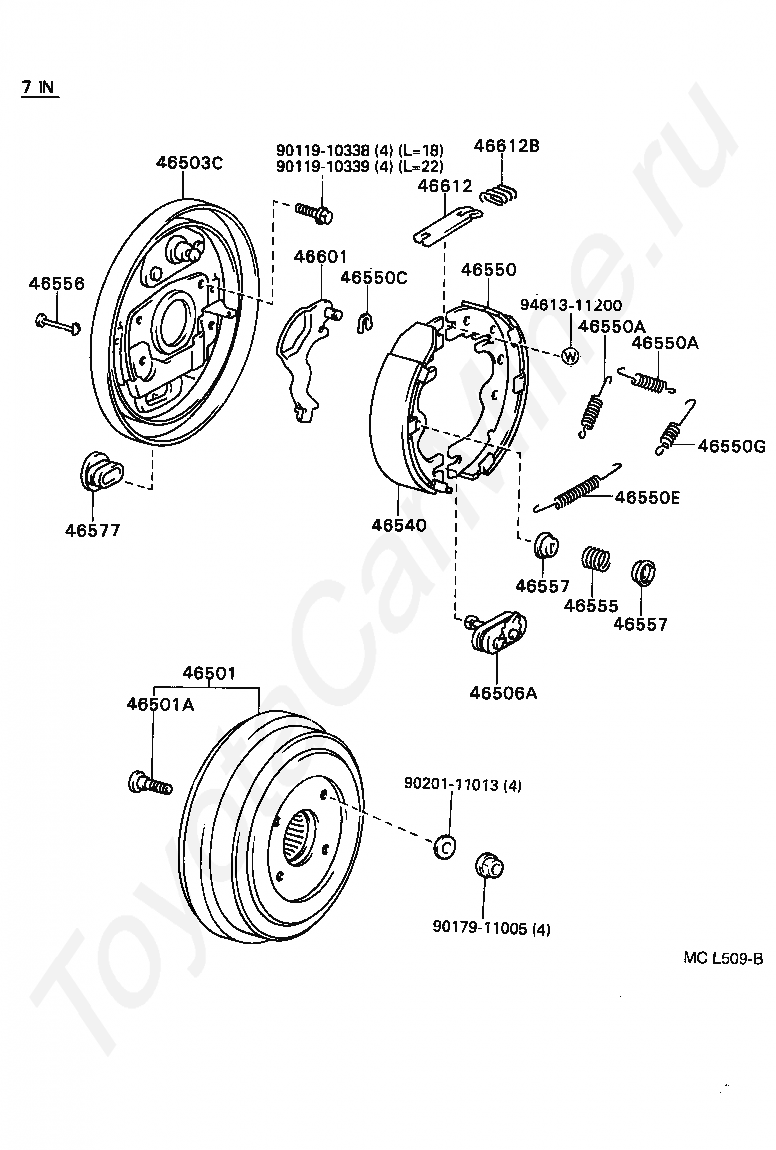

46501
DRUM SUB-ASSY, PARKING BRAKE
46501A
BOLT, SERRATION(FOR PARKING BRAKE DRUM)
46503C
PLATE SUB-ASSY, PARKING BRAKE
46506A
ADJUSTER SUB-ASSY, PARKING BRAKE SHOE
46540
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46550
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550A
SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550C
WASHER, TYPE C(FOR PARKING BRAKE SHOE)
46550E
SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
46550G
SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN)
46555
SPRING, BRAKE SHOE HOLD DOWN
46556
PIN, SHOE HOLD DOWN SPRING
46557
CUP, BRAKE SHOE HOLD DOWN
46577
COVER, ADJUSTING CAM HOLE
46601
LEVER SUB-ASSY, PARKING BRAKE SHOE
46612
STRUT, PARKING BRAKE SHOE LEVER
46612B
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
9011910338
Крепеж
9011910339
Крепеж
9017911005
Крепеж
9020111013
Крепеж
9461311200
Крепеж
