Каталог
ЯпонияМодель
DYNA/TOYOACEДвигатель
3,7 литра, дизельКузов
TRUCK (EXCLUDING DUMP TRUCK)Фрейм
BU72Трансмиссия
МКПП, 5 скоростейОпции
DYNA HIGH FLAT DECK OPENING ON THREE SIDES 3-местный DOUBLE TIRE 20T DSL CBU

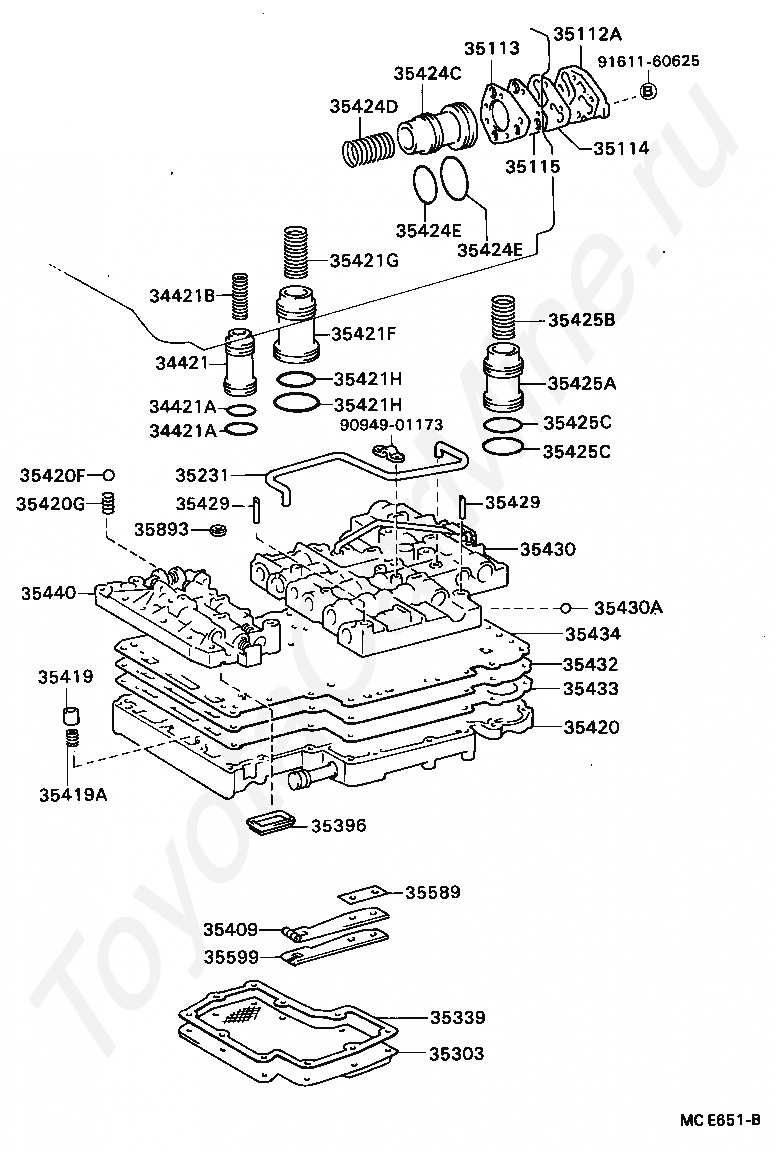

Код
Описание
34421
PISTON, OVERDRIVE BRAKE ACCUMULATOR
34421A
RING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
34421B
SPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
35112A
COVER, FRONT CLUTCH ACCUMULATOR
35113
GASKET, FRONT CLUTCH ACCUMLATOR, NO.2
35114
GASKET, FRONT CLUTCH ACCUMLATOR, NO.1
35115
PLATE, FRONT CLUTCH ACCUMULATOR
35231
TUBE, LOCK UP SIGNAL VALVE APPLY
35303
STRAINER SUB-ASSY, OIL
35339
GASKET, OIL STRAINER
35396
STRAINER, THROTTLE OIL
35409
SPRING SUB-ASSY, MANUAL DETENT
35419
VALVE, CHECK, NO.1
35419A
SPRING, COMPRESSION (FOR CHECK VALVE)
35420
BODY ASSY, LOWER VALVE
35420F
BALL, CHECK, NO.1
35420G
SPRING, BARREL SHAPED
35421F
PISTON, ACCUMULATOR, NO.2
35421G
SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)
35421H
RING (FOR ACCUMULATOR PISTON NO.2)
35424C
PISTON, C-1 ACCUMULATOR
35424D
SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
35424E
RING, O (FOR C-1 ACCUMULATOR PISTON)
35425A
PISTON, C-2 ACCUMULATOR
35425B
SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425C
RING, O (FOR C-2 ACCUMULATOR PISTON)
35429
TUBE, LINE PRESSURE
35430
BODY ASSY, REAR UPPER VALVE
35430A
BALL (FOR REAR UPPER VALVE BODY)
35432
PLATE, VALVE BODY, NO.1
35433
GASKET, VALVE BODY, NO.1
35434
GASKET, VALVE BODY, NO.2
35440
BODY ASSY, FRONT UPPER VALVE
35589
SPACER, MANUAL DETENT SPRING
35599
COVER, MANUAL DETENT SPRING
35893
GASKET, CENTER SUPPORT APPLY
9094901173
Крепеж
9161160625
Крепеж

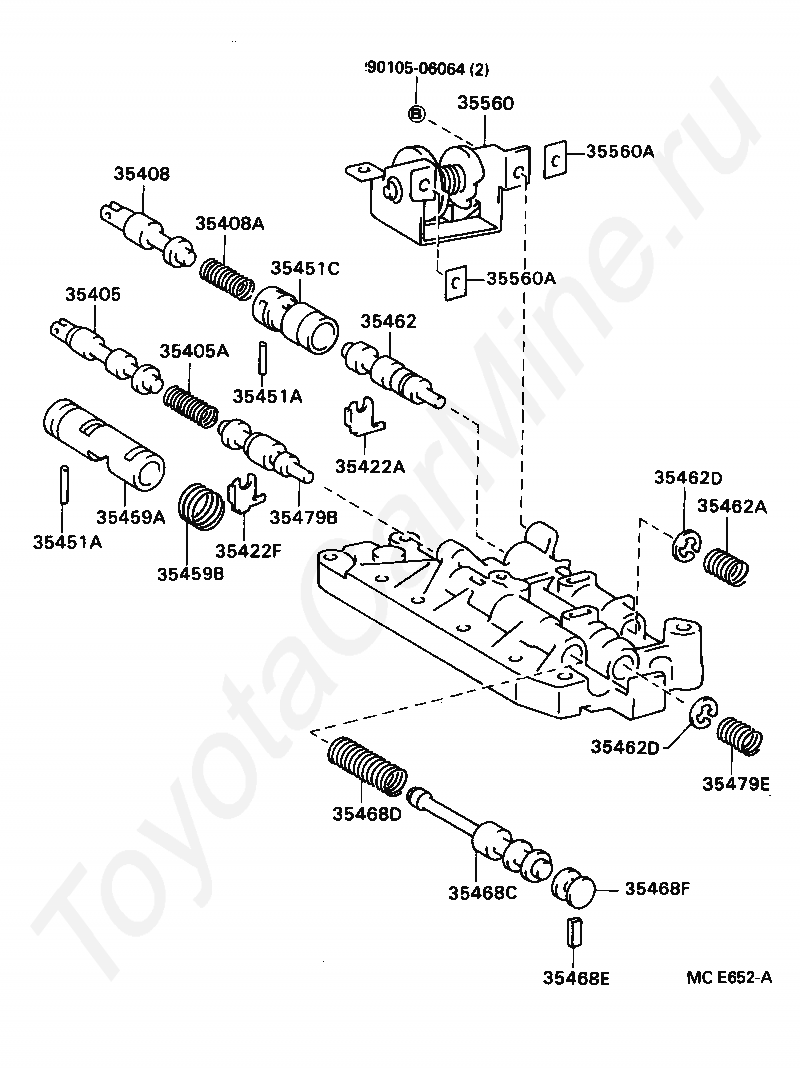

Код
Описание
35405
PLUG SUB-ASSY, SECONDARY DOWN SHIFT
35405A
SPRING, COMPRESSION(FOR SECONDARY DOWN SHIFT PLUG)
35408
PLUG SUB-ASSY, PRIMARY DOWN SHIFT
35408A
SPRING, COMPRESSION (FOR PRIMARY DOWN SHIFT PLUG)
35422A
ST0PPER, VALVE VIBRATING
35422F
STOPPER, VALVE VIBRATING
35451A
PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE)
35451C
SLEEVE, THROTTLE VALVE, NO.1
35459A
SLEEVE, THROTTLE VALVE, NO.2
35459B
SPRING (FOR THROTTLE VALVE SLEEVE)
35462
VALVE, THROTTLE
35462A
SPRING, COMPRESSION (FOR THROTTLE VALVE)
35462D
RING, E (FOR THROTTLE VALVE)
35468C
VALVE, SECONDARY REGULATOR
35468D
SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)
35468E
KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE)
35468F
PLUG (FOR SECONDARY REGULATOR VALVE)
35479B
VALVE, SECONDARY THROTTLE
35479E
SPRING, COMPRESSION (FOR SECONDARY THROTTLE VALVE)
35560
CAM ASSY, THROTTLE VALVE
35560A
SHIM (FOR THROTTLE VALVE CAM)
9010506064
Крепеж

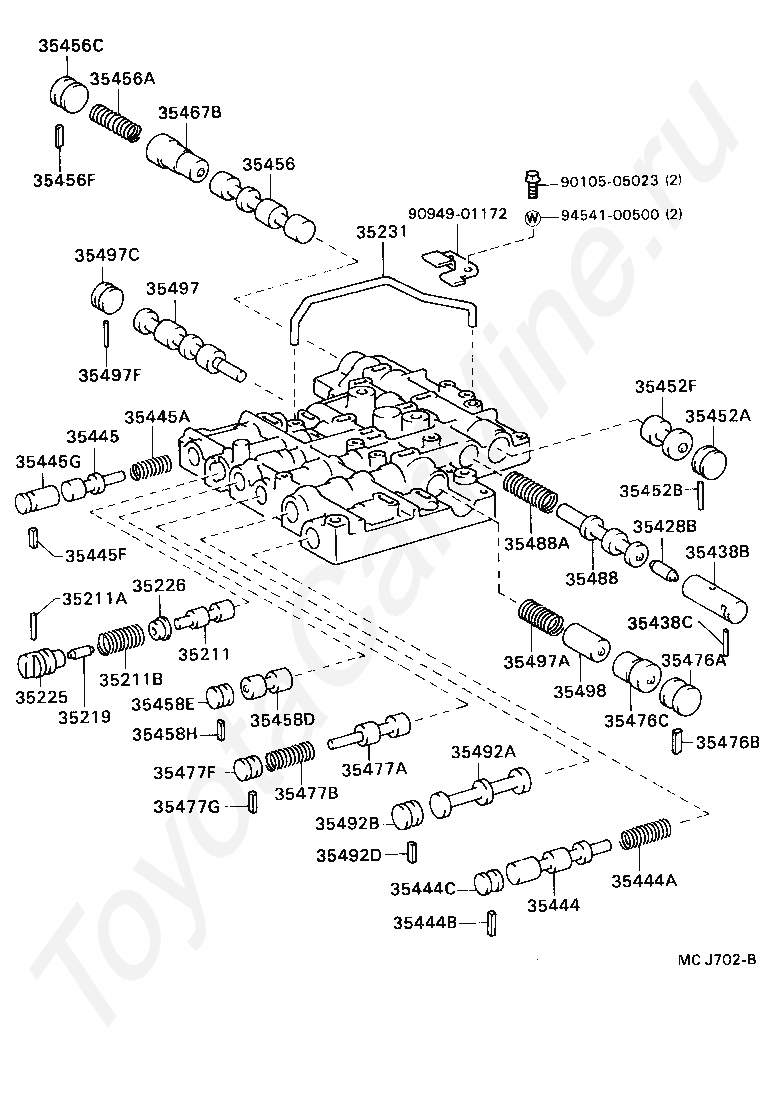

Код
Описание
35211
VALVE, LOCK UP SIGNAL
35211A
PIN, STRAIGHT (FOR LOCK UP SIGNAL VALVE)
35211B
SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE)
35219
PLUG, LOCK UP SIGNAL VALVE
35225
SLEEVE, LOCK UP SIGNAL VALVE
35226
SEAT, LOCK UP SIGNAL VALVE SPRING
35231
TUBE, LOCK UP SIGNAL VALVE APPLY
35428B
PLUG, 2-3 SHIFT TIMING VALVE
35438B
SLEEVE, 2-3 SHIFT TIMING VALVE PLUG
35438C
PIN, STRAIGHT (FOR 2-3 SHIFT TIMING VALVE PLUG SLEEVE)
35444
VALVE, INTERMEDIATE MODULATOR
35444A
SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)
35444B
KEY, STRAIGHT (FOR INTERMEDIATE MODULATOR VALVE)
35444C
PLUG (FOR INTERMEDIATE MODULATOR VALVE)
35445
VALVE, LOW MODULATOR
35445A
SPRING, COMPRESSION (FOR LOW MODULATOR VALVE)
35445F
KEY, STRAIGHT (FOR LOW MODULATOR VALVE)
35445G
PLUG (FOR LOW MODULATOR VALVE)
35452A
PLUG (FOR 2-3 SHIFT VALVE PLUG)
35452B
PIN, STRAIGHT (FOR 2-3 SHIFT VALVE PLUG)
35452F
PLUG, 2-3 SHIFT VALVE
35456
VALVE, 2-3 SHIFT
35456A
SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)
35456C
PLUG (FOR 2-3 SHIFT VALVE)
35456F
KEY, STRAIGHT (FOR 2-3 SHIFT VALVE)
35458D
VALVE, CUT BACK
35458E
PLUG (FOR CUT BACK VALVE)
35458H
KEY, STRAIGHT (FOR CUT BACK VALVE)
35467B
VALVE, INTERMEDIATE COAST SHIFT
35476A
PLUG, STRAIGHT (FOR 3RD COAST SHIFT)
35476B
PIN, LOCATING (FOR 3RD COAST SHIFT)
35476C
VALVE, 3RD COAST
35477A
VALVE, OVERDRIVE CLUTCH EXHAUST
35477B
SPRING, COMPRESSION (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35477F
PLUG (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35477G
KEY, STRAIGHT (FOR 3RD COAST SHIFT)
35488
VALVE, 2-3 SHIFT TIMING
35488A
SPRING, COMPRESSION (FOR 2-3 SHIFT TIMING VALVE)
35492A
VALVE, MANUAL DOWN TIMING
35492B
PLUG (FOR MANUAL DOWN TIMING VALVE)
35492D
KEY, STRAIGHT (FOR MANUAL DOWN TIMING VALVE)
35497
VALVE, 3-4 SHIFT
35497A
SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)
35497C
PLUG (FOR 3-4 SHIFT VALVE)
35497F
KEY, STRAIGHT (FOR 3-4 SHIFT VALVE)
35498
VALVE, 3-4 COAST SHIFT
9010505023
Крепеж
9094901172
Крепеж
9454100500
Крепеж

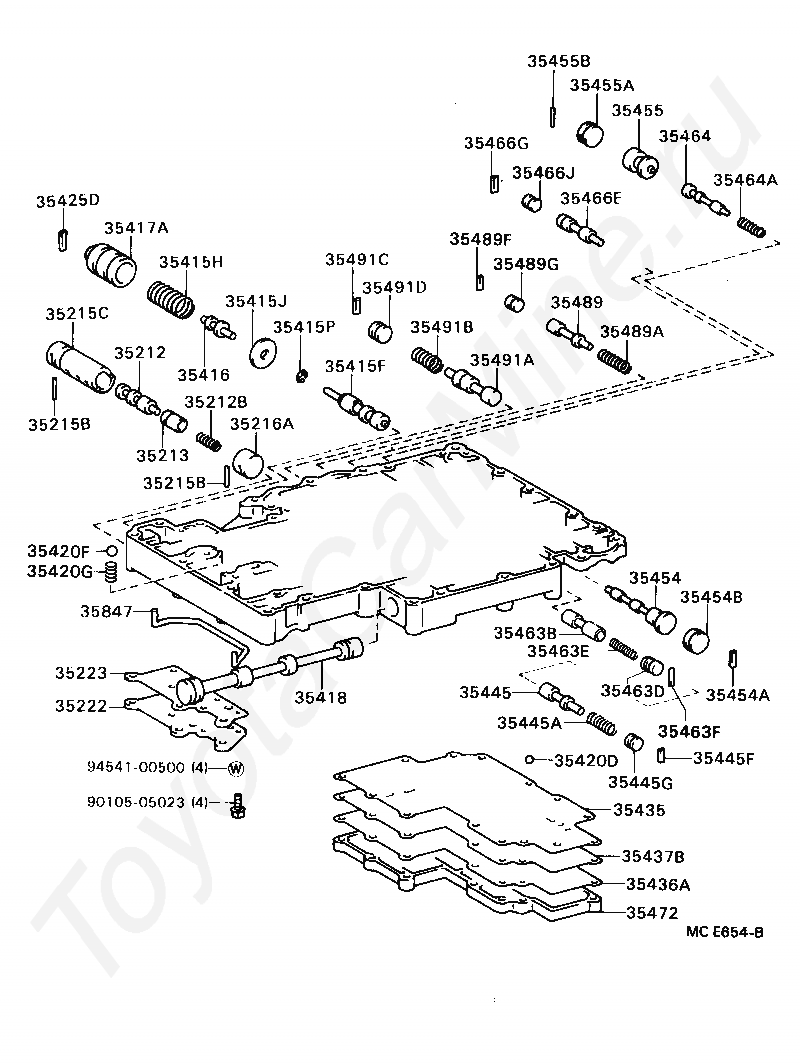

Код
Описание
35212
VALVE, LOCK UP RELAY
35212B
SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)
35213
VALVE, LOCK UP RELAY CONTROL
35215B
PIN, STRAIGHT (FOR LOCK UP RELAY VALVE SLEEVE)
35215C
SLEEVE, LOCK UP RELAY VALVE, NO.1
35216A
SLEEVE, LOCK UP RELAY VALVE, NO.2
35222
PLATE, LOCK UP RELAY VALVE BODY
35223
GASKET, LOCK UP RELAY VALVE BODY
35415F
VALVE, PRIMARY REGULATOR
35415H
SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE)
35415J
WASHER (FOR PRIMARY REGULATOR VALVE)
35415P
RING, E (FOR PRIMARY REGULATOR VALVE)
35416
PLUNGER, PRIMARY REGULATOR VALVE, NO.1
35417A
SLEEVE, PRIMARY REGULATOR VALVE
35418
VALVE, MANUAL
35420D
BALL (FOR LOWER VALVE BODY)
35420F
BALL, CHECK, NO.1
35420G
SPRING, BARREL SHAPED
35425D
SEAT, PRIMARY REGULATOR VALVE SLEEVE
35435
GASKET, VALVE BODY PLATE, NO.3
35436A
GASKET, VALVE BODY PLATE, NO.4
35437B
PLATE, VALVE BODY COVER
35445
VALVE, LOW MODULATOR
35445A
SPRING, COMPRESSION (FOR LOW MODULATOR VALVE)
35445F
KEY, STRAIGHT (FOR LOW MODULATOR VALVE)
35445G
PLUG (FOR LOW MODULATOR VALVE)
35454
VALVE, LOW COAST SHIFT
35454A
KEY, STRAIGHT (FOR LOW COAST SHIFT VALVE)
35454B
PLUG (FOR LOW COAST SHIFT VALVE)
35455
PLUG, 1-2 SHIFT VALVE LOW
35455A
PLUG (FOR 1-2 SHIFT VALVE LOW PLUG)
35455B
PIN, STRAIGHT (FOR 1-2 SHIFT VALVE LOW PLUG)
35463B
VALVE, 1-2 RELAY
35463D
PLUG (FOR 1-2 RELAY VALVE)
35463E
SPRING, COMPRESSION (FOR 1-2 RELAY VALVE)
35463F
PIN, STRAIGHT (FOR 1-2 SHIFT VALVE)
35464
VALVE, 1-2 SHIFT
35464A
SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)
35466E
VALVE, 2ND LOCK
35466G
KEY, STRAIGHT (FOR 2ND LOCK VALVE)
35466J
PLUG (FOR 2ND LOCK VALVE)
35472
COVER, VALVE BODY, NO.2
35489
VALVE, 3-2 KICK DOWN ORIFICE CONTROL
35489A
SPRING (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)
35489F
KEY, STRAIGHT (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)
35489G
PLUG (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)
35491A
VALVE, ACCUMULATOR CONTROL, NO.1
35491B
SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491C
KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491D
PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1)
35847
TUBE, TRANSMISSION LUBE APPLY
9010505023
Крепеж
9454100500
Крепеж

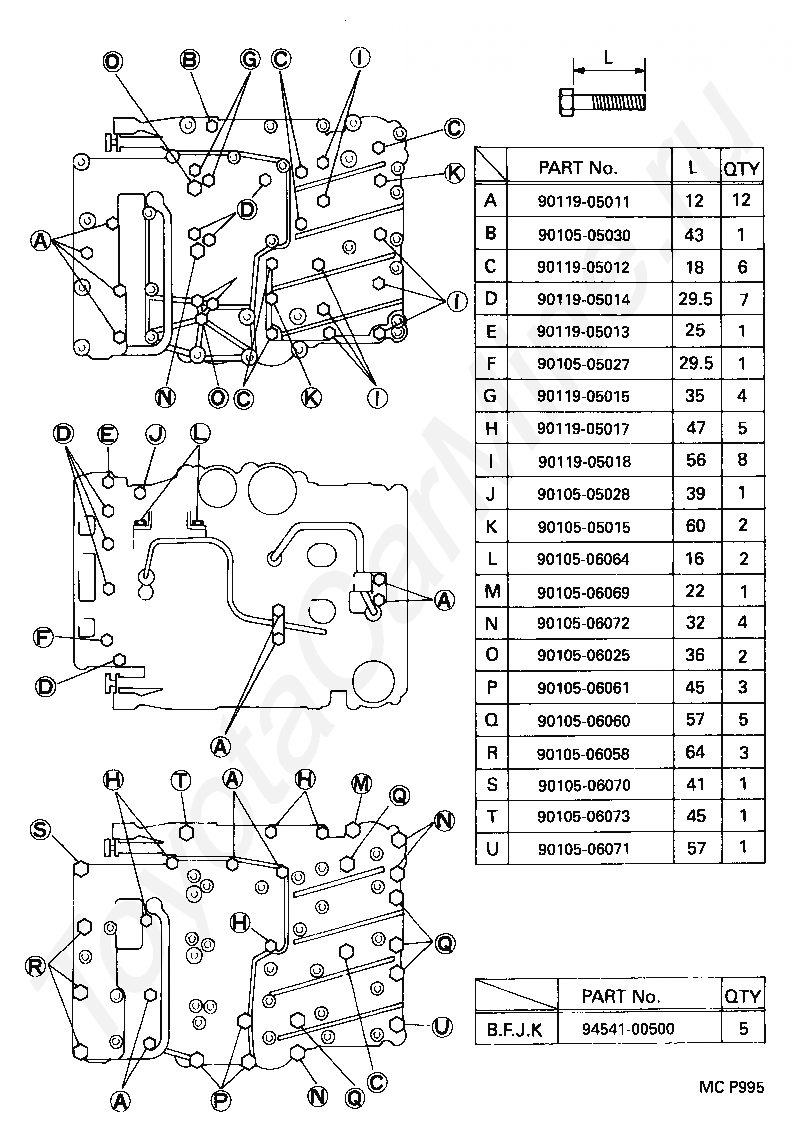

Код
Описание
9010505015
Крепеж
9010505027
Крепеж
9010505028
Крепеж
9010505030
Крепеж
9010506025
Крепеж
9010506058
Крепеж
9010506060
Крепеж
9010506061
Крепеж
9010506064
Крепеж
9010506069
Крепеж
9010506070
Крепеж
9010506071
Крепеж
9010506072
Крепеж
9010506073
Крепеж
9011905011
Крепеж
9011905012
Крепеж
9011905013
Крепеж
9011905014
Крепеж
9011905015
Крепеж
9011905017
Крепеж
9011905018
Крепеж
9454100500
Крепеж
