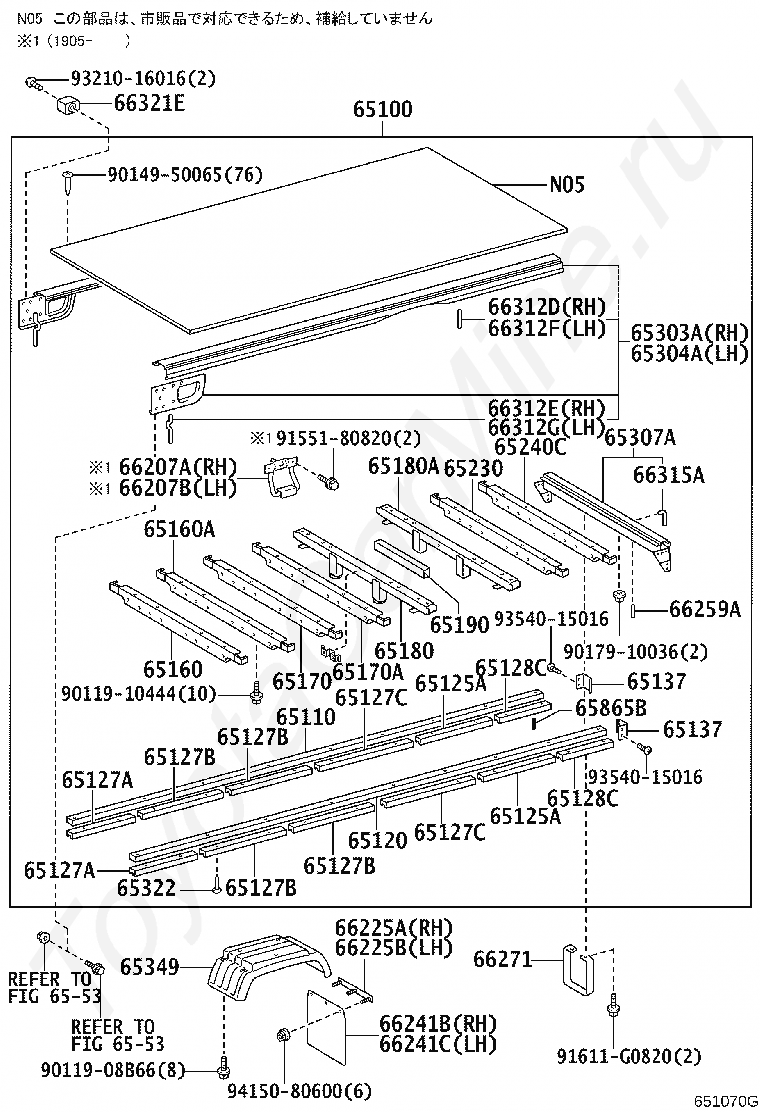

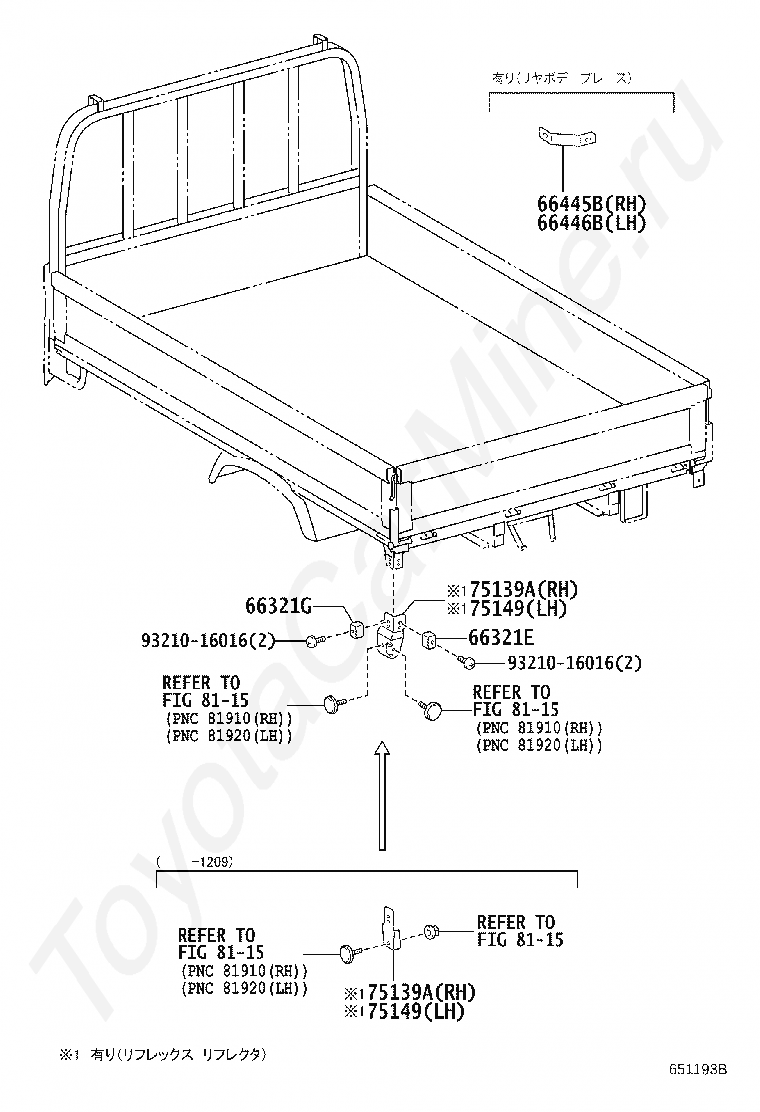

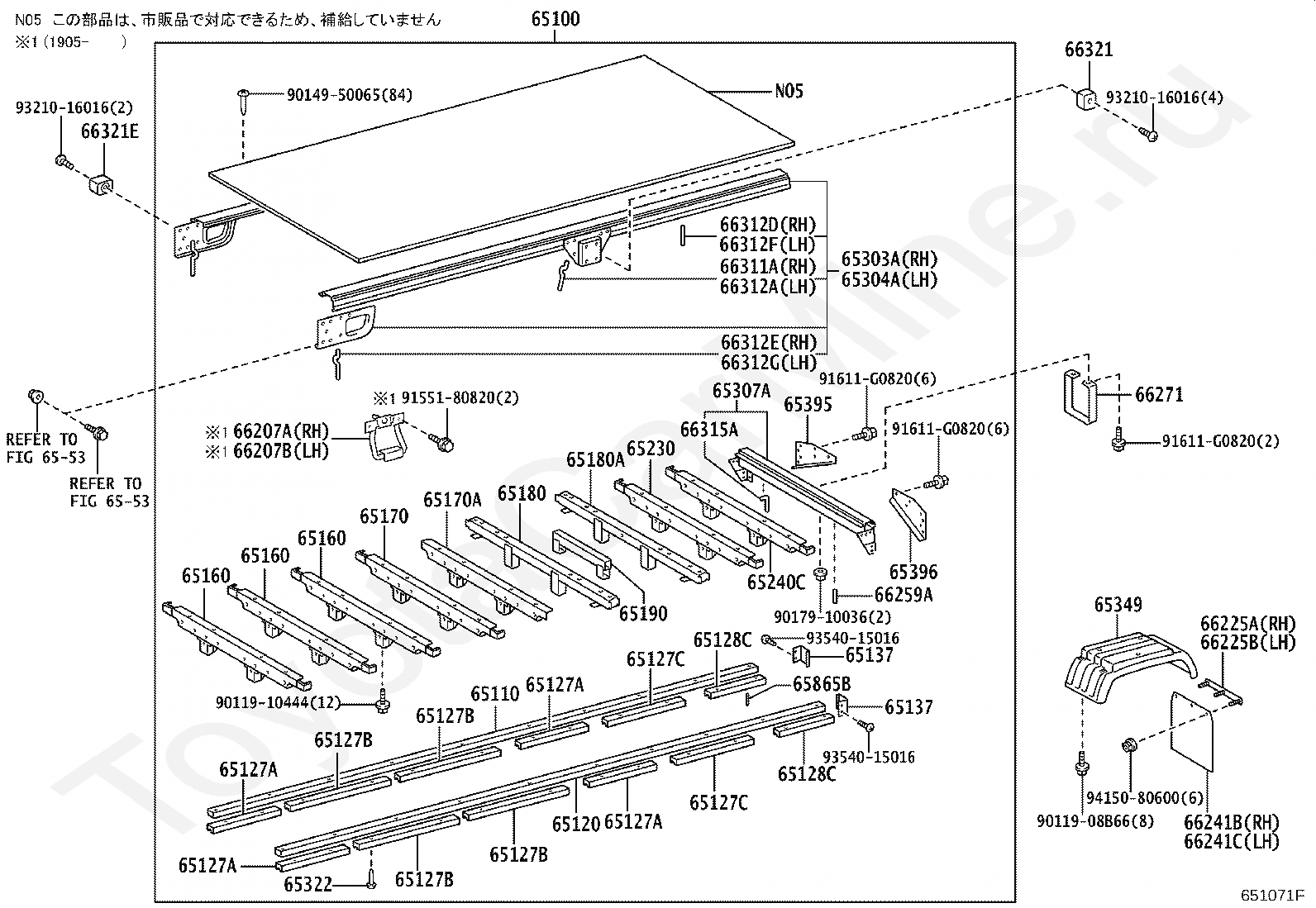

REAR BODY FLOOR & FENDER TOYOTA DYNA/TOYOACE, 2021/03 - 2025, 4 литра, дизель, XZU722, автомат, АКПП, 6 скоростей

Каталог

Япония

Модель

DYNA/TOYOACE

Двигатель

4 литра, дизель

Фрейм

XZU722

Трансмиссия

автомат АКПП, 6 скоростей

Опции

SINGLE CARBURETOR:SINGLE CAB (FULL JUST LOW) 3 тонны DOUBLE TIRE DCWDOCBU 878W

Код

Описание

65100

FLOOR ASSY, REAR BODY

65110

SILL ASSY, MAIN, RH

65120

SILL ASSY, MAIN, LH

65125A

SHIM, MAIN SILL, LOWER NO.1

65127A

SHIM, MAIN SILL, LOWER NO.1

65127B

SHIM, MAIN SILL, LOWER NO.2

65127C

SHIM, MAIN SILL, LOWER NO.3

65128C

SHIM, MAIN SILL, LOWER NO.4

65137

COVER, MAIN SILL END

65160

SILL ASSY, CROSS, NO.2

65160A

SILL ASSY, CROSS, NO.2

65170

SILL ASSY, CROSS, NO.2

65170A

SILL ASSY, CROSS, NO.3

65180

SILL ASSY, CROSS, NO.4

65180A

SILL ASSY, CROSS, NO.6

65190

SILL ASSY, CROSS, NO.5

65230

SILL ASSY, CROSS, NO.8

65240C

SILL ASSY, CROSS, NO.9

65303A

FRAME SUB-ASSY, FLOOR SIDE, RH

65304A

FRAME SUB-ASSY, FLOOR SIDE, LH

65307A

FRAME SUB-ASSY, FLOOR, REAR

65322

NAIL

65349

FENDER, FLOOR SIDE

6553

переход к группе запчастей

65865B

PIN, COVER TOP GUIDE

66207A

STEP SUB-ASSY, REAR BODY, RH

66207B

STEP SUB-ASSY, REAR BODY, LH

66225A

SUPPORT, BAFFLE RUBBER

66225B

SUPPORT, BUFFLE RUBBER

66241B

BAFFLE, RUBBER

66241C

BUFFLE, RUBBER

66259A

COVER, REAR BODY FLOOR, REAR

66271

STEP, REAR BODY

66312D

HOOK, ROPE, NO.2

66312E

HOOK, ROPE, NO.2

66312F

HOOK, ROPE, NO.2

66312G

HOOK, ROPE, NO.2

66315A

HOOK, ROPE

66321E

BUMPER, GATE RUBBER

9011908B66

Крепеж

9011910444

Крепеж

9014950065

Крепеж

9017910036

Крепеж

9155180820

Крепеж

91611G0820

Крепеж

9321016016

Крепеж

9354015016

Крепеж

9415080600

Крепеж

Код

Описание

65100

FLOOR ASSY, REAR BODY

65110

SILL ASSY, MAIN, RH

65120

SILL ASSY, MAIN, LH

65127A

SHIM, MAIN SILL, LOWER NO.1

65127B

SHIM, MAIN SILL, LOWER NO.2

65127C

SHIM, MAIN SILL, LOWER NO.3

65128C

SHIM, MAIN SILL, LOWER NO.4

65137

COVER, MAIN SILL END

65160

SILL ASSY, CROSS, NO.2

65170

SILL ASSY, CROSS, NO.2

65170A

SILL ASSY, CROSS, NO.3

65180

SILL ASSY, CROSS, NO.4

65180A

SILL ASSY, CROSS, NO.6

65190

SILL ASSY, CROSS, NO.5

65230

SILL ASSY, CROSS, NO.8

65240C

SILL ASSY, CROSS, NO.9

65303A

FRAME SUB-ASSY, FLOOR SIDE, RH

65304A

FRAME SUB-ASSY, FLOOR SIDE, LH

65307A

FRAME SUB-ASSY, FLOOR, REAR

65322

NAIL

65349

FENDER, FLOOR SIDE

65395

BRACKET, CENTER POST OUTER, RH

65396

BRACKET, CENTER POST OUTER, LH

6553

переход к группе запчастей

65865B

PIN, COVER TOP GUIDE

66207A

STEP SUB-ASSY, REAR BODY, RH

66207B

STEP SUB-ASSY, REAR BODY, LH

66225A

SUPPORT, BAFFLE RUBBER

66225B

SUPPORT, BUFFLE RUBBER

66241B

BAFFLE, RUBBER

66241C

BUFFLE, RUBBER

66259A

COVER, REAR BODY FLOOR, REAR

66271

STEP, REAR BODY

66311A

HOOK, ROPE, NO.1

66312A

HOOK, ROPE, NO.2

66312D

HOOK, ROPE, NO.2

66312E

HOOK, ROPE, NO.2

66312F

HOOK, ROPE, NO.2

66312G

HOOK, ROPE, NO.2

66315A

HOOK, ROPE

66321

BUMPER, GATE RUBBER

66321E

BUMPER, GATE RUBBER

9011908B66

Крепеж

9011910444

Крепеж

9014950065

Крепеж

9017910036

Крепеж

9155180820

Крепеж

91611G0820

Крепеж

9321016016

Крепеж

9354015016

Крепеж

9415080600

Крепеж

Код

Описание

66321E

BUMPER, GATE RUBBER

66321G

BUMPER, GATE RUBBER

66445B

BRACE, FRAME TO REAR BODY

66446B

BRACE, FRAME TO REAR BODY, NO.2

75139A

BRACKET, REFLEX REFLECTOR, RH

75149

BRACKET, REFLEX REFLECTOR, LH

8115

переход к группе запчастей

9321016016

Крепеж

REAR BODY FLOOR & FENDER TOYOTA DYNA/TOYOACE, 2021/03 - 2025, 4 литра, дизель, XZU722, автомат, АКПП, 6 скоростей
