Передние амортизаторы TOYOTA DYNA/TOYOACE, 2021/03 - 2025, 4 литра, дизель, XZU722, автомат, АКПП, 6 скоростей

Каталог

Япония

Модель

DYNA/TOYOACE

Двигатель

4 литра, дизель

Фрейм

XZU722

Трансмиссия

автомат АКПП, 6 скоростей

Опции

SINGLE CARBURETOR:SINGLE CAB (FULL JUST LOW) 3 тонны DOUBLE TIRE DCWDOCBU 878W

Код

Описание

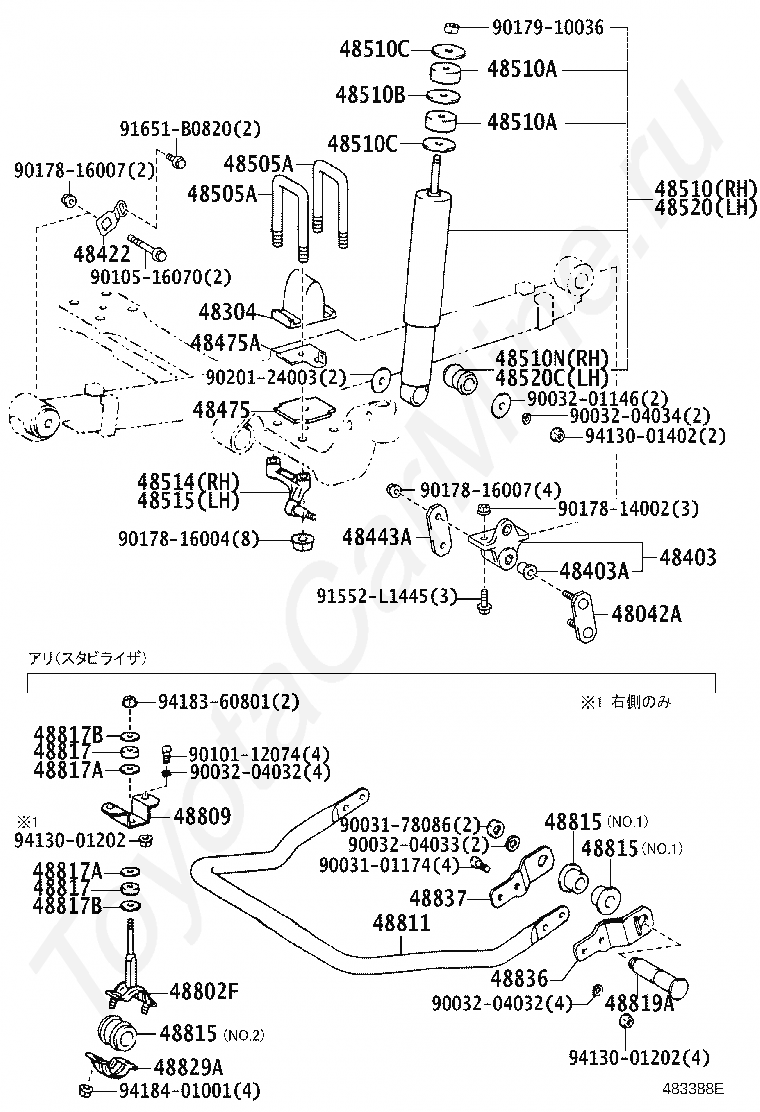

48042A

SHACKLE SUB-ASSY, FRONT SPRING, NO.2

48304

BUMPER SUB-ASSY, FRONT SPRING, NO.1

48403

BRACKET SUB-ASSY, SPRING, NO.2

48403A

BUSH(FOR SPRING BRACKET)

48422

SUPPORT, FRONT SPRING PIN

48443A

PLATE, FORNT SPRING SHACKLE, OUTER

48475

PLATE, DISTANCE(FOR FRONT)

48475A

PLATE, DISTANCE NO.2(FOR FRONT)

48505A

BOLT, U(FOR FRONT SPRING)

48510

ABSORBER ASSY, SHOCK, FRONT RH

48510A

CUSHION, FRONT SHOCK ABSORBER

48510B

RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

48510C

RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

48510N

BUSH(FOR FRONT SHOCK ABSORBER RH)

48514

BRACKET, FRONT SHOCK ABSORBER, LOWER RH

48515

BRACKET, FRONT SHOCK ABSORBER, LOWER LH

48520

ABSORBER ASSY, SHOCK, FRONT LH

48520C

BUSH(FOR FRONT SHOCK ABSORBER LH)

48802F

LINK SUB-ASSY, FRONT STABILIZER

48809

BRACKET SUB-ASSY, STABILIZER

48811

BAR, STABILIZER, FRONT

48815

BUSH, FRONT STABILIZER BAR, NO.1

48817

CUSHION, FRONT STABILIZER

48817A

RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

48817B

RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

48819A

BOLT, FRONT STABILIZER

48829A

BRACKET, FRONT STABILIZER, NO.1 LH

48836

BRACKET, FRONT STABILIZER END, RH

48837

BRACKET, FRONT STABILIZER END, LH

9003101174

Крепеж

9003178086

Крепеж

9003201146

Крепеж

9003204032

Крепеж

9003204033

Крепеж

9003204034

Крепеж

9010112074

Крепеж

9010516070

Крепеж

9017814002

Крепеж

9017816004

Крепеж

9017816007

Крепеж

9017910036

Крепеж

9020124003

Крепеж

91552L1445

Крепеж

91651B0820

Крепеж

9413001202

Крепеж

9413001402

Крепеж

9418360801

Крепеж

9418401001

Крепеж

Код

Описание

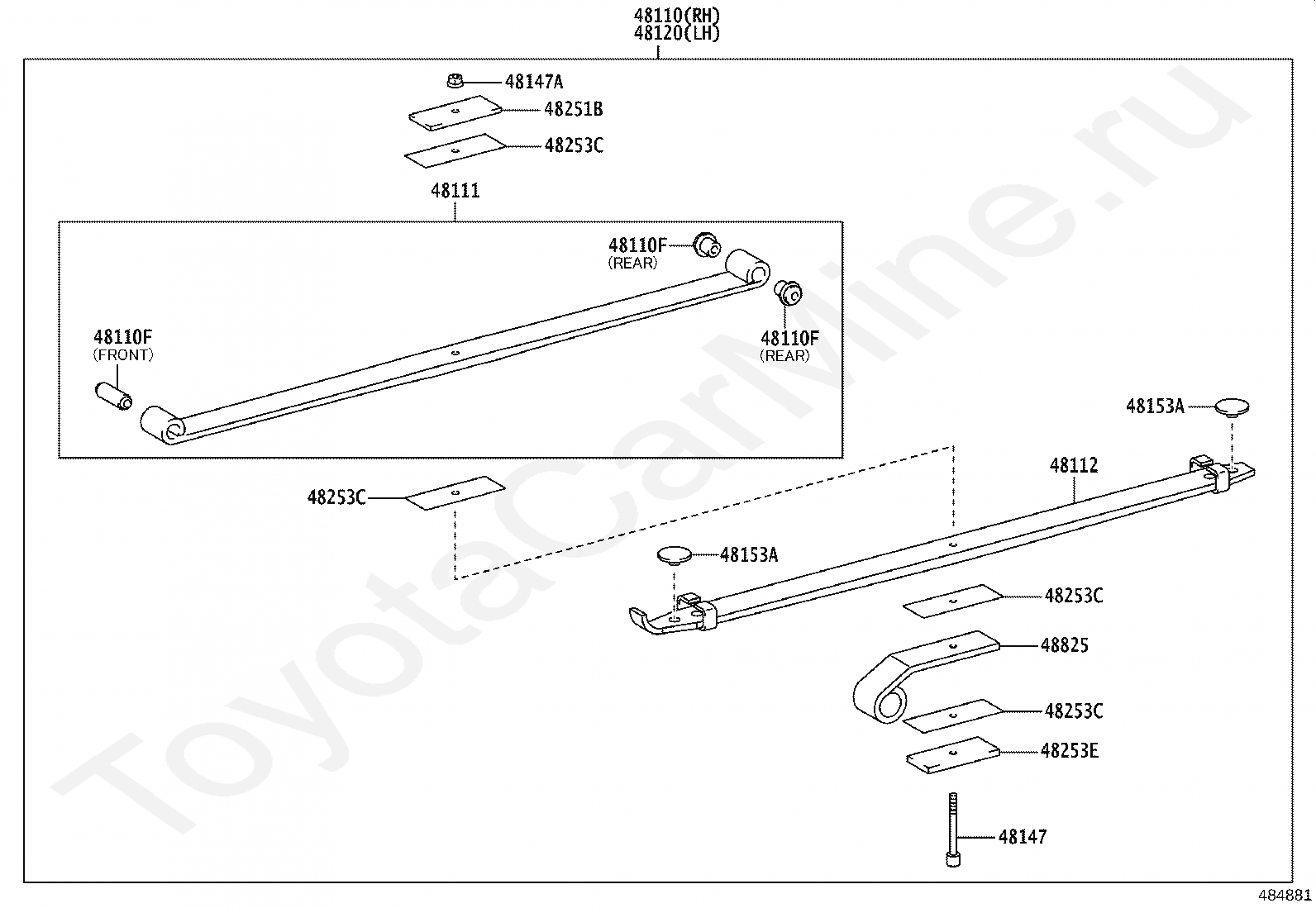

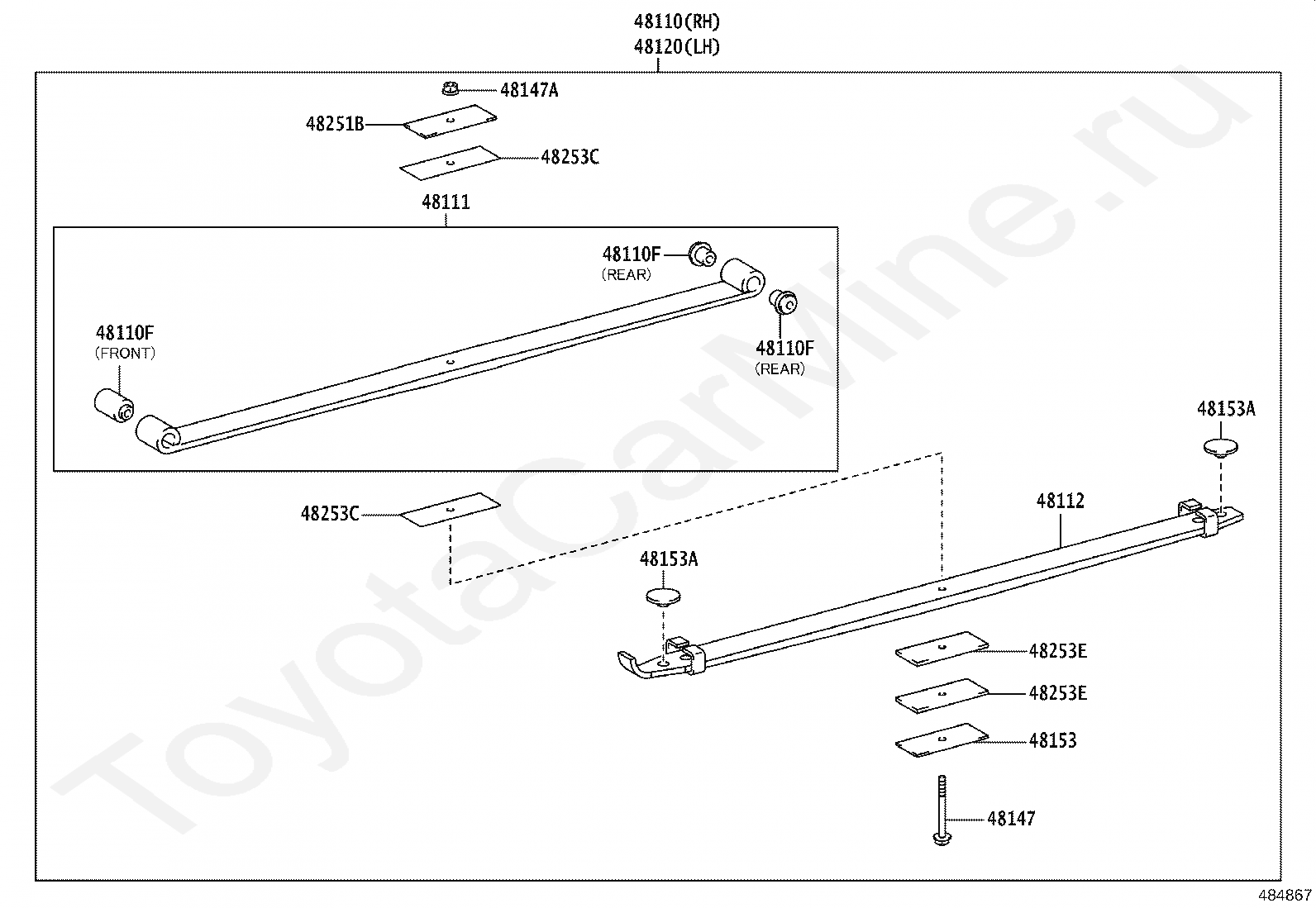

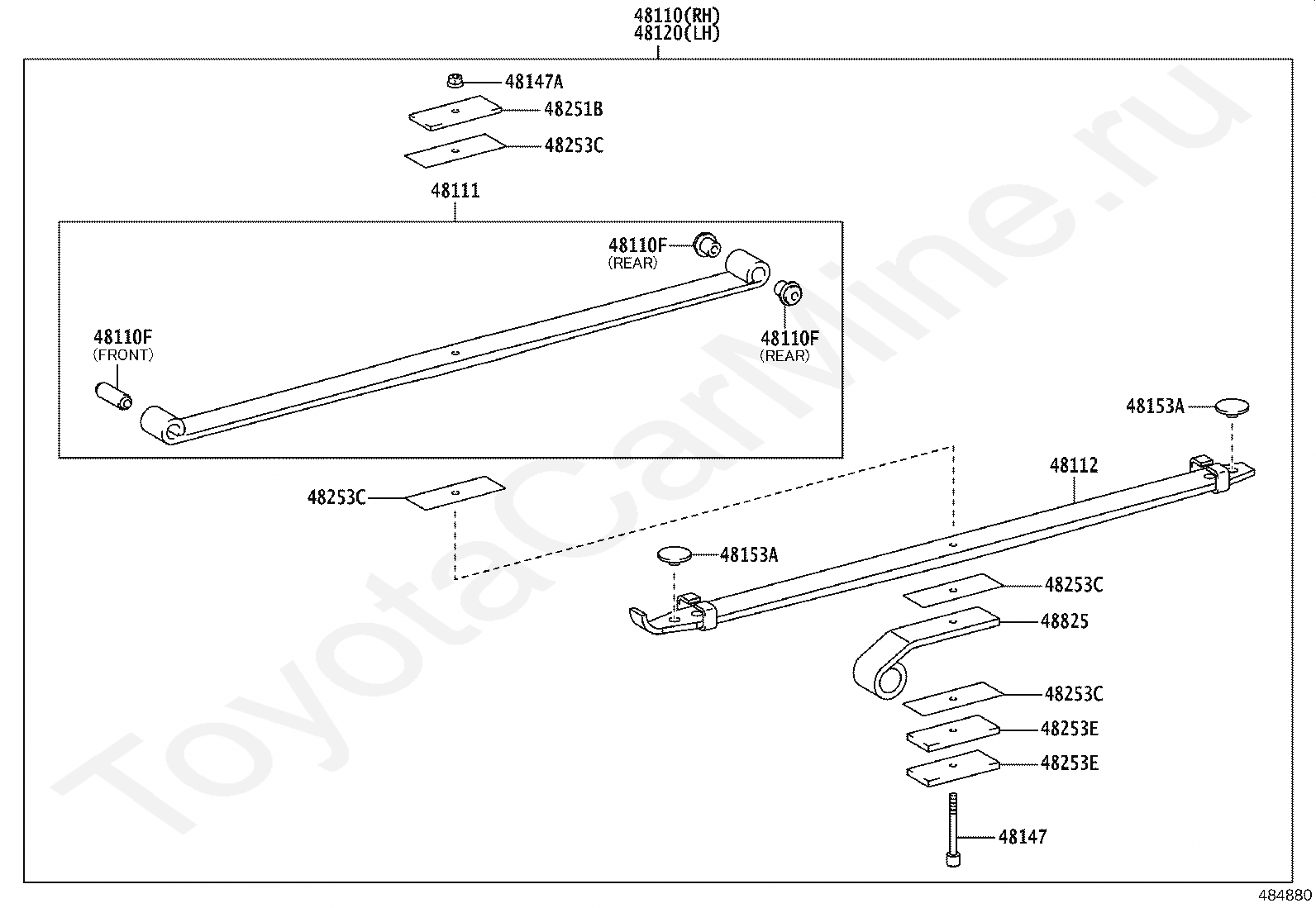

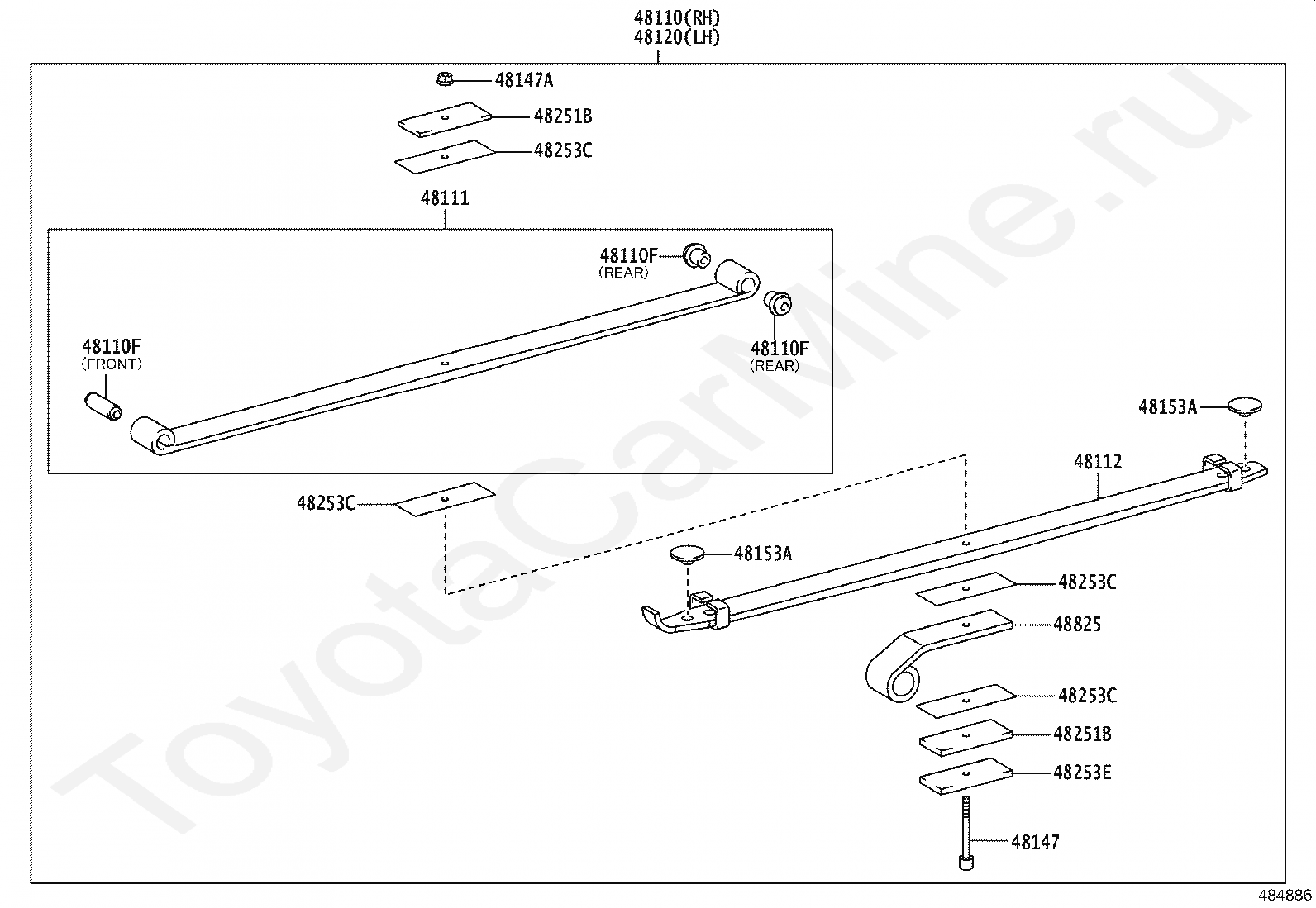

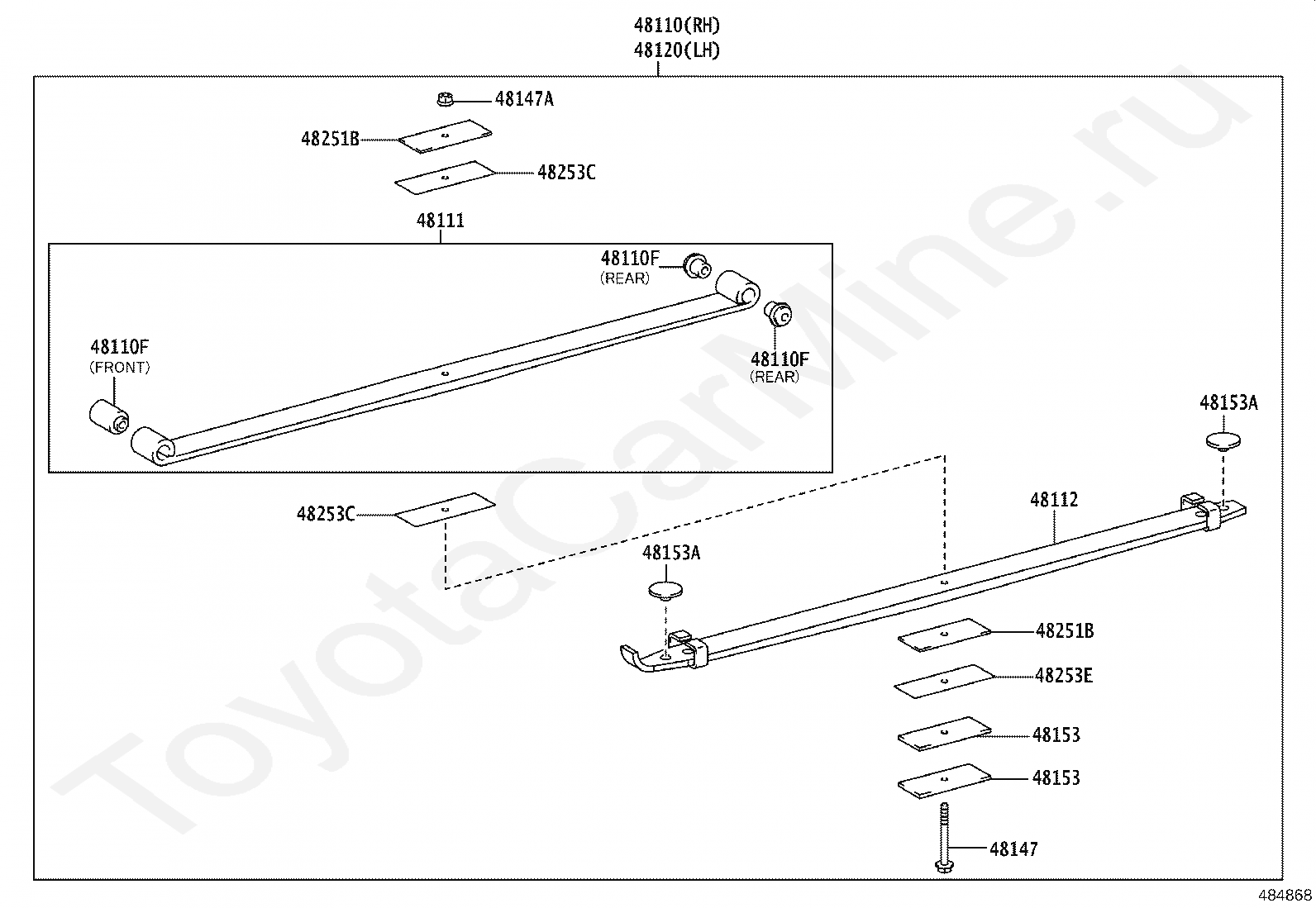

48110

SPRING ASSY, FRONT, RH

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48111

LEAF, FRONT SPRING, NO.1

48112

LEAF, FRONT SPRING, NO.2

48120

SPRING ASSY, FRONT, LH

48147

BOLT, FRONT SPRING, CENTER

48147A

NUT, FRONT SPRING CENTER BOLT

48153

SPACER, FRONT LEAF SPRING, NO.1

48153A

SILENCER, FRONT SPRING, NO.1

48251B

SPACER(FOR FRONT SPRING)

48253C

SPACER, FRONT LEAF SPRING, NO.2

48253E

SPACER, FRONT SPRING, NO.3

Код

Описание

48110

SPRING ASSY, FRONT, RH

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48111

LEAF, FRONT SPRING, NO.1

48112

LEAF, FRONT SPRING, NO.2

48120

SPRING ASSY, FRONT, LH

48147

BOLT, FRONT SPRING, CENTER

48147A

NUT, FRONT SPRING CENTER BOLT

48153

SPACER, FRONT LEAF SPRING, NO.1

48153A

SILENCER, FRONT SPRING, NO.1

48251B

SPACER(FOR FRONT SPRING)

48253C

SPACER, FRONT LEAF SPRING, NO.2

48253E

SPACER, FRONT SPRING, NO.3

Код

Описание

48110

SPRING ASSY, FRONT, RH

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48111

LEAF, FRONT SPRING, NO.1

48112

LEAF, FRONT SPRING, NO.2

48120

SPRING ASSY, FRONT, LH

48147

BOLT, FRONT SPRING, CENTER

48147A

NUT, FRONT SPRING CENTER BOLT

48153A

SILENCER, FRONT SPRING, NO.1

48251B

SPACER(FOR FRONT SPRING)

48253C

SPACER, FRONT LEAF SPRING, NO.2

48253E

SPACER, FRONT SPRING, NO.3

48825

BRACKET, STABILIZER, NO.2

Код

Описание

48110

SPRING ASSY, FRONT, RH

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48111

LEAF, FRONT SPRING, NO.1

48112

LEAF, FRONT SPRING, NO.2

48120

SPRING ASSY, FRONT, LH

48147

BOLT, FRONT SPRING, CENTER

48147A

NUT, FRONT SPRING CENTER BOLT

48153A

SILENCER, FRONT SPRING, NO.1

48251B

SPACER(FOR FRONT SPRING)

48253C

SPACER, FRONT LEAF SPRING, NO.2

48253E

SPACER, FRONT SPRING, NO.3

48825

BRACKET, STABILIZER, NO.2

Код

Описание

48110

SPRING ASSY, FRONT, RH

48110F

BIMETAL FORMED BUSH(FOR FRONT SPRING)

48111

LEAF, FRONT SPRING, NO.1

48112

LEAF, FRONT SPRING, NO.2

48120

SPRING ASSY, FRONT, LH

48147

BOLT, FRONT SPRING, CENTER

48147A

NUT, FRONT SPRING CENTER BOLT

48153A

SILENCER, FRONT SPRING, NO.1

48251B

SPACER(FOR FRONT SPRING)

48253C

SPACER, FRONT LEAF SPRING, NO.2

48253E

SPACER, FRONT SPRING, NO.3

48825

BRACKET, STABILIZER, NO.2
