Каталог
ЯпонияМодель
DYNA/TOYOACEДвигатель
4 литра, дизельФрейм
XZU722Трансмиссия
автомат АКПП, 6 скоростейОпции
SINGLE CARBURETOR:SINGLE CAB (FULL JUST LOW) 3 тонны DOUBLE TIRE DCWDOCBU 878W

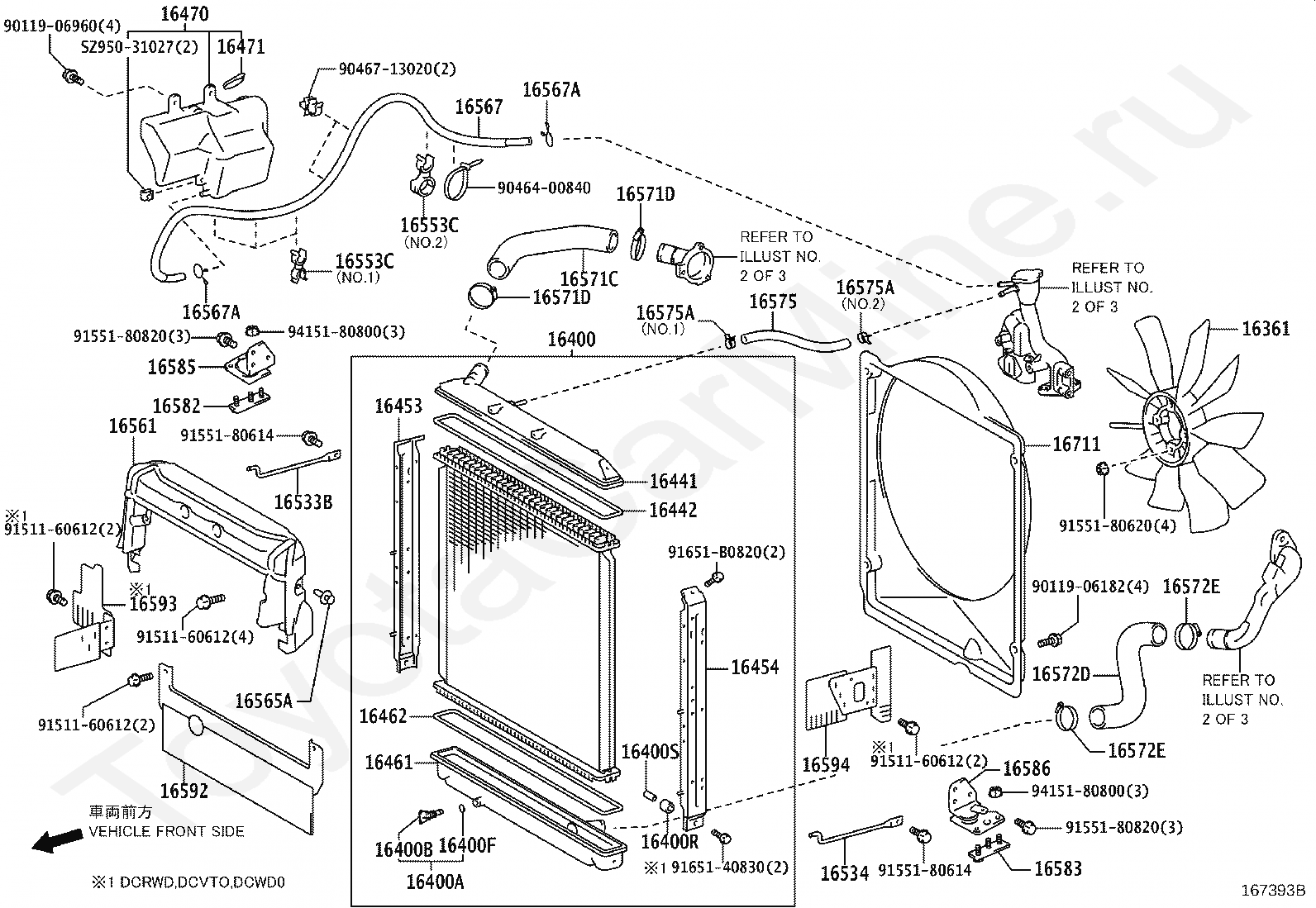

Код
Описание
16361
FAN
16400
RADIATOR ASSY
16400A
COCK SUB-ASSY, RADIATOR DRAIN
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16400R
BUSHING(FOR RADIATOR)
16400S
COLLAR(FOR RADIATOR)
16441
TANK, RADIATOR, UPPER
16442
RING, O(FOR RADIATOR UPPER TANK)
16453
PLATE, RADIATOR SIDE
16454
PLATE, RADIATOR SIDE
16461
TANK, RADIATOR, LOWER
16462
RING, O(FOR RADIATOR LOWER TANK)
16470
TANK ASSY, RADIATOR RESERVE
16471
CAP SUB-ASSY, RESERVE TANK
16533B
SUPPORT, RADIATOR, NO.1
16534
SUPPORT, RADIATOR, NO.2
16553C
CLAMP, HOSE
16561
SEAL, RADIATOR TO SUPPORT, NO.1
16565A
CLIP
16567
HOSE(FOR RADIATOR RESERVE TANK)
16567A
CLIP(FOR RADIATOR RESERVE TANK HOSE)
16571C
HOSE, RADIATOR, NO.1
16571D
CLIP, RADIATOR HOSE, NO.1
16572D
HOSE, RADIATOR, NO.2
16572E
CLIP, RADIATOR HOSE, NO.2
16575
HOSE, RADIATOR, NO.5
16575A
CLIP, RADIATOR HOSE, NO.5
16582
BRACKET, RADIATOR, NO.1
16583
BRACKET, RADIATOR, NO.2
16585
BRACKET, RADIATOR, NO.3
16586
BRACKET, RADIATOR, NO.4
16592
GUIDE, RADIATOR AIR, NO.3
16593
GUIDE, RADIATOR AIR, NO.1
16594
GUIDE, RADIATOR AIR, NO.2
16711
SHROUD, FAN
9011906182
Крепеж
9011906960
Крепеж
9046400840
Крепеж
9046713020
Крепеж
9151160612
Крепеж
9155180614
Крепеж
9155180620
Крепеж
9155180820
Крепеж
9165140830
Крепеж
91651B0820
Крепеж
9415180800
Крепеж
SZ95031027
Крепеж

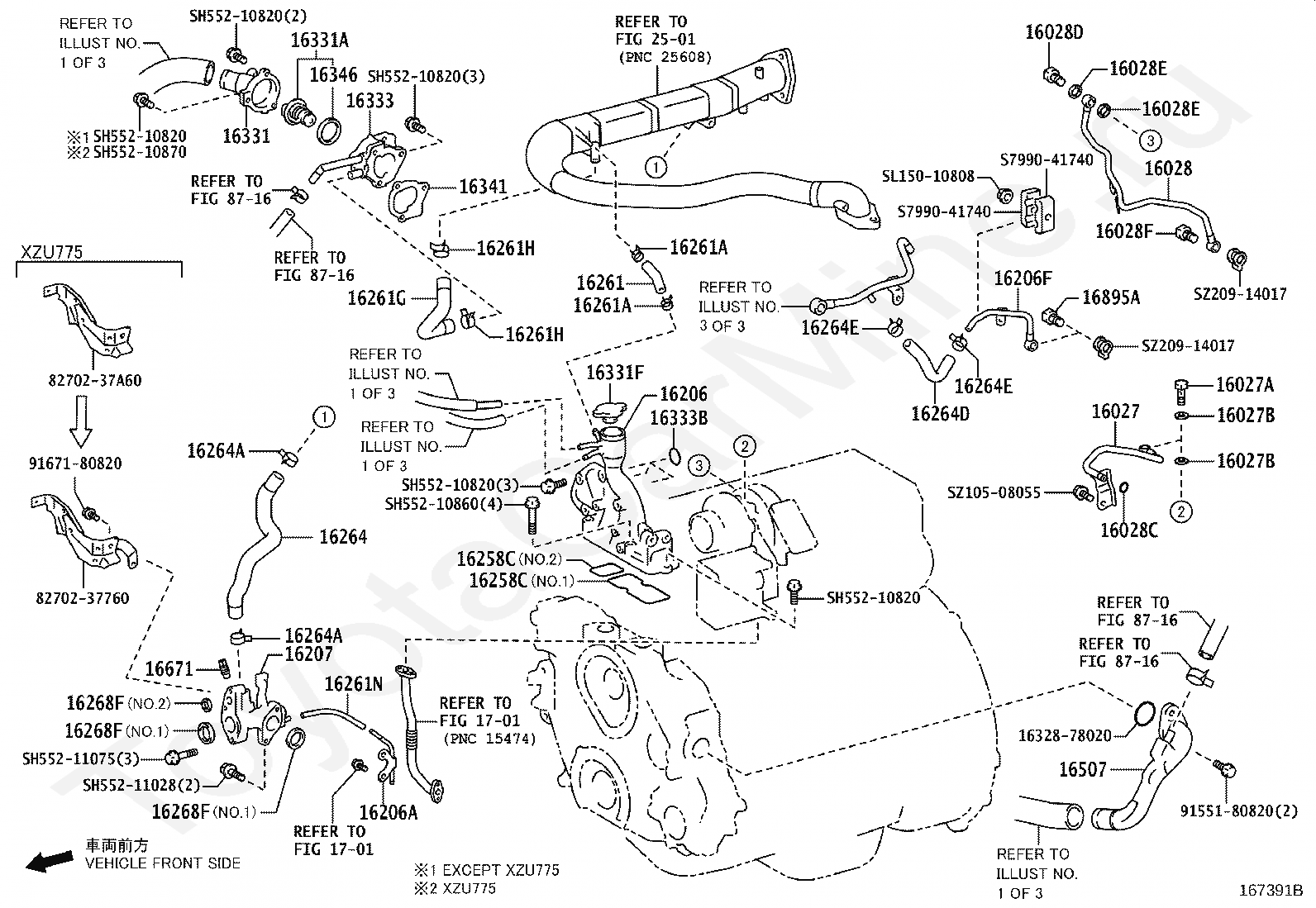

Код
Описание
16027
PIPE SUB-ASSY, TURBO WATER, NO.1
16027A
BOLT, UNION(FOR TURBO WATER PIPE)
16027B
GASKET(FOR TURBO WATER PIPE)
16028
PIPE SUB-ASSY, TURBO WATER, NO.2
16028C
RING, O(FOR TURBO WATER PIPE)
16028D
BOLT, UNION, NO.1(FOR TURBO WATER PIPE)
16028E
GASKET, NO.1(FOR TURBO WATER PIPE)
16028F
BOLT, UNION, NO.2(FOR TURBO WATER PIPE)
16206
PIPE SUB-ASSY, WATER BY-PASS
16206A
PIPE SUB-ASSY, WATER BY-PASS, NO.2
16206F
PIPE SUB-ASSY, WATER BY-PASS, NO.4
16207
PIPE SUB-ASSY, WATER BY-PASS, NO.2
16258C
GASKET(FOR WATER BY-PASS PIPE)
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16261G
HOSE, WATER BY-PASS, NO.1
16261H
CLIP(FOR WATER BY-PASS HOSE NO.1)
16261N
HOSE, WATER BY-PASS, NO.2
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16264D
HOSE, WATER BY-PASS, NO.2
16264E
CLIP(FOR WATER BY-PASS HOSE NO.2)
16268F
RING, O(FOR WATER BY-PASS PIPE)
1632878020
Крепеж
16331
OUTLET, WATER
16331A
THERMOSTAT
16331F
CAP SUB-ASSY(FOR WATER OUTLET)
16333
HOUSING, WATER OUTLET
16333B
RING, O(FOR WATER OUTLET HOUSING)
16341
GASKET, WATER OUTLET
16346
GASKET, THERMOSTAT
16507
PIPE SUB-ASSY, RADIATOR
16671
VALVE, WATER
16895A
BOLT, UNION(FOR TURBO WATER PIPE NO.1)
1701
переход к группе запчастей
2501
переход к группе запчастей
8270237760
Крепеж
8270237A60
Крепеж
8716
переход к группе запчастей
9155180820
Крепеж
9167180820
Крепеж
S799041740
Крепеж
SH55210820
Крепеж
SH55210860
Крепеж
SH55210870
Крепеж
SH55211028
Крепеж
SH55211075
Крепеж
SL15010808
Крепеж
SZ10508055
Крепеж
SZ20914017
Крепеж

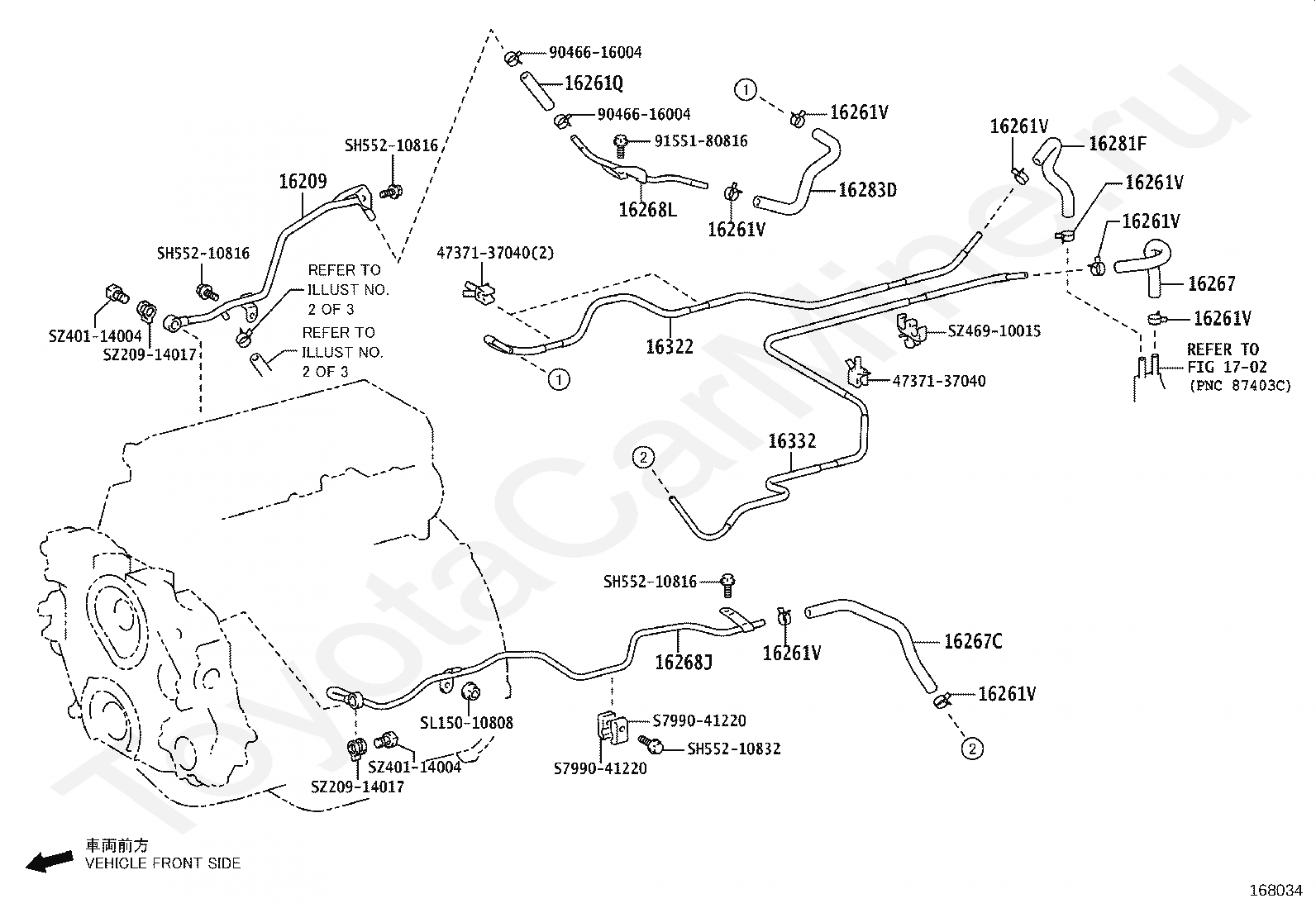

Код
Описание
16209
PIPE SUB-ASSY, WATER BY-PASS, NO.4
16261Q
HOSE, WATER BY-PASS
16261V
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16267
HOSE, WATER BY-PASS, NO.3
16267C
HOSE, WATER BY-PASS, NO.4
16268J
PIPE, WATER BY-PASS, NO.5
16268L
PIPE, WATER BY-PASS
16281F
HOSE, WATER BY-PASS, NO.5
16283D
HOSE, WATER BY-PASS, NO.6
16322
PIPE, WATER INLET
16332
PIPE, WATER OUTLET, NO.1
1702
переход к группе запчастей
4737137040
Крепеж
9046616004
Крепеж
9155180816
Крепеж
S799041220
Крепеж
SH55210816
Крепеж
SH55210832
Крепеж
SL15010808
Крепеж
SZ20914017
Крепеж
SZ40114004
Крепеж
SZ46910015
Крепеж
