ЕвропаМодель
DYNA200Двигатель
3,7 литра, дизельФрейм
BU141Опции
левый руль HIGH FLAT DECK OPENING ON THREE SIDES DOUBLE TIRE грузоподъемность 2,5 тонны DSL GEN IV3 TB

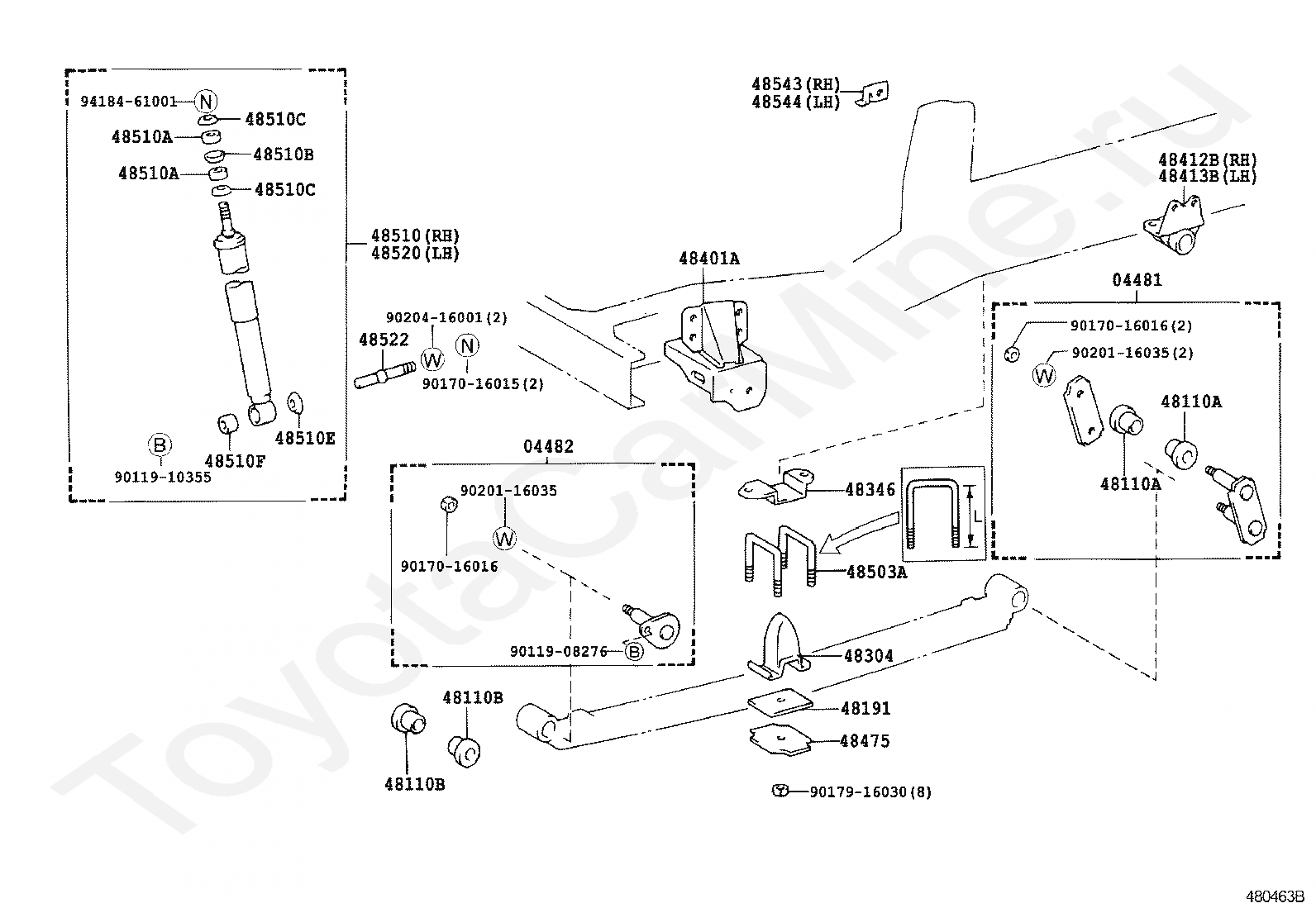

Код
Описание
04481
SHACKLE KIT, FRONT SPRING
04482
PIN KIT, FRONT SPRING
48110A
BUSH(FOR FRONT SPRING SHACKLE)
48110B
BUSH(FOR FRONT SPRING PIN)
48191
WEDGE, CASTER(FOR FRONT LEAF SPRING)
48304
BUMPER SUB-ASSY, FRONT SPRING, NO.1
48346
STOPPER, BUMPER, FRONT
48401A
BRACKET SUB-ASSY, SPRING, NO.1
48412B
BRACKET, SPRING, NO.2 RH
48413B
BRACKET, SPRING, NO.2 LH
48475
PLATE, DISTANCE(FOR FRONT)
48503A
BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)
48510
ABSORBER ASSY, SHOCK, FRONT RH
48510A
CUSHION, FRONT SHOCK ABSORBER
48510B
RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510C
RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48510E
WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2
48510F
CUSHION, SHOCK ABSORBER
48520
ABSORBER ASSY, SHOCK, FRONT LH
48522
PIN, FRONT SHOCK ABSORBER LOWER PIVOT
48543
REINFORCEMENT, FRONT ABSORBER BRACKET, RH
48544
REINFORCEMENT, FRONT ABSORBER BRACKET, LH
9011908276
Крепеж
9011910355
Крепеж
9017016015
Крепеж
9017016016
Крепеж
9017916030
Крепеж
9020116035
Крепеж
9020416001
Крепеж
9418461001
Крепеж

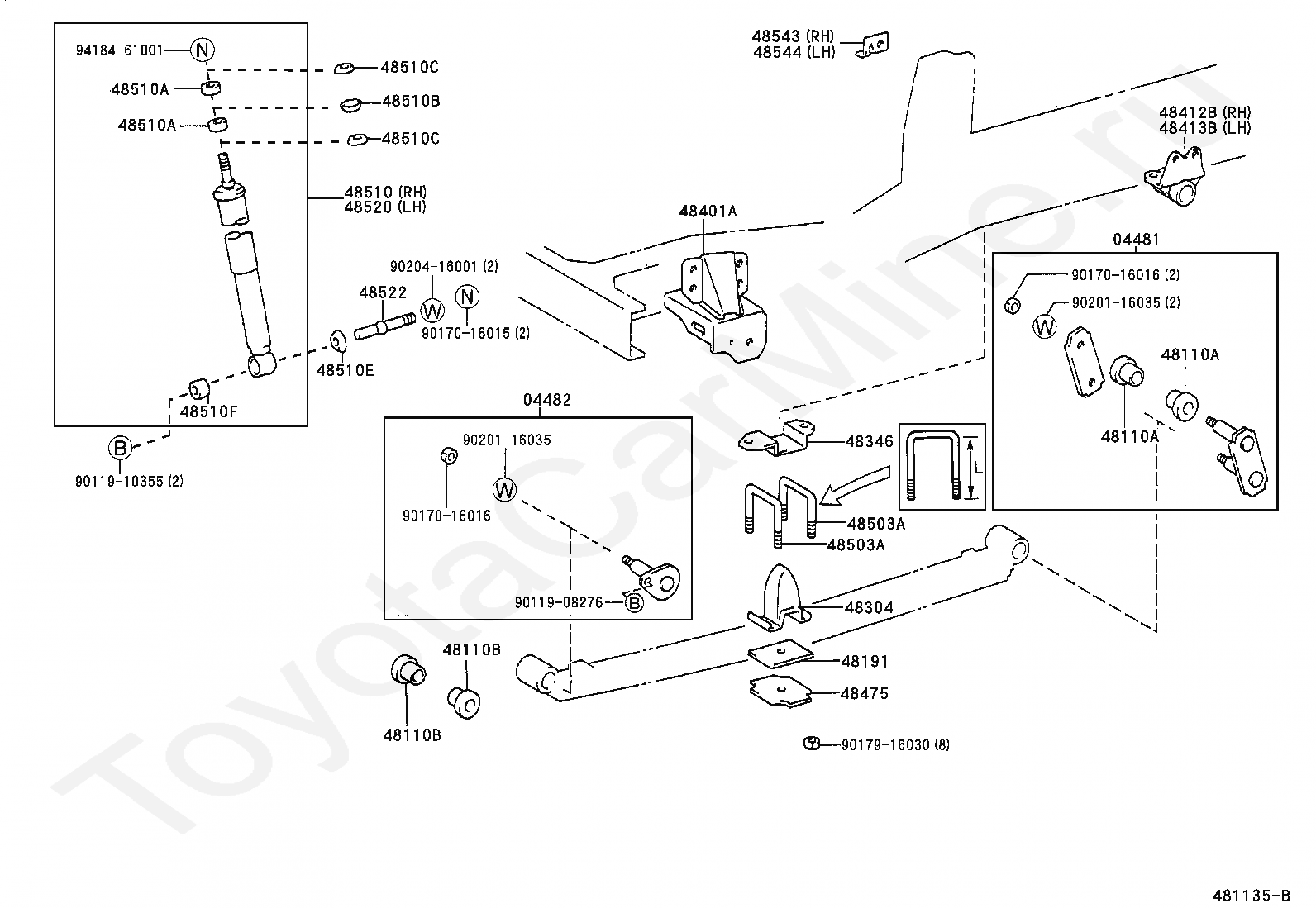

Код
Описание
04481
SHACKLE KIT, FRONT SPRING
04482
PIN KIT, FRONT SPRING
48110A
BUSH(FOR FRONT SPRING SHACKLE)
48110B
BUSH(FOR FRONT SPRING PIN)
48191
WEDGE, CASTER(FOR FRONT LEAF SPRING)
48304
BUMPER SUB-ASSY, FRONT SPRING, NO.1
48346
STOPPER, BUMPER, FRONT
48401A
BRACKET SUB-ASSY, SPRING, NO.1
48412B
BRACKET, SPRING, NO.2 RH
48413B
BRACKET, SPRING, NO.2 LH
48475
PLATE, DISTANCE(FOR FRONT)
48503A
BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)
48510
ABSORBER ASSY, SHOCK, FRONT RH
48510A
CUSHION, FRONT SHOCK ABSORBER
48510B
RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510C
RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48510E
WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2
48510F
CUSHION, SHOCK ABSORBER
48520
ABSORBER ASSY, SHOCK, FRONT LH
48522
PIN, FRONT SHOCK ABSORBER LOWER PIVOT
48543
REINFORCEMENT, FRONT ABSORBER BRACKET, RH
48544
REINFORCEMENT, FRONT ABSORBER BRACKET, LH
9011908276
Крепеж
9011910355
Крепеж
9017016015
Крепеж
9017016016
Крепеж
9017916030
Крепеж
9020116035
Крепеж
9020416001
Крепеж
9418461001
Крепеж

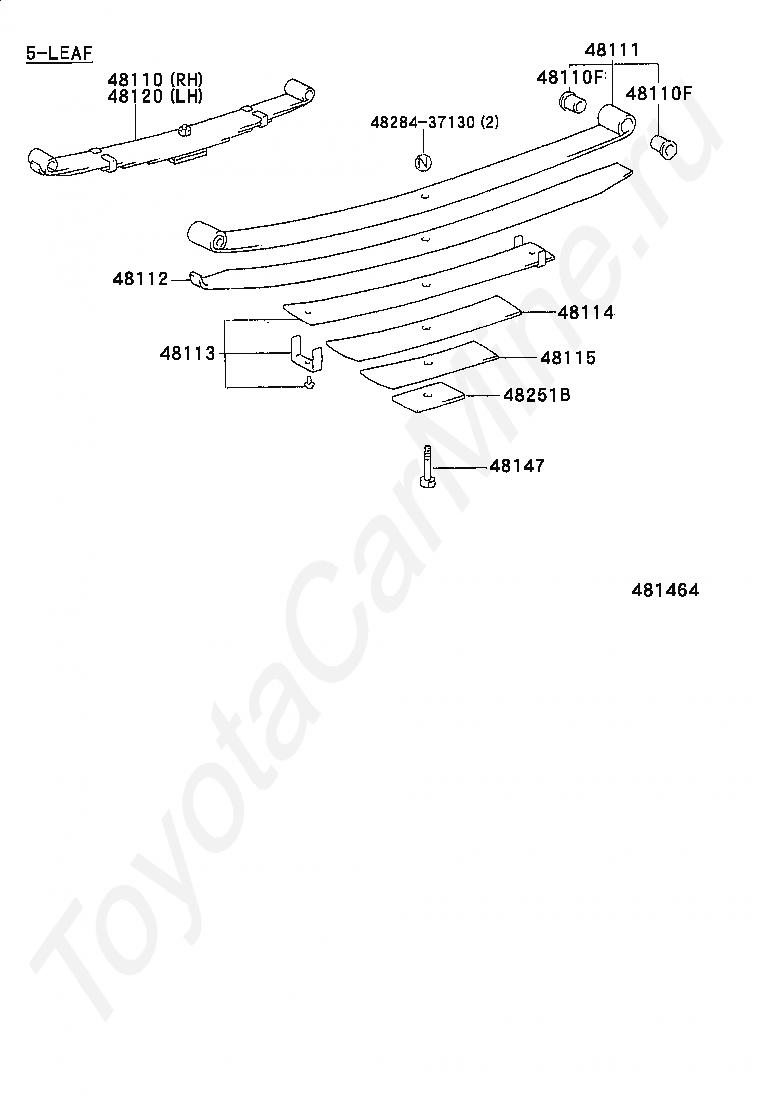

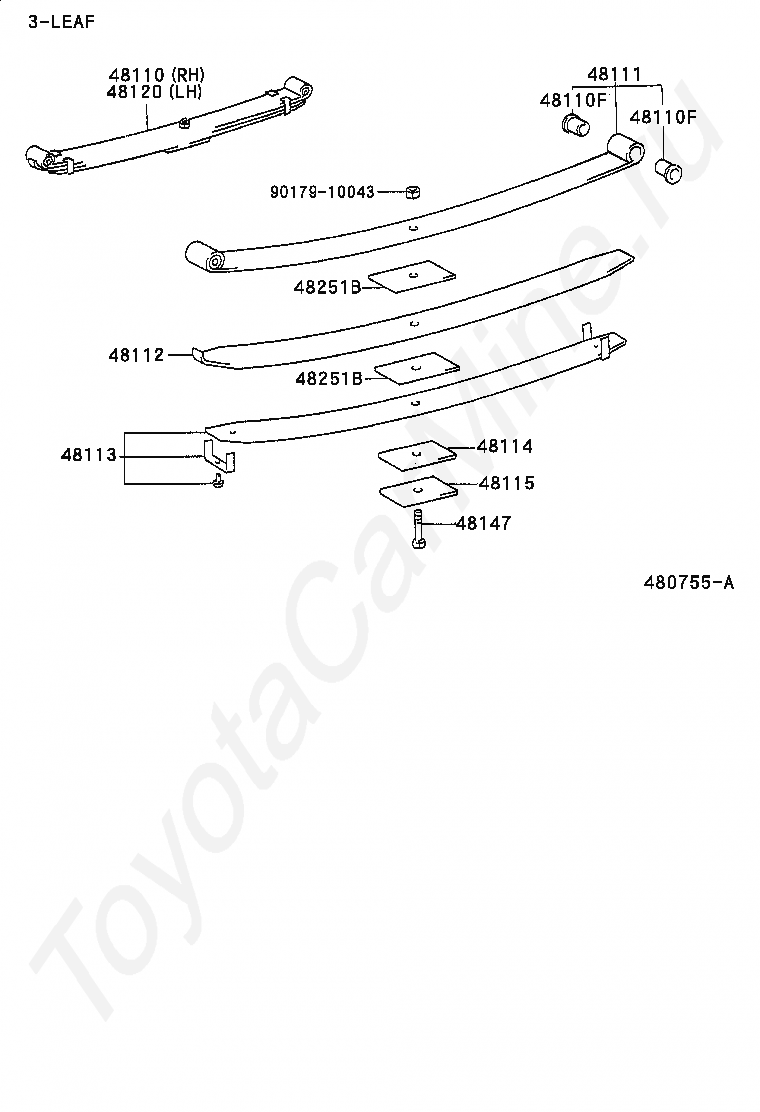

Код
Описание
48110
SPRING ASSY, FRONT, RH
48110F
BIMETAL FORMED BUSH(FOR FRONT SPRING)
48111
LEAF, FRONT SPRING, NO.1
48112
LEAF, FRONT SPRING, NO.2
48113
LEAF, FRONT SPRING, NO.3
48114
LEAF, FRONT SPRING, NO.4
48115
LEAF, FRONT SPRING, NO.5
48120
SPRING ASSY, FRONT, LH
48147
BOLT, FRONT SPRING, CENTER
48251B
SPACER(FOR FRONT SPRING)
9017910043
Крепеж

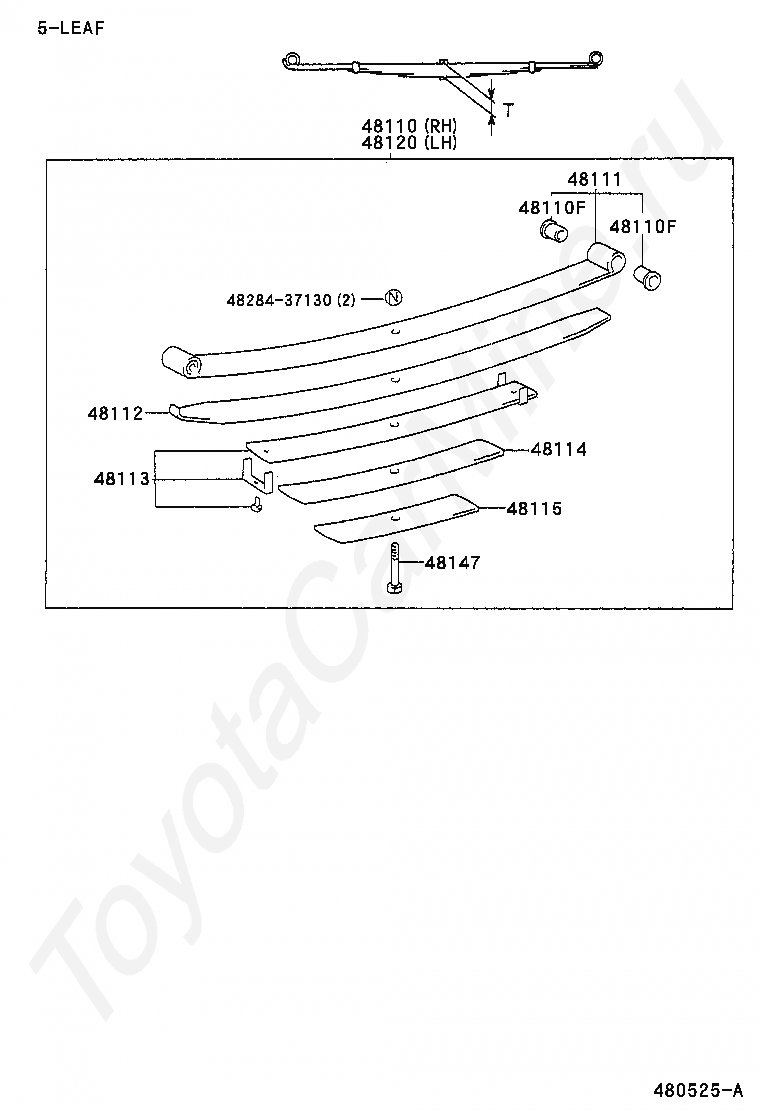

Код
Описание
48110
SPRING ASSY, FRONT, RH
48110F
BIMETAL FORMED BUSH(FOR FRONT SPRING)
48111
LEAF, FRONT SPRING, NO.1
48112
LEAF, FRONT SPRING, NO.2
48113
LEAF, FRONT SPRING, NO.3
48114
LEAF, FRONT SPRING, NO.4
48115
LEAF, FRONT SPRING, NO.5
48120
SPRING ASSY, FRONT, LH
48147
BOLT, FRONT SPRING, CENTER
4828437130
Крепеж
Код
Описание
48110
SPRING ASSY, FRONT, RH
48110F
BIMETAL FORMED BUSH(FOR FRONT SPRING)
48111
LEAF, FRONT SPRING, NO.1
48112
LEAF, FRONT SPRING, NO.2
48113
LEAF, FRONT SPRING, NO.3
48114
LEAF, FRONT SPRING, NO.4
48115
LEAF, FRONT SPRING, NO.5
48120
SPRING ASSY, FRONT, LH
48147
BOLT, FRONT SPRING, CENTER
48251B
SPACER(FOR FRONT SPRING)
4828437130
Крепеж

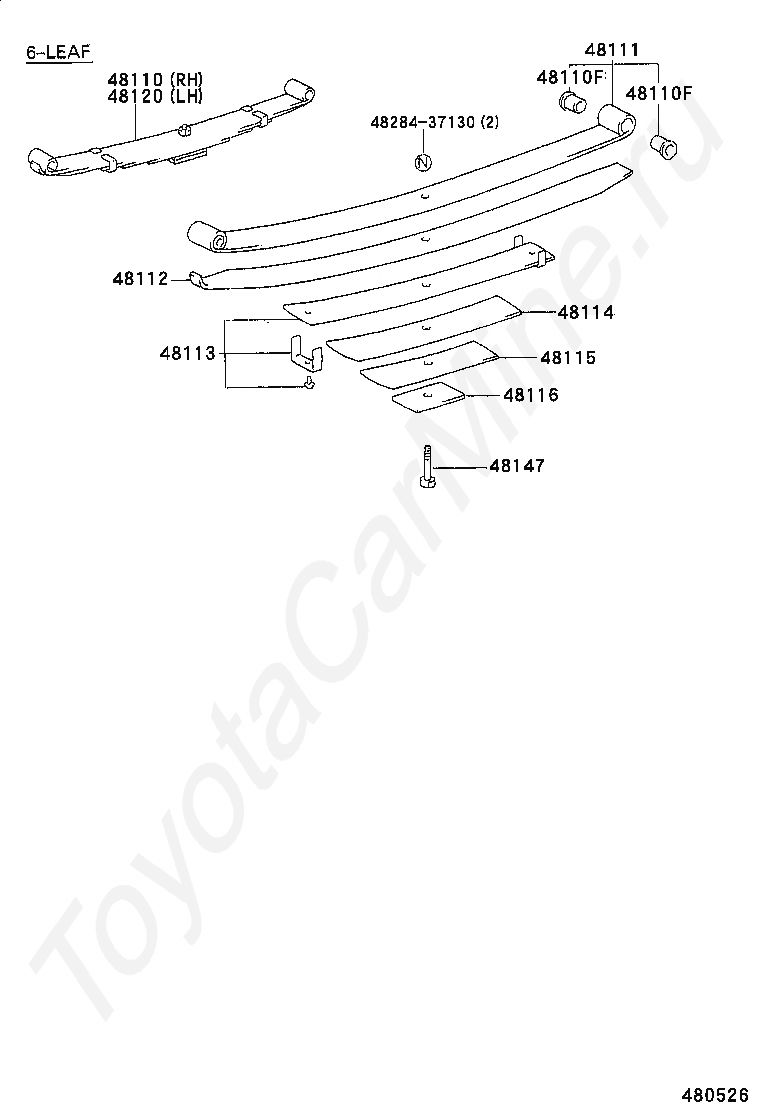

Код
Описание
48110
SPRING ASSY, FRONT, RH
48110F
BIMETAL FORMED BUSH(FOR FRONT SPRING)
48111
LEAF, FRONT SPRING, NO.1
48112
LEAF, FRONT SPRING, NO.2
48113
LEAF, FRONT SPRING, NO.3
48114
LEAF, FRONT SPRING, NO.4
48115
LEAF, FRONT SPRING, NO.5
48116
LEAF, FRONT SPRING, NO.6
48120
SPRING ASSY, FRONT, LH
48147
BOLT, FRONT SPRING, CENTER
4828437130
Крепеж
