Рулевая рейка и наконечники TOYOTA DYNA200, 1995/05 - 2002/12, 3,7 литра, дизель, BU141

Каталог

Европа

Модель

DYNA200

Двигатель

3,7 литра, дизель

Фрейм

BU141

Опции

левый руль HIGH FLAT DECK OPENING ON THREE SIDES DOUBLE TIRE грузоподъемность 2,5 тонны DSL GEN IV3 TB

Код

Описание

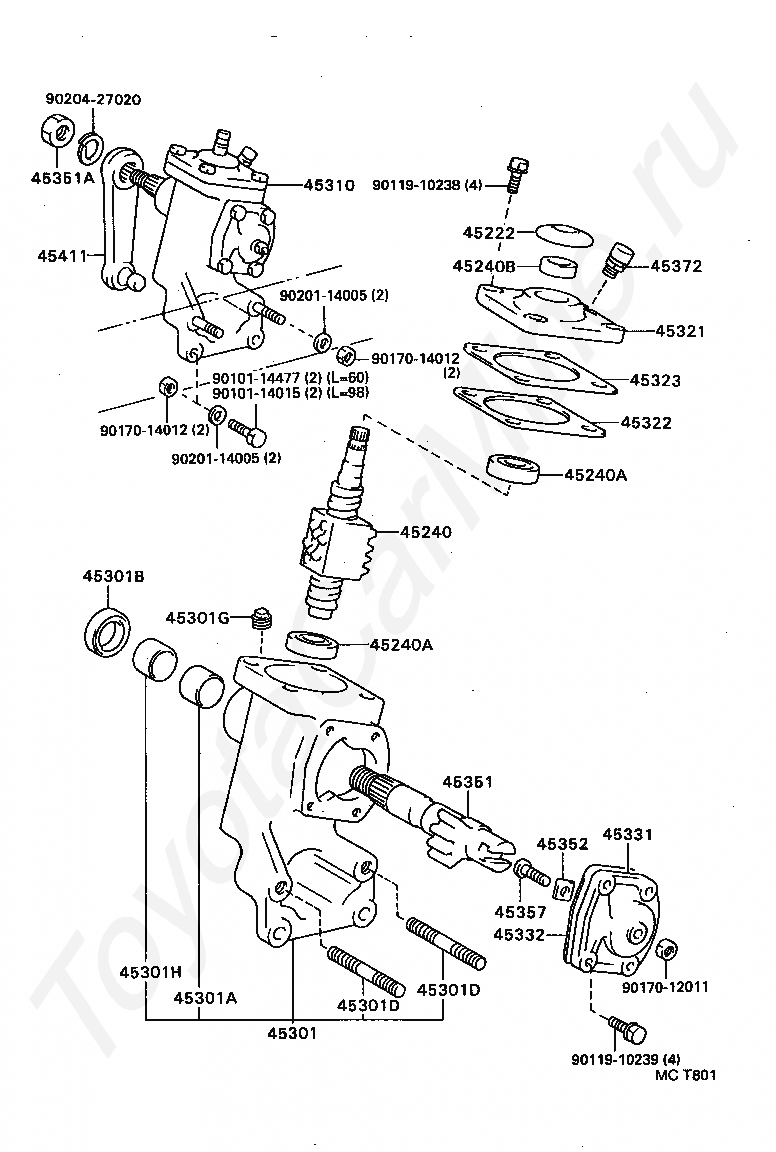

45222

COVER, STEERING GEAR DUST

45240

WORM ASSY, STEERING

45240A

BEARING(FOR STEERING WORM)

45240B

SEAL, OIL(FOR STEERING WORM)

45301

HOUSING SUB-ASSY, STEERING GEAR

45301A

BUSH OR BEARING, SECTOR SHAFT, NO.1

45301B

SEAL, OIL(FOR SECTOR SHAFT)

45301D

BOLT, STUD(FOR STEERING GEAR HOUSING)

45301G

PLUG, STEERING GEAR BOX OIL

45301H

BUSH OR BEARING, SECTOR SHAFT, NO.2

45310

HOUSING ASSY, STEERING GEAR

45321

COVER, GEAR HOUSING END

45322

GASKET, GEAR HOUSING END COVER

45323

SHIM, GEAR HOUSING END COVER

45331

COVER, SECTOR SHAFT END

45332

GASKET, SECTOR SHAFT END COVER

45351

SHAFT, STEERING SECTOR

45351A

NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

45352

WASHER, SECTOR SHAFT THRUST

45357

SCREW, SECTOR SHAFT ADJUSTING

45372

PLUG, STEERING GEAR HOUSING OIL

45411

ARM, PITMAN

9010114015

Крепеж

9010114477

Крепеж

9011910238

Крепеж

9011910239

Крепеж

9017012011

Крепеж

9017014012

Крепеж

9020114005

Крепеж

9020427020

Крепеж

Код

Описание

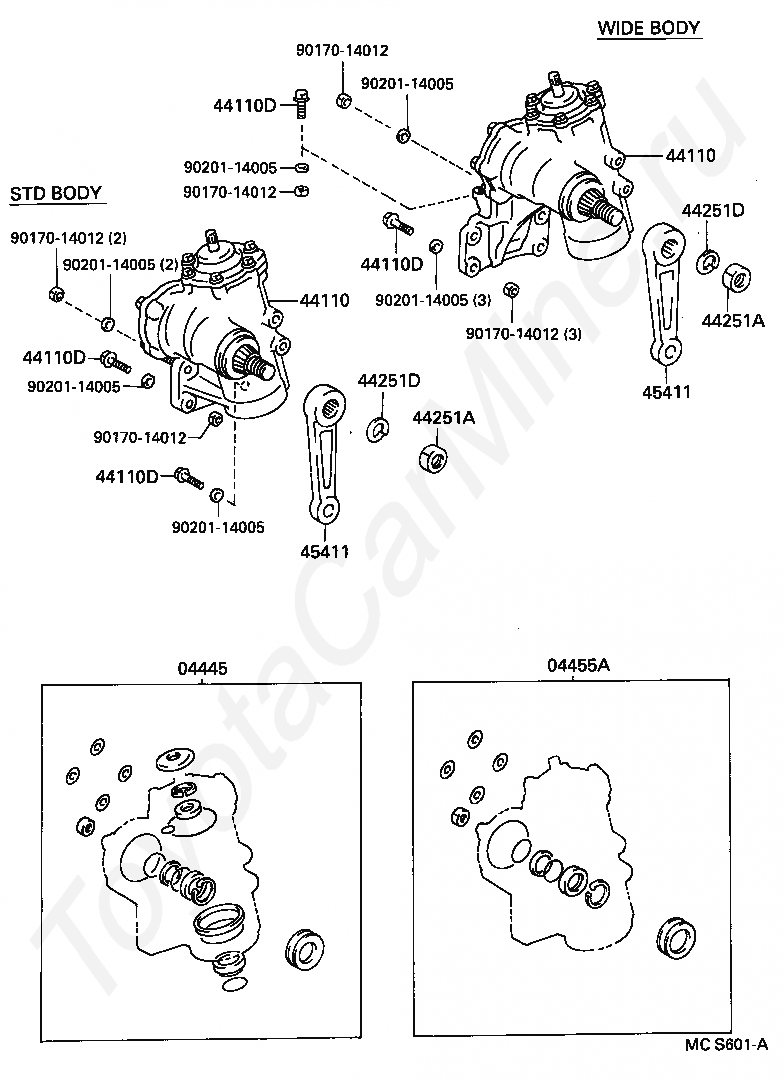

04445

GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

04455A

GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE

44110

GEAR ASSY, POWER STEERING

44110D

BOLT(FOR POWER STEERING GEAR)

44251A

NUT, CASTLE(FOR PITMAN ARM)

44251D

WASHER(FOR PITMAN ARM)

45411

ARM, PITMAN

9017014012

Крепеж

9020114005

Крепеж

Код

Описание

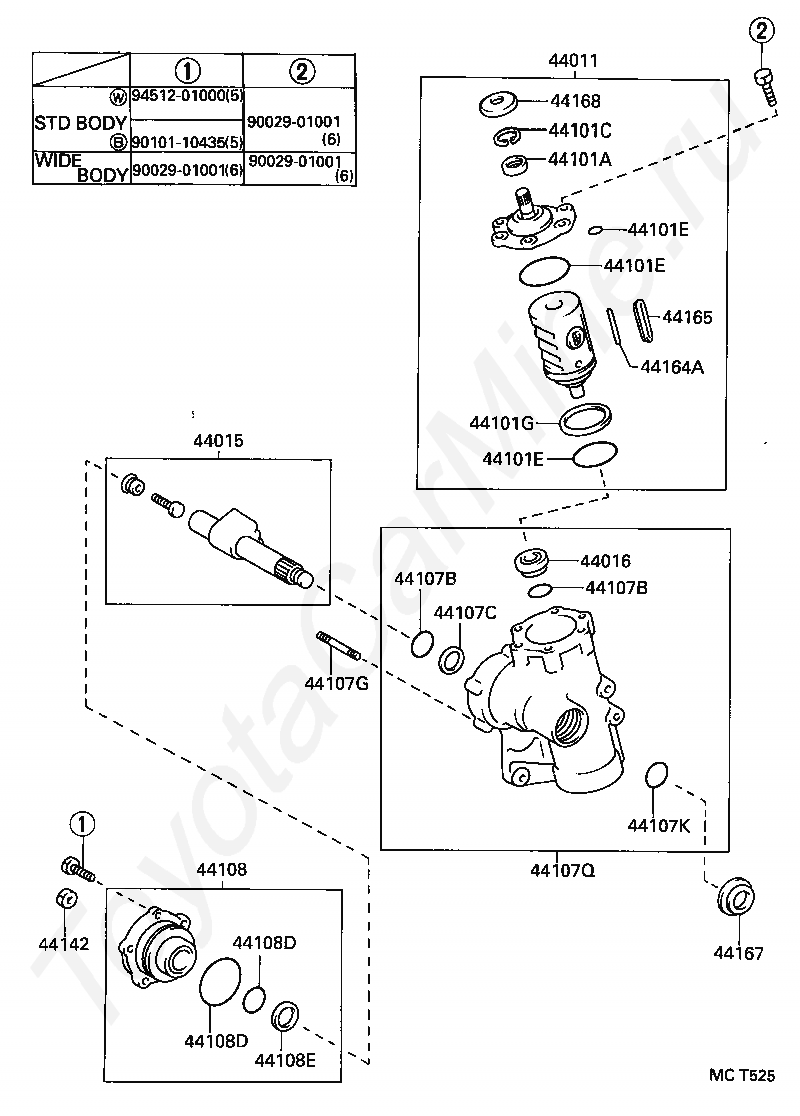

44011

PISTON SUB-ASSY, POWER

44015

SHAFT SUB-ASSY, SECTOR

44016

CASE SUB-ASSY, WORM BEARING

44101A

SEAL, TYPE T OIL(FOR STEERING WORM)

44101C

RING, HOLE SNAP(FOR STEERING WORM OIL SEAL)

44101E

RING, O(FOR STEERING WORM)

44101G

SEAL, DUST(FOR STEERING WORM)

44107B

RING, O(FOR POWER STEERING GEAR HOUSING)

44107C

RING(FOR POWER STEERING GEAR HOUSING)

44107G

BOLT, STUD(FOR POWER STEERING GEAR HOUSING)

44107K

RING, O(FOR POWER STEERING GEAR HOUSING)

44107Q

HOUSING SUB-ASSY, STEERING W/NAME PLATE

44108

COVER SUB-ASSY, SIDE

44108D

RING, O(FOR SECTOR COVER)

44108E

RING(FOR SECTOR COVER)

44142

NUT, LOCK

44164A

RING, POWER PISTON

44165

RING, SEAL, NO.1

44167

COVER, SECTOR SHAFT DUST

44168

COVER, WORM SHAFT DUST

9002901001

Крепеж

9010110435

Крепеж

9451201000

Крепеж

Код

Описание

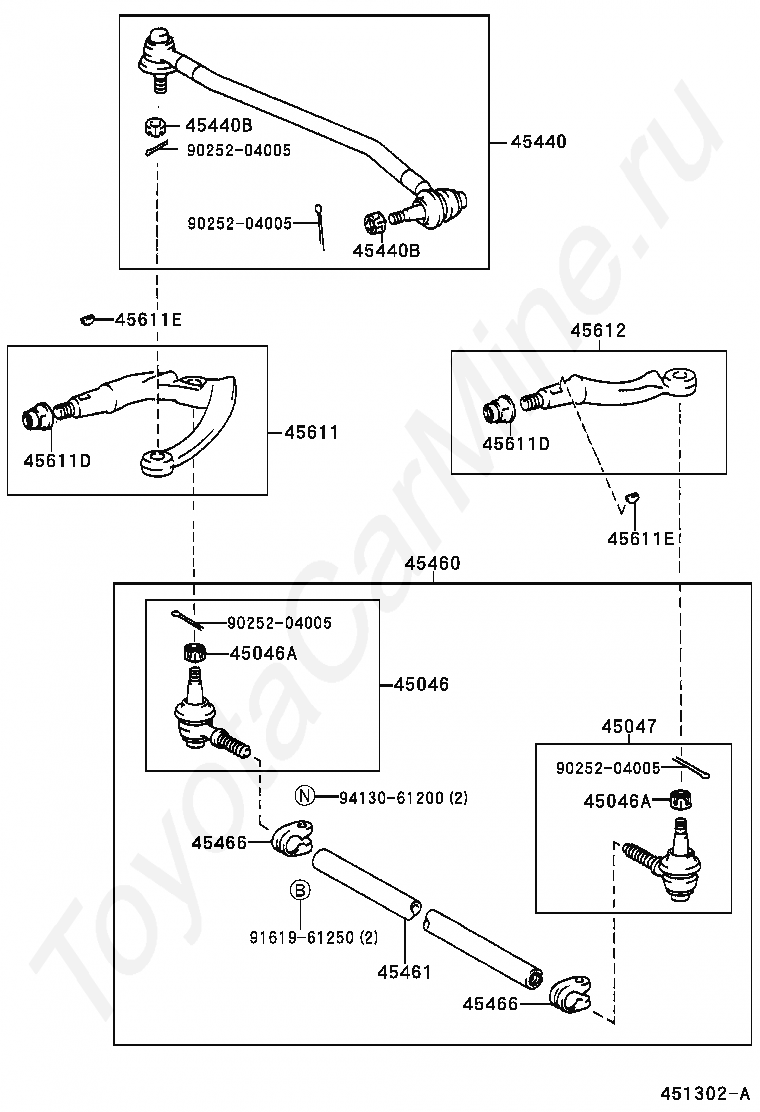

45046

END SUB-ASSY, TIE ROD, RH

45046A

NUT, CASTLE(FOR TIE ROD END)

45047

END SUB-ASSY, TIE ROD, LH

45440

LINK ASSY, STEERING DRAG

45440B

NUT, CASTLE(FOR STEERING DRAG LINK)

45460

ROD ASSY, TIE, RH

45461

ROD, STEERING TIE

45466

CLAMP, TIE ROD END

45611

ARM, STEERING KNUCKLE, RH

45611D

NUT(FOR STEERING KNUCKLE ARM)

45611E

KEY, WOODRUFF(FOR STEERING IDLER ARM)

45612

ARM, STEERING KNUCKLE, LH

9025204005

Крепеж

9161961250

Крепеж

9413061200

Крепеж
