Задние амортизаторы TOYOTA DYNA, 2021/03 - 2025, 4 литра, дизель, XZU605, механика, МКПП, 6 скоростей

Каталог

Япония

Модель

DYNA

Двигатель

4 литра, дизель

Фрейм

XZU605

Трансмиссия

механика МКПП, 6 скоростей

Опции

SINGLE CARBURETOR:SINGLE CAB (FULL JUST LOW) 3 тонны DOUBLE TIRE DCRWECBU 877W

Двигатель

Подвеска

Кузов

Электрика

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48042

SHACKLE SUB-ASSY, REAR SPRING, NO.2

48046

SEAT SUB-ASSY, SPRING U BOLT, RH

48046A

BOLT, U(FOR REAR SPRING)

48047

SEAT SUB-ASSY, SPRING U BOLT, LH

48210Q

BUSH(FOR REAR SPRING SHACKLE)

48344

STOPPER, BUMPER, REAR

48422A

SUPPORT, REAR SPRING PIN

48473C

SEAT, REAR SPRING U BOLT, RH

48473D

SEAT, REAR SPRING U BOLT, LH

48530

ABSORBER ASSY, SHOCK, REAR RH

48530A

BUSH(FOR REAR SHOCK ABSORBER)

48530B

WASHER, REAR SHOCK ABSORBER CUSHION, NO.1

48533

PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH

48533A

PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH

48540

ABSORBER ASSY, SHOCK, REAR LH

48802

LINK SUB-ASSY, STABILIZER

48802D

BUSH, STABILIZER LINK

48802E

SPACER(FOR REAR STABILIZER BAR)

48805

BAR SUB-ASSY, REAR STABILIZER

48805A

BUSH(FOR REAR STABILIZER BAR)

48818

BUSH, STABILIZER, REAR

48823R

COVER, STABILIZER LINK(FOR REAR)

48830C

SPACER(FOR REAR STABILIZER LINK)

48830D

LINK ASSY, REAR STABILIZER, RH

48832A

BRACKET, REAR STABILIZER BAR, NO.1

48840A

LINK ASSY, REAR STABILIZER, LH

9010516067

Крепеж

9010516070

Крепеж

9011908336

Крепеж

9011910740

Крепеж

9011912088

Крепеж

9017816007

Крепеж

9017916030

Крепеж

9155281030

Крепеж

9155281045

Крепеж

9413061600

Крепеж

9415181000

Крепеж

9418401001

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

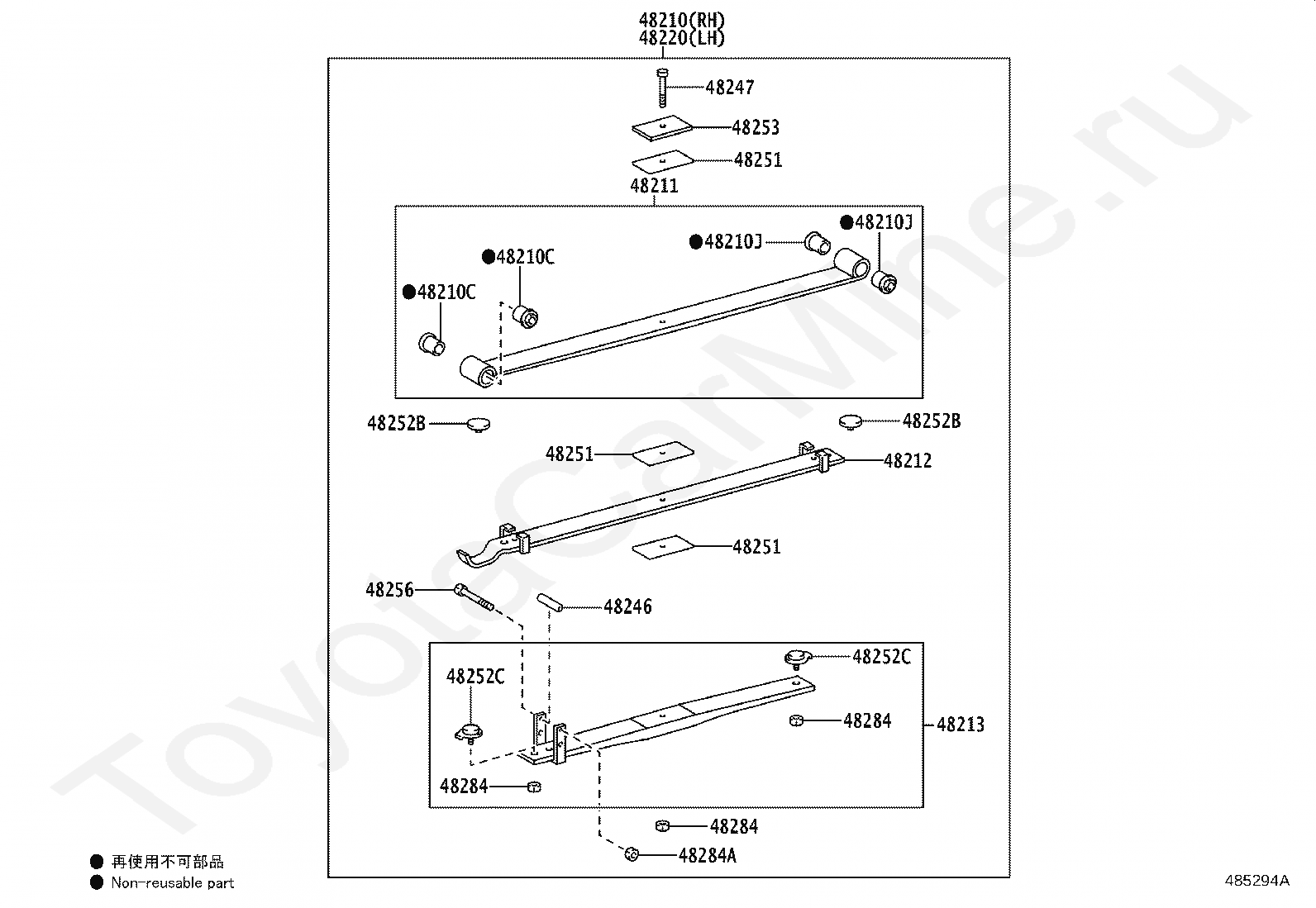

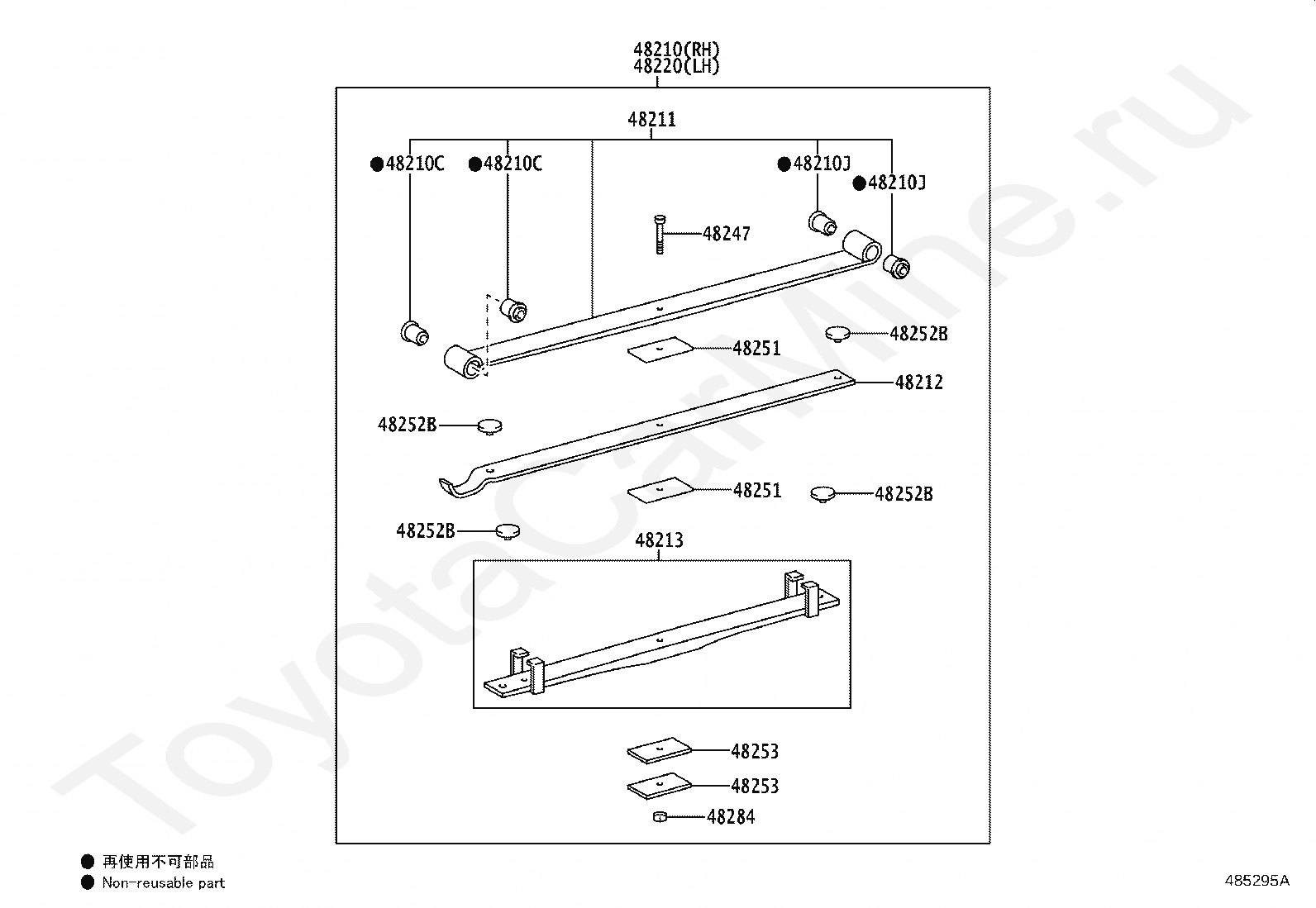

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48210J

BUSH, NO.2(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252B

SILENCER, REAR SPRING, NO.1

48252C

SILENCER, REAR SPRING, NO.2

48256

BOLT, HEXAGON(FOR REAR SPRING CLIP SET)

48263

LEAF, REAR HELPER SPRING, NO.3

48284

NUT, REAR SPRING CENTER BOLT

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48210J

BUSH, NO.2(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252B

SILENCER, REAR SPRING, NO.1

48252C

SILENCER, REAR SPRING, NO.2

48256

BOLT, HEXAGON(FOR REAR SPRING CLIP SET)

48263

LEAF, REAR HELPER SPRING, NO.3

48282

SEAT, REAR HELPER SPRING

48284

NUT, REAR SPRING CENTER BOLT

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48191A

WEDGE, CASTER(FOR REAR LEAF SPRING)

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252B

SILENCER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48254

SPACER, REAR SPRING LEAF

48261

LEAF, REAR HELPER SPRING, NO.1

48282

SEAT, REAR HELPER SPRING

48284

NUT, REAR SPRING CENTER BOLT

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48191A

WEDGE, CASTER(FOR REAR LEAF SPRING)

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48210J

BUSH, NO.2(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252B

SILENCER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48253D

SPACER, REAR SPRING, NO.3

48254

SPACER, REAR SPRING LEAF

48255

SPACER, REAR SPRING LEAF

48261

LEAF, REAR HELPER SPRING, NO.1

48282

SEAT, REAR HELPER SPRING

48284

NUT, REAR SPRING CENTER BOLT

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48191A

WEDGE, CASTER(FOR REAR LEAF SPRING)

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48210J

BUSH, NO.2(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48252B

SILENCER, REAR SPRING, NO.1

48252C

SILENCER, REAR SPRING, NO.2

48256

BOLT, HEXAGON(FOR REAR SPRING CLIP SET)

48263

LEAF, REAR HELPER SPRING, NO.3

48282

SEAT, REAR HELPER SPRING

48284

NUT, REAR SPRING CENTER BOLT

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48191A

WEDGE, CASTER(FOR REAR LEAF SPRING)

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252B

SILENCER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48254

SPACER, REAR SPRING LEAF

48261

LEAF, REAR HELPER SPRING, NO.1

48282

SEAT, REAR HELPER SPRING

48284

NUT, REAR SPRING CENTER BOLT

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48191A

WEDGE, CASTER(FOR REAR LEAF SPRING)

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252B

SILENCER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48254

SPACER, REAR SPRING LEAF

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48264

LEAF, REAR HELPER SPRING, NO.4

48282

SEAT, REAR HELPER SPRING

48284

NUT, REAR SPRING CENTER BOLT

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48191A

WEDGE, CASTER(FOR REAR LEAF SPRING)

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252B

SILENCER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48254

SPACER, REAR SPRING LEAF

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48264

LEAF, REAR HELPER SPRING, NO.4

48282

SEAT, REAR HELPER SPRING

48284

NUT, REAR SPRING CENTER BOLT

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48191A

WEDGE, CASTER(FOR REAR LEAF SPRING)

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252B

SILENCER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48253D

SPACER, REAR SPRING, NO.3

48254

SPACER, REAR SPRING LEAF

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48282

SEAT, REAR HELPER SPRING

48284

NUT, REAR SPRING CENTER BOLT

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48191A

WEDGE, CASTER(FOR REAR LEAF SPRING)

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252B

SILENCER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48253D

SPACER, REAR SPRING, NO.3

48254

SPACER, REAR SPRING LEAF

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48264

LEAF, REAR HELPER SPRING, NO.4

48284

NUT, REAR SPRING CENTER BOLT

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48191A

WEDGE, CASTER(FOR REAR LEAF SPRING)

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48210J

BUSH, NO.2(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252B

SILENCER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48253D

SPACER, REAR SPRING, NO.3

48254

SPACER, REAR SPRING LEAF

48255

SPACER, REAR SPRING LEAF

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48282

SEAT, REAR HELPER SPRING

48284

NUT, REAR SPRING CENTER BOLT

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48191A

WEDGE, CASTER(FOR REAR LEAF SPRING)

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252B

SILENCER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48254

SPACER, REAR SPRING LEAF

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48264

LEAF, REAR HELPER SPRING, NO.4

48282

SEAT, REAR HELPER SPRING

48284

NUT, REAR SPRING CENTER BOLT

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48191A

WEDGE, CASTER(FOR REAR LEAF SPRING)

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252A

SPACER, REAR SPRING, NO.2

48252B

SILENCER, REAR SPRING, NO.1

48254

SPACER, REAR SPRING LEAF

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48284

NUT, REAR SPRING CENTER BOLT

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48191A

WEDGE, CASTER(FOR REAR LEAF SPRING)

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252B

SILENCER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48253D

SPACER, REAR SPRING, NO.3

48254

SPACER, REAR SPRING LEAF

48255

SPACER, REAR SPRING LEAF

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48263

LEAF, REAR HELPER SPRING, NO.3

48282

SEAT, REAR HELPER SPRING

48284

NUT, REAR SPRING CENTER BOLT

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48191A

WEDGE, CASTER(FOR REAR LEAF SPRING)

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252B

SILENCER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48253D

SPACER, REAR SPRING, NO.3

48254

SPACER, REAR SPRING LEAF

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48263

LEAF, REAR HELPER SPRING, NO.3

48264

LEAF, REAR HELPER SPRING, NO.4

48282

SEAT, REAR HELPER SPRING

48284

NUT, REAR SPRING CENTER BOLT

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48210J

BUSH, NO.2(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48220

SPRING ASSY, REAR LH

48246

CASE, REAR SPRING CLIP BOLT

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252B

SILENCER, REAR SPRING, NO.1

48252C

SILENCER, REAR SPRING, NO.2

48253

SPACER, REAR SPRING, NO.1

48256

BOLT, HEXAGON(FOR REAR SPRING CLIP SET)

48284

NUT, REAR SPRING CENTER BOLT

48284A

NUT, REAR SPRING CLIP

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48210J

BUSH, NO.2(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252B

SILENCER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48284

NUT, REAR SPRING CENTER BOLT

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48210J

BUSH, NO.2(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252B

SILENCER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48253D

SPACER, REAR SPRING, NO.3

48284

NUT, REAR SPRING CENTER BOLT

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48191A

WEDGE, CASTER(FOR REAR LEAF SPRING)

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252A

SPACER, REAR SPRING, NO.2

48252B

SILENCER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48254

SPACER, REAR SPRING LEAF

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48284

NUT, REAR SPRING CENTER BOLT

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48191A

WEDGE, CASTER(FOR REAR LEAF SPRING)

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252B

SILENCER, REAR SPRING, NO.1

48253

SPACER, REAR SPRING, NO.1

48254

SPACER, REAR SPRING LEAF

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48284

NUT, REAR SPRING CENTER BOLT

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48210J

BUSH, NO.2(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48215

LEAF, REAR SPRING, NO.5

48216

LEAF, REAR SPRING, NO.6

48220

SPRING ASSY, REAR LH

48246

CASE, REAR SPRING CLIP BOLT

48247

BOLT, REAR SPRING, CENTER

48251

SPACER, REAR SPRING LEAF

48252B

SILENCER, REAR SPRING, NO.1

48252C

SILENCER, REAR SPRING, NO.2

48256

BOLT, HEXAGON(FOR REAR SPRING CLIP SET)

48284

NUT, REAR SPRING CENTER BOLT

48284A

NUT, REAR SPRING CLIP

Оформить заказ Продолжить покупку

Товар добавлен в корзину!

Оформить заказ Продолжить покупку

Заполните форму

Наш менеджер перезвонит в ближайшее время

Введите ваше имя

Введите ваш телефон
