Кресла TOYOTA DYNA, 2021/08 - 2025, 2,8 литра, турбо-дизель, GDY231, механика, МКПП, 5 скоростей

Каталог

Япония

Модель

DYNA

Двигатель

2,8 литра, турбо-дизель

Фрейм

GDY231

Трансмиссия

механика МКПП, 5 скоростей

Опции

SINGLE CARBURETOR:SINGLE CAB (FULL JUST LOW) 1,75 тонн DOUBLE TIRE DCRL CBU 873W

Код

Описание

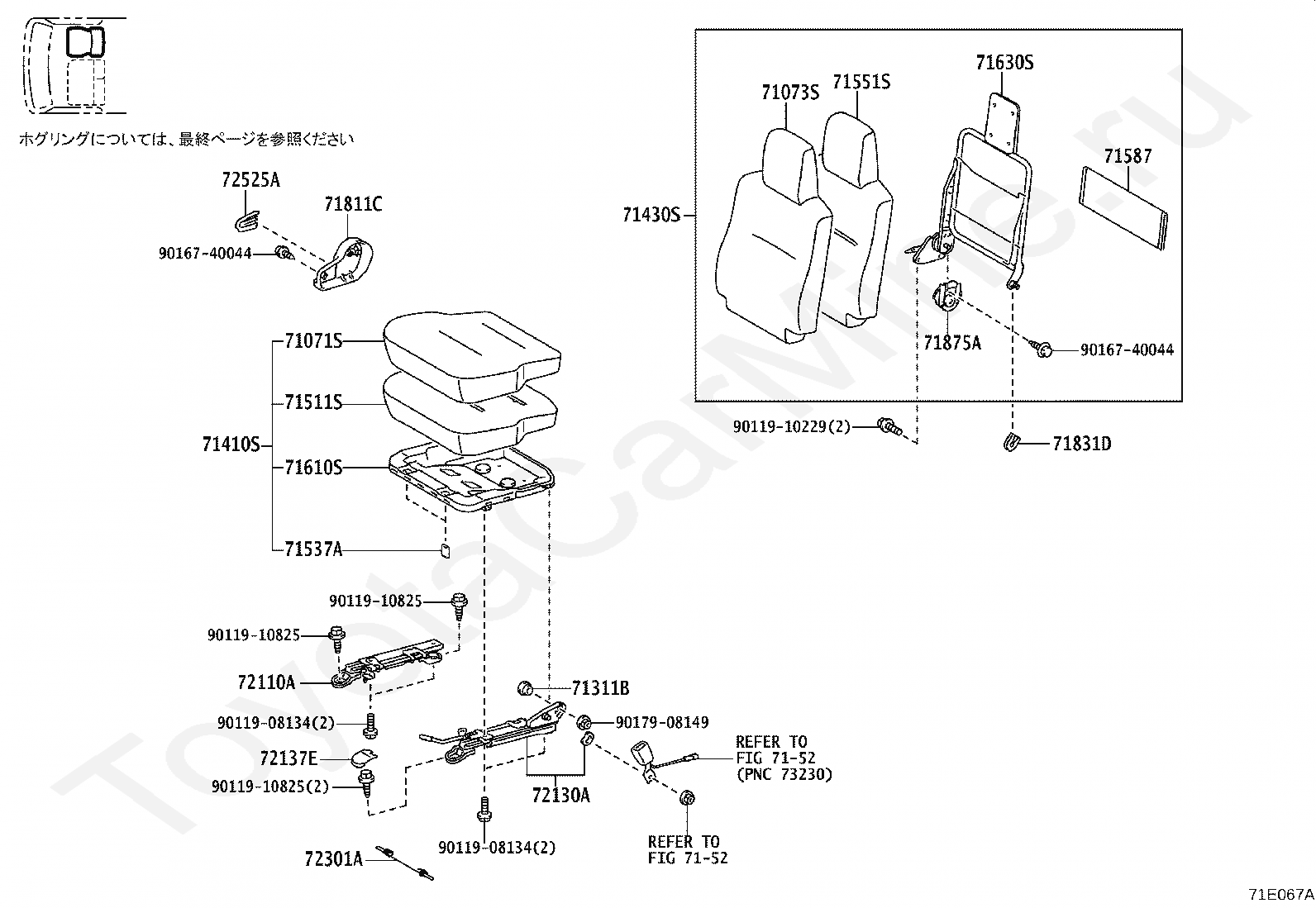

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811C

COVER, RECLINING ADJUSTER, RH

71831D

COVER, FRONT SEAT HINGE, RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72137E

COVER, SEAT TRACK, NO.1

72301A

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

9011908134

Крепеж

9011910229

Крепеж

9011910825

Крепеж

9016740044

Крепеж

9017908149

Крепеж

Код

Описание

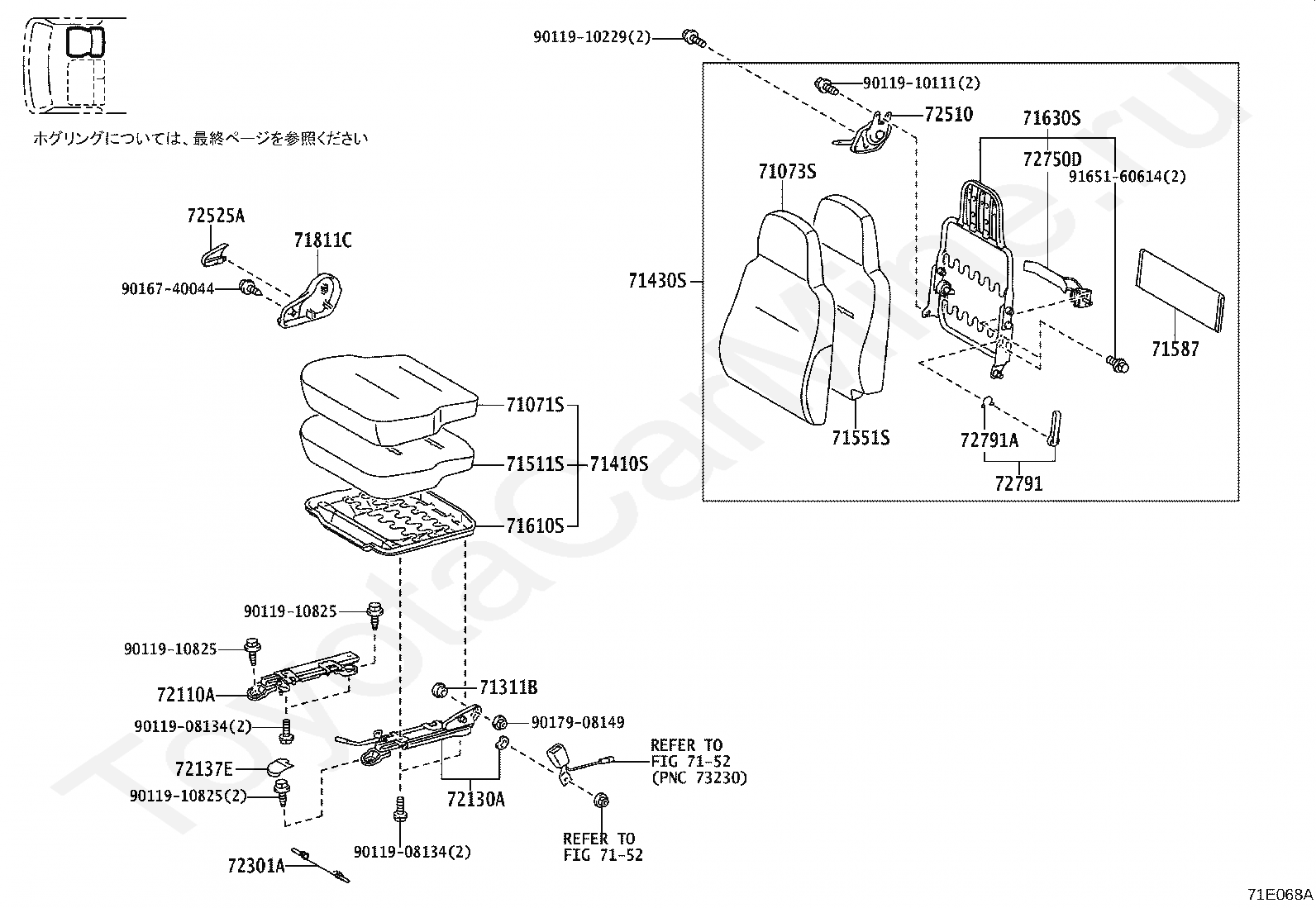

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71311B

BUSH (FOR FRONT SEAT HINGE PIN)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811C

COVER, RECLINING ADJUSTER, RH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72137E

COVER, SEAT TRACK, NO.1

72301A

WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

72791

LEVER, LUMBAR SUPPORT

72791A

RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)

9011908134

Крепеж

9011910111

Крепеж

9011910229

Крепеж

9011910825

Крепеж

9016740044

Крепеж

9017908149

Крепеж

9165160614

Крепеж

Код

Описание

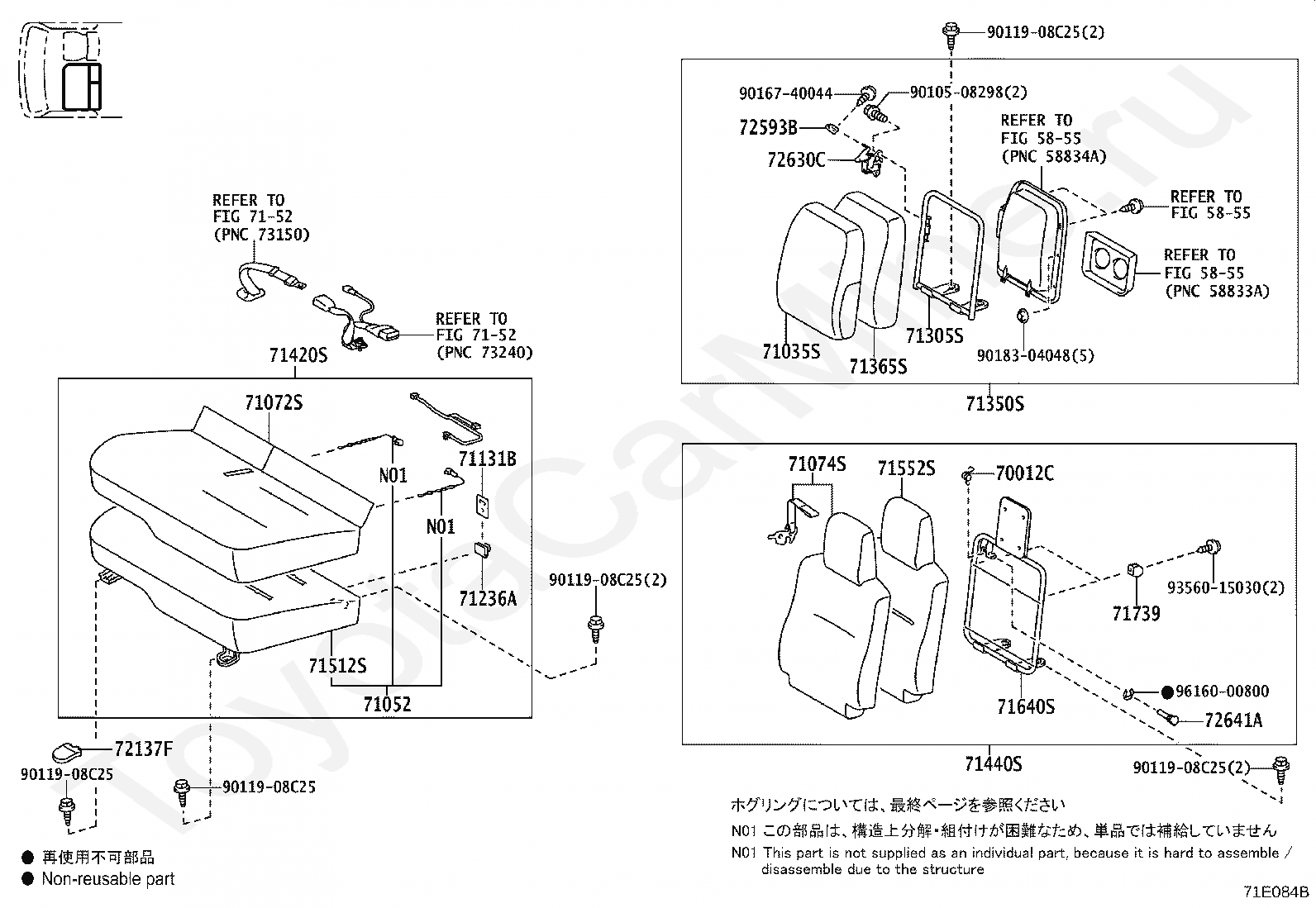

70012C

SPRING(FOR SEAT BACK)

71052

PAD SUB-ASSY, FRONT SEAT CUSHION SENSOR, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71131B

PLATE, FRONT SEAT CUSHION, NO.1

71236A

CLAMP, REAR SEAT CUSHION SPRING

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71739

CUSHION, SEAT SUPPORT

72137F

COVER, SEAT TRACK, NO.2

72641A

PIN, FRONT SEAT BACK LOCK

9011908C25

Крепеж

9356015030

Крепеж

9616000800

Крепеж

Код

Описание

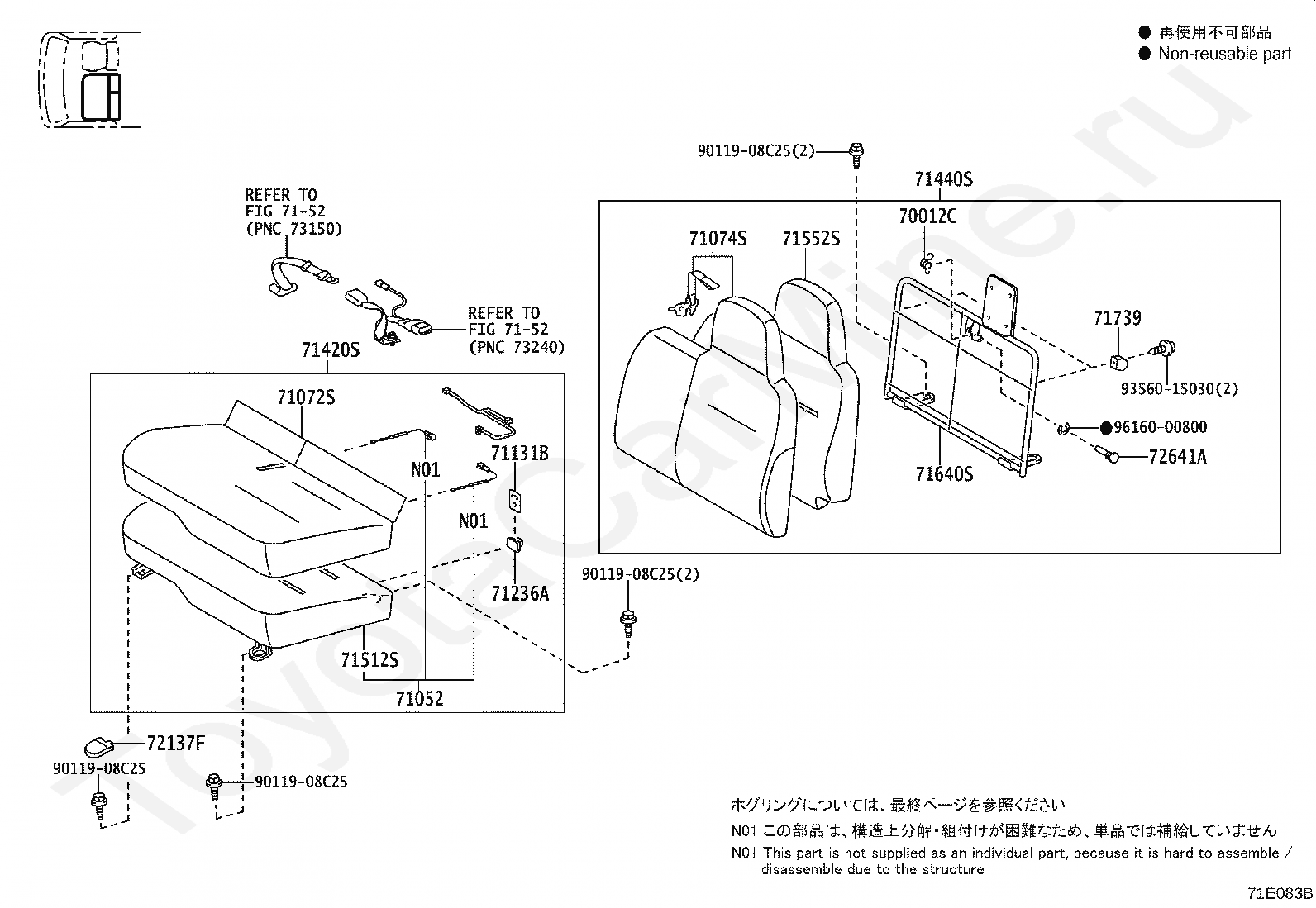

5855

переход к группе запчастей

70012C

SPRING(FOR SEAT BACK)

71035S

COVER, FRONT SEAT BACK, CENTER

71052

PAD SUB-ASSY, FRONT SEAT CUSHION SENSOR, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71131B

PLATE, FRONT SEAT CUSHION, NO.1

71236A

CLAMP, REAR SEAT CUSHION SPRING

71305S

FRAME SUB-ASSY, CENTER SEAT BACK

71350S

BACK ASSY, FRONT SEAT, CENTER

71365S

PAD, CENTER SEAT BACK

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71739

CUSHION, SEAT SUPPORT

72137F

COVER, SEAT TRACK, NO.2

72593B

KNOB, RECLINING REMOTE CONTROL LEVER, RH

72630C

LOCK ASSY, REAR SEAT BACK, RH

72641A

PIN, FRONT SEAT BACK LOCK

9010508298

Крепеж

9011908C25

Крепеж

9016740044

Крепеж

9018304048

Крепеж

9356015030

Крепеж

9616000800

Крепеж

Код

Описание

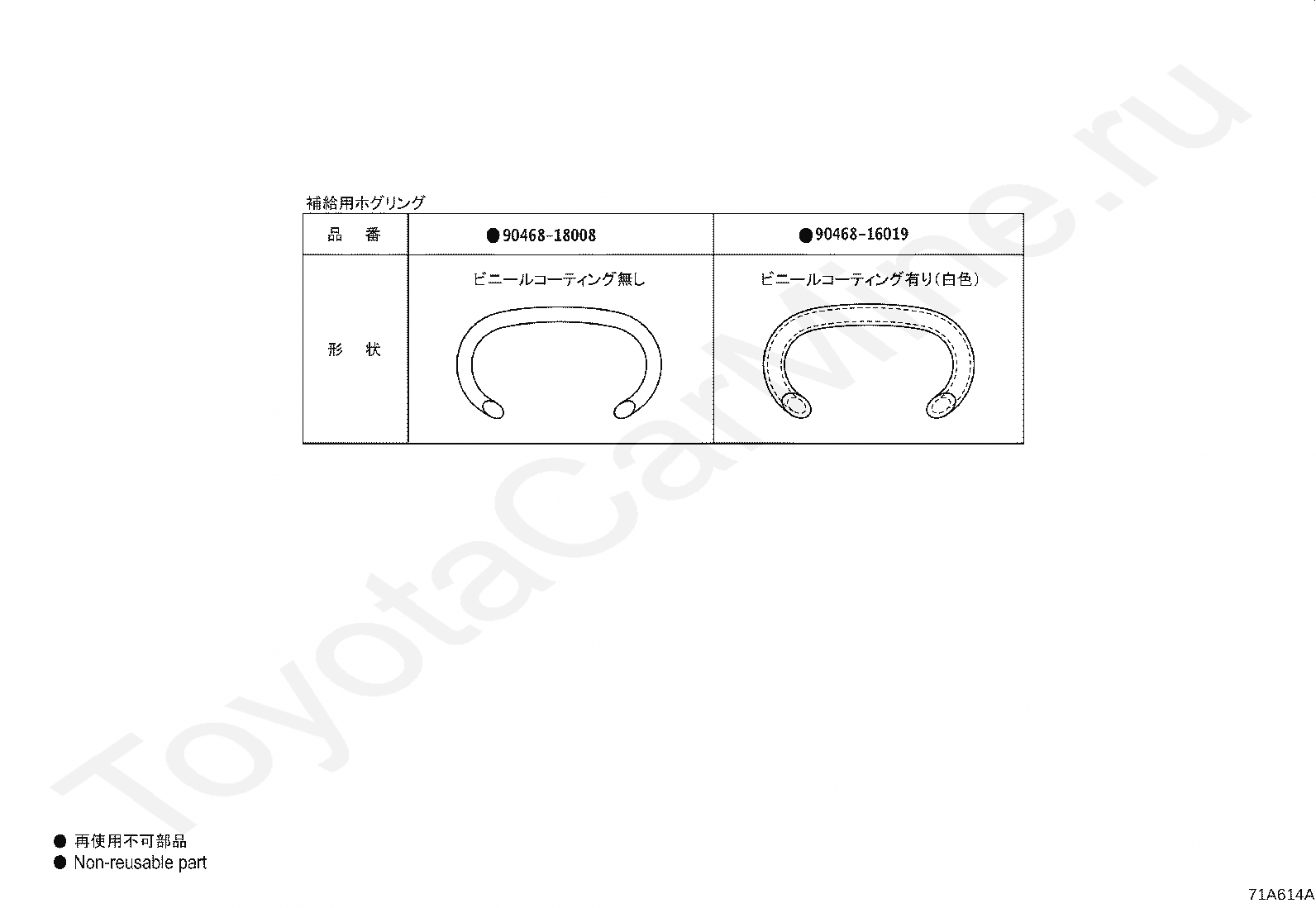

9046816019

Крепеж

9046818008

Крепеж
