Радиатор и шланги TOYOTA DYNA, 2021/08 - 2025, 2,8 литра, турбо-дизель, GDY231, механика, МКПП, 5 скоростей

Каталог

Япония

Модель

DYNA

Двигатель

2,8 литра, турбо-дизель

Фрейм

GDY231

Трансмиссия

механика МКПП, 5 скоростей

Опции

SINGLE CARBURETOR:SINGLE CAB (FULL JUST LOW) 1,75 тонн DOUBLE TIRE DCRL CBU 873W

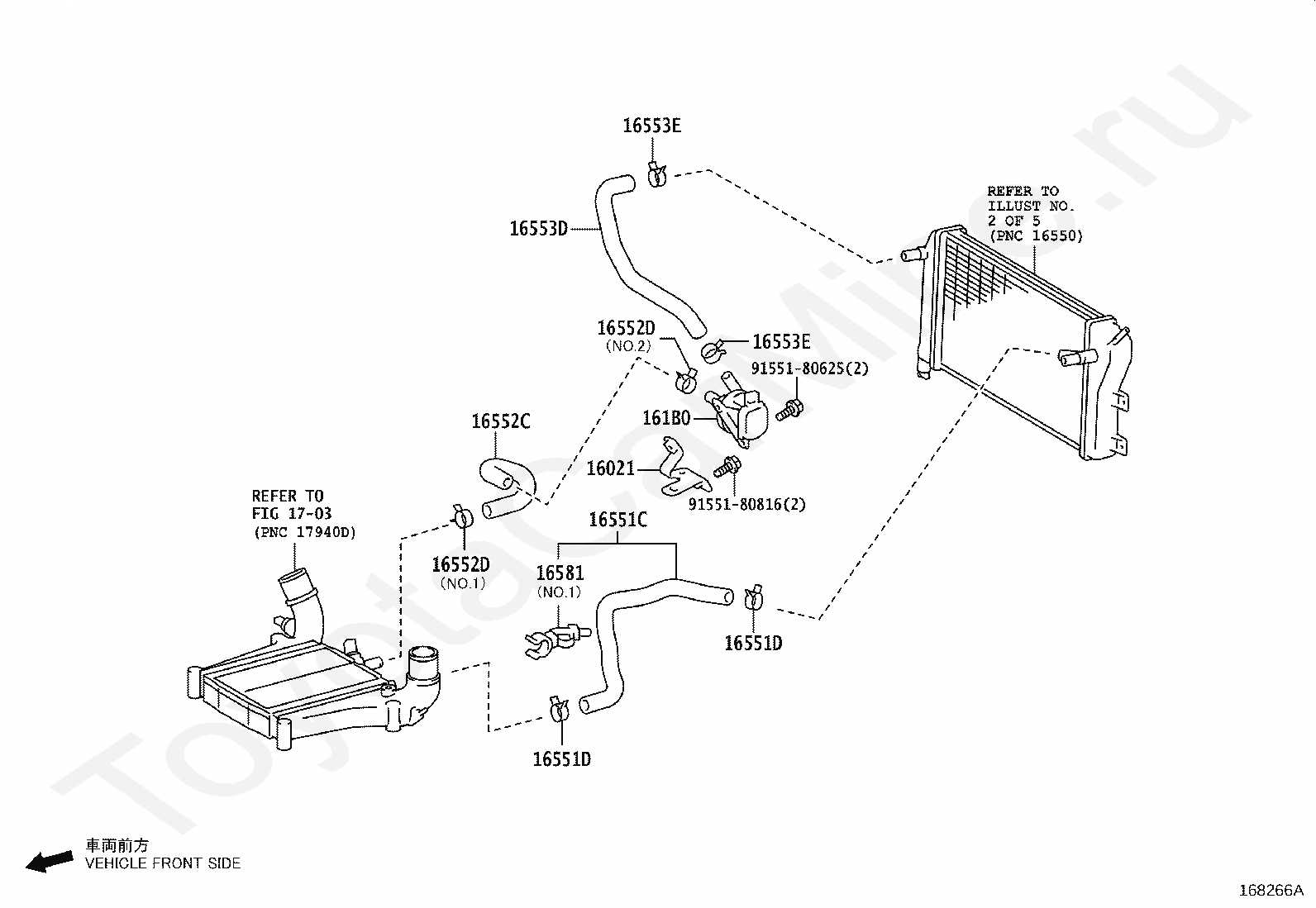

Код

Описание

16021

BRACKET SUB-ASSY, WATER PUMP

161B0

PUMP ASSY, ELECTRIC WATER

16551C

HOSE, INTERCOOLER COOLING WATER, NO.1

16551D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1)

16552C

HOSE, INTERCOOLER COOLING WATER, NO.2

16552D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.2)

16553D

HOSE, INTERCOOLER COOLING WATER, NO.3

16553E

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.3)

16581

CLAMP, HOSE(FOR WATER HOSE)

1703

переход к группе запчастей

9155180625

Крепеж

9155180816

Крепеж

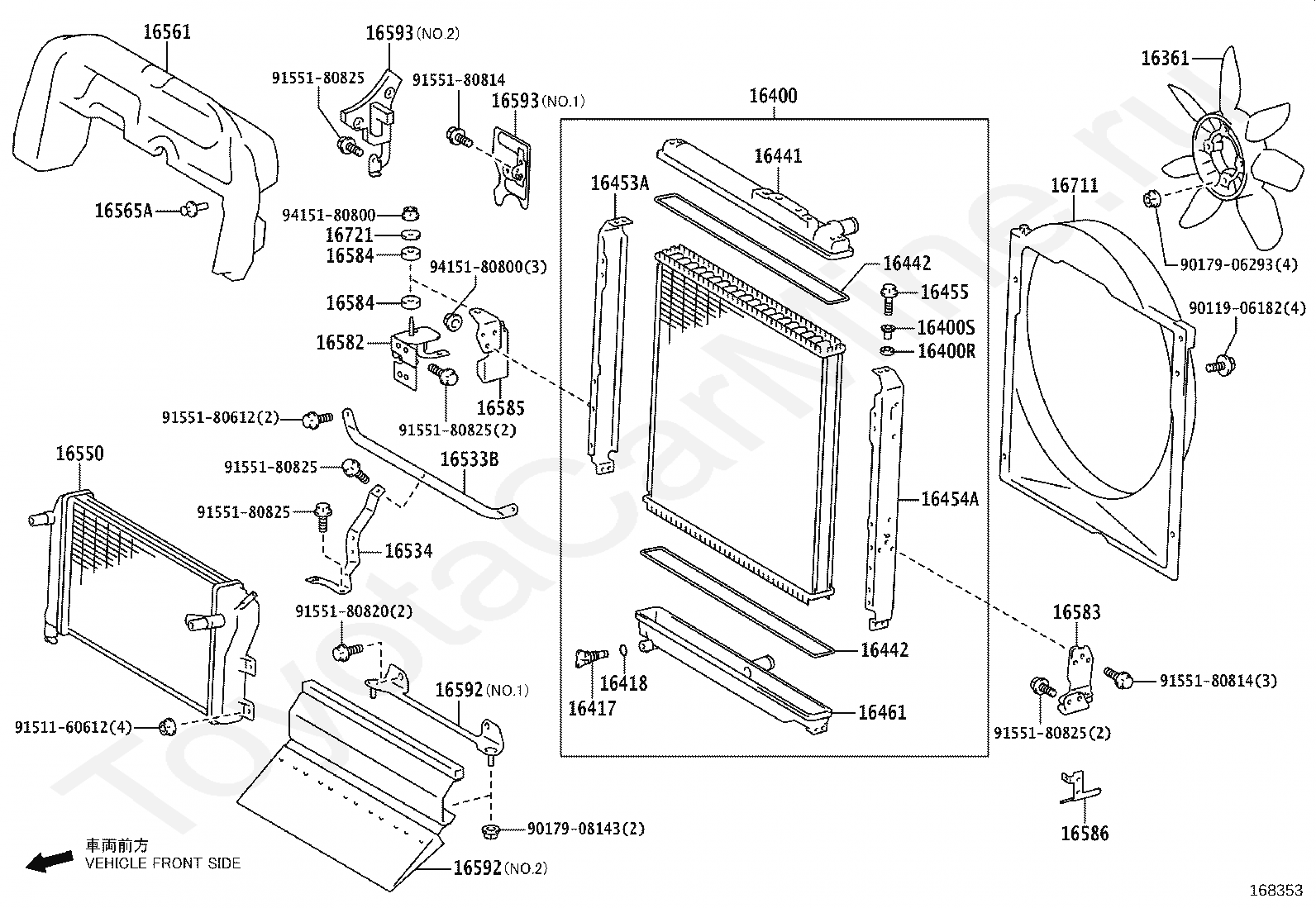

Код

Описание

16361

FAN

16400

RADIATOR ASSY

16400R

BUSHING(FOR RADIATOR)

16400S

COLLAR(FOR RADIATOR)

16417

COCK

16418

PACKING

16441

TANK, RADIATOR, UPPER

16442

RING, O(FOR RADIATOR UPPER TANK)

16453A

PLATE, RADIATOR SIDE SUPPORT, RH

16454A

PLATE, RADIATOR SIDE SUPPORT, LH

16455

BOLT, RADIATOR SIDE SUPPORT PLATE

16461

TANK, RADIATOR, LOWER

16533B

SUPPORT, RADIATOR, NO.1

16534

SUPPORT, RADIATOR, NO.2

16550

RADIATOR ASSY, INTERCOOLER COOLING

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16565A

CLIP

16582

BRACKET, RADIATOR, NO.1

16583

BRACKET, RADIATOR, NO.2

16584

INSULATOR, RADIATOR MOUNTING

16585

BRACKET, RADIATOR, NO.3

16586

BRACKET, RADIATOR, NO.4

16592

GUIDE, RADIATOR AIR, NO.3

16593

GUIDE, RADIATOR AIR, NO.1

16711

SHROUD, FAN

16721

PLATE, HOLDER

9011906182

Крепеж

9017906293

Крепеж

9017908143

Крепеж

9151160612

Крепеж

9155180612

Крепеж

9155180814

Крепеж

9155180820

Крепеж

9155180825

Крепеж

9415180800

Крепеж

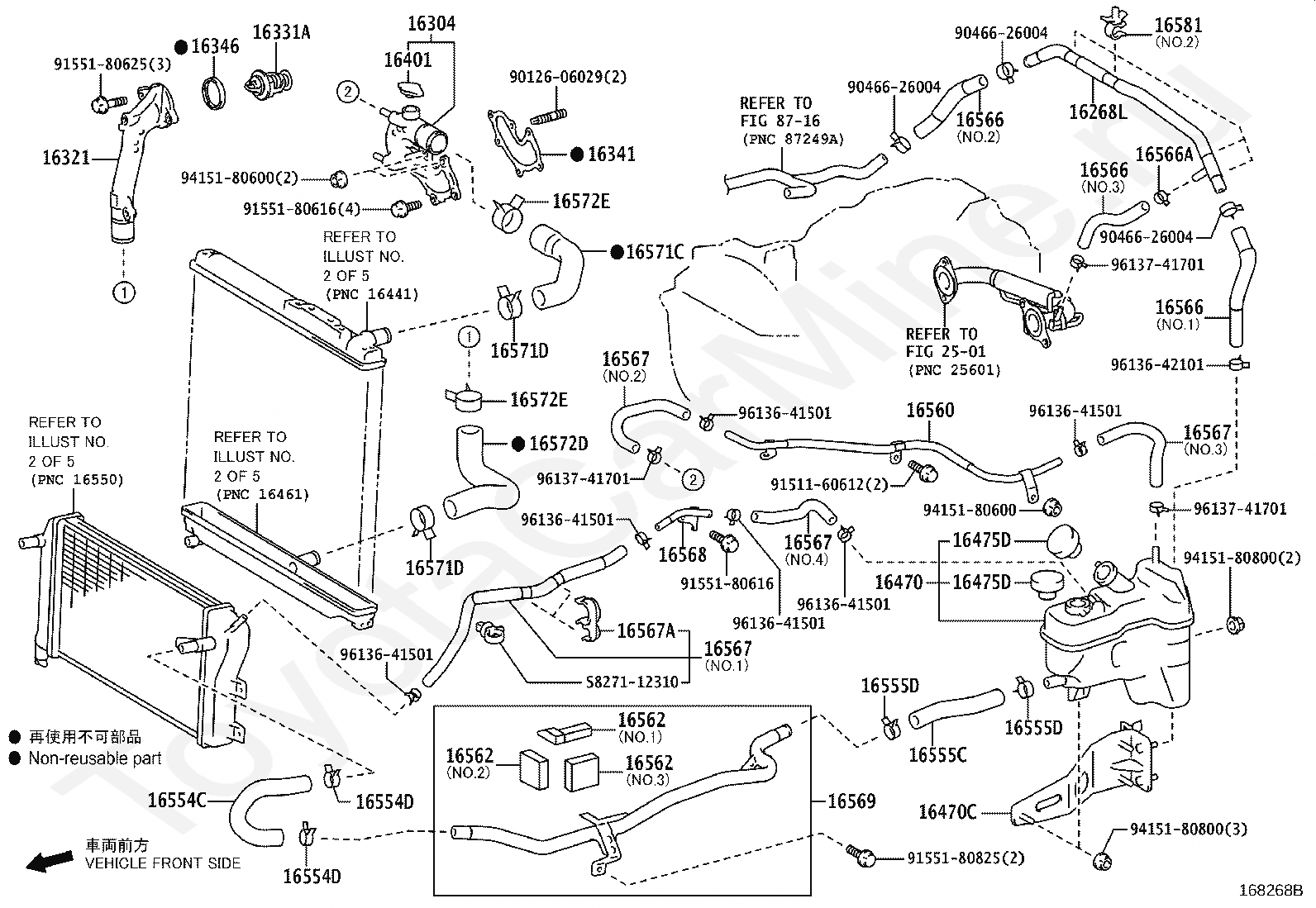

Код

Описание

16268L

PIPE, WATER BY-PASS

16304

OUTLET SUB-ASSY, WATER

16321

INLET, WATER

16331A

THERMOSTAT

16341

GASKET, WATER OUTLET

16346

GASKET, THERMOSTAT

16401

CAP SUB-ASSY, RADIATOR

16470

TANK ASSY, RADIATOR RESERVE

16470C

BRACKET(FOR RADIATOR RESERVE TANK)

16475D

CAP, RESERVE TANK

16554C

HOSE, INTERCOOLER COOLING WATER, NO.4

16554D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.4)

16555C

HOSE, INTERCOOLER COOLING WATER, NO.5

16555D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5)

16560

PIPE ASSY, RADIATOR TO RESERVE TANK, NO.1

16562

SEAL, RADIATOR TO SUPPORT, NO.2

16566

HOSE, RESERVE TANK OUTLET

16566A

CLIP(FOR RESERVE TANK OUTLET)

16567

HOSE(FOR RADIATOR RESERVE TANK)

16567A

CLIP(FOR RADIATOR RESERVE TANK HOSE)

16568

PIPE, RADIATOR TO RESERVE TANK

16569

PIPE, RADIATOR, NO.5

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16581

CLAMP, HOSE(FOR WATER HOSE)

2501

переход к группе запчастей

8716

переход к группе запчастей

9012606029

Крепеж

9046626004

Крепеж

9151160612

Крепеж

9155180616

Крепеж

9155180625

Крепеж

9155180825

Крепеж

9415180600

Крепеж

9415180800

Крепеж

9613641501

Крепеж

9613642101

Крепеж

9613741701

Крепеж

S827112310

Крепеж

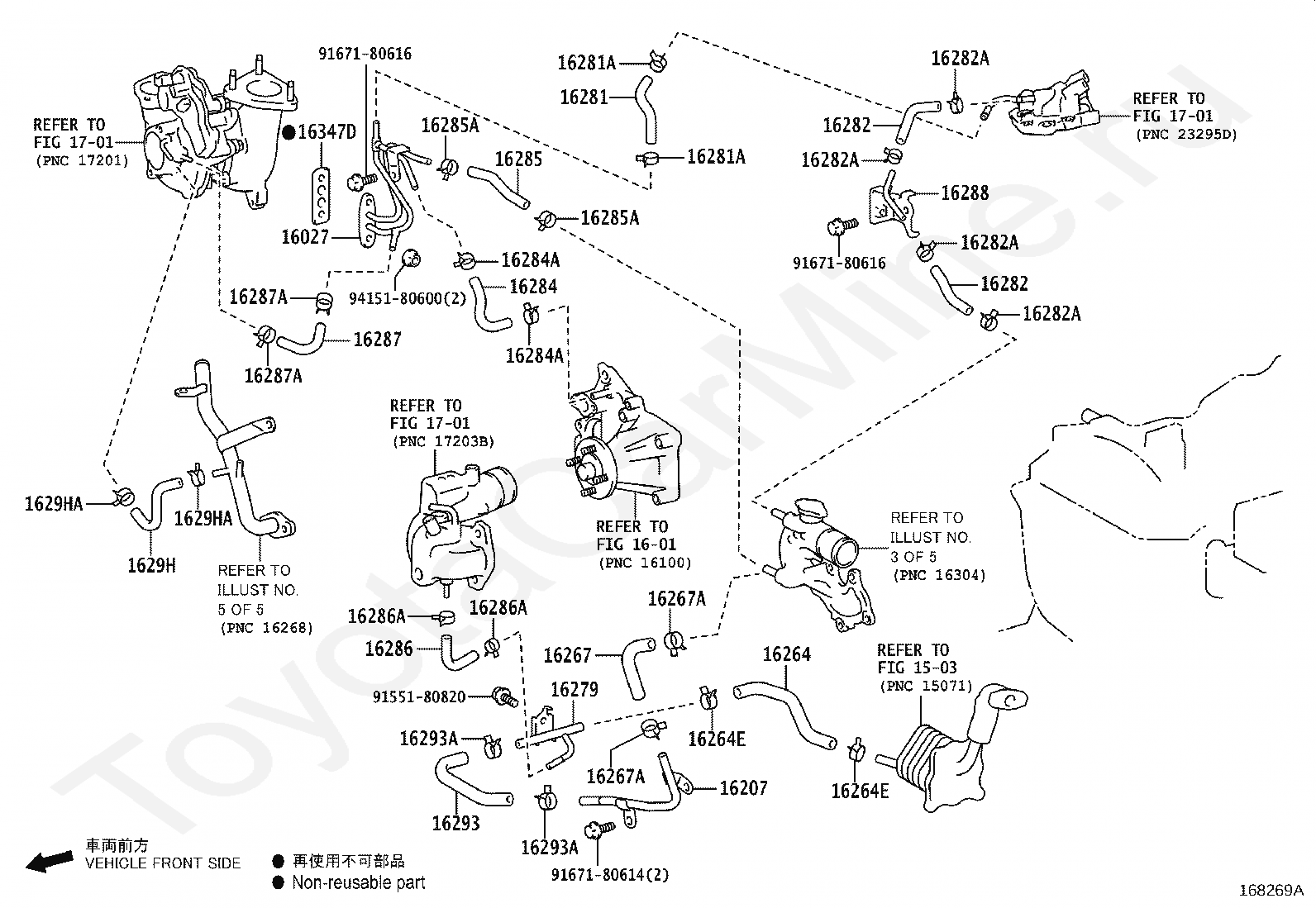

Код

Описание

1503

переход к группе запчастей

1601

переход к группе запчастей

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16207

PIPE SUB-ASSY, WATER BY-PASS, NO.2

16264

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16279

PIPE, WATER BY-PASS, NO.3

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16284

HOSE, TURBO WATER, NO.1

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16285

HOSE, TURBO WATER, NO.2

16285A

CLIP(FOR TURBO WATER HOSE NO.2)

16286

HOSE, TURBO WATER, NO.3

16286A

CLIP(FOR TURBO WATER HOSE NO.3)

16287

HOSE, TURBO WATER, NO.4

16287A

CLIP(FOR TURBO WATER HOSE NO.4)

16288

PIPE, WATER BY-PASS, NO.4

16293

HOSE, WATER BY-PASS, NO.10

16293A

CLIP(FOR WATER BY-PASS HOSE NO.10)

1629H

HOSE, WATER BY-PASS, NO.21

1629HA

CLIP(FOR WATER BY-PASS HOSE NO.21)

16347D

GASKET, WATER BY-PASS

1701

переход к группе запчастей

9155180820

Крепеж

9167180614

Крепеж

9167180616

Крепеж

9415180600

Крепеж

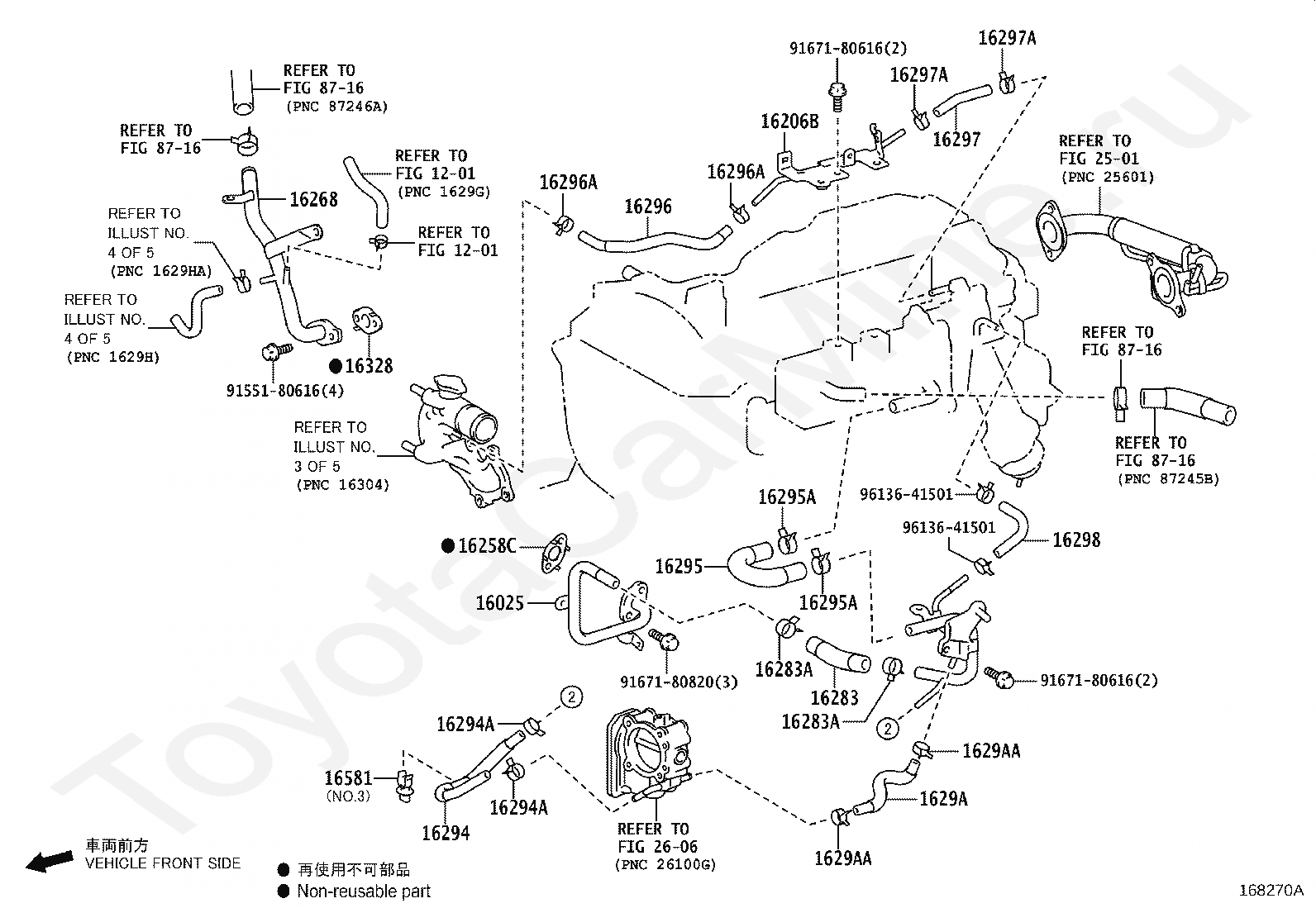

Код

Описание

1201

переход к группе запчастей

16025

PIPE SUB-ASSY, WATER BY-PASS, NO.5

16206B

PIPE SUB-ASSY, WATER BY-PASS, NO.3

16258C

GASKET(FOR WATER BY-PASS PIPE)

16268

PIPE, WATER BY-PASS, NO.1

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16294

HOSE, WATER BY-PASS, NO.11

16294A

CLIP(FOR WATER BY-PASS HOSE NO.11)

16295

HOSE, WATER BY-PASS, NO.7

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16296

HOSE, WATER BY-PASS, NO.8

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16297

HOSE, WATER BY-PASS, NO.9

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16298

HOSE, WATER BY-PASS, NO.12

1629A

HOSE, WATER BY-PASS, NO.14

1629AA

CLIP(FOR WATER BY-PASS HOSE NO.14)

16328

GASKET, WATER INLET PIPE

16581

CLAMP, HOSE(FOR WATER HOSE)

2501

переход к группе запчастей

2606

переход к группе запчастей

8716

переход к группе запчастей

9155180616

Крепеж

9167180616

Крепеж

9167180820

Крепеж

9613641501

Крепеж

Радиатор и шланги TOYOTA DYNA, 2021/08 - 2025, 2,8 литра, турбо-дизель, GDY231, механика, МКПП, 5 скоростей
