Задние амортизаторы TOYOTA DYNA, 1986/08 - 1987/08, 2,2 литра, TRUCK (EXCLUDING DUMP TRUCK), YU81, МКПП, 5 скоростей

Каталог

Европа

Модель

DYNA

Двигатель

2,2 литра

Кузов

TRUCK (EXCLUDING DUMP TRUCK)

Фрейм

YU81

Трансмиссия

МКПП, 5 скоростей

Опции

правый руль HIGH FLAT DECK OPENING ON THREE SIDES BOARDING DECK DOUBLE TIRE GEN IV3

Двигатель

Подвеска

Кузов

Электрика

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

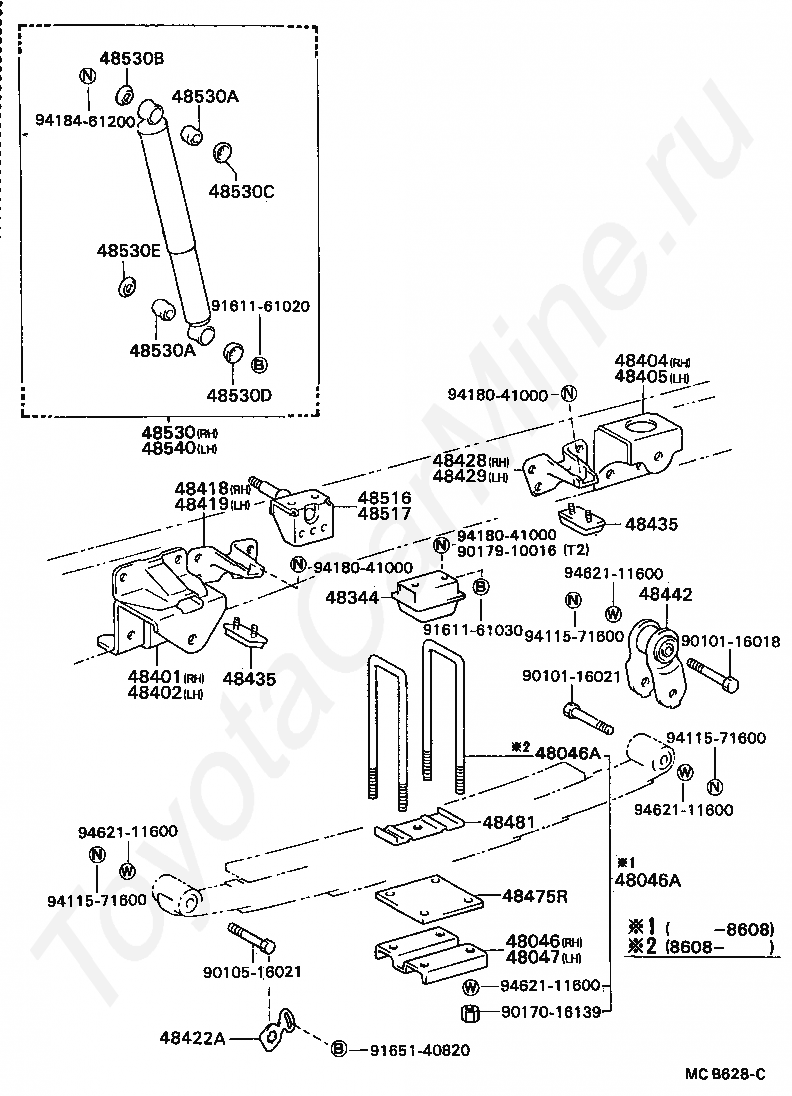

Код

Описание

48046

SEAT SUB-ASSY, SPRING U BOLT, RH

48046A

BOLT, U(FOR REAR SPRING)

48047

SEAT SUB-ASSY, SPRING U BOLT, LH

48344

STOPPER, BUMPER, REAR

48401

BRACKET SUB-ASSY, REAR SPRING, FRONT RH

48402

BRACKET SUB-ASSY, REAR SPRING, FRONT LH

48404

BRACKET SUB-ASSY, REAR SPRING, REAR RH

48405

BRACKET SUB-ASSY, REAR SPRING, REAR LH

48418

BRACKET, HELPER SPRING, FRONT RH

48419

BRACKET, HELPER SPRING, FRONT LH

48422A

SUPPORT, REAR SPRING PIN

48428

BRACKET, HELPER SPRING, REAR RH

48429

BRACKET, HELPER SPRING, REAR LH

48435

ATTACHMENT, HELPER SPRING BRACKET, NO.1

48442

SHACKLE, SPRING, NO.2

48475R

PLATE, DISTANCE(FOR REAR)

48481

SEAT, REAR SPRING, UPPER

48516

BRACKET, REAR SHOCK ABSORBER, UPPER RH

48517

BRACKET, REAR SHOCK ABSORBER, UPPER LH

48530

ABSORBER ASSY, SHOCK, REAR RH

48530A

BUSH(FOR REAR SHOCK ABSORBER)

48530B

WASHER, REAR SHOCK ABSORBER CUSHION, NO.1

48530C

WASHER, REAR SHOCK ABSORBER CUSHION, NO.2

48530D

WASHER, REAR SHOCK ABSORBER CUSHION, NO.3

48530E

WASHER, REAR SHOCK ABSORBER CUSHION, NO.4

48540

ABSORBER ASSY, SHOCK, REAR LH

9010116018

Крепеж

9010116021

Крепеж

9010516021

Крепеж

9017016139

Крепеж

9017910016

Крепеж

9161161020

Крепеж

9161161030

Крепеж

9165140820

Крепеж

9411571600

Крепеж

9418041000

Крепеж

9418461200

Крепеж

9462111600

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

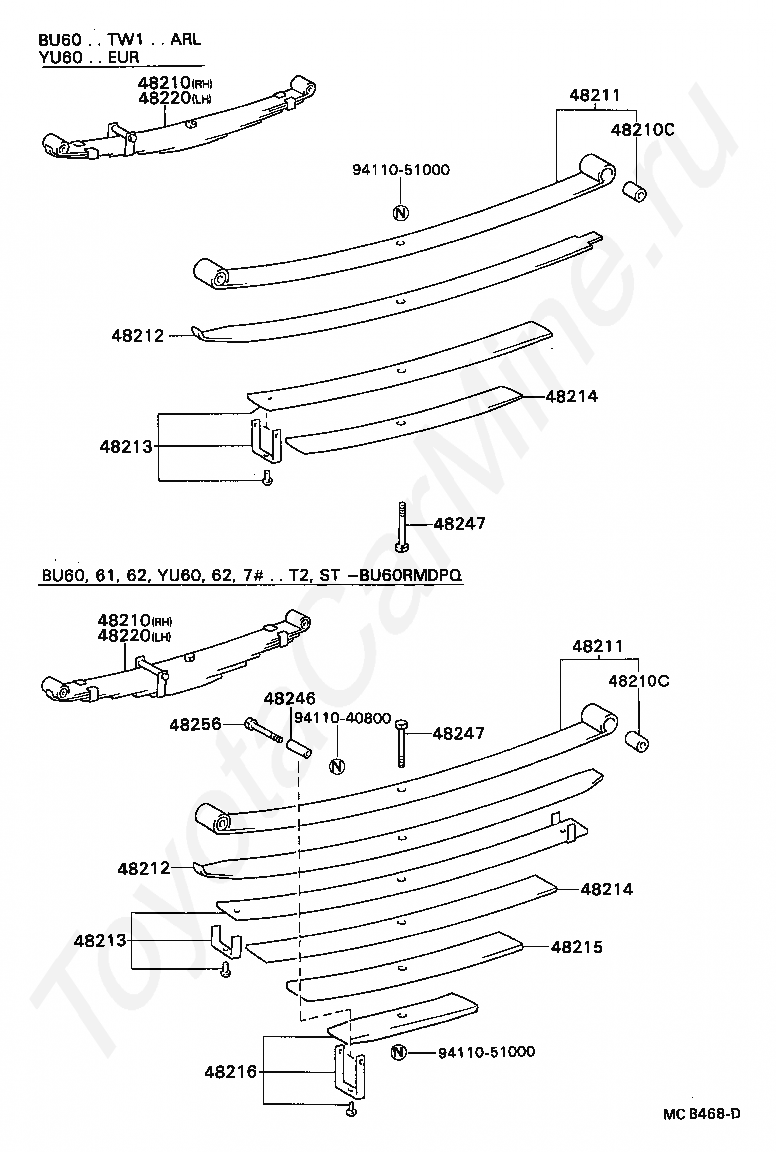

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48215

LEAF, REAR SPRING, NO.5

48216

LEAF, REAR SPRING, NO.6

48220

SPRING ASSY, REAR LH

48246

CASE, REAR SPRING CLIP BOLT

48247

BOLT, REAR SPRING, CENTER

48256

BOLT, HEXAGON(FOR REAR SPRING CLIP SET)

9411040800

Крепеж

9411051000

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48210F

SEAL, DUST(FOR REAR SPRING PIN)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48215

LEAF, REAR SPRING, NO.5

48216

LEAF, REAR SPRING, NO.6

48220

SPRING ASSY, REAR LH

48246

CASE, REAR SPRING CLIP BOLT

48247

BOLT, REAR SPRING, CENTER

48256

BOLT, HEXAGON(FOR REAR SPRING CLIP SET)

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48263

LEAF, REAR HELPER SPRING, NO.3

48264

LEAF, REAR HELPER SPRING, NO.4

48265

LEAF, REAR HELPER SPRING, NO.5

48266

LEAF, REAR HELPER SPRING, NO.6

48267

LEAF, REAR HELPER SPRING, NO.7

48268

LEAF, REAR HELPER SPRING, NO.8

48269

LEAF, REAR HELPER SPRING, NO.9

48270

LEAF, REAR HELPER SPRING, NO.10

9411040800

Крепеж

9411051000

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48215

LEAF, REAR SPRING, NO.5

48216

LEAF, REAR SPRING, NO.6

48217

LEAF, REAR SPRING, NO.7

48218

LEAF, REAR SPRING, NO.8

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48263

LEAF, REAR HELPER SPRING, NO.3

48264

LEAF, REAR HELPER SPRING, NO.4

48265

LEAF, REAR HELPER SPRING, NO.5

48266

LEAF, REAR HELPER SPRING, NO.6

48267

LEAF, REAR HELPER SPRING, NO.7

48268

LEAF, REAR HELPER SPRING, NO.8

9411051000

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48215

LEAF, REAR SPRING, NO.5

48216

LEAF, REAR SPRING, NO.6

48217

LEAF, REAR SPRING, NO.7

48220

SPRING ASSY, REAR LH

48247

BOLT, REAR SPRING, CENTER

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48263

LEAF, REAR HELPER SPRING, NO.3

48264

LEAF, REAR HELPER SPRING, NO.4

48265

LEAF, REAR HELPER SPRING, NO.5

48266

LEAF, REAR HELPER SPRING, NO.6

48267

LEAF, REAR HELPER SPRING, NO.7

48268

LEAF, REAR HELPER SPRING, NO.8

9411051000

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

48210

SPRING ASSY, REAR RH

48210C

BUSH(FOR REAR SPRING LEAF)

48210F

SEAL, DUST(FOR REAR SPRING PIN)

48211

LEAF, REAR SPRING, NO.1

48212

LEAF, REAR SPRING, NO.2

48213

LEAF, REAR SPRING, NO.3

48214

LEAF, REAR SPRING, NO.4

48215

LEAF, REAR SPRING, NO.5

48216

LEAF, REAR SPRING, NO.6

48217

LEAF, REAR SPRING, NO.7

48220

SPRING ASSY, REAR LH

48246

CASE, REAR SPRING CLIP BOLT

48247

BOLT, REAR SPRING, CENTER

48256

BOLT, HEXAGON(FOR REAR SPRING CLIP SET)

48261

LEAF, REAR HELPER SPRING, NO.1

48262

LEAF, REAR HELPER SPRING, NO.2

48263

LEAF, REAR HELPER SPRING, NO.3

48264

LEAF, REAR HELPER SPRING, NO.4

48265

LEAF, REAR HELPER SPRING, NO.5

48266

LEAF, REAR HELPER SPRING, NO.6

48267

LEAF, REAR HELPER SPRING, NO.7

48268

LEAF, REAR HELPER SPRING, NO.8

48269

LEAF, REAR HELPER SPRING, NO.9

9411040800

Крепеж

9411051000

Крепеж
