Каталог
ЯпонияМодель
CORSA/TERCELДвигатель
1,3 литраКузов
седанКласс
GX SPECIFICATIONФрейм
AL20Трансмиссия
механика МКПП, 4 ступениОпции
CLEARANCE SONER 3 двери

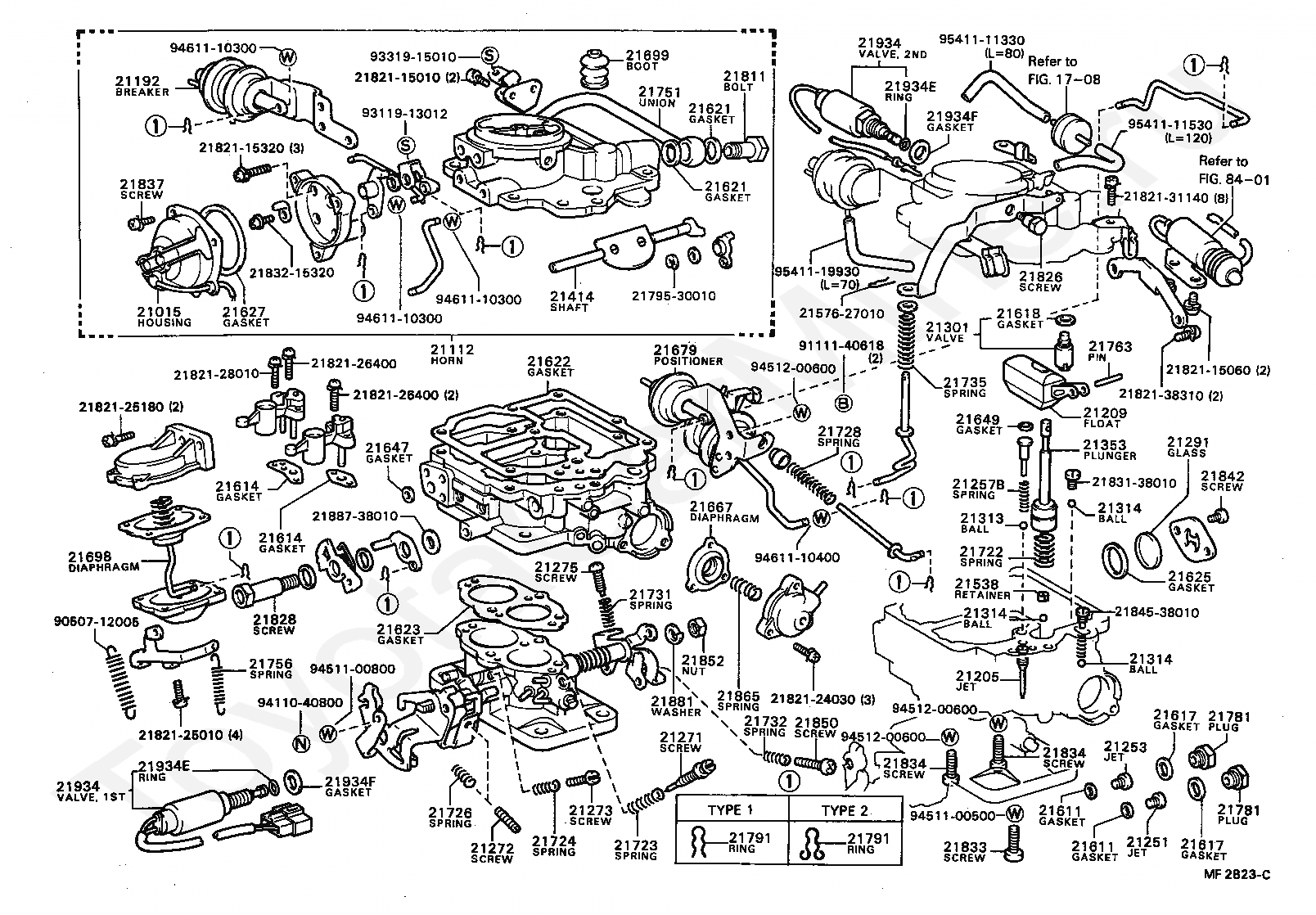

Код
Описание
1708
переход к группе запчастей
21015
HOUSING SUB-ASSY, COIL
21112
HORN, AIR
21192
BREAKER
21205
JET SUB-ASSY, SLOW
21209
FLOAT SUB-ASSY
21251
JET, 1ST MAIN
21253
JET, 2ND MAIN
21257B
SPRING(FOR PUMP JET)
21271
SCREW, IDLE ADJUSTING
21272
SCREW, 1ST IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21275
SCREW, ADJUSTING
21291
GLASS, LEVEL GAGE
21301
VALVE SUB-ASSY, NEEDLE
21313
BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314
BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21353
PLUNGER, PUMP
21414
SHAFT, CHOKE
21538
RETAINER, BALL CHECK
2157627010
Крепеж
21611
GASKET, MAIN JET
21614
GASKET, VENTURI
21617
GASKET, MAIN PASSAGE PLUG
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21622
GASKET, AIR HORN
21623
GASKET, BODY FLANGE
21625
GASKET, LEVEL GAGE
21627
GASKET, COIL HOUSING
21647
GASKET, DIAPHRAGM HOUSING CAP
21649
GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)
21667
DIAPHRAGM
21679
POSITIONER
21698
DIAPHRAGM
21699
BOOT(FOR PUMP PLUNGER)
21722
SPRING, PUMP DAMPING
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21726
SPRING, 1ST IDLE ADJUSTING
21728
SPRING, THROTTLE VALVE RETURN
21731
SPRING, DASH POT OR POSITIONER ADJUSTING
21732
SPRING, THROTTLE ADJUSTING
21735
SPRING, PUMP ARM
21751
UNION, NIPPLE
21756
SPRING, BACK(FOR THROTTLE SHAFT)
21763
PIN, FLOAT LEVER
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
2179530010
Крепеж
21811
BOLT, UNION NIPPLE
2182115010
Крепеж
2182115060
Крепеж
2182115320
Крепеж
2182124030
Крепеж
2182125010
Крепеж
2182125180
Крепеж
2182126400
Крепеж
2182128010
Крепеж
2182131140
Крепеж
2182138310
Крепеж
21826
SCREW, PUMP ARM SET
21828
SCREW, 1ST IDLE SET
2183138010
Крепеж
2183215320
Крепеж
21833
SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21834
SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21837
SCREW, COIL HOUSING SET
21842
SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
2184538010
Крепеж
21850
SCREW, THROTTLE SWITCH ADJUSTING
21852
NUT, THROTTLE LEVER SET
21865
SPRING
21881
WASHER, LOCK(FOR THROTTLE SHAFT)
2188738010
Крепеж
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
8401
переход к группе запчастей
9050712005
Крепеж
9111140618
Крепеж
9311913012
Крепеж
9331915010
Крепеж
9411040800
Крепеж
9451100500
Крепеж
9451100800
Крепеж
9451200600
Крепеж
9461110300
Крепеж
9461110400
Крепеж
9541111330
Крепеж
9541111530
Крепеж
9541119930
Крепеж

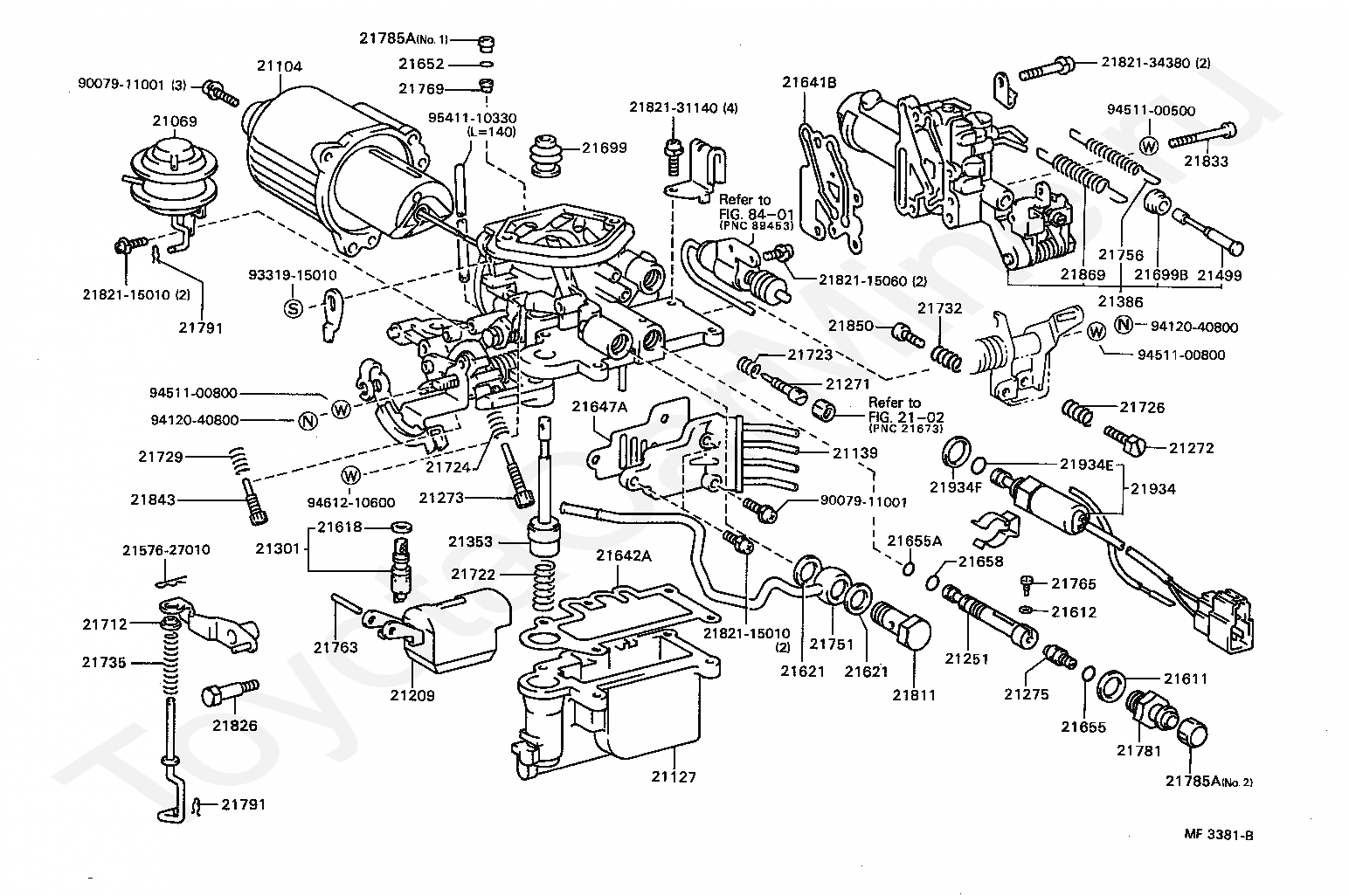

Код
Описание
2102
переход к группе запчастей
21069
DASH POT SUB-ASSY
21104
CHAMBER SUB-ASSY, SUCTION
21127
BOWL, FLOAT
21139
ADAPTER(FOR CARBURETOR CONNECTING PIPE)
21209
FLOAT SUB-ASSY
21251
JET, 1ST MAIN
21271
SCREW, IDLE ADJUSTING
21272
SCREW, 1ST IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21275
SCREW, ADJUSTING
21301
VALVE SUB-ASSY, NEEDLE
21353
PLUNGER, PUMP
21386
COMPENSATOR
21499
ROD, PUSH(FOR CARBURETOR)
2157627010
Крепеж
21611
GASKET, MAIN JET
21612
GASKET, POWER VALVE
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21641B
GASKET, COMPENSATOR
21642A
GASKET, FLOAT BOWL
21647A
GASKET, ADAPTER
21652
RING, O(FOR SUCTION CHANBER ADJUSTING)
21655
RING, O(FOR LIFTER ROD)
21655A
RING, O(FOR SLOW JET)
21658
RING, O(FOR MAIN GUIDE UPPER)
21699
BOOT(FOR PUMP PLUNGER)
21699B
BOOT(FOR COMPENSATOR)
21712
BUSH, SLIDING ROD
21722
SPRING, PUMP DAMPING
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21726
SPRING, 1ST IDLE ADJUSTING
21729
SPRING, 1ST THROTTLE BACK
21732
SPRING, THROTTLE ADJUSTING
21735
SPRING, PUMP ARM
21751
UNION, NIPPLE
21756
SPRING, BACK(FOR THROTTLE SHAFT)
21763
PIN, FLOAT LEVER
21765
PIN(FOR PUMP PLUNGER)
21769
PIN(FOR SUCTION CHANBER ADJUSTING)
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21785A
PLUG, PLATE(FOR SUCTION CHANBER ADJUSTING)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21811
BOLT, UNION NIPPLE
2182115010
Крепеж
2182115060
Крепеж
2182131140
Крепеж
2182134380
Крепеж
21826
SCREW, PUMP ARM SET
21833
SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21843
SCREW OR PIN (FOR DASH POT OR POSITIONER LEVER)
21850
SCREW, THROTTLE SWITCH ADJUSTING
21869
SPRING(FOR MAIN JET)
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934F
GASKET
8401
переход к группе запчастей
9007911001
Крепеж
9331915010
Крепеж
9412040800
Крепеж
9451100500
Крепеж
9451100800
Крепеж
9461210600
Крепеж
9541110330
Крепеж
