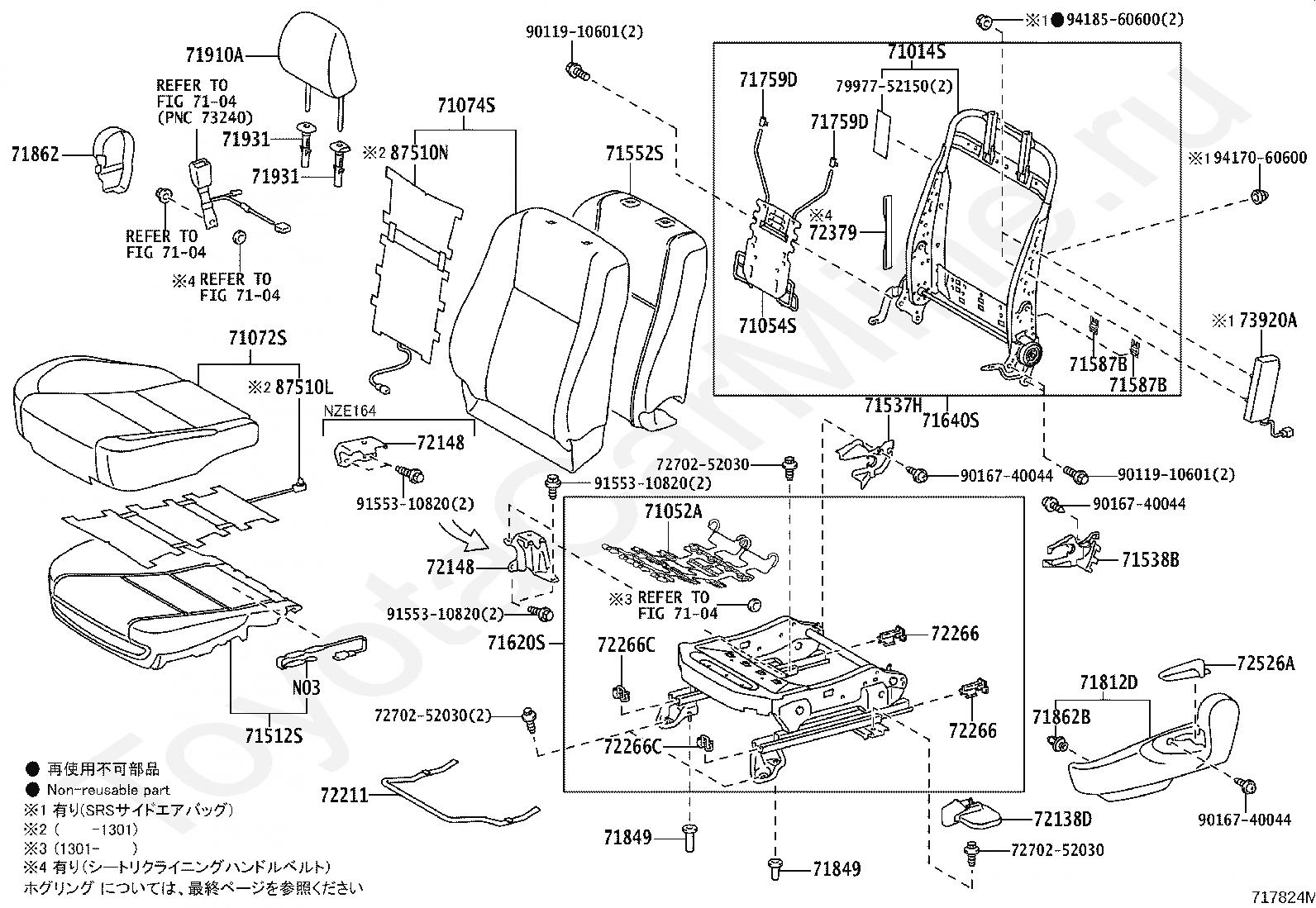

Передние кресла TOYOTA COROLLA AXIO/FIELDER, 2017/10 - 2025, 1,5 литра, 16 клапанов DOHC, EFI, фургон, гибрид, NKE165, вариатор

Каталог

Япония

Модель

COROLLA AXIO/FIELDER

Двигатель

1,5 литра, 16 клапанов DOHC, EFI

Кузов

фургон

Класс

гибрид

Фрейм

NKE165

Трансмиссия

вариатор

Опции

5 дверей 733W

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

7104

переход к группе запчастей

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71537G

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

71538A

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71587B

PROTECTOR, FRONT SEAT BACK EDGE

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71759D

HOOK, FRONT SEAT BACK, NO.2

71811D

SHIELD, FRONT SEAT CUSHION, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71861B

CLIP(FOR FRONT SEAT SHIELD, RH)

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873B

SHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72137G

COVER, SEAT TRACK, OUTER RH

72147

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

72211

HANDLE, SEAT TRACK ADJUSTING

72265

COVER, SEAT TRACK UPPER RAIL, RH

72265E

COVER, SEAT TRACK UPPER RAIL, RH

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270252030

Крепеж

73910A

AIR BAG ASSY, FRONT SEAT, RH

7997752150

Крепеж

8202

переход к группе запчастей

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9011910601

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9155310820

Крепеж

9417060600

Крепеж

9418560600

Крепеж

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537H

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587B

PROTECTOR, FRONT SEAT BACK EDGE

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71759D

HOOK, FRONT SEAT BACK, NO.2

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71862B

CLIP(FOR FRONT SEAT SHIELD, LH)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72138D

COVER, SEAT TRACK, OUTER, LH

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

72211

HANDLE, SEAT TRACK ADJUSTING

72266

COVER, SEAT TRACK UPPER RAIL, LH

72266C

COVER, SEAT TRACK UPPER RAIL, LH

72379

BELT, SEAT RECLINING HANDLE

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270252030

Крепеж

73920A

AIR BAG ASSY, FRONT SEAT, LH

7997752150

Крепеж

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9011910601

Крепеж

9016740044

Крепеж

9155310820

Крепеж

9417060600

Крепеж

9418560600

Крепеж

Код

Описание

58561H

CARPET, FRONT FLOOR SIDE, LH

71821A

CLIP (FOR FRONT SEAT SIDE SHIELD)

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

79118

BRACKET, NO.1 SEAT LEG

9011910921

Крепеж

9155310820

Крепеж

Код

Описание

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71138

SPACER, FRONT SEAT SET

71430C

CLIP

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71517A

PAD, FRONT SEAT CUSHION COVER

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71708D

STRAP SUB-ASSY, SEAT COVER, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71875H

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876C

COVER, RECLINING ADJUSTER INSIDE, LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71877E

COVER, SEAT ARMREST HOLE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72890

ARMREST ASSY, SEAT, C LH

78899D1010

Крепеж

7997752150

Крепеж

9010910164

Крепеж

9011908C39

Крепеж

9011910918

Крепеж

9020112014

Крепеж

9020115023

Крепеж

9454201400

Крепеж

C991640001

Крепеж

C995614004

Крепеж

Код

Описание

7403

переход к группе запчастей

8202

переход к группе запчастей

9010808024

Крепеж

9011910321

Крепеж

9011910325

Крепеж

9011910949

Крепеж

9016740044

Крепеж

9016850023

Крепеж

9017908040

Крепеж

9046400620

Крепеж

9046708186C3

Крепеж

9050609045

Крепеж

9054106047

Крепеж

9151281018

Крепеж

91631G0616

Крепеж

91641H0814

Крепеж

91651B0610

Крепеж

9321056014

Крепеж

C3381

COVER, SLIDE STEP, NO.1

C3382

COVER, SLIDE STEP, NO.2

C7027

LOCK SUB-ASSY, WELCAB SEAT TURN

C7101

BRACKET SUB-ASSY, SEAT HOLDER, FRONT

C7104

PLATE SUB-ASSY, SEAT TURN

C7108

COVER ASSY, TURN TABLE

C7110

BRACKET SUB-ASSY, SEAT HOLDER, REAR

C7120

LEG, WELCAB SEAT, NO.1

C7130

PANEL ASSY, TURN TABLE

C7139

BRACKET, HOOK

C7149

PROTECTOR, TURN TABLE PANEL EDGE, LH

C7159

CUSHION, WELCAB SEAT LEG STOPPER

C7160

PANEL ASSY, SLIDE TABLE

C7169

GEAR, SLIDE TABLE RACK

C7191

BRACKET, SEAT HOLDER LINK

C7196

COVER, TURN TABLE, NO.1

C7204

HANDLE SUB-ASSY, WELCAB SEAT TRACK

C7210

FOOTREST ASSY, WELCAB SEAT

C7227

CARPET, WELCAB SEAT FOOTREST STEP

C7245D1010

Крепеж

C7250D1010

Крепеж

C7260

HANDLE ASSY, SEAT TURN LOCK

C7269

CABLE, SEAT TURN LOCK RELEASE

C7269A

CABLE, SEAT TURN LOCK RELEASE, NO.1

C7271

BRACKET, INTERLOCK, UPPER

C7275

PLATE, LOCK STRIKER, NO.1

C7276

PLATE, LOCK STRIKER, NO.2

C7881

GRIP, CONTROL LINK

C8298

BRACKET, WELCAB SEAT HARNESS CLAMP

Код

Описание

7114930050

Крепеж

9046816019

Крепеж

9046818008

Крепеж
