Задние кресла TOYOTA COROLLA SED (JPP), 2020/04 - 2025, 1,8 литра, 16 клапанов, DOHC, EFI, седан, ZWE213, вариатор

Каталог

Америка

Модель

COROLLA SED (JPP)

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Фрейм

ZWE213

Трансмиссия

вариатор

Опции

4 двери L TYPE Канада 837W

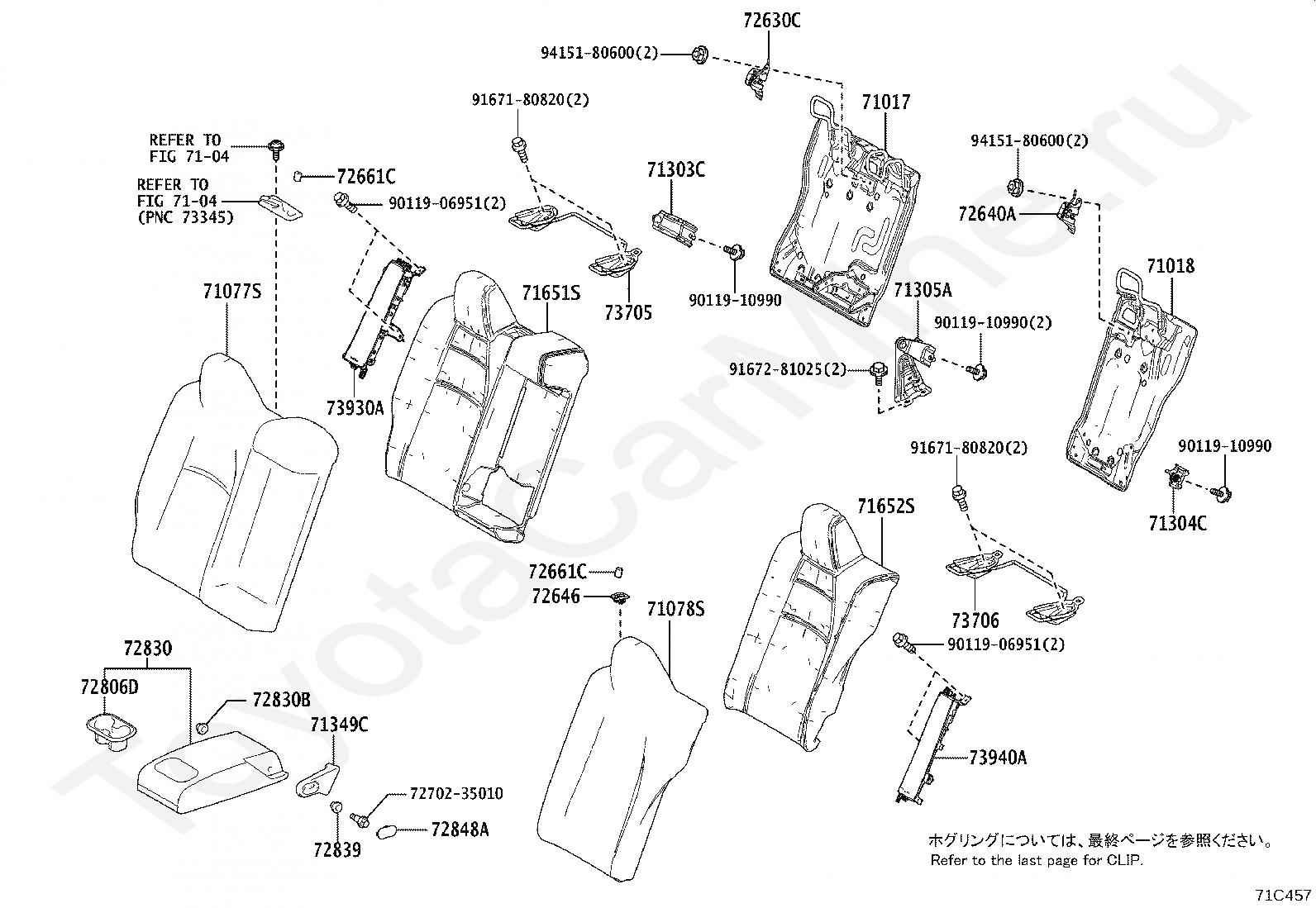

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71349C

COVER, REAR SEAT BACK HINGE

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

7270235010

Крепеж

72806D

HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

72830

ARMREST ASSY, REAR SEAT, CENTER

72830B

BUSH(FOR REAR SEAT CENTER ARMREST)

72839

SHIM, REAR SEAT ARMREST HINGE

72848A

CAP, SEAT ARMREST, NO.1

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

73706

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

73930A

AIR BAG ASSY, REAR SEAT, RH

73940A

AIR BAG ASSY, REAR SEAT, LH

9011906951

Крепеж

9011910990

Крепеж

9167180820

Крепеж

9167281025

Крепеж

9415180600

Крепеж

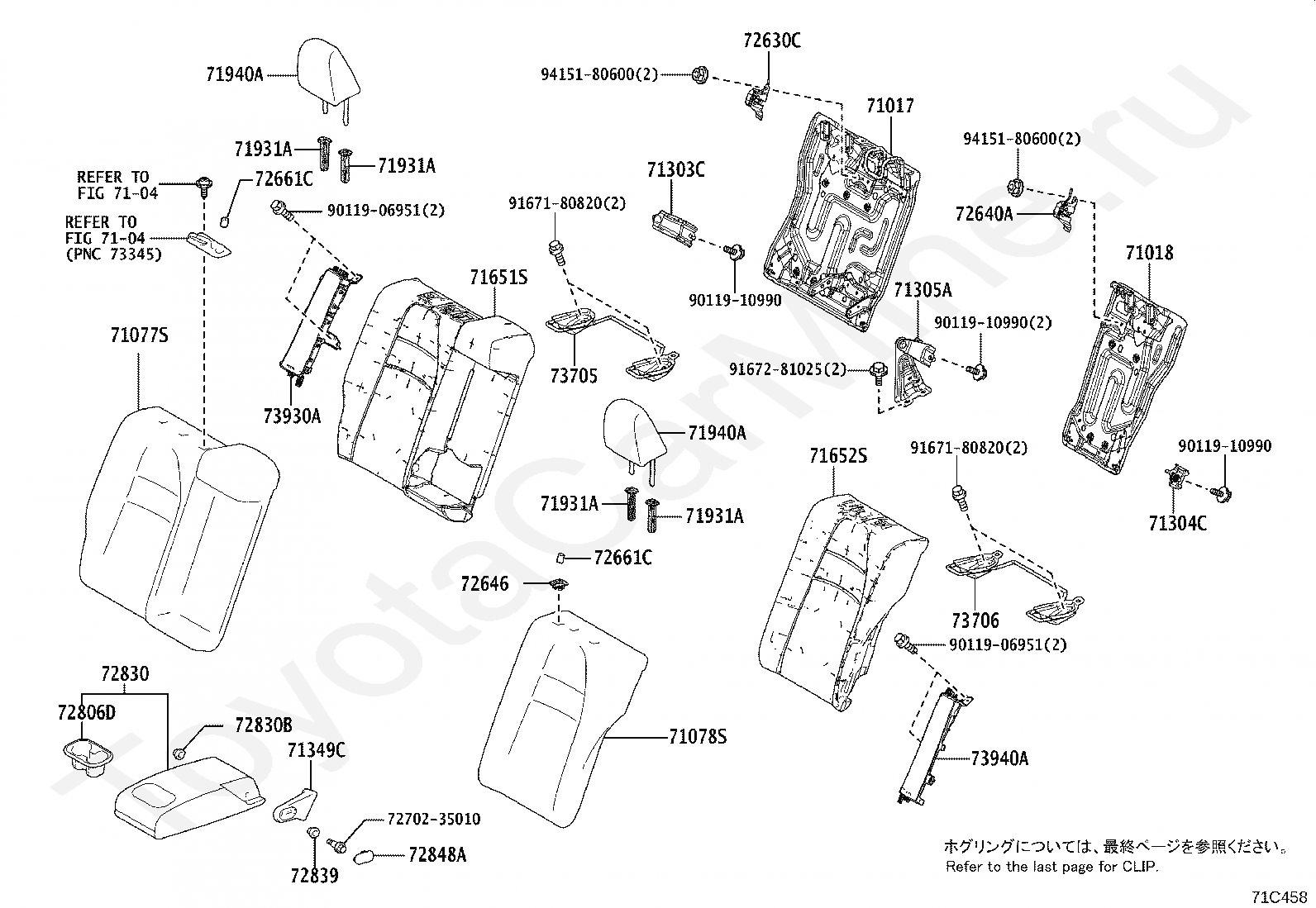

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71349C

COVER, REAR SEAT BACK HINGE

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

7270235010

Крепеж

72806D

HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

72830

ARMREST ASSY, REAR SEAT, CENTER

72830B

BUSH(FOR REAR SEAT CENTER ARMREST)

72839

SHIM, REAR SEAT ARMREST HINGE

72848A

CAP, SEAT ARMREST, NO.1

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

73706

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

73930A

AIR BAG ASSY, REAR SEAT, RH

73940A

AIR BAG ASSY, REAR SEAT, LH

9011906951

Крепеж

9011910990

Крепеж

9167180820

Крепеж

9167281025

Крепеж

9415180600

Крепеж

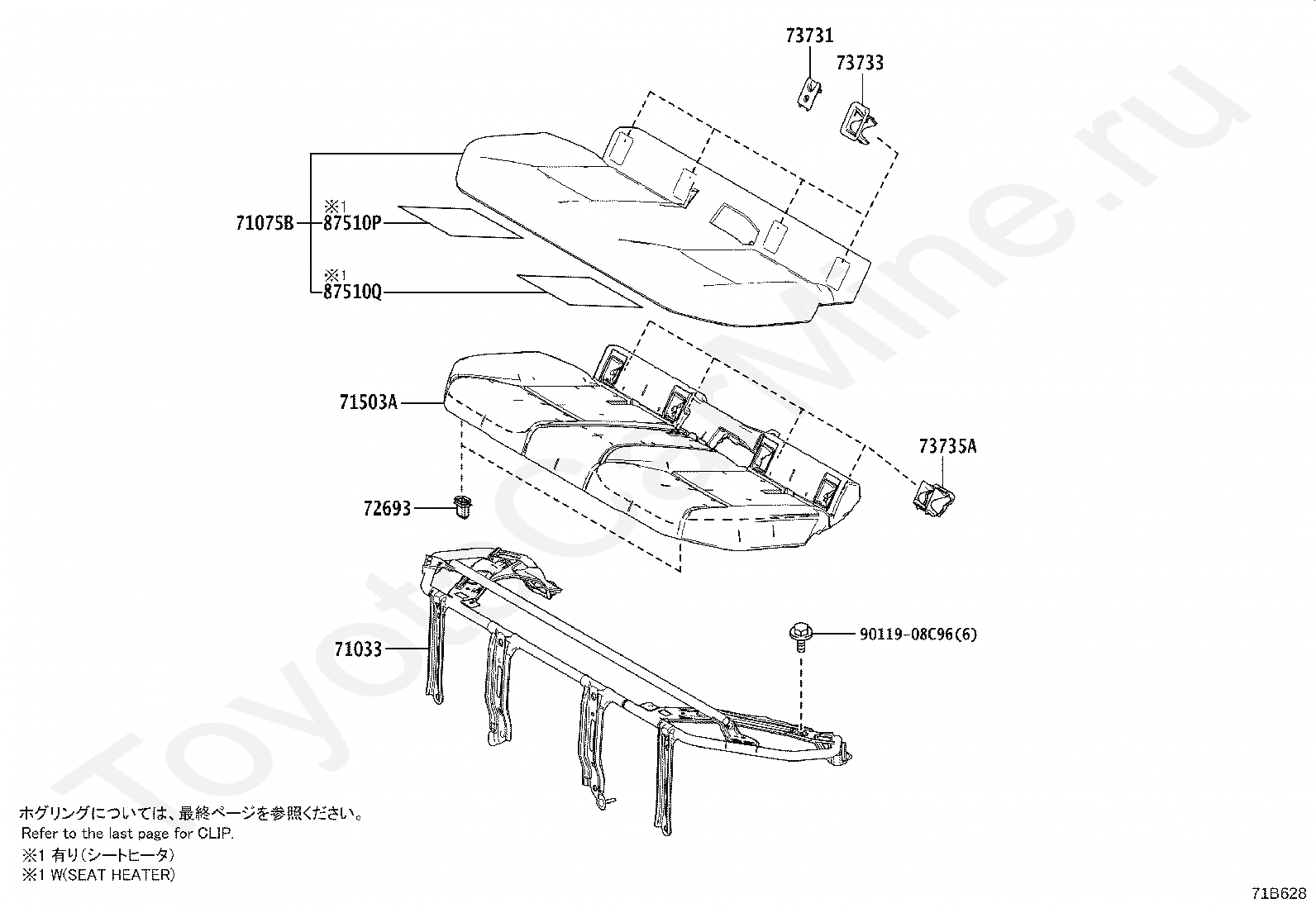

Код

Описание

71033

LEG SUB-ASSY, REAR SEAT CUSHION

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71503A

PAD SUB-ASSY, REAR SEAT CUSHION

72693

HOOK, REAR SEAT CUSHION LOCK

73731

COVER, CHILD RESTRAINT SEAT

73733

COVER, CHILD RESTRAINT SEAT BASE

73735A

CUP, CHILD RESTRAINT SEAT GUIDE

87510P

HEATER ASSY, SEAT

87510Q

HEATER ASSY, SEAT

9011908C96

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж
