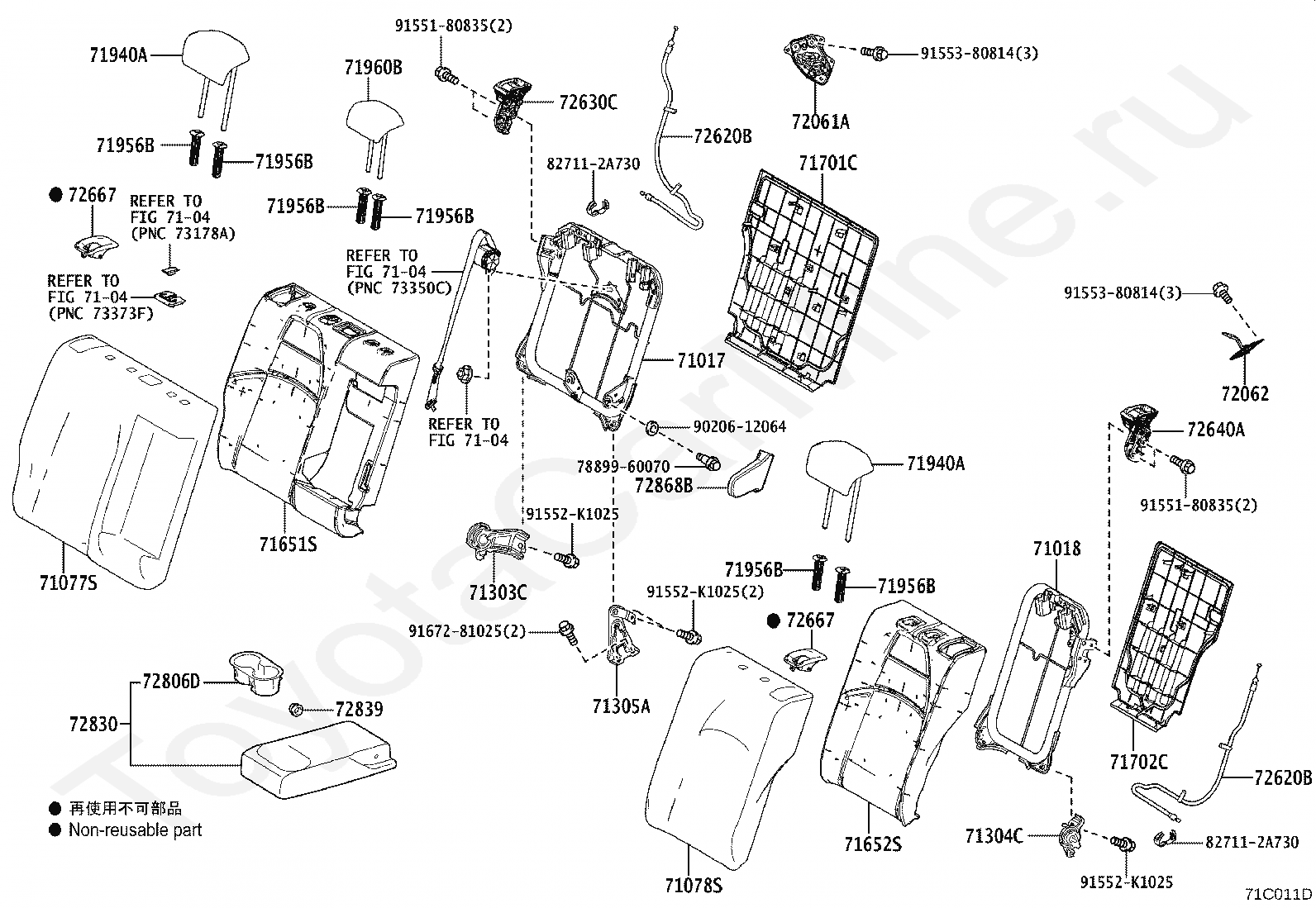

Задние кресла TOYOTA COROLLA/TOURING, 2019/09 - 2025, 1,8 литра, 16 клапанов, DOHC, EFI, фургон, ZRE212, вариатор

Каталог

Ближний Восток

Модель

COROLLA/TOURING

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Кузов

фургон

Фрейм

ZRE212

Трансмиссия

вариатор

Опции

правый руль 5 дверей N(MODEL MARK) 719W

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

7104

переход к группе запчастей

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71701C

BOARD SUB-ASSY, REAR SEAT BACK, RH

71702C

BOARD SUB-ASSY, REAR SEAT BACK, LH

71940A

HEADREST ASSY, REAR SEAT

71956B

SUPPORT, REAR SEAT HEADREST

71960B

HEADREST ASSY, REAR SEAT, CENTER

72061A

BASE SUB-ASSY, REAR SEAT BACK LOCK, RH

72062

BASE SUB-ASSY, REAR SEAT BACK LOCK, LH

72620B

CABLE ASSY, REAR NO.1 SEAT LOCK

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72667

BEZEL, REAR SEAT BACK LOCK, UPPER

72806D

HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

72830

ARMREST ASSY, REAR SEAT, CENTER

72839

SHIM, REAR SEAT ARMREST HINGE

72868B

COVER, CENTER ARMREST HINGE

7889960070

Крепеж

827112A730

Крепеж

9020612064

Крепеж

9155180835

Крепеж

91552K1025

Крепеж

9155380814

Крепеж

9167281025

Крепеж

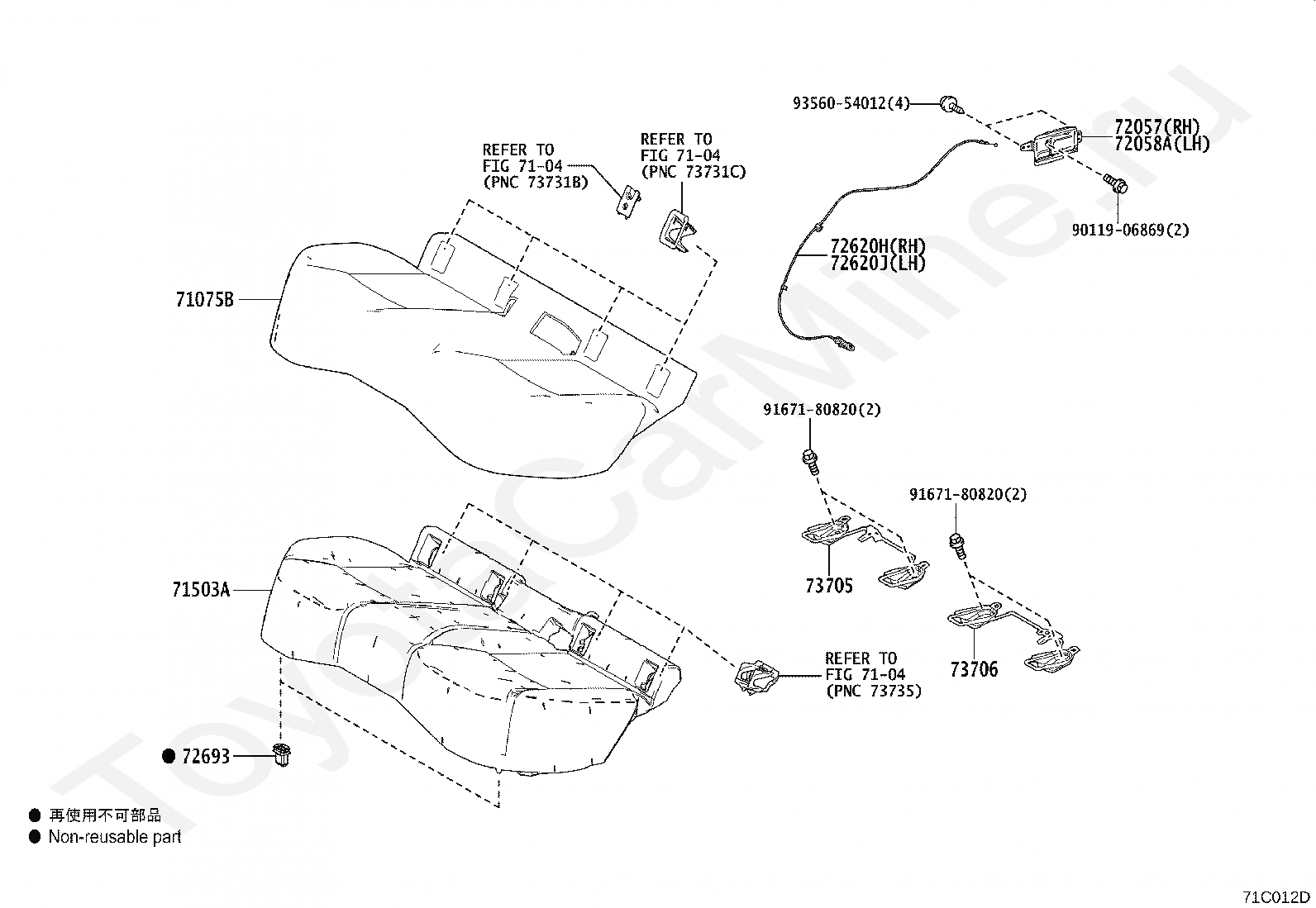

Код

Описание

7104

переход к группе запчастей

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71503A

PAD SUB-ASSY, REAR SEAT CUSHION

72057

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

72058A

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH

72620H

CABLE ASSY, REAR SEAT REMOTE FOLDING, RH

72620J

CABLE ASSY, REAR SEAT REMOTE FOLDING, LH

72693

HOOK, REAR SEAT CUSHION LOCK

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

73706

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

9011906869

Крепеж

9167180820

Крепеж

9356054012

Крепеж
