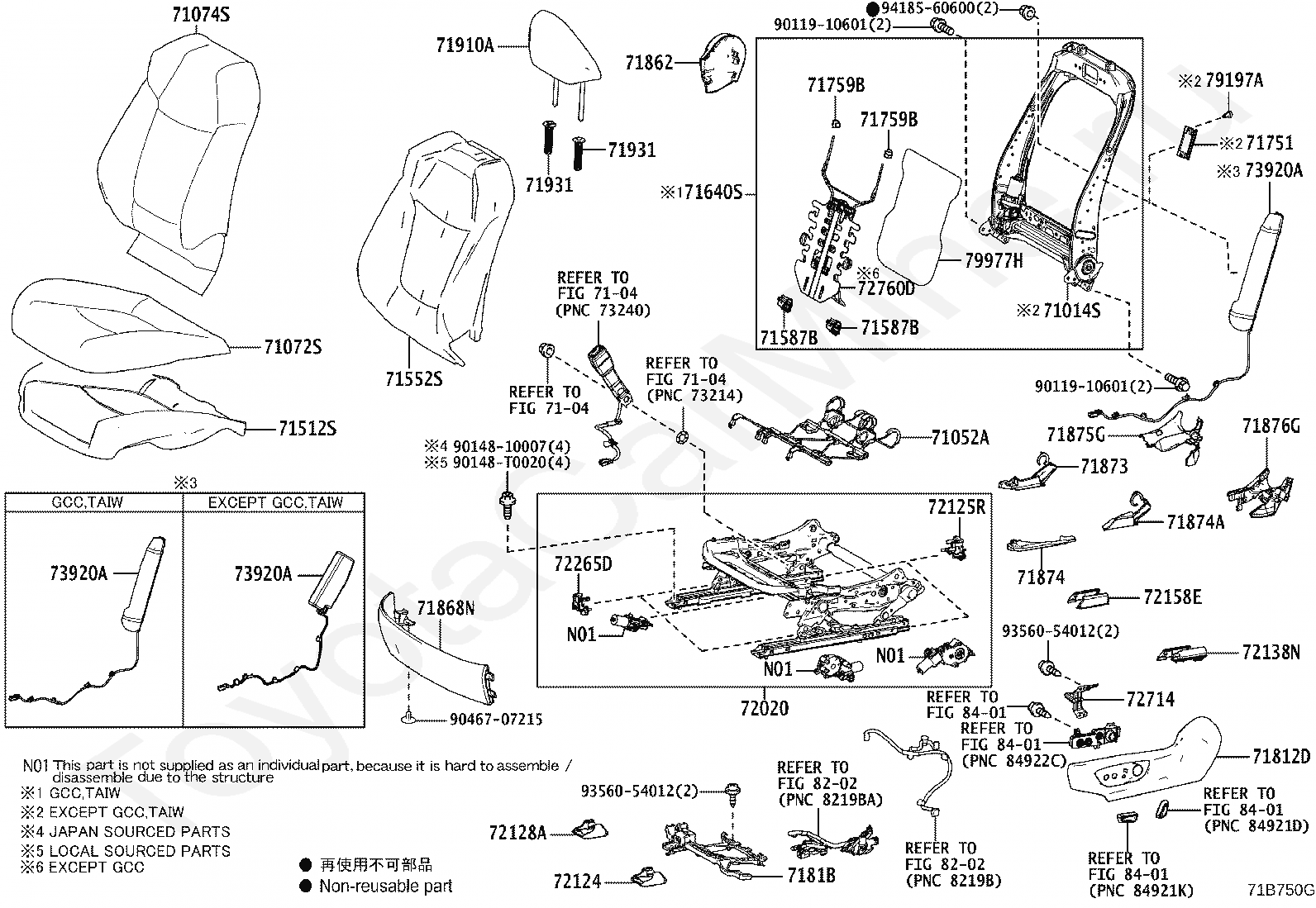

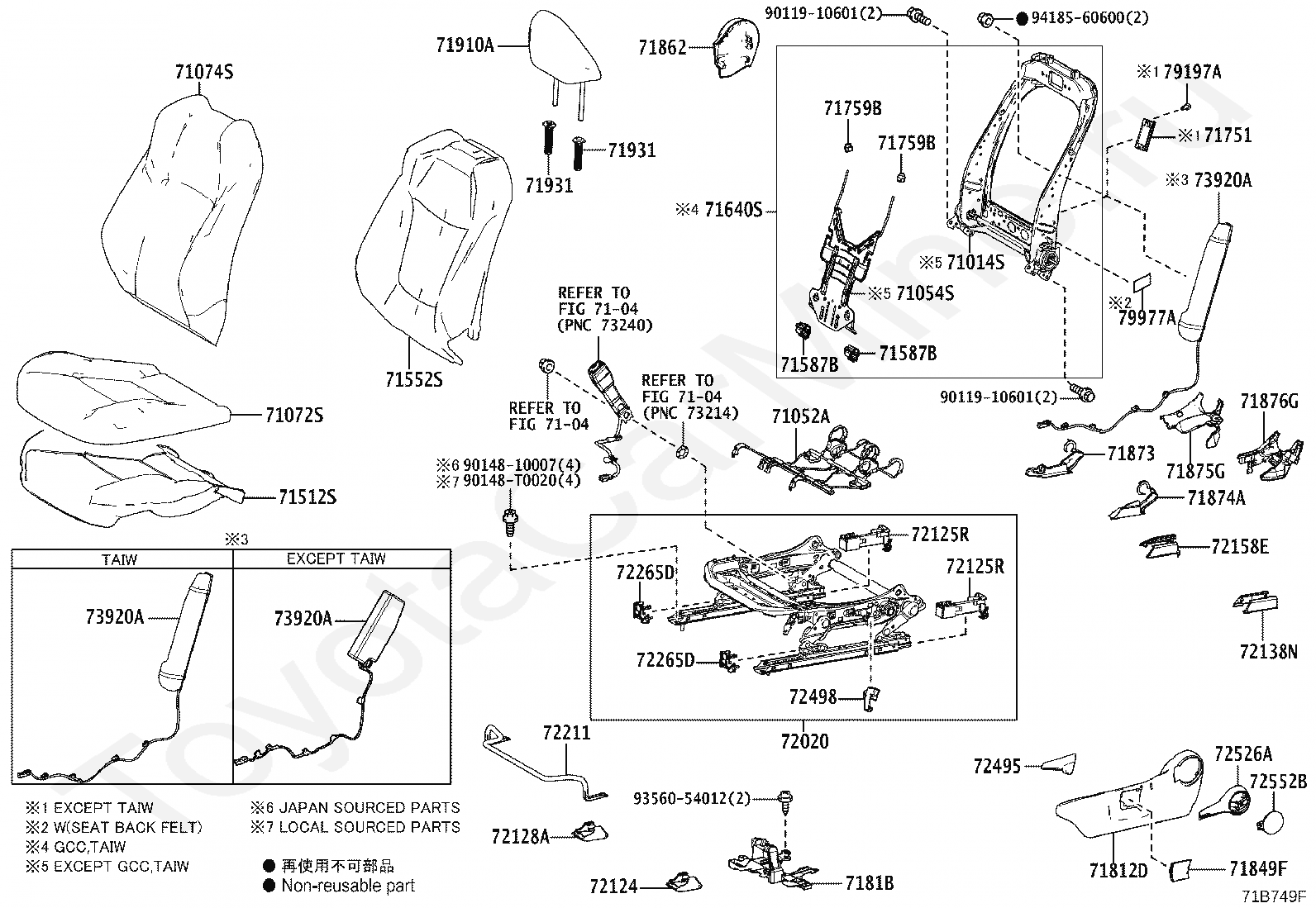

Передние кресла TOYOTA COROLLA/ALTIS, 2020/08 - 2025, 1500CC 12-VALVE DOHC, седан, MZEA11, вариатор

Каталог

Ближний Восток

Модель

COROLLA/ALTIS

Двигатель

1500CC 12-VALVE DOHC

Кузов

седан

Фрейм

MZEA11

Трансмиссия

вариатор

Опции

левый руль 4 двери N(MODEL MARK) страны Персидского залива 718W

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587B

PROTECTOR, FRONT SEAT BACK EDGE

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71751

HANGER, SEAT COVER

71759B

HOOK, FRONT SEAT BACK

71812D

SHIELD, FRONT SEAT CUSHION, LH

7181B

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

71849F

CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72020

ADJUSTER ASSY, FRONT SEAT, LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72125R

COVER, SEAT TRACK, UPPER REAR NO.1

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72138N

COVER, SEAT TRACK BRACKET, OUTER REAR LH

72158E

COVER, SEAT TRACK BRACKET, INNER REAR LH

72211

HANDLE, SEAT TRACK ADJUSTING

72265D

COVER, SEAT TRACK UPPER RAIL

72495

HANDLE, VERTICAL ADJUSTING, LH

72498

COVER, VERTICAL ADJUSTER BRACKET

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72552B

COVER, RECLINING HINGE, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

79197A

RIVET

79977A

FELT, SEAT BACK

9011910601

Крепеж

9014810007

Крепеж

90148T0020

Крепеж

9356054012

Крепеж

9418560600

Крепеж

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71587B

PROTECTOR, FRONT SEAT BACK EDGE

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71751

HANGER, SEAT COVER

71759B

HOOK, FRONT SEAT BACK

71812D

SHIELD, FRONT SEAT CUSHION, LH

7181B

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71868N

SHIELD, FRONT SEAT CUSHION, FRONT LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72020

ADJUSTER ASSY, FRONT SEAT, LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72125R

COVER, SEAT TRACK, UPPER REAR NO.1

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72138N

COVER, SEAT TRACK BRACKET, OUTER REAR LH

72158E

COVER, SEAT TRACK BRACKET, INNER REAR LH

72265D

COVER, SEAT TRACK UPPER RAIL

72714

BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

79197A

RIVET

79977H

FELT, FRONT SEAT BACK, LH

8202

переход к группе запчастей

8401

переход к группе запчастей

9011910601

Крепеж

9014810007

Крепеж

90148T0020

Крепеж

9046707215

Крепеж

9356054012

Крепеж

9418560600

Крепеж

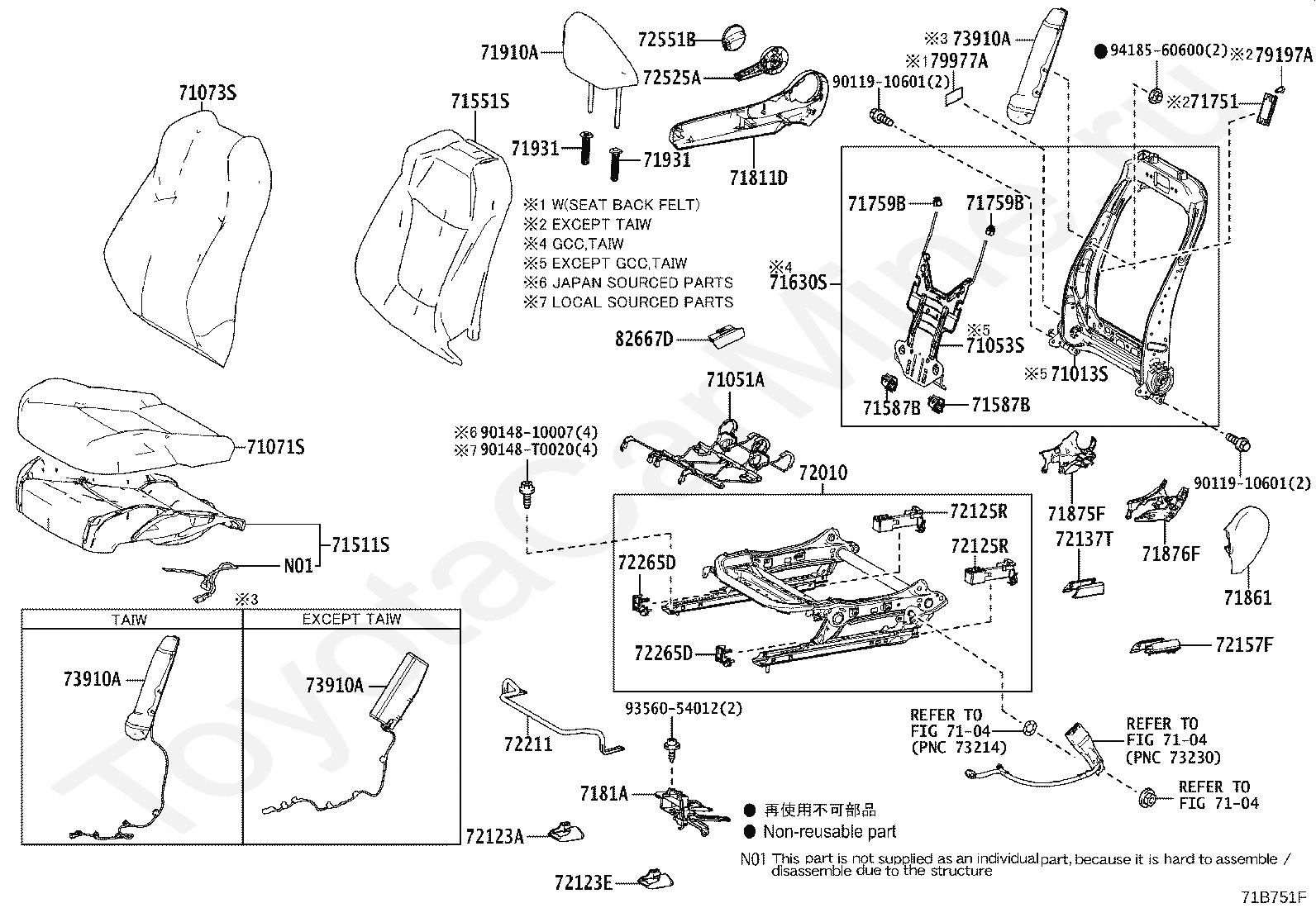

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

7104

переход к группе запчастей

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71587B

PROTECTOR, FRONT SEAT BACK EDGE

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71751

HANGER, SEAT COVER

71759B

HOOK, FRONT SEAT BACK

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181A

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72010

ADJUSTER ASSY, FRONT SEAT, RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72123E

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72125R

COVER, SEAT TRACK, UPPER REAR NO.1

72137T

COVER, SEAT TRACK BRACKET, OUTER REAR RH

72157F

COVER, SEAT TRACK BRACKET, INNER REAR RH

72211

HANDLE, SEAT TRACK ADJUSTING

72265D

COVER, SEAT TRACK UPPER RAIL

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72551B

COVER, RECLINING HINGE, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

79197A

RIVET

79977A

FELT, SEAT BACK

82667D

HOLDER, CONNECTOR

9011910601

Крепеж

9014810007

Крепеж

90148T0020

Крепеж

9356054012

Крепеж

9418560600

Крепеж

Передние кресла TOYOTA COROLLA/ALTIS, 2020/08 - 2025, 1500CC 12-VALVE DOHC, седан, MZEA11, вариатор
