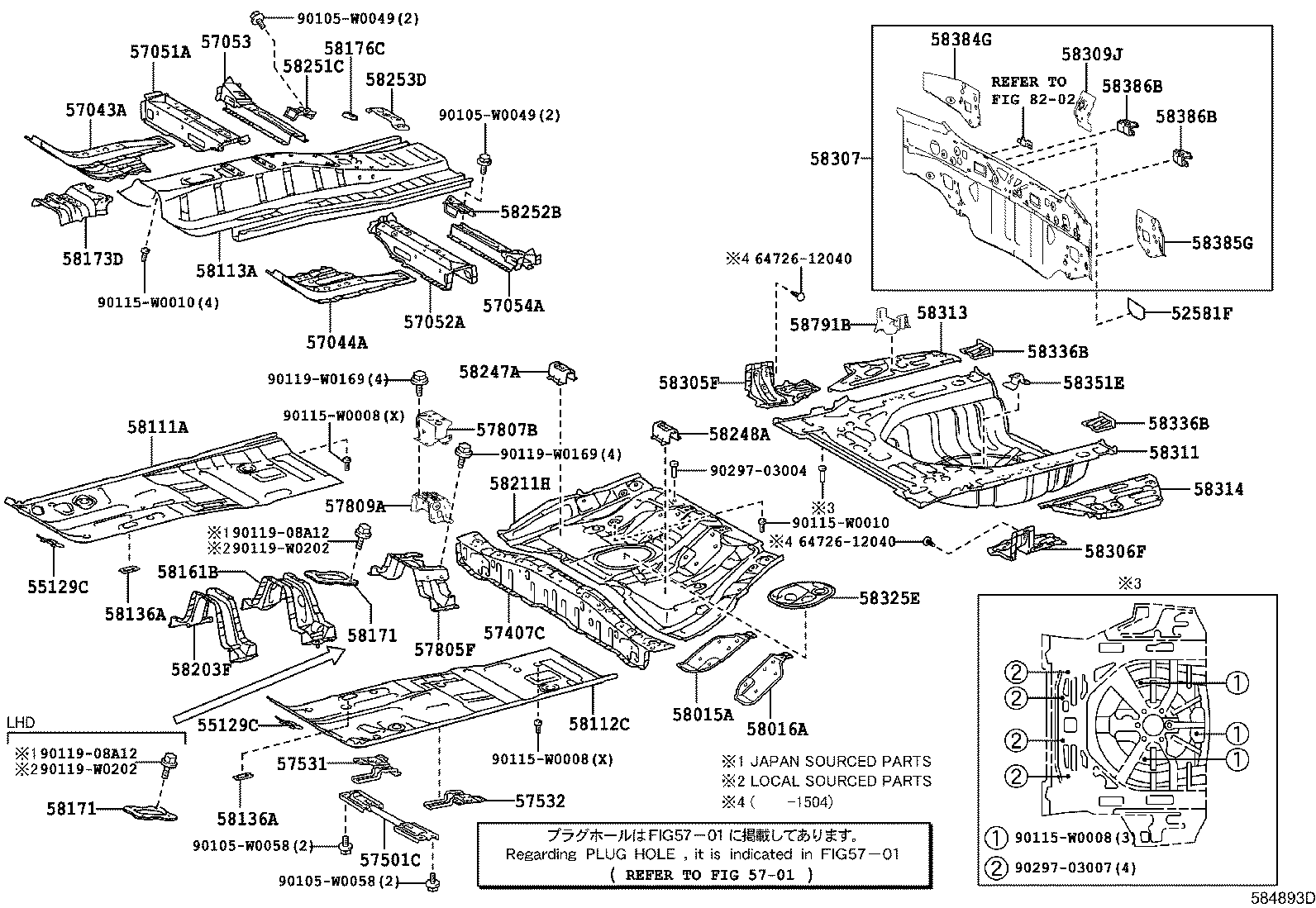

FLOOR PAN & LOWER BACK PANEL TOYOTA COROLLA, 2016/06 - 2025, 1,6 литра, 16 клапанов DOHC, EFI, GRAMS, ZRE181, вариатор

Каталог

Европа

Модель

COROLLA

Двигатель

1,6 литра, 16 клапанов DOHC, EFI

Класс

GRAMS

Фрейм

ZRE181

Трансмиссия

вариатор

Опции

левый руль Россия HIGH EFFICIENCY TWIN CAM 673W

Код

Описание

52581F

PROTECTOR, REAR BUMPER

55129C

COVER, DASH PANEL HOLE

5701

переход к группе запчастей

57043A

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

57044A

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

57051A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

57052A

MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

57053

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH

57054A

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH

57407C

MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

57501C

BRACE SUB-ASSY, FRONT FLOOR, CENTER

57531

BRACKET, FRONT FLOOR CENTER BRACE, RH

57532

BRACKET, FRONT FLOOR CENTER BRACE, LH

57805F

REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

57807B

REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.2

57809A

REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.3

58015A

REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

58016A

REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

58111A

PAN, FRONT FLOOR, RH

58112C

PAN, FRONT FLOOR, LH

58113A

PANEL, FRONT FLOOR, CENTER

58136A

COVER, FRONT FLOOR SERVICE HOLE

58161B

REINFORCEMENT, BELT ANCHOR TO FLOOR PAN

58171

REINFORCEMENT, PARKING BRAKE BASE

58173D

BRACKET, COMPUTER MOUNTING, NO.4

58176C

REINFORCEMENT, PARKING BRAKE BASE, NO.2

58203F

BRACKET SUB-ASSY, EXHAUST PIPE MOUNTING

58211H

PAN, CENTER FLOOR

58247A

REINFORCEMENT, REAR SEAT CUSHION HINGE, RH

58248A

REINFORCEMENT, REAR SEAT CUSHION HINGE, LH

58251C

BRACE, FLOOR PANEL, FRONT RH

58252B

BRACE, FLOOR PANEL, FRONT LH

58253D

BRACKET, PARKING BRAKE CABLE

58305F

PANEL SUB-ASSY, REAR FLOOR SIDE, RH

58306F

PANEL SUB-ASSY, REAR FLOOR SIDE, LH

58307

PANEL SUB-ASSY, BODY LOWER BACK

58309J

RETAINER SUB-ASSY, LUGGAGE DOOR LOCK STRIKER

58311

PAN, REAR FLOOR

58313

PANEL, REAR FLOOR SIDE, RH

58314

PANEL, REAR FLOOR SIDE, LH

58325E

COVER, REAR FLOOR SERVICE HOLE

58336B

REINFORCEMENT, REAR FLOOR PAN

58351E

BRACKET, SPARE WHEEL CLAMP

58384G

GUSSET, LOWER BACK, UPPER RH

58385G

GUSSET, LOWER BACK, UPPER LH

58386B

BRACKET, REAR BUMPER COVER, NO.2

58791B

CARRIER, JACK

6472612040

Крепеж

8202

переход к группе запчастей

90105W0049

Крепеж

90105W0058

Крепеж

90115W0008

Крепеж

90115W0010

Крепеж

9011908A12

Крепеж

90119W0169

Крепеж

90119W0202

Крепеж

9029703004

Крепеж

9029703007

Крепеж

Код

Описание

52161P

PIECE, REAR BUMPER

57627A

COVER, REAR FLOOR SIDE MEMBER, RH

57628C

COVER, REAR FLOOR SIDE MEMBER, LH

58165B

COVER, FRONT FLOOR, RH

58166

COVER, FRONT FLOOR, LH

58167C

COVER, FRONT FLOOR, CENTER RH

58167F

CLIP, NO.1(FOR FLOOR UNDER COVER)

58167G

CLIP, NO.2(FOR FLOOR UNDER COVER)

58168B

CLIP, NO.1(FOR FLOOR UNDER COVER)

58168C

COVER, FRONT FLOOR, CENTER LH

58168E

CLIP, NO.2(FOR FLOOR UNDER COVER)

58398A

CLIP, NO.3(FOR FLOOR UNDER COVER)

58398H

COVER, FLOOR UNDER, NO.1

58399B

COVER, FLOOR UNDER, NO.2

58399E

CLIP, NO.1(FOR FLOOR UNDER COVER)

9010906375

Крепеж

9010908252

Крепеж

9017906314

Крепеж

9046705145

Крепеж

9046707215

Крепеж

9056113003

Крепеж

FLOOR PAN & LOWER BACK PANEL TOYOTA COROLLA, 2016/06 - 2025, 1,6 литра, 16 клапанов DOHC, EFI, GRAMS, ZRE181, вариатор
