Воздушный фильтр TOYOTA COROLLA SED/LB, 1984/10 - 1987/04, 1,3 литра, POUNDS, XL SPECIFICATION, EE80, автомат, АКПП, 3 ступени

Каталог

Ближний Восток

Модель

COROLLA SED/LB

Двигатель

1,3 литра

Кузов

POUNDS

Класс

XL SPECIFICATION

Фрейм

EE80

Трансмиссия

автомат АКПП, 3 ступени

Опции

5 дверей левый руль GENERAL COUNTRIES

Код

Описание

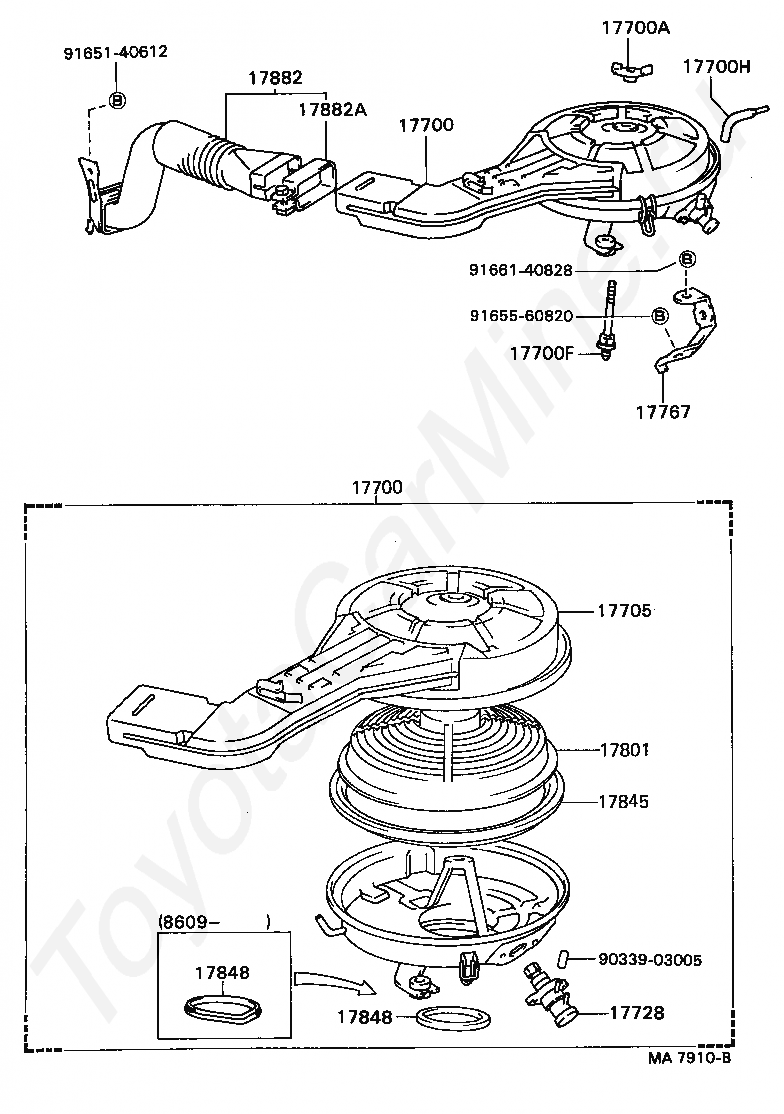

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17700H

HOSE, AIR

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17767

BRACKET, AIR CLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

17882

HOSE, AIR CLEANER, NO.2

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

9033903005

Крепеж

9165140612

Крепеж

9165560820

Крепеж

9166140828

Крепеж

Код

Описание

17061

DIAPHRAGM SUB-ASSY

17305

VALVE SUB-ASSY, REED

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17767

BRACKET, AIR CLEANER

17769

SUPPORT, AIR CLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

17882

HOSE, AIR CLEANER, NO.2

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

9033903005

Крепеж

9111140612

Крепеж

9165140612

Крепеж

9165560820

Крепеж

9166140828

Крепеж

Код

Описание

17061

DIAPHRAGM SUB-ASSY

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17700H

HOSE, AIR

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17767

BRACKET, AIR CLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

17882

HOSE, AIR CLEANER, NO.2

17882A

CLAMP(FOR AIR CLEANER HOSE, NO.2)

9165140612

Крепеж

9165560820

Крепеж

9166140828

Крепеж

Код

Описание

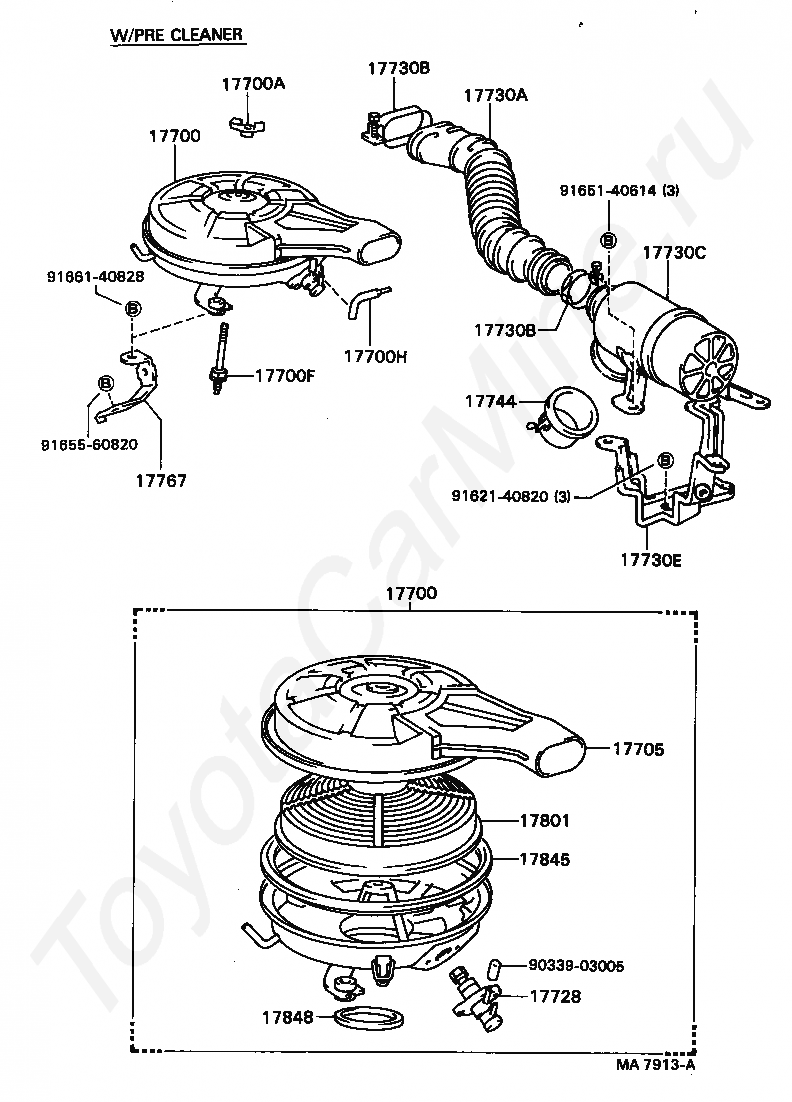

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17700H

HOSE, AIR

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17730A

HOSE, PRECLEANER

17730B

CLAMP, HOSE(FOR PRECLEANER HOSE)

17730C

CASE, PRECLEANER

17730E

BRACKET, PRECLEANER, NO.1

17744

CUP, PRECLEANER

17767

BRACKET, AIR CLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

9033903005

Крепеж

9162140820

Крепеж

9165140614

Крепеж

9165560820

Крепеж

9166140828

Крепеж

Код

Описание

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17700H

HOSE, AIR

17705

CAP SUB-ASSY, AIR CLEANER

17728

VALVE, THERMOSTATIC

17730

PRECLEANER ASSY, AIR W/HOSE

17730A

HOSE, PRECLEANER

17730B

CLAMP, HOSE(FOR PRECLEANER HOSE)

17730E

BRACKET, PRECLEANER, NO.1

17744

CUP, PRECLEANER

17767

BRACKET, AIR CLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

9011906185

Крепеж

9033903005

Крепеж

9161161018

Крепеж

9165560820

Крепеж

9165561025

Крепеж

9166140828

Крепеж
