Радиатор и шланги TOYOTA COROLLA HB (UKP), 2001/11 - 2007/02, 1,8 литра, 16 клапанов, DOHC, EFI, хетчбэк, TWEETER SPEAKER, ZZE123, механика, МКПП, 6 скоростей

Каталог

Европа

Модель

COROLLA HB (UKP)

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Кузов

хетчбэк

Класс

TWEETER SPEAKER

Фрейм

ZZE123

Трансмиссия

механика МКПП, 6 скоростей

Опции

EUROPE PRODUCT левый руль 3 двери TWIN CAM

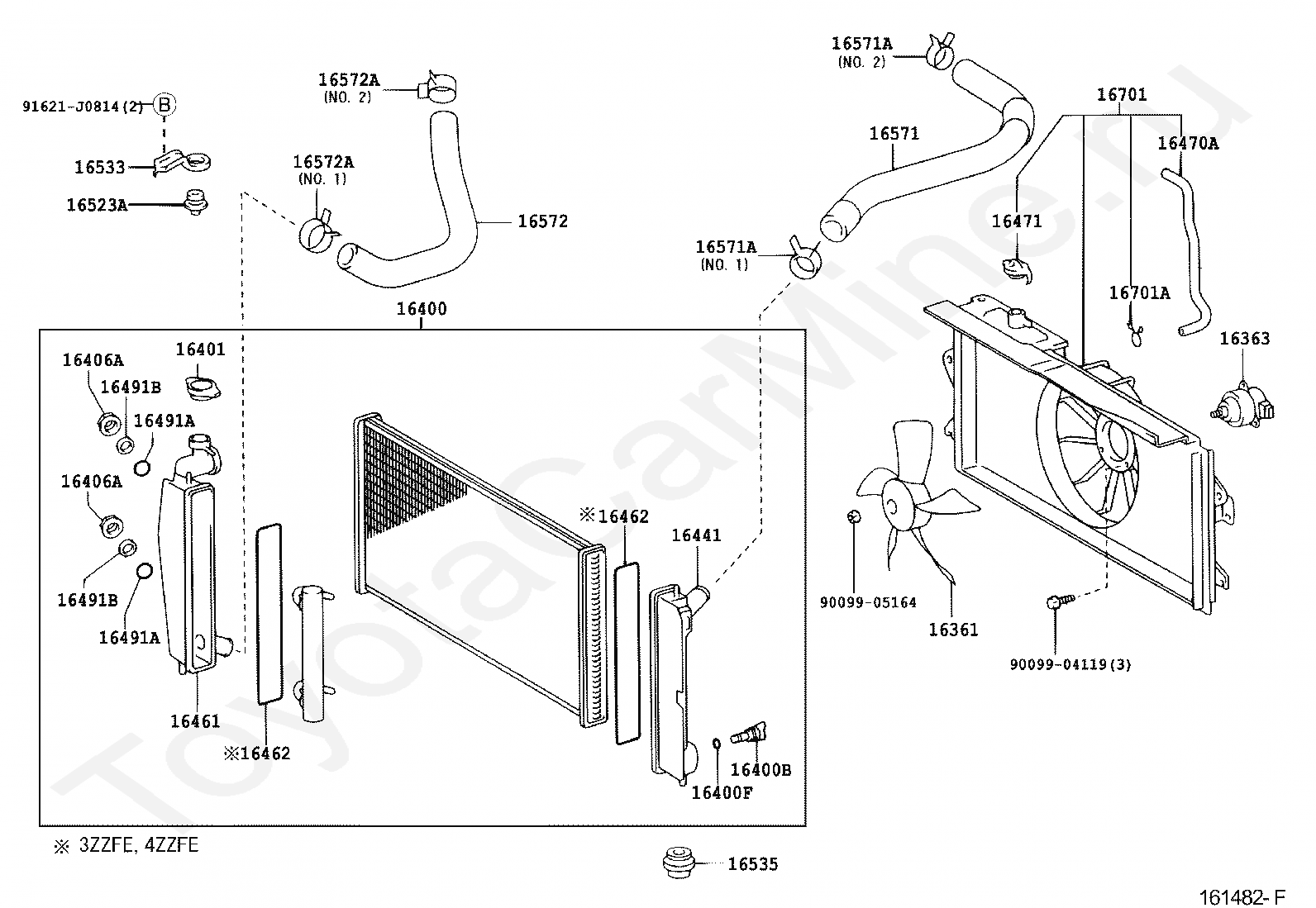

Код

Описание

16361

FAN

16363

MOTOR, COOLING FAN

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16406A

SUPPORT(FOR OIL COOLER)

16441

TANK, RADIATOR, UPPER

16461

TANK, RADIATOR, LOWER

16462

RING, O(FOR RADIATOR LOWER TANK)

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16471

CAP SUB-ASSY, RESERVE TANK

16491A

RING, O(FOR ATM OIL COOLER)

16491B

WASHER, PLATE(FOR ATM OIL COOLER)

16523A

CUSHION, RADIATOR SUPPORT

16533

SUPPORT, RADIATOR, UPPER

16535

SUPPORT, RADIATOR, LOWER

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16701

SHROUD SUB-ASSY, FAN

16701A

CLIP(FOR FAN SHROUD)

9009904119

Крепеж

9009905164

Крепеж

91621J0814

Крепеж

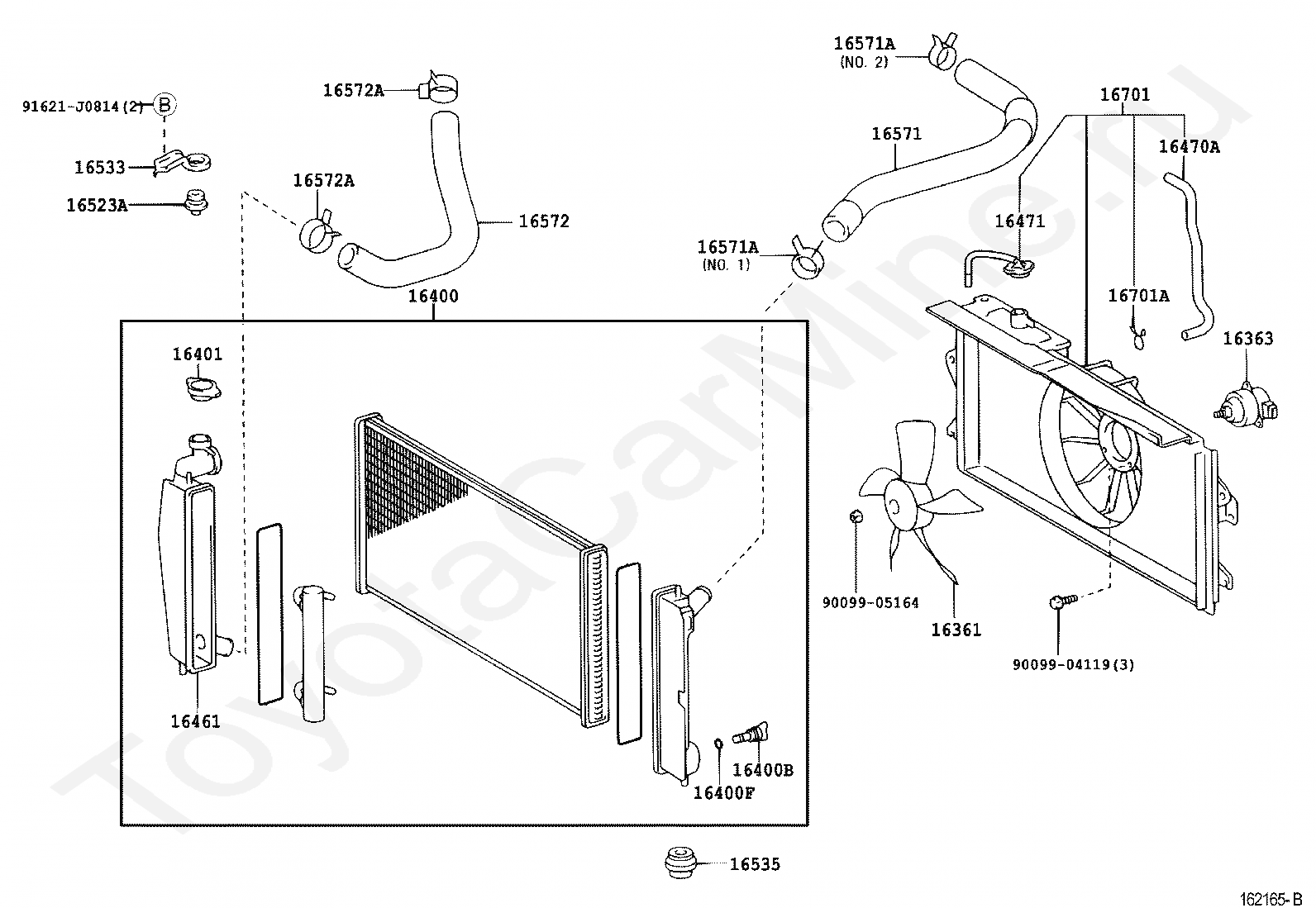

Код

Описание

16361

FAN

16363

MOTOR, COOLING FAN

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16461

TANK, RADIATOR, LOWER

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16471

CAP SUB-ASSY, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16533

SUPPORT, RADIATOR, UPPER

16535

SUPPORT, RADIATOR, LOWER

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16701

SHROUD SUB-ASSY, FAN

16701A

CLIP(FOR FAN SHROUD)

9009904119

Крепеж

9009905164

Крепеж

91621J0814

Крепеж

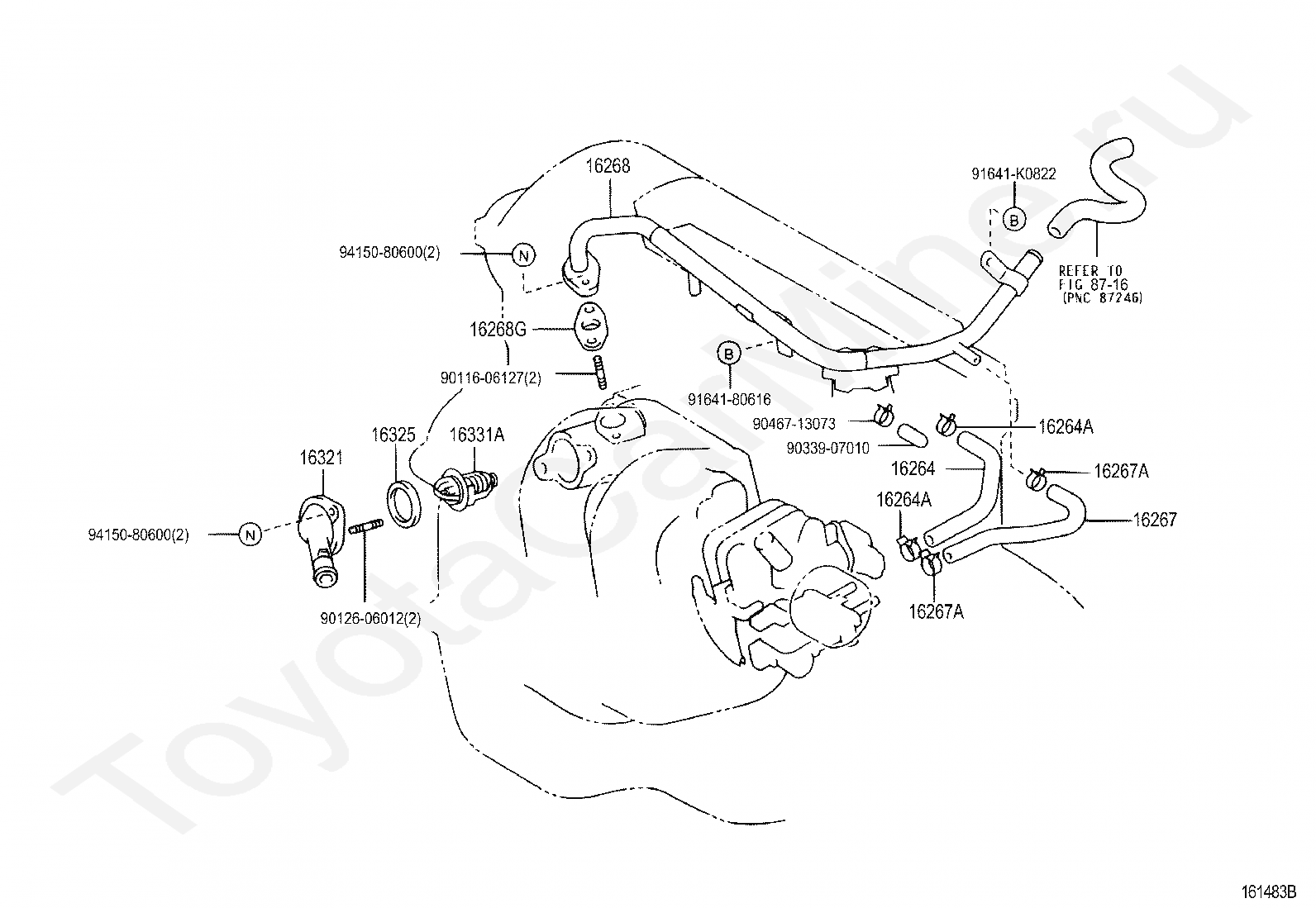

Код

Описание

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16268G

GASKET(FOR WATER BY-PASS PIPE)

16321

INLET, WATER

16325

GASKET, WATER INLET HOUSING, NO.1

16331A

THERMOSTAT

8716

переход к группе запчастей

9011606127

Крепеж

9012606012

Крепеж

9033907010

Крепеж

9046713073

Крепеж

9164180616

Крепеж

91641K0822

Крепеж

9415080600

Крепеж
