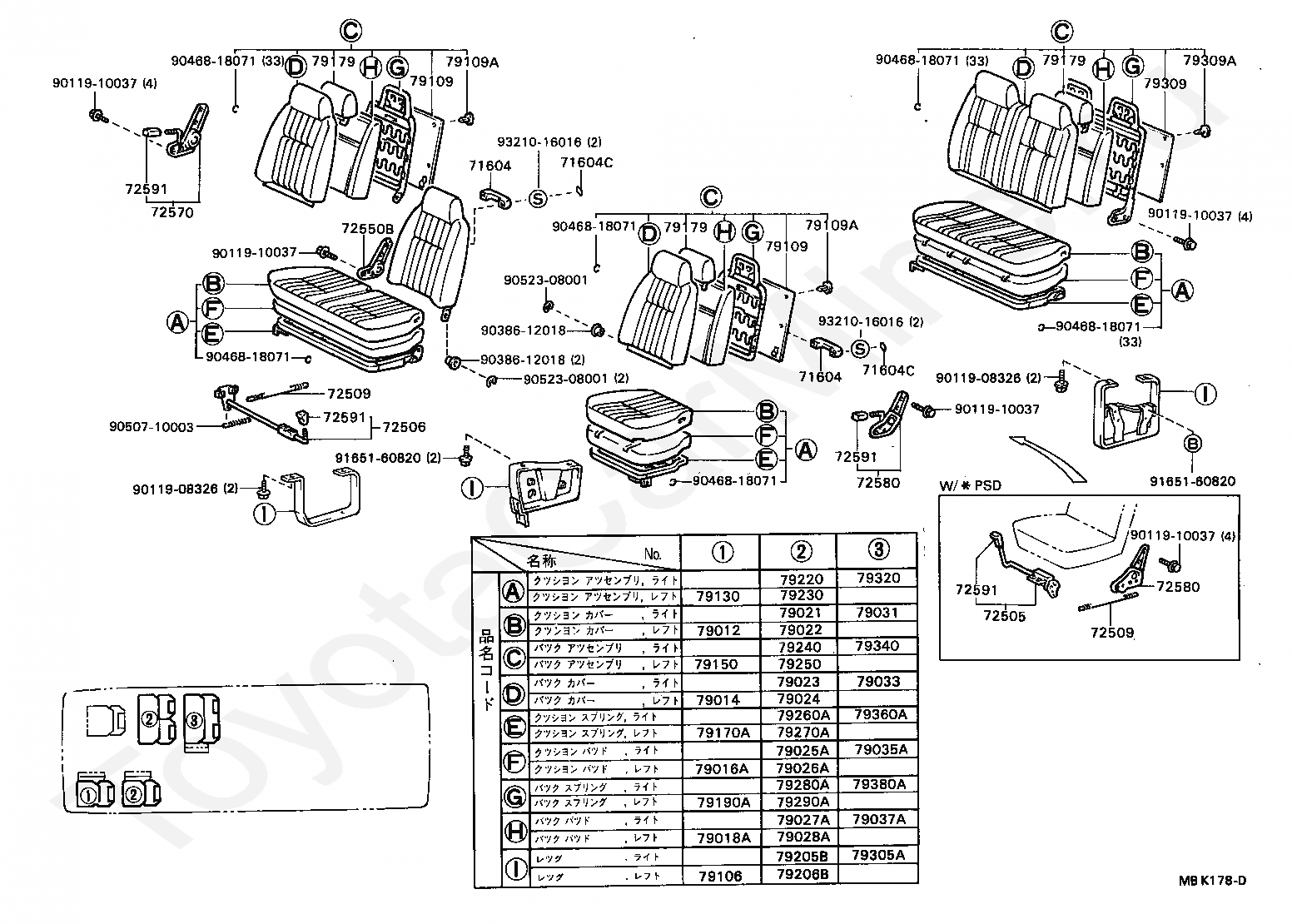

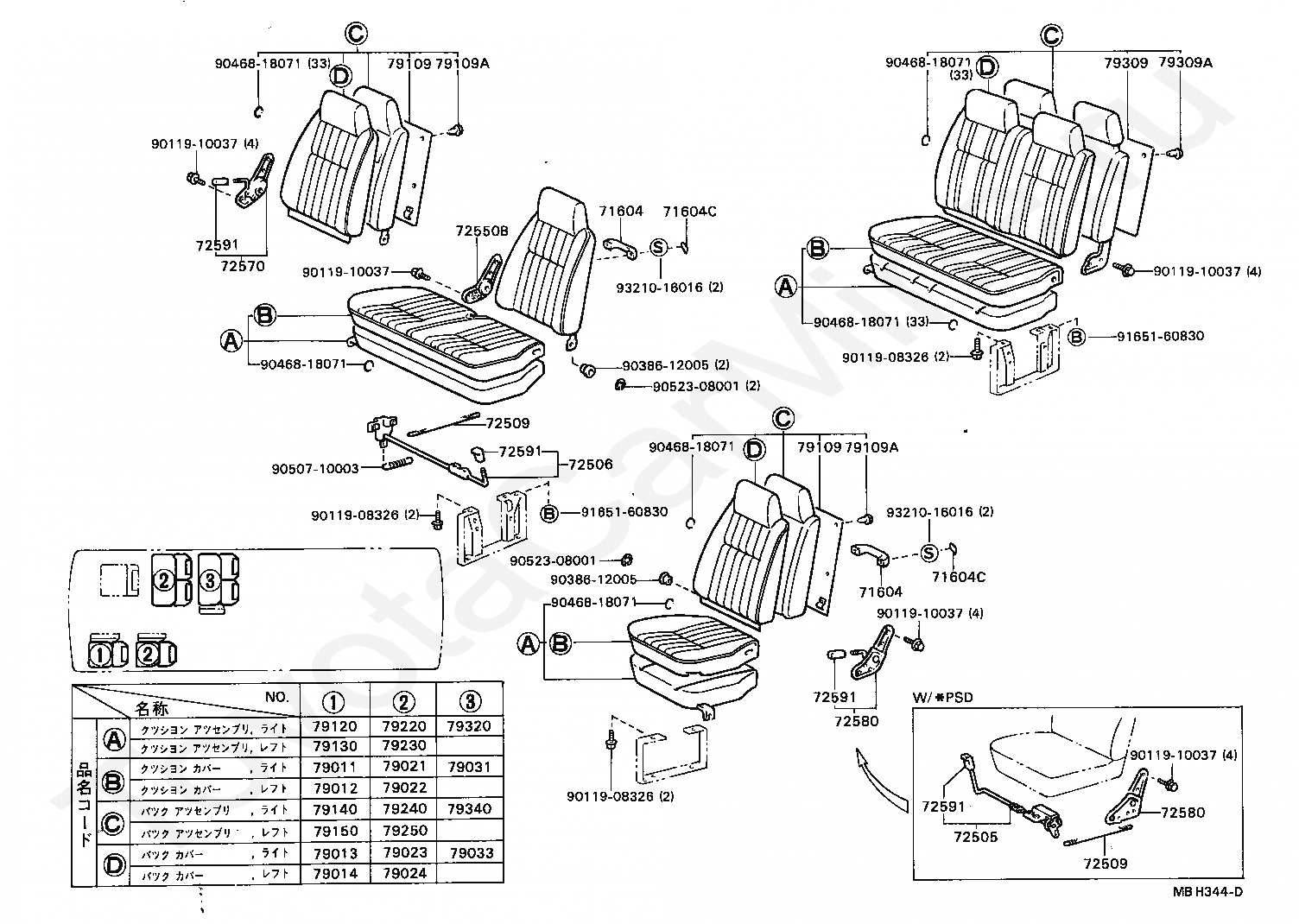

Кресла TOYOTA COASTER, 1984/08 - 1993/01, 3,4 литра, дизель, DELUX SPECIFICATION, BB26, МКПП, 5 скоростей

Каталог

Япония

Модель

COASTER

Двигатель

3,4 литра, дизель

Класс

DELUX SPECIFICATION

Фрейм

BB26

Трансмиссия

МКПП, 5 скоростей

Опции

высокая крыша 10-местный WITH COOLER COMPLETED VEHICLE

Код

Описание

55358D

PROTECTOR, EDGE

66990

HOLDER ASSY, CUP

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71950

HEADREST ASSY, FRONT SEAT

71956A

SUPPORT, FRONT SEAT HEADREST

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72130

TRACK ASSY, RH SEAT, INNER

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72510A

SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)

72524

HANDLE, RECLINING ADJUSTER RELEASE

72551

COVER, RECLINING HINGE, NO.1

78071

COVER SUB-ASSY, SUB SEAT CUSHION, RH

78072

COVER SUB-ASSY, SUB SEAT CUSHION, LH

78073

COVER SUB-ASSY, SUB SEAT BACK, RH

78074

COVER SUB-ASSY, SUB SEAT BACK, LH

78705

BRACKET SUB-ASSY, SUB SEAT CUSHION

78720

CUSHION ASSY, SUB SEAT, RH

78726

CUSHION, SUB SEAT CUSHION FRAME

78730

CUSHION ASSY, SUB SEAT, LH

78740A

BACK ASSY, SUB SEAT, RH

78750A

BACK ASSY, SUB SEAT, LH

78773A

HOOP, SUB SEAT BACK GUIDE

78798

SPACER, SUB SEAT BACK FRAME

9010110055

Крепеж

9011908079

Крепеж

9011908258

Крепеж

9011908301

Крепеж

9011910037

Крепеж

9015480045

Крепеж

9017908143

Крепеж

9024008044

Крепеж

9025508002

Крепеж

9038612005

Крепеж

9038908007

Крепеж

9038908037

Крепеж

9046816012

Крепеж

9046818071

Крепеж

9052308001

Крепеж

9056010026

Крепеж

9165140620

Крепеж

9165660830

Крепеж

9324955012

Крепеж

9351016020

Крепеж

9354055010

Крепеж

9356013520

Крепеж

9412041000

Крепеж

9454301200

Крепеж

9461120800

Крепеж

Код

Описание

71604

GRIP SUB-ASSY, ASSIST(FOR SEAT BACK)

71604C

PLUG, HOLE(FOR ASSIST GRIP)

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79109

BOARD SUB-ASSY, NO.1 SEAT BACK

79109A

CLIP (FOR NO.1 SEAT BACK BOARD)

79130

CUSHION ASSY, NO.1 SEAT, LH

79150

BACK ASSY, NO.1 SEAT, LH

79220

CUSHION ASSY, NO.2 SEAT, RH

79230

CUSHION ASSY, NO.2 SEAT, LH

79240

BACK ASSY, NO.2 SEAT, RH

79250

BACK ASSY, NO.2 SEAT, LH

79309

BOARD SUB-ASSY, NO.3 SEAT BACK

79309A

CLIP (FOR NO.3 SEAT BACK BOARD)

79320

CUSHION ASSY, NO.3 SEAT, RH

79340

BACK ASSY, NO.3 SEAT, RH

9011908326

Крепеж

9011910037

Крепеж

9046818071

Крепеж

9165160830

Крепеж

9321016016

Крепеж

Код

Описание

71604

GRIP SUB-ASSY, ASSIST(FOR SEAT BACK)

71604C

PLUG, HOLE(FOR ASSIST GRIP)

72505

ARM SUB-ASSY, RECLINING ADJUSTER, CENTER RH

72506

ARM SUB-ASSY, RECLINING ADJUSTER, CENTER LH

72509

WIRE SUB-ASSY, ADJUSTER EQULIZING

72550B

ADJUSTER ASSY, RECLINING SEAT, CENTER RH

72570

ADJUSTER ASSY, REAR RECLINING SEAT, RH

72580

ADJUSTER ASSY, REAR RECLINING SEAT, LH

72591

KNOB, RECLINING REMOTE CONTROL LEVER

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79109

BOARD SUB-ASSY, NO.1 SEAT BACK

79109A

CLIP (FOR NO.1 SEAT BACK BOARD)

79120

CUSHION ASSY, NO.1 SEAT, RH

79130

CUSHION ASSY, NO.1 SEAT, LH

79140

BACK ASSY, NO.1 SEAT, RH

79150

BACK ASSY, NO.1 SEAT, LH

79220

CUSHION ASSY, NO.2 SEAT, RH

79230

CUSHION ASSY, NO.2 SEAT, LH

79240

BACK ASSY, NO.2 SEAT, RH

79250

BACK ASSY, NO.2 SEAT, LH

79309

BOARD SUB-ASSY, NO.3 SEAT BACK

79309A

CLIP (FOR NO.3 SEAT BACK BOARD)

79320

CUSHION ASSY, NO.3 SEAT, RH

79340

BACK ASSY, NO.3 SEAT, RH

9011908326

Крепеж

9011910037

Крепеж

9038612005

Крепеж

9046818071

Крепеж

9050710003

Крепеж

9052308001

Крепеж

9165160830

Крепеж

9321016016

Крепеж

Код

Описание

55358D

PROTECTOR, EDGE

66990

HOLDER ASSY, CUP

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71109A

LEG SUB-ASSY, FRONT SEAT

71146

SILENCER, FRONT SEAT BACK

71148

SILENCER, FRONT SEAT CUSHION

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71572A

PAD, FRONT SEAT BACK SILENCER, B

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71950

HEADREST ASSY, FRONT SEAT

71956A

SUPPORT, FRONT SEAT HEADREST

72110S

TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

72130

TRACK ASSY, RH SEAT, INNER

72510

ADJUSTER ASSY, RECLINING SEAT BACK, RH

72510A

SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)

72524

HANDLE, RECLINING ADJUSTER RELEASE

72551

COVER, RECLINING HINGE, NO.1

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

72791

LEVER, LUMBAR SUPPORT

78071

COVER SUB-ASSY, SUB SEAT CUSHION, RH

78072

COVER SUB-ASSY, SUB SEAT CUSHION, LH

78073

COVER SUB-ASSY, SUB SEAT BACK, RH

78074

COVER SUB-ASSY, SUB SEAT BACK, LH

78077

BOARD SUB-ASSY, SUB SEAT CUSHION

78701

FRAME SUB-ASSY, SUB SEAT CUSHION, RH

78702

FRAME SUB-ASSY, SUB SEAT CUSHION, LH

78703

FRAME SUB-ASSY, SUB SEAT BACK

78705

BRACKET SUB-ASSY, SUB SEAT CUSHION

78707

FRAME SUB-ASSY, SUB SEAT BACK, LOWER RH

78708

FRAME SUB-ASSY, SUB SEAT BACK, LOWER LH

78709

PANEL SUB-ASSY, SUB SEAT CUSHION

78720

CUSHION ASSY, SUB SEAT, RH

78726

CUSHION, SUB SEAT CUSHION FRAME

78730

CUSHION ASSY, SUB SEAT, LH

78735

PAD, SUB SEAT CUSHION

78740A

BACK ASSY, SUB SEAT, RH

78750A

BACK ASSY, SUB SEAT, LH

78773A

HOOP, SUB SEAT BACK GUIDE

78775

PAD, SUB SEAT BACK

78798

SPACER, SUB SEAT BACK FRAME

9010110055

Крепеж

9011908079

Крепеж

9011908258

Крепеж

9011908301

Крепеж

9011910037

Крепеж

9015480045

Крепеж

9017908143

Крепеж

9024008044

Крепеж

9025508002

Крепеж

9025508007

Крепеж

9038608053

Крепеж

9038612005

Крепеж

9038908007

Крепеж

9038908037

Крепеж

9046816012

Крепеж

9046818071

Крепеж

9052001002

Крепеж

9052308001

Крепеж

9056010026

Крепеж

9165140620

Крепеж

9165660830

Крепеж

9324955012

Крепеж

9338616016

Крепеж

9351016020

Крепеж

9354055010

Крепеж

9356013520

Крепеж

9412041000

Крепеж

9454301200

Крепеж

9461120800

Крепеж

Код

Описание

71604

GRIP SUB-ASSY, ASSIST(FOR SEAT BACK)

71604C

PLUG, HOLE(FOR ASSIST GRIP)

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79016A

PAD SUB-ASSY, NO.1 SEAT CUSHION, LH

79018A

PAD SUB-ASSY, NO.1 SEAT BACK, LH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79025A

PAD SUB-ASSY, NO.2 SEAT CUSHION, RH

79026A

PAD SUB-ASSY, NO.2 SEAT CUSHION, LH

79027A

PAD SUB-ASSY, NO.2 SEAT BACK, RH

79028A

PAD SUB-ASSY, NO.2 SEAT BACK, LH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79035A

PAD SUB-ASSY, NO.3 SEAT CUSHION, RH

79037A

PAD SUB-ASSY, NO.3 SEAT BACK, RH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79109

BOARD SUB-ASSY, NO.1 SEAT BACK

79109A

CLIP (FOR NO.1 SEAT BACK BOARD)

79130

CUSHION ASSY, NO.1 SEAT, LH

79150

BACK ASSY, NO.1 SEAT, LH

79170A

SPRING ASSY, NO.1 SEAT CUSUION, LH

79179

PAD, NO.1 SEAT BACK HEADREST

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

79205B

LEG SUB-ASSY, NO.2 SEAT, RH

79206B

LEG SUB-ASSY, NO.2 SEAT, LH

79220

CUSHION ASSY, NO.2 SEAT, RH

79230

CUSHION ASSY, NO.2 SEAT, LH

79240

BACK ASSY, NO.2 SEAT, RH

79250

BACK ASSY, NO.2 SEAT, LH

79260A

SPRING ASSY, NO.2 SEAT CUSHION, RH

79270A

SPRING ASSY, NO.2 SEAT CUSHION, LH

79280A

SPRING ASSY, NO.2 SEAT BACK, RH

79290A

SPRING ASSY, NO.2 SEAT BACK, LH

79305A

LEG SUB-ASSY, NO.3 SEAT, RH

79309

BOARD SUB-ASSY, NO.3 SEAT BACK

79309A

CLIP (FOR NO.3 SEAT BACK BOARD)

79320

CUSHION ASSY, NO.3 SEAT, RH

79340

BACK ASSY, NO.3 SEAT, RH

79360A

SPRING ASSY, NO.3 SEAT CUSHION, RH

79380A

SPRING ASSY, NO.3 SEAT BACK, RH

9011908326

Крепеж

9011910037

Крепеж

9046818071

Крепеж

9165160820

Крепеж

9321016016

Крепеж

Код

Описание

71604

GRIP SUB-ASSY, ASSIST(FOR SEAT BACK)

71604C

PLUG, HOLE(FOR ASSIST GRIP)

72505

ARM SUB-ASSY, RECLINING ADJUSTER, CENTER RH

72506

ARM SUB-ASSY, RECLINING ADJUSTER, CENTER LH

72509

WIRE SUB-ASSY, ADJUSTER EQULIZING

72550B

ADJUSTER ASSY, RECLINING SEAT, CENTER RH

72570

ADJUSTER ASSY, REAR RECLINING SEAT, RH

72580

ADJUSTER ASSY, REAR RECLINING SEAT, LH

72591

KNOB, RECLINING REMOTE CONTROL LEVER

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79016A

PAD SUB-ASSY, NO.1 SEAT CUSHION, LH

79018A

PAD SUB-ASSY, NO.1 SEAT BACK, LH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79025A

PAD SUB-ASSY, NO.2 SEAT CUSHION, RH

79026A

PAD SUB-ASSY, NO.2 SEAT CUSHION, LH

79027A

PAD SUB-ASSY, NO.2 SEAT BACK, RH

79028A

PAD SUB-ASSY, NO.2 SEAT BACK, LH

79031

COVER SUB-ASSY, NO.3 SEAT CUSHION, RH

79033

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79035A

PAD SUB-ASSY, NO.3 SEAT CUSHION, RH

79037A

PAD SUB-ASSY, NO.3 SEAT BACK, RH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79109

BOARD SUB-ASSY, NO.1 SEAT BACK

79109A

CLIP (FOR NO.1 SEAT BACK BOARD)

79130

CUSHION ASSY, NO.1 SEAT, LH

79150

BACK ASSY, NO.1 SEAT, LH

79170A

SPRING ASSY, NO.1 SEAT CUSUION, LH

79179

PAD, NO.1 SEAT BACK HEADREST

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

79205B

LEG SUB-ASSY, NO.2 SEAT, RH

79206B

LEG SUB-ASSY, NO.2 SEAT, LH

79220

CUSHION ASSY, NO.2 SEAT, RH

79230

CUSHION ASSY, NO.2 SEAT, LH

79240

BACK ASSY, NO.2 SEAT, RH

79250

BACK ASSY, NO.2 SEAT, LH

79260A

SPRING ASSY, NO.2 SEAT CUSHION, RH

79270A

SPRING ASSY, NO.2 SEAT CUSHION, LH

79280A

SPRING ASSY, NO.2 SEAT BACK, RH

79290A

SPRING ASSY, NO.2 SEAT BACK, LH

79305A

LEG SUB-ASSY, NO.3 SEAT, RH

79309

BOARD SUB-ASSY, NO.3 SEAT BACK

79309A

CLIP (FOR NO.3 SEAT BACK BOARD)

79320

CUSHION ASSY, NO.3 SEAT, RH

79340

BACK ASSY, NO.3 SEAT, RH

79360A

SPRING ASSY, NO.3 SEAT CUSHION, RH

79380A

SPRING ASSY, NO.3 SEAT BACK, RH

9011908326

Крепеж

9011910037

Крепеж

9038612018

Крепеж

9046818071

Крепеж

9050710003

Крепеж

9052308001

Крепеж

9165160820

Крепеж

9321016016

Крепеж

Код

Описание

9011908258

Крепеж

9011908300

Крепеж

9011908301

Крепеж

9011908325

Крепеж

9011908326

Крепеж

9011908365

Крепеж

Кресла TOYOTA COASTER, 1984/08 - 1993/01, 3,4 литра, дизель, DELUX SPECIFICATION, BB26, МКПП, 5 скоростей

Товар добавлен в корзину!

Заполните форму
