Каталог
ЕвропаМодель
COASTERДвигатель
4,2 литра, дизельКласс
STANDARD TYPEФрейм
HZB50Трансмиссия
автомат АКПП, 4 ступениОпции
правый руль высокая крыша 22-местный WITH COOLER GEN CBU DSL

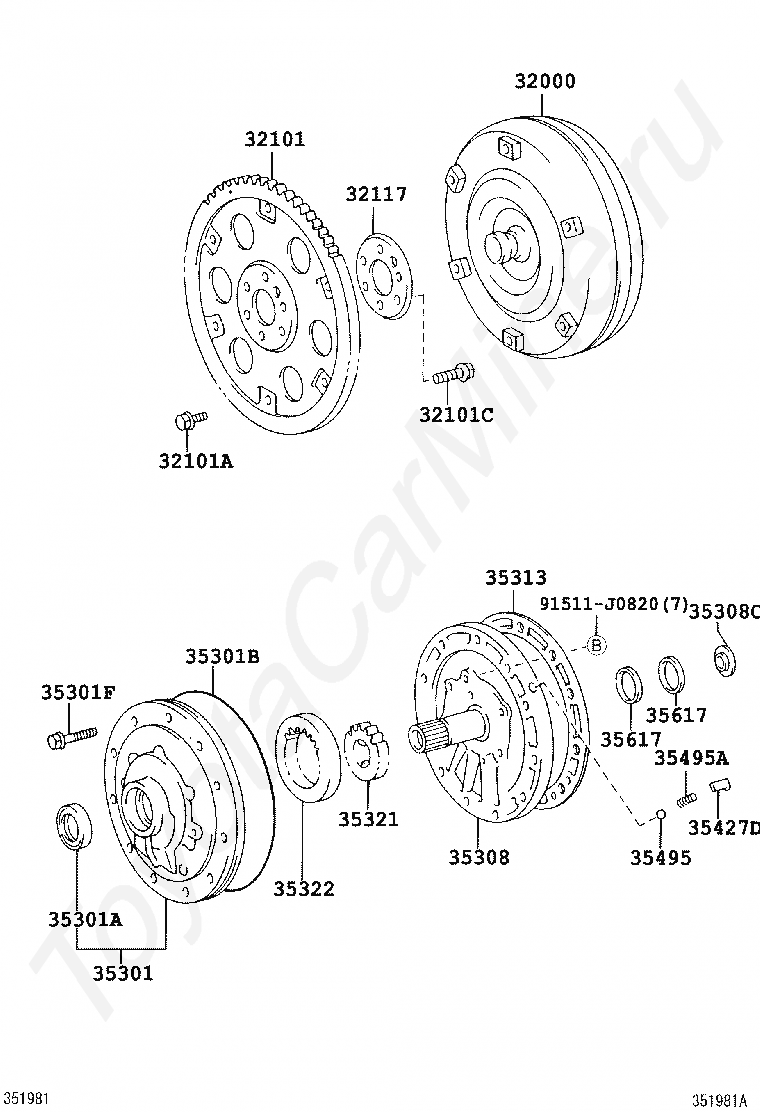

Код
Описание
32000
CONVERTER ASSY, TORQUE
32101
GEAR SUB-ASSY, DRIVE PLATE & RING
32101A
BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
32101C
BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
32117
SPACER, DRIVE PLATE, REAR
35035
BODY SUB-ASSY, FR OIL PUMP & GEAR
35301A
SEAL, OIL (FOR FRONT OIL PUMP)
35301B
RING, O (FOR FRONT OIL PUMP BODY)
35301F
BOLT (FOR FRONT OIL PUMP SETTING)
35308
COVER SUB-ASSY, FRONT OIL PUMP
35308C
RACE, THRUST BEARING (FOR FRONT OIL PUMP COVER)
35313
GASKET, FRONT OIL PUMP COVER
35321
GEAR, FRONT OIL PUMP DRIVE
35322
GEAR, FRONT OIL PUMP DRIVEN
35427D
SEAT, CHECK VALVE SPRING
35495
BALL, CHECK
35495A
SPRING, COMPRESSION (FOR CHECK BALL)
35617
RING, CLUTCH DRUM OIL SEAL
9151160620
Крепеж
9151160820
Крепеж
Код
Описание
32000
CONVERTER ASSY, TORQUE
32101
GEAR SUB-ASSY, DRIVE PLATE & RING
32101A
BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
32101C
BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
32117
SPACER, DRIVE PLATE, REAR
35301
BODY SUB-ASSY, FRONT OIL PUMP
35301A
SEAL, OIL (FOR FRONT OIL PUMP)
35301B
RING, O (FOR FRONT OIL PUMP BODY)
35301F
BOLT (FOR FRONT OIL PUMP SETTING)
35308
COVER SUB-ASSY, FRONT OIL PUMP
35308C
RACE, THRUST BEARING (FOR FRONT OIL PUMP COVER)
35313
GASKET, FRONT OIL PUMP COVER
35321
GEAR, FRONT OIL PUMP DRIVE
35322
GEAR, FRONT OIL PUMP DRIVEN
35427D
SEAT, CHECK VALVE SPRING
35495
BALL, CHECK
35495A
SPRING, COMPRESSION (FOR CHECK BALL)
35617
RING, CLUTCH DRUM OIL SEAL
91511J0820
Крепеж
